Summit HB Series Horizontal Boring Mill

Stock #: Summit-HB

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-HB
Brand: Summit
Model: HB Series Horizontal Boring Mill

Specifications

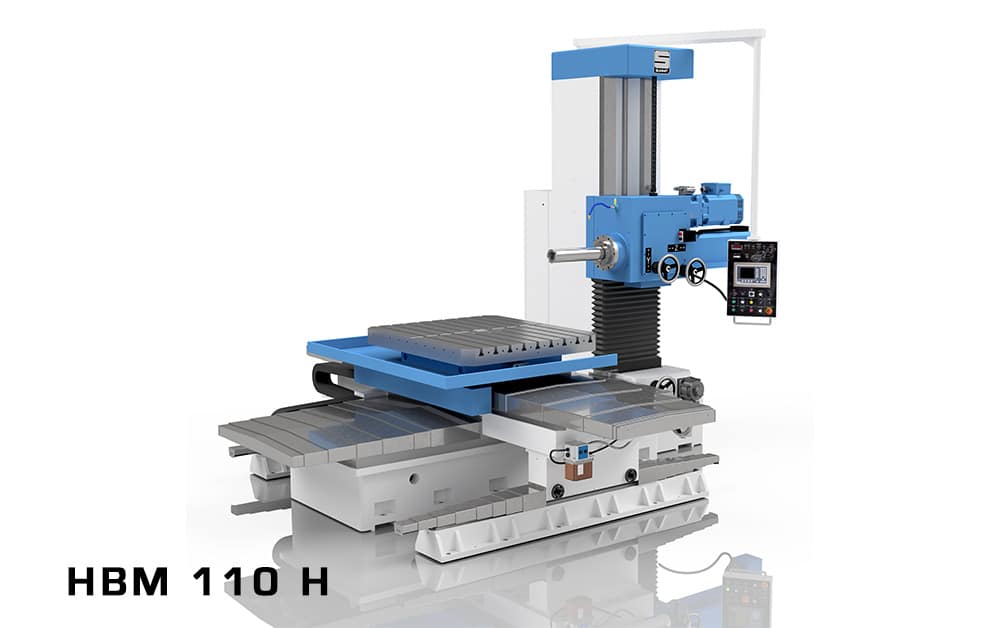

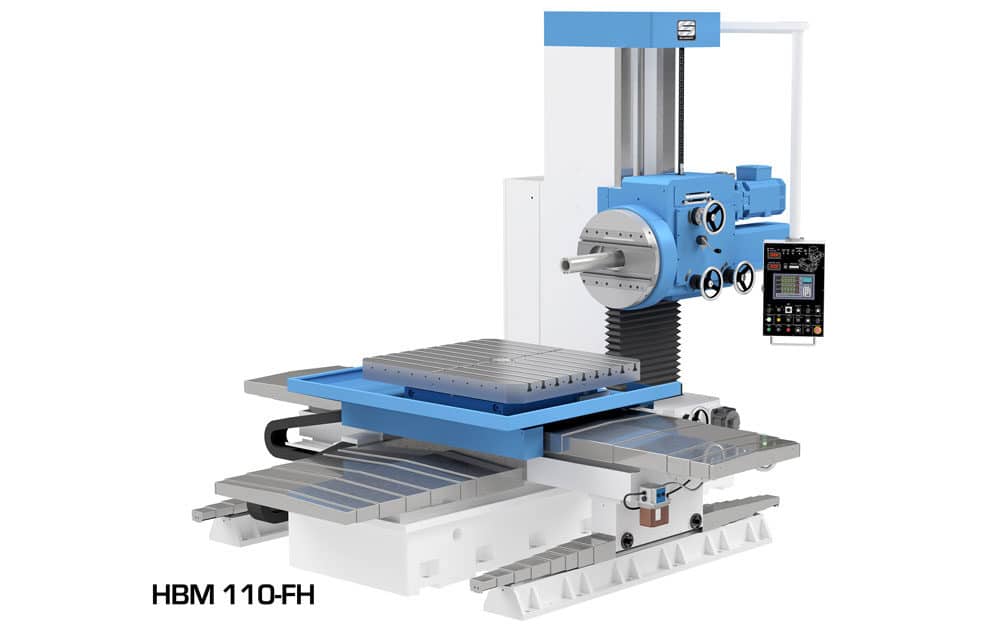

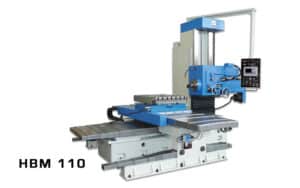

Models Available: HBM110 / HBM110 H / HBM110-FH / HB140 / HB180
Spindle Diameter: 4.3 in. (HBM110 series) / 5 in. (HB140 / HB180 / HBM110-FH)
Spindle Taper: #50
Spindle Speeds: Infinitely variable 20-1,500 RPM (HBM110 series) / 12 speeds 45-1,500 RPM (HB140 / HB180)
Feed Range (X/Y/W axes): Infinitely variable 0.118 – 37.4 IPM (HBM110 series) / Fine 0.001-0.0034 IPR, Regular 1.1-34.4 IPM (HB140 / HB180)
Feed Range (Z axis): Infinitely variable 0.118 – 15.75 IPM (HBM110 series)
Rapid Traverse (X/Y/W axes): 110-113 IPM (model dependent)
Rapid Traverse (Z axis): 47.2-110 IPM (HBM110 series, model dependent)
X-Axis Travel (Table Cross): 55-70.8 in. (model dependent)
Y-Axis Travel (Vertical): 39.4-55.1 in. (model dependent)
Z-Axis Travel (Spindle): 15.7-21.6 in. (HBM110 series)
W-Axis Travel (Saddle): 43-55.1 in. (model dependent)
Table Size: 31.5 in. x 39.4 in. to 47.2 in. x 55.1 in. (model dependent)
Max Table Load: 3,100-11,000 lbs. (model dependent)
Main Drive Motor: 10-20 HP (model dependent)

Equipped With

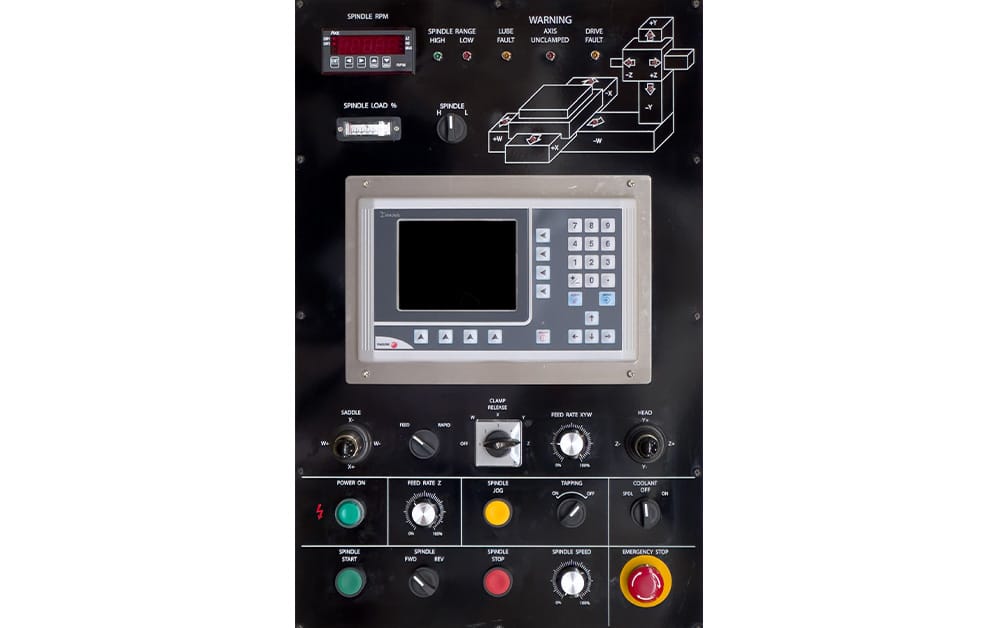

Standard Accessories: Precision hardened & ground bedways, fully automatic lubrication system, precision ground ballscrews with preloaded nuts on X/W/Z axes, state of the art electrics with PLC control, rapid traverse in all directions, full steel telescoping way covers on X & W axes, air power drawbar, built-in or auxiliary rotary table (model dependent), three/four axis electronic DRO, hydraulic clamping (X/Y/W axes)

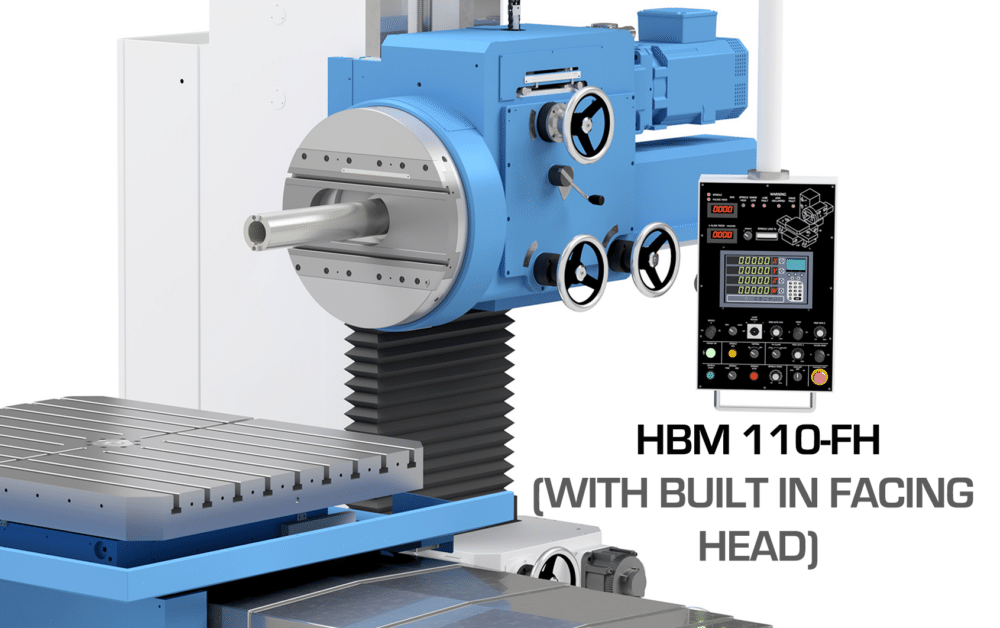

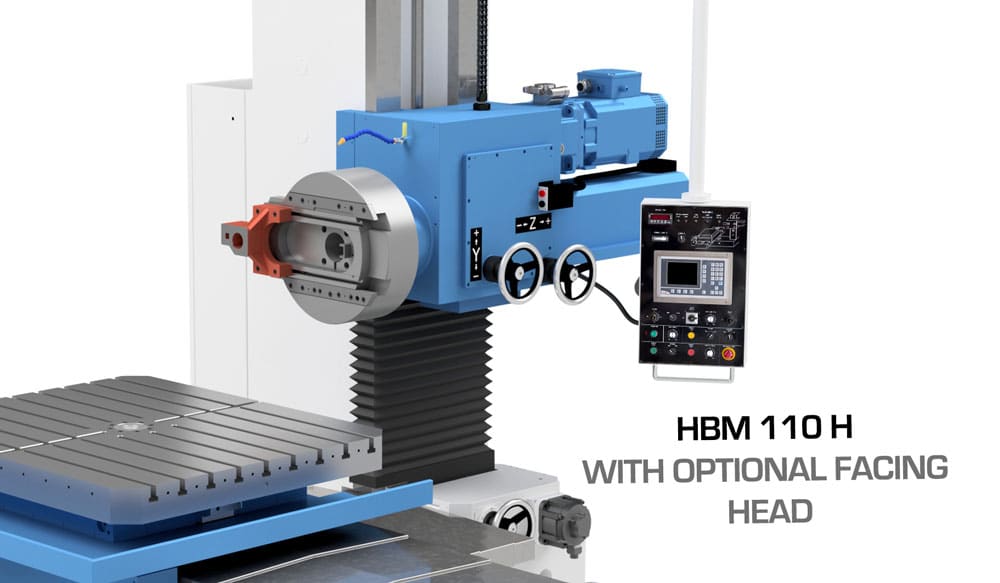

Optional Accessories: Additional rotary tables, tooling attachments, facing head (on select models)
