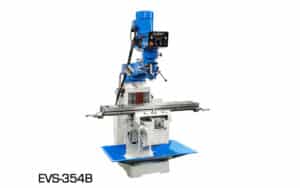

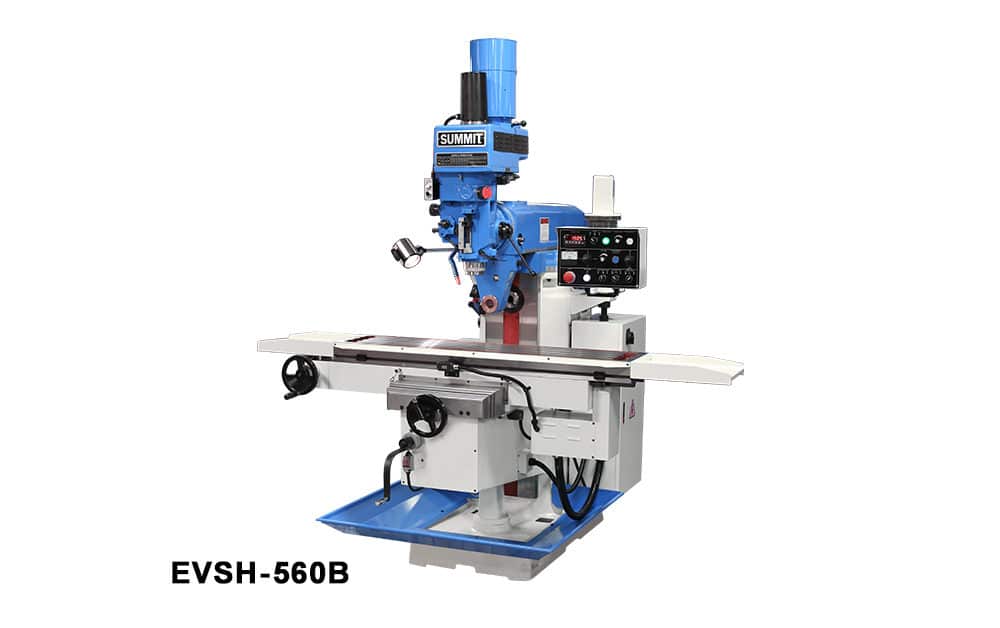

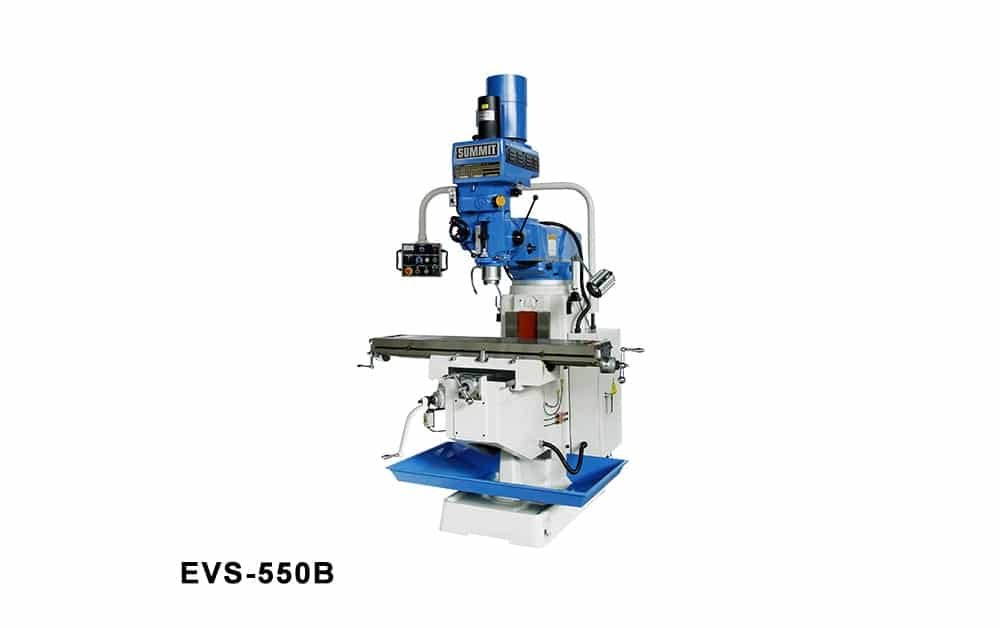

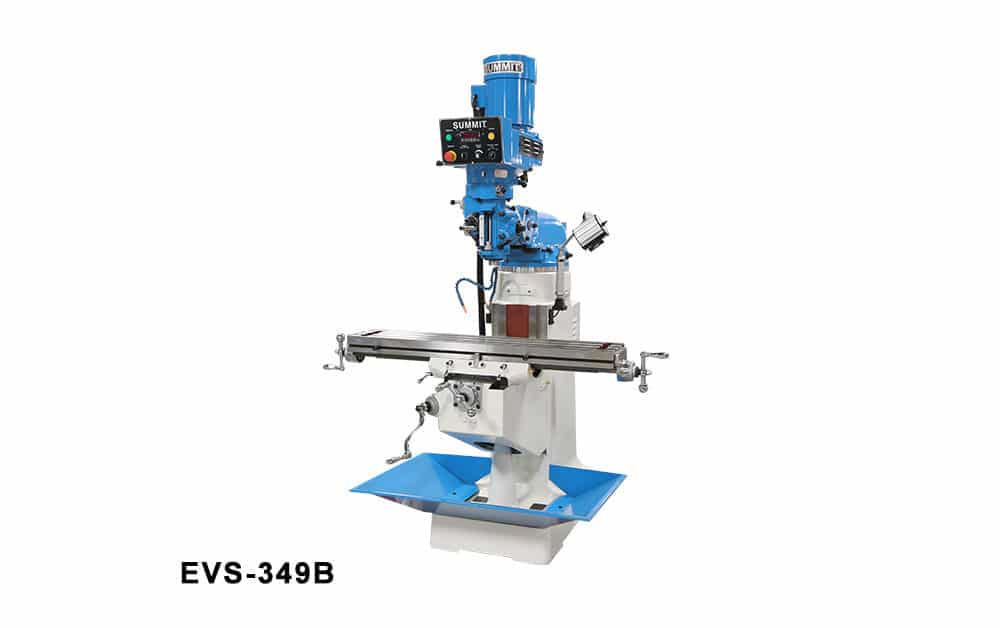

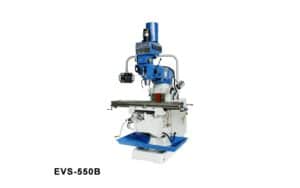

Summit EVS Series Vertical Mill
Stock #: Summit-EVS
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-EVS
- Brand: Summit
- Model: EVS Series
- Approx. Shipping Weight: 2,200 lbs. (EVS-349B) / 2,900 lbs. (EVS-354B) / 3,740 lbs. (EVS-550B) / 5,720 lbs. (EVSH-560B)
Specifications
- Models Available: EVS-349B / EVS-354B / EVS-550B / EVSH-560B
- Motor: 3 HP (EVS-349B & EVS-354B) / 5 HP (EVS-550B & EVSH-560B)
- Spindle speeds: Infinitely variable, 0-4,300 RPM (EVS-349B & EVS-354B) / 0-3,650 RPM (EVS-550B) / 0-4,000 RPM (EVSH-560B)
- Spindle taper: R-8 (EVS-349B & EVS-354B) / NT#40 (EVS-550B & EVSH-560B)
- Spindle travel: 5 in. (EVS-349B & EVS-354B) / 5.5 in. (EVS-550B & EVSH-560B)
- Spindle feed range: 0.0015 / 0.003 / 0.006 IPR
- Head movement side to side: +/- 90° (EVS-349B, EVS-354B, EVS-550B)
- Head movement front to back: +/- 45° (EVS-349B & EVS-354B)
- Table size: 9 in. x 49 in. (EVS-349B) / 10 in. x 54 in. (EVS-354B) / 11 in. x 52 in. (EVS-550B) / 12 in. x 60 in. (EVSH-560B)
- Longitudinal travel: 31 in. (EVS-349B) / 40 in. (EVS-354B) / 32.5 in. (EVS-550B) / 47.2 in. (EVSH-560B)
- Cross travel: 13 in. (EVS-349B) / 16 in. (EVS-354B & EVS-550B) / 18.9 in. (EVSH-560B)
- Max workpiece weight: 850 lbs. (EVS-349B & EVS-354B) / 1,025 lbs. (EVS-550B) / 1,200 lbs. (EVSH-560B)
- Over arm rotation: 360°
- Over arm adjustment: 15 in. (EVS-349B) / 22 in. (EVS-354B) / 24 in. (EVS-550B & EVSH-560B)
- Spindle nose to table: 0 in. – 17.5 in. (EVS-349B) / 2.5 in. – 17.5 in. (EVS-354B) / 2 in. – 22 in. (EVS-550B) / 5.1 in. – 22.6 in. (EVSH-560B)
Equipped With

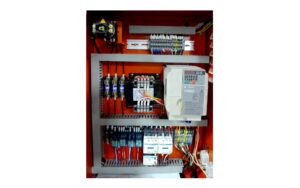

Standard Accessories: Inverter duty high-efficiency motors, cogged drive belt, centrally located controls, electronic braking, Turcite-B guideways, low voltage controls, Yaskawa inverter drive, fan cooled electrical enclosure, heavy Meehanite castings, one-shot lubrication, way covers, built-in coolant system, halogen work light, clamping kit, service wrenches & tool box, draw bar, R-8 collet set (EVS-349B & EVS-354B), power knee raise & power draw bar (EVS-550B & EVSH-560B)
Optional Accessories: Digital readout (DRO) system, power feeds (X/Y/Z axis), air power draw bar, additional collets or tooling
