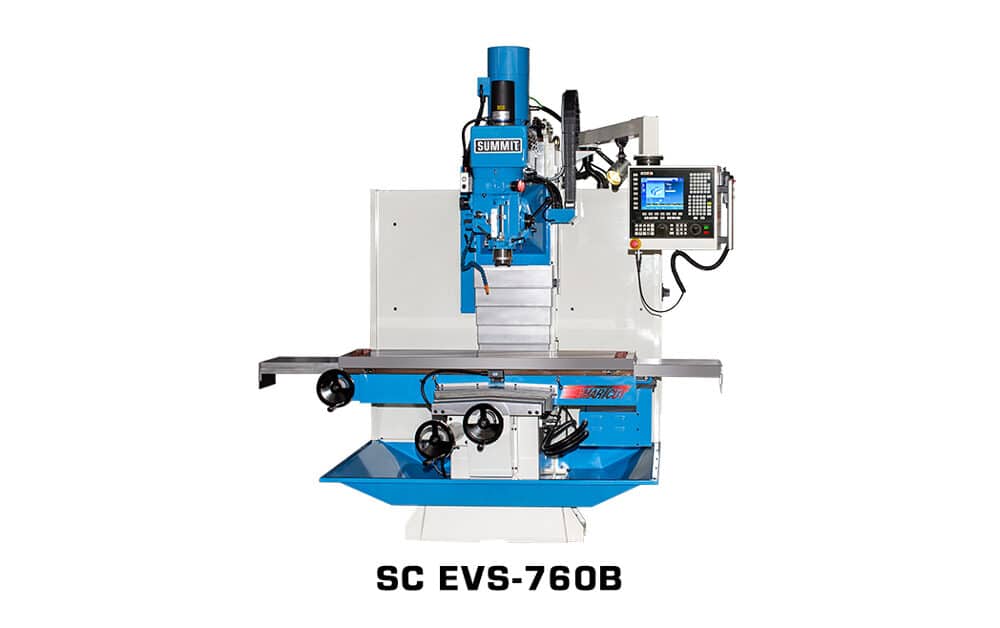

Summit EVS Series SC 760B CNC Vertical Bed Mill
Stock #: Summit-EVS760B
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-EVS760B
- Brand: Summit
- Model: EVS-760B CNC
- Approx. Shipping Weight: 6,500 lbs.
- Approx. Shipping Dimensions: 88 in. x 97 in. x 109 in.
Specifications
- Table size: 16.9 in. x 60 in. x 3-1/8 in.
- Max workpiece weight: 2,200 lbs.
- Longitudinal travel (X-axis): 51.1 in.
- Cross travel (Y-axis): 23.62 in.
- Vertical head travel (Z-axis): 23.6 in.
- Spindle motor: 7.5 HP
- Spindle speeds: Infinitely variable, 70 – 3,800 RPM
- Spindle taper: NT #40
- Quill travel (manual): 5.5 in.
Equipped With
Standard Accessories: Oil gun, clamping kit, anchor bolts, open end wrench set, steel way covers, halogen work light, air-operated power draw bar
Optional Accessories: Digital readout (DRO) system, power feeds, additional tooling
