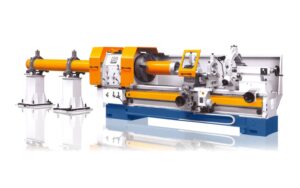

Summit Euro Hollow Spindle Oil Country Metal Lathe

Stock #: Summit-EuroOC

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Instagram

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-EuroOC
Brand: Summit
Model: Euro Hollow Spindle Oil Country
Approx. Shipping Weight: 14,200 lbs. (32-10 Series) / 14,420 lbs. (32-12 Series) / 15,800 lbs. (39-14 Series)

Specifications

Swing over bed (32-10 Series): 31.5 in.
Swing over bed (32-12 / 39-14 Series): 39.5 in.
Swing over cross slide (32-10 Series): 22 in.
Swing over cross slide (32-12 Series): 29.9 in.
Distance between centers: 60 in. to 240 in.
Hole through spindle (32-10 Series): 10.2 in.
Hole through spindle (32-12 Series): 12.4 in.
Hole through spindle (39-14 Series): 14.1 in.
Spindle speeds (32-10 Series): 12 speeds, 9.6 – 460 RPM
Spindle nose: A2-20
Tailstock spindle (quill) diameter: 4.1 in.
Tailstock spindle (quill) travel: 18.8 in.
Tailstock spindle taper: MT #6
Bed width: 22 in.
Main drive motor (32-10 Series): 20 HP
Main drive motor (32-12 / 39-14 Series): 30 HP

Equipped With

Standard Accessories: Steady rest (7″ to 16.9″ capacity), follow rest, thread dial, coolant system with chip pans, taper attachment, carriage stop, work light, full-length splash guard, sliding chuck guards, 4-way rapid traverse, two-speed tailstock, quick change gearbox, service wrenches & spanners
Optional Accessories: Digital readout (DRO) system, quick-change tool post with holders, larger chucks, live center
