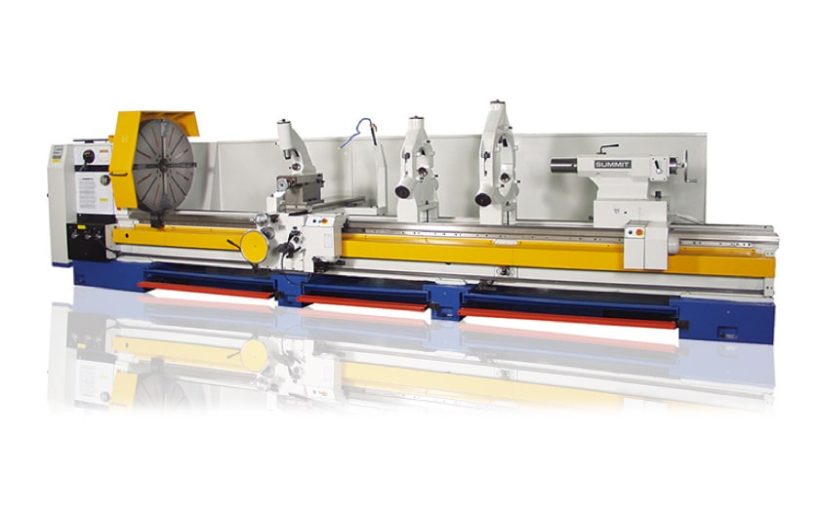

Summit Big Swing Geared Head and Variable Speed Metal Lathe

Stock #: Summit-BigSwing

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-BigSwing
Brand: Summit
Model: Big Swing Geared Head / Variable Speed
Approx. Shipping Weight: 19,100 lbs. (35″ / 120″ centers) / 20,800 lbs. (42.9″ / 120″ centers) / 21,800 lbs. (50.9″ / 120″ centers)

Specifications

Swing over bed: 35 in. / 42.9 in. / 50.9 in.
Swing over cross slide: 19.6 in. / 27.5 in. / 37.4 in.
Swing over gap: 41.7 in. / 49.6 in. / 59.4 in.
Distance between centers: 60 in., 120 in., 160 in., 200 in., 240 in.
Hole through spindle: 6.1 in.
Spindle speeds (Geared Head model): 24 speeds, 6.3 – 1,250 RPM
Spindle speeds (Variable Speed model): Infinitely variable, 2.6 – 700 RPM
Spindle nose: A2-15
Tailstock spindle (quill) diameter: 4.9 in.
Tailstock spindle (quill) travel: 9.8 in.
Tailstock spindle taper: MT #6
Threads per inch: 1/16 – 60 TPI (80 ranges)
Metric threads: 0.5 – 480 mm (80 ranges)
Bed width: 27.5 in.
Main drive motor (Geared Head): 30 HP
Main drive motor (Variable Speed): 40 HP

Equipped With

Standard Accessories: Thread dial, steady rest, follow rest, coolant system, taper attachment, work light, full-length splash guard, clutched headstock, rapid traverse on carriage (4-way joystick), 2-speed tailstock
Optional Accessories: Digital readout (DRO) system, quick-change tool post with holders, larger chucks, live center
