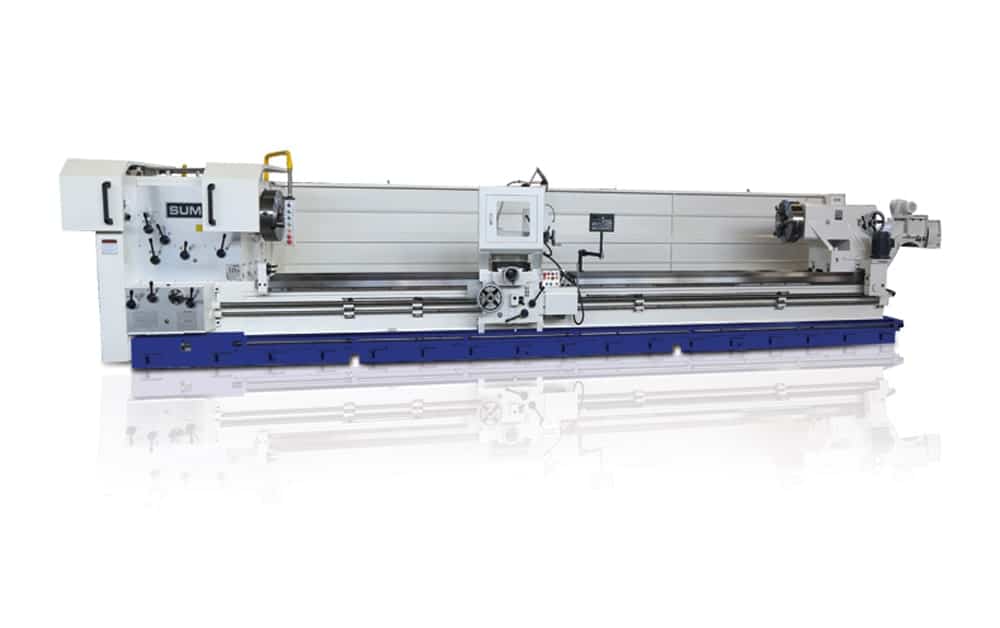

47inch55inch63inchbigswinglathe-frontview

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

X/Twitter

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Summit 47″, 55″, 63″ Big Swing Hollow Spindle Lathes

Stock #: Summit-476363BH

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-476363BH
Brand: Summit
Model: 47″/55″/63″ Big Swing Hollow Spindle
Approx. Shipping Weight: 39,620 lbs. (47″ / approx. 200″ centers) / 43,120 lbs. (55″ / approx. 200″ centers) / 46,620 lbs. (63″ / approx. 200″ centers)

Specifications

Swing over bed: 47 in. (47″ model) / 55 in. (55″ model) / 63 in. (63″ model)
Swing over cross slide: 32.6 in. (47″) / 40.5 in. (55″) / 48.4 in. (63″)
Distance between centers: 80 in. to 600 in.
Hole through spindle: 9 in. (47″) / 12.2 in. or 14.2 in. (55″) / 21 in. (63″)
Spindle speeds: 6-400 RPM (47″) / 5-300 RPM (55″) / 3-230 RPM (63″)
Spindle nose: A2-15 (47″) / A2-20 (55″) / A2-28 (63″)
Tailstock spindle (quill) diameter: 7.9 in. (standard)
Tailstock spindle (quill) travel: 11.8 in.
Tailstock spindle taper: MT #7
Threads per inch: 1-15 TPI (48 ranges)
Metric threads: 2-30 mm (48 ranges)
Bed width: 31.5 in.
Main drive motor: 30 HP (40 HP or 50 HP optional)

Equipped With

Standard Accessories: Quick change gearbox (inch & metric threads), hardened & precision ground bed ways, 4-way rapid traverse, two-speed tailstock, thread dial, steady rest, follow rest, full-length splash guard, chuck guards, taper attachment, halogen work light, coolant system
Optional Accessories: Quick change tool post with holders, digital readout (DRO) system, wide range of workholding devices, removable gap, rotary quill for tailstock, higher HP motors (40 HP or 50 HP)
