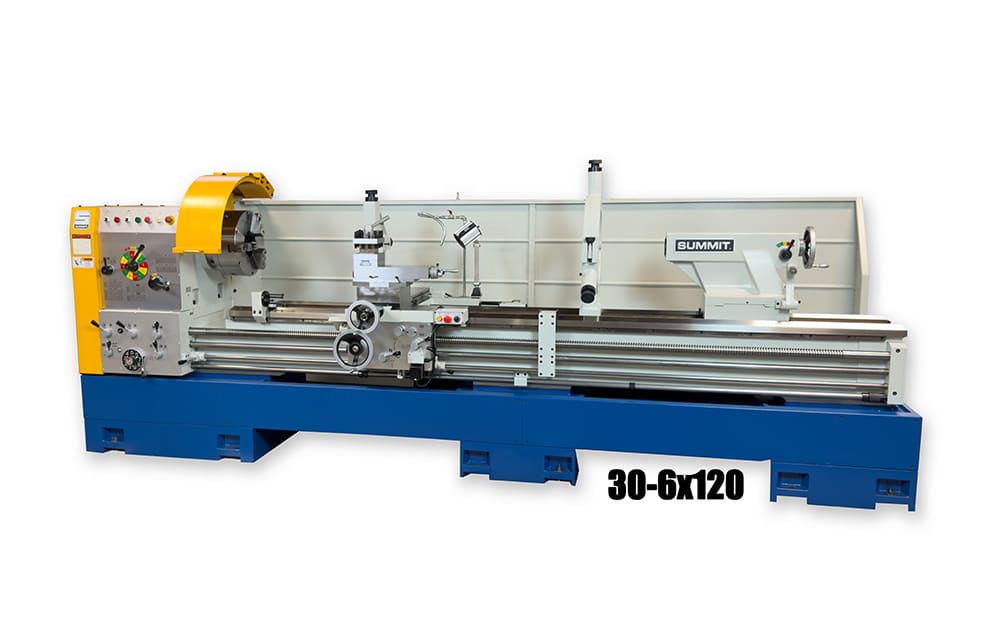

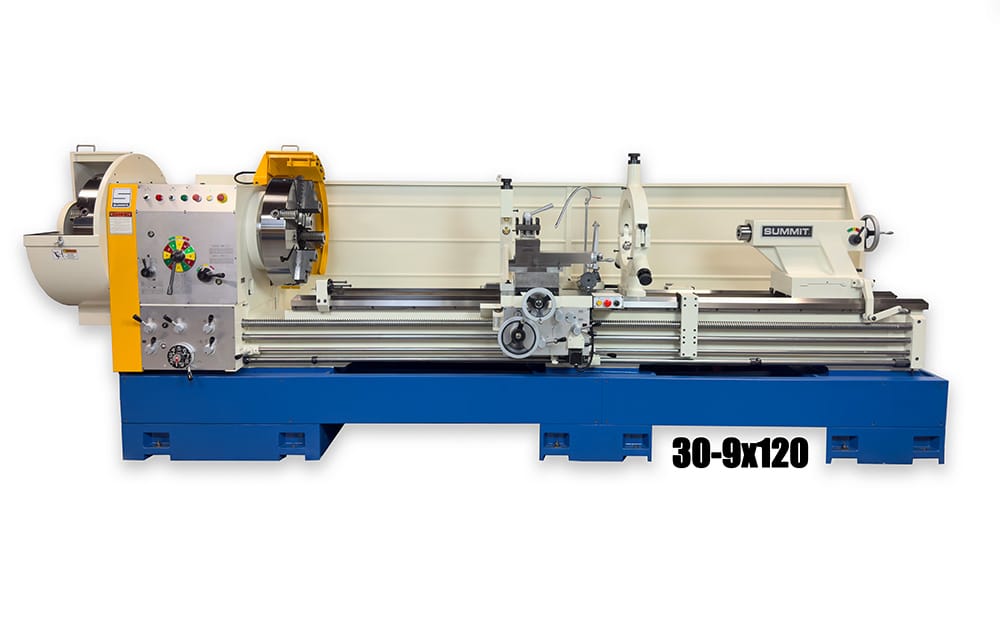

Summit 26″, 30″, and 33″ Big Hole Engine Metal Lathes

Stock #: Summit-263033BH

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-263033BH
Brand: Summit
Model: 26″/30″/33″ Big Hole
Approx. Shipping Weight: 9,600 lbs. (120″ centers, approximate)

Specifications

Swing over bed (26″ model): 26 in.
Swing over bed (30″ model): 30 in.
Swing over bed (33″ model): 33 in.
Swing over cross slide (26″ model): 18 in.
Swing over cross slide (30″ model): 22 in.
Swing over cross slide (33″ model): 24.75 in.
Swing over gap (26″ model): 35 in.
Swing over gap (30″ model): 39 in.
Swing over gap (33″ model): 41.75 in.
Distance between centers: 80 in., 120 in., 160 in., 200 in.
Hole through spindle: 6.1 in. or 9.1 in.
Spindle speeds (26″ model): 12 speeds, 13-800 RPM
Spindle speeds (30″/33″ models): 12 speeds, 11-700 RPM
Spindle nose (26″ model): D1-11 Camlock
Spindle nose (30″/33″ models): A2-15
Tailstock spindle (quill) diameter: 3.75 in.
Tailstock spindle (quill) travel: 9 in.
Tailstock spindle taper: MT #5
Threads per inch: 2-28 TPI (36 ranges)
Metric threads: 0.8-14 mm (65 ranges)
Bed width: 18 in.
Main drive motor: 20 HP

Equipped With

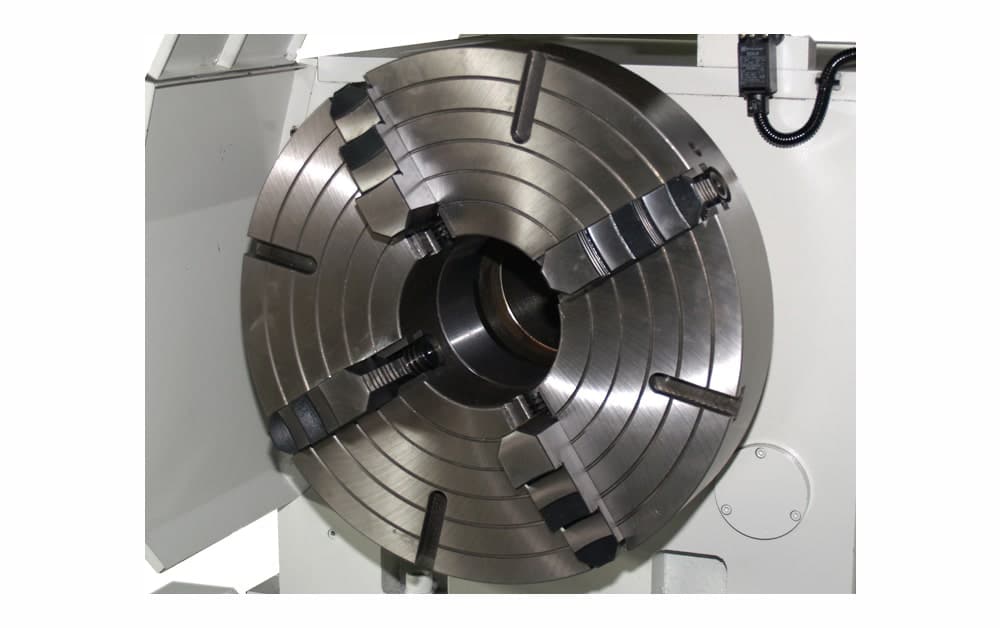

Standard Accessories: Thread dial, steady rest, follow rest, coolant system, taper attachment, work light, rapid traverse on carriage (4-way joystick), 2-speed tailstock, electric spindle brake, quick-change gearbox, (For 6.1″ bore: 3-jaw and 4-jaw chucks; For 9.1″ bore: front and rear 4-jaw chucks)
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
