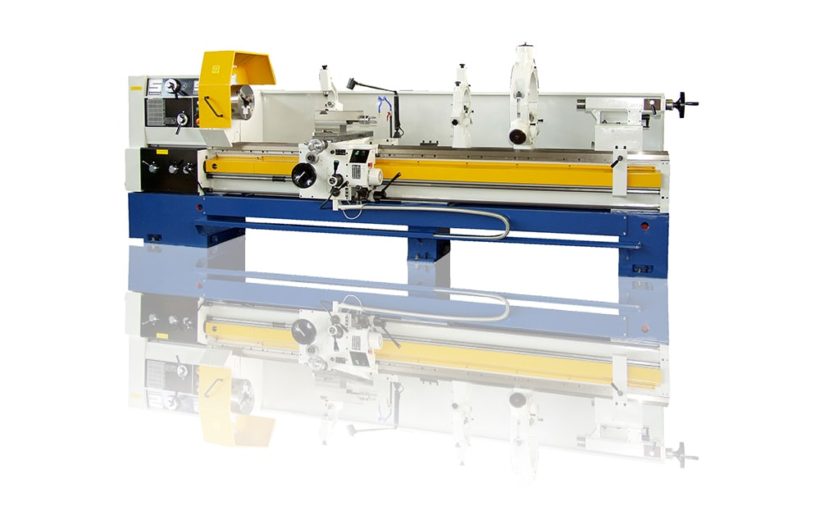

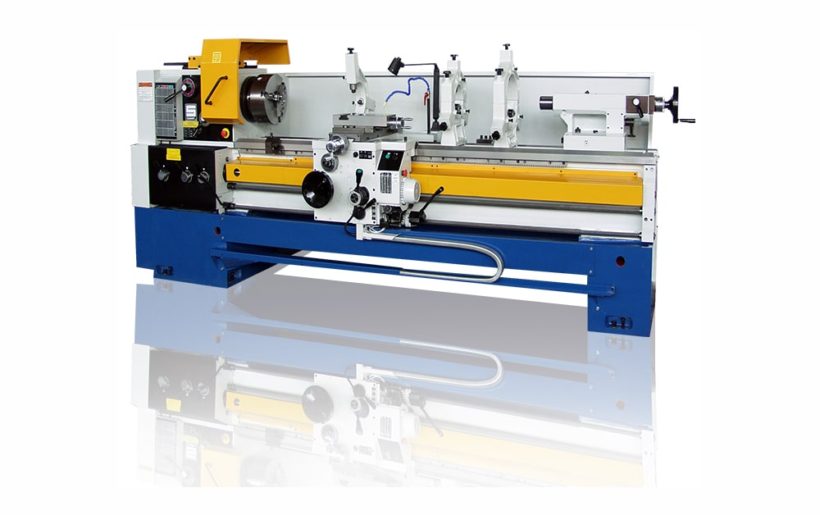

Summit 20″, 24″, 28″ Metal Lathes
Stock #: Summit-202428
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-202428
- Brand: Summit
- Model: 20″/24″/28″
Specifications
- Swing over bed (20″ Series): 20.25 in.
- Swing over bed (24″ Series): 25 in.
- Swing over bed (28″ Series): 28.5 in.
- Swing over cross slide (20″ Series): 11.875 in.
- Swing over cross slide (24″ Series): 17 in.
- Swing over cross slide (28″ Series): 19.625 in.
- Distance between centers: 40 in., 60 in., 80 in., 120 in., 160 in., 200 in.
- Hole through spindle: 4 in.
- Spindle speeds (20″ Series): 15 speeds, 11.5 – 1,400 RPM
- Spindle speeds (24″/28″ Series): 21 speeds, 20 – 1,250 RPM
- Spindle nose: D1-8 Camlock
- Tailstock spindle (quill) diameter: 3.5 in.
- Tailstock spindle (quill) travel: 9.5 in.
- Tailstock spindle taper: MT #5
- Threads per inch: 0.25 – 60 TPI (64 ranges)
- Metric threads: 0.5 – 120 mm (64 ranges)
- Bed width: 15.75 in.
- Main drive motor (20″ Series): 10 HP
- Main drive motor (24″/28″ Series): 15 HP
Equipped With
Standard Accessories: Thread dial, standard steady rest, extra capacity steady rest, follow rest, coolant system, carriage stop, taper attachment, work light, full-length splash guard, 3-jaw chuck, rapid traverse on carriage (4-way joystick), 2-speed tailstock, clutched headstock
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
