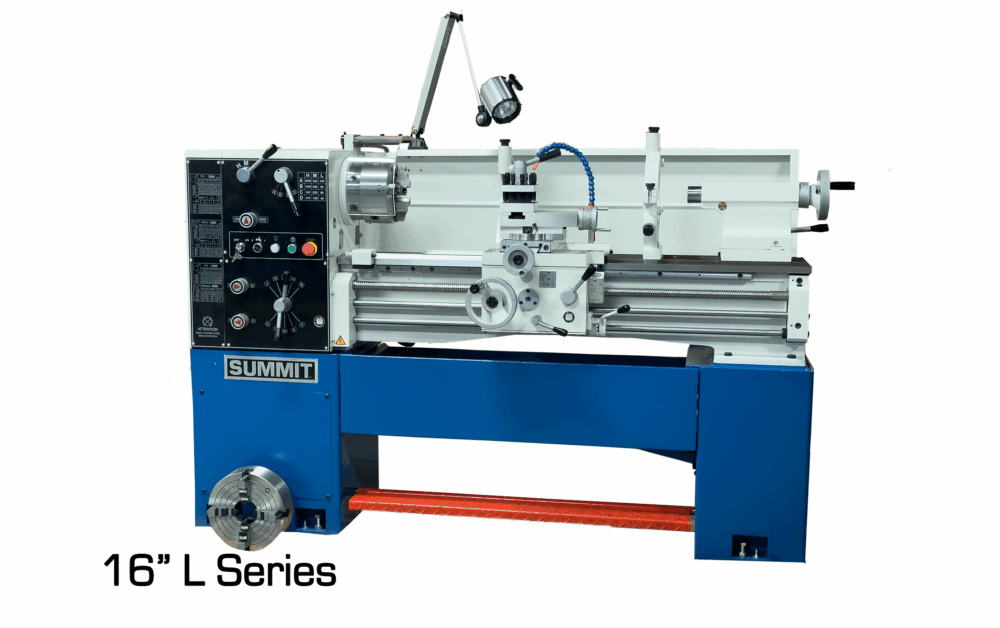

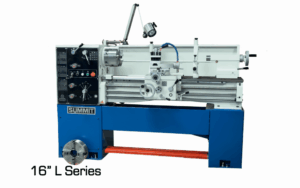

Summit 16L Metal Lathe
Stock #: Summit-16L
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-16L
- Brand: Summit
- Model: 16L
- Approx. Shipping Weight: 2,112 lbs. (40″ centers) / 2,508 lbs. (60″ centers)
Specifications
- Swing over bed: 16 in.
- Swing over cross slide: 10 in.
- Swing over gap: 21.75 in.
- Distance between centers: 40 in. or 60 in.
- Hole through spindle: 2.125 in.
- Spindle speeds (Geared Head model): 12 speeds, 46 – 2,000 RPM
- Spindle speeds (Variable Speed model): Infinitely variable: Low range 30-300 RPM / High range 300-2,000 RPM
- Spindle nose: D1-6 Camlock
- Threads per inch: 4-56 TPI (32 ranges)
- Metric threads: 0.4-7 mm (30 ranges)
- Bed width: 10 in.
- Main drive motor: 5 HP, 220V/440V, 3 Phase
Equipped With
Standard Accessories: Thread dial, steady rest, follow rest, coolant system, work light, full-length splash guard, 3-jaw chuck, 4-jaw chuck, 4-way tool post, single carriage stop, service wrenches & spanners, quick-change gearbox, foot brake, dual inch/metric dials
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, taper attachment, micrometer carriage stop, live center
