Strippit Fabricator Super 30/40 40 Ton Single Station Punch Press w/ Large Assortment of Dies, Punches and Tooling
Stock #: 114250053
$7,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 114250053
- Location: Decatur, GA
- Brand: Strippit Fabricator
- Model: Super 30/40
- Serial #: 14042374
- Approx. Shipping Weight: Machine: 10,000 lbs Tooling and Cabinets: 2,500 lbs
- Approx. Shipping Dimensions: Machine: 102″ L x 96″ W x 78″ H Cabinet 1: 37″ L x 15″ W x 67″ H Cabinet 2: 21″ L x 15″ W x 70″ H Cabinet 3: 21″ L x 15″ W x 70″ H Cabinet 4 (Cabinet on Cart): 40″ W x 25″ L x 62″ H Cabinet 5: 21″ L x 15″ x 58″ H
- Skidding Fee: Skidding Unavailable
Specifications
- Punching Capacity: 40 Tons
- Throat Depth: 30″
- Maximum Material Thickness: 1/4″ Milde Steel
- Maximum Sheet Size: 30″ x 72″
- Table Size: 72″ W x 48″ D
- Stroke Length: 5/8″
- Strokes Per Min (SPM): up to 165 SPM
- Motor: 10 HP
- Electrical: 240/480 V, 3-Ph, 60 Hz
- Approximate Machine Weight: 10,000 lbs
- Approximate Overall Machine Dimensions: 102″ L x 96″ W x 78″ H
Equipped With

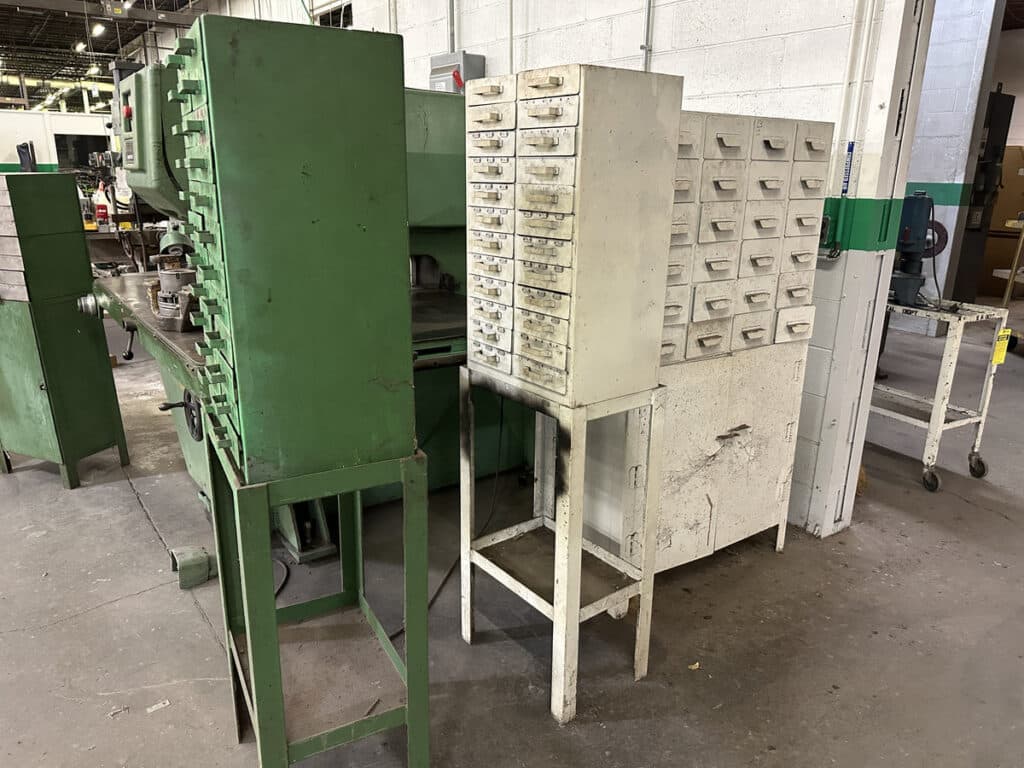

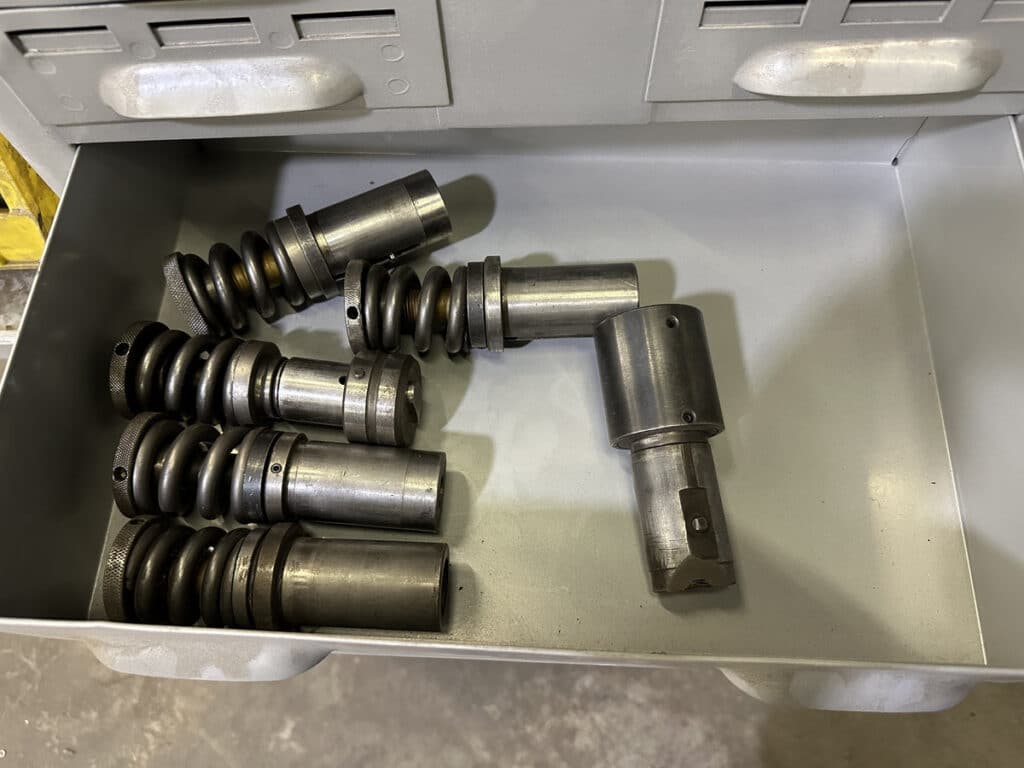

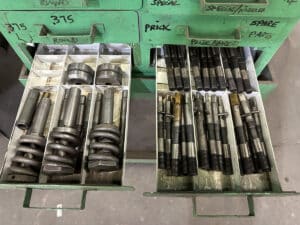

Hercules 53L-SWH Foot Switch, Work Light, (5) Tool Cabinets w/ 100+ Assorted Punches, Dies, Parts and Accessories.
Additional Info
This machine can be demoed upon request, check out the video on the listing to see it in operation. Cabinet dimensions: Cabinet 1: 37″ L x 15″ W x 67″ H Cabinet 2: 21″ L x 15″ W x 70″ H Cabinet 3: 21″ L x 15″ W x 70″ H Cabinet 4 (Cabinet on Cart): 40″ W x 25″ L x 62″ H Cabinet 5: 21″ L x 15″ x 58″ H
