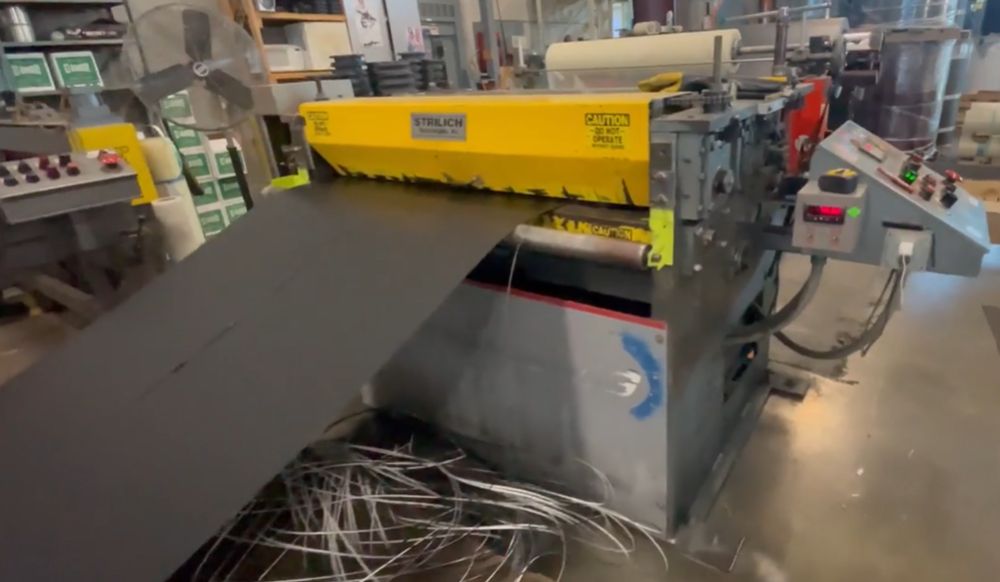

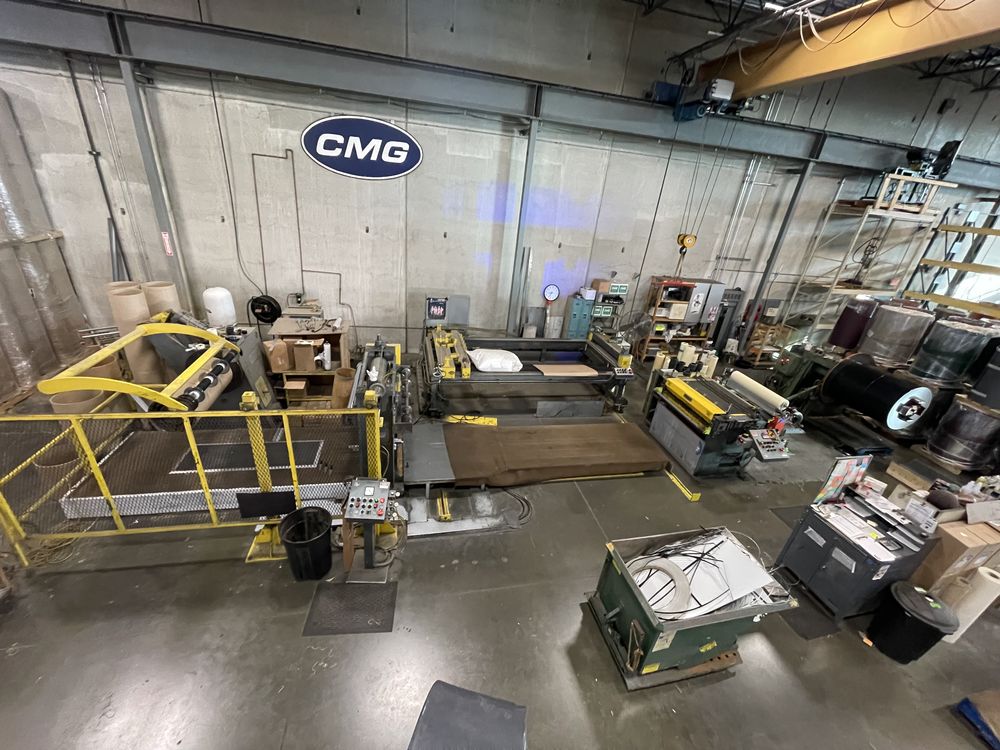

Strilich 17553040002 48″ x 20,000 Lb Metal Slitting/Cut to Length Line
Stock #: 211250030
$79,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info

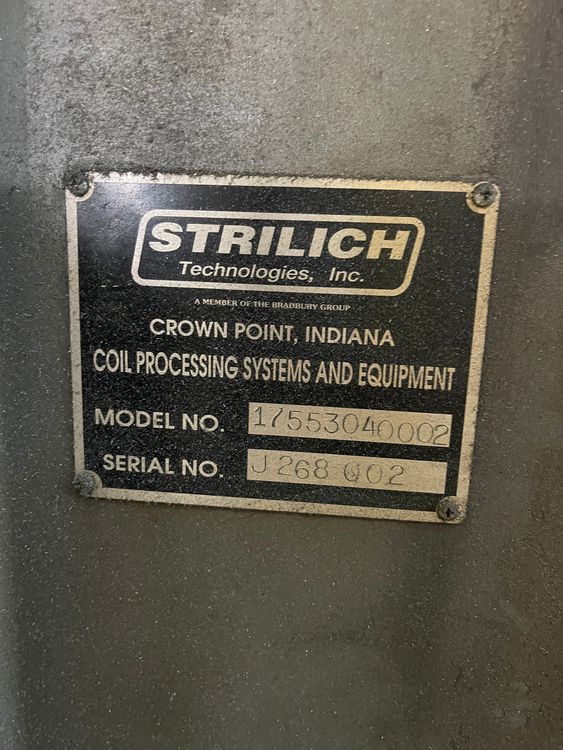

- Stock #: 211250030
- Brand: Strilich
- Model: 17553040002
- Serial #: J268002
Specifications
- Max Coil Weight: 20,000 lbs
- Coil Width: 48″
- Coil OD: 60″ Max
- Coil ID: 16″ min – 20″ max
- Material Thickness: .012″ – .048″
- Material Yield: 50,000 PSI Max
- Length Accuracy: +/- 1/32″
- Line Speed: 120 FPM Max Roll Speed
- Cut Length: 24″ Min – 120″ Max
- Max Shear Cuts: 20 Cuts per Minute
- Line Direction: Right to Left
- Pass Line Height: 40″
- Stack Height: 18″ less skid
- Stack Length: 120″
- Stack Weight: 10,000 lbs
Equipped With

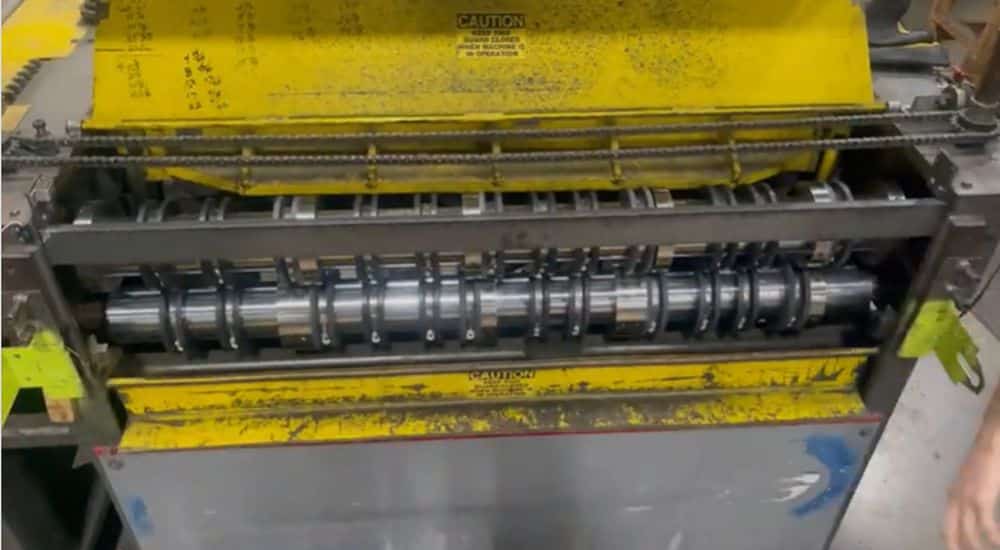

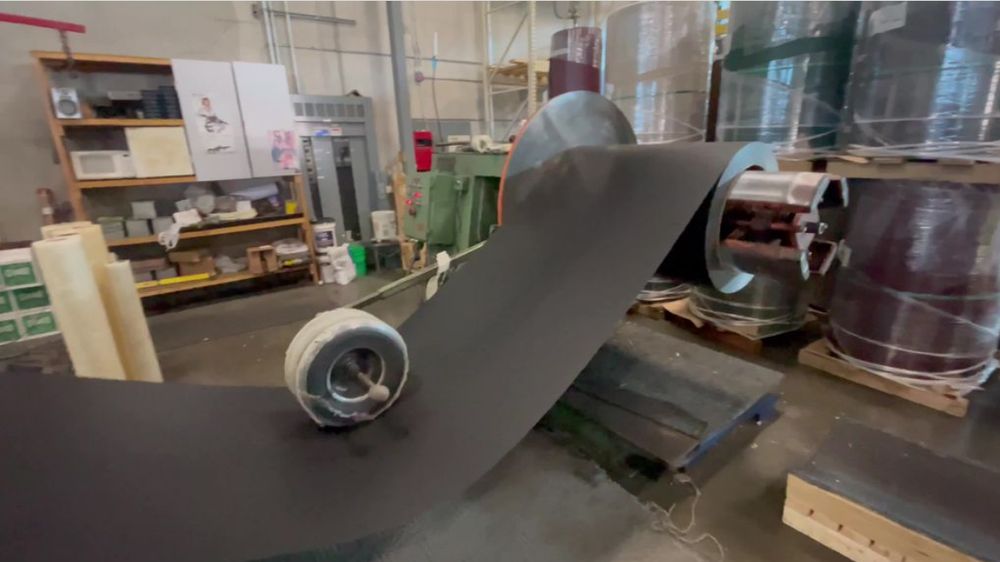

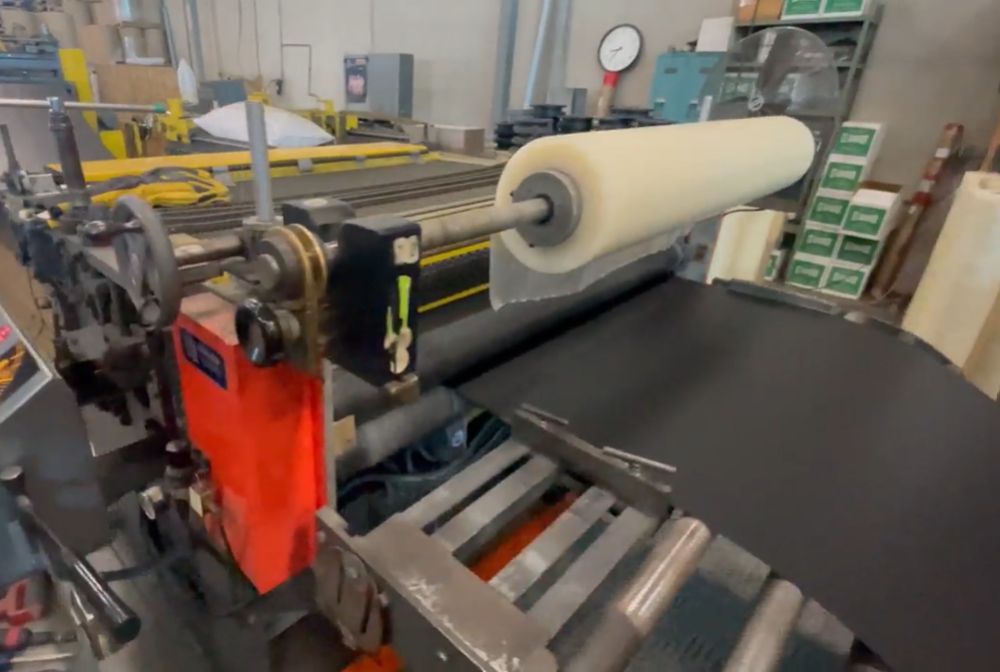

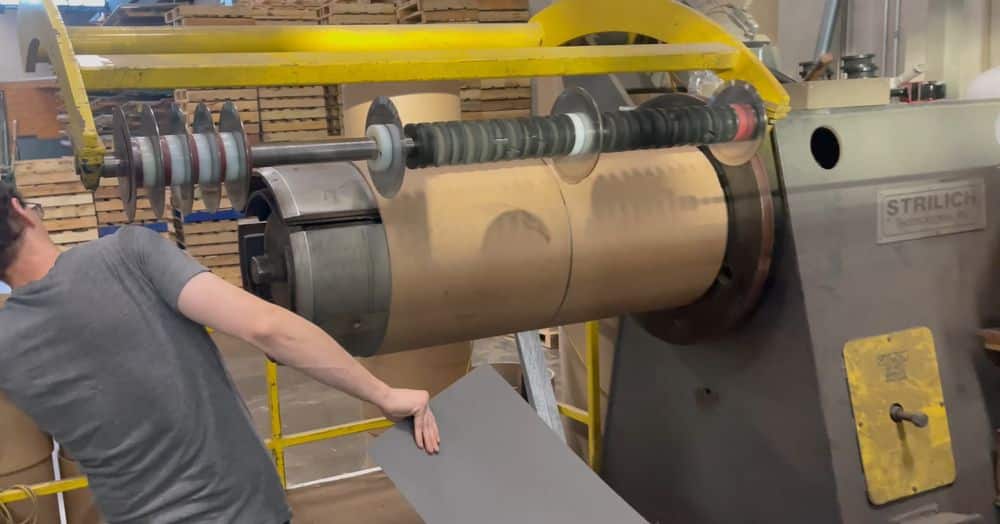

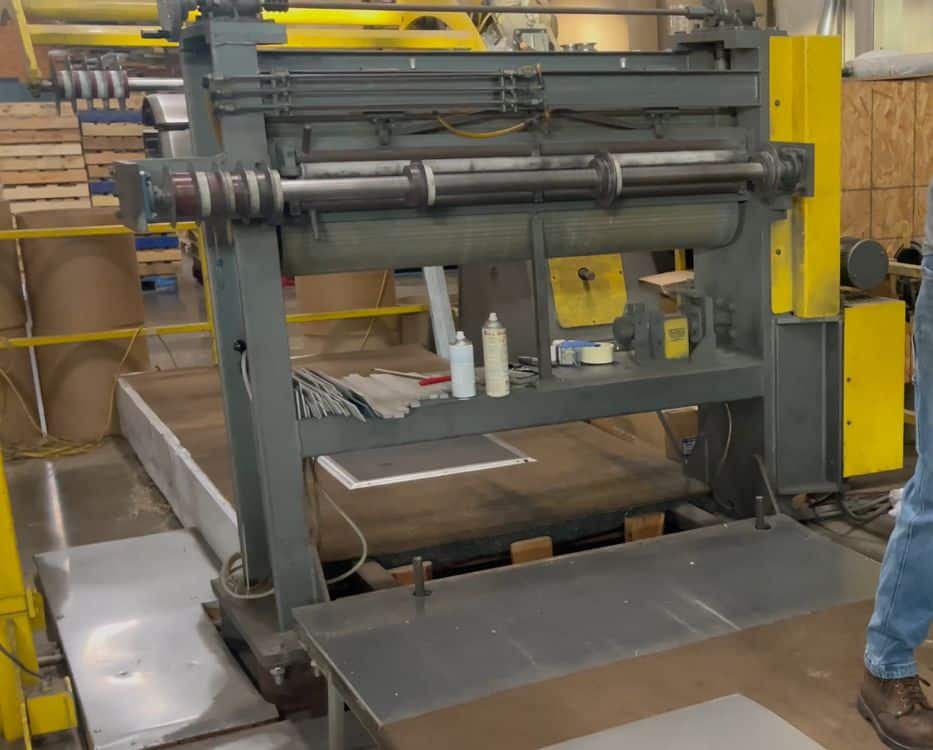

Uncoiler, Zero Point Entry Edge Guides, Vinyl Applicator, Shear, Slitter Head with Bolt on Tooling and Knives, Blank Stacker and Strip Separators, Tension Stand and Recoiler (16″/20″).
