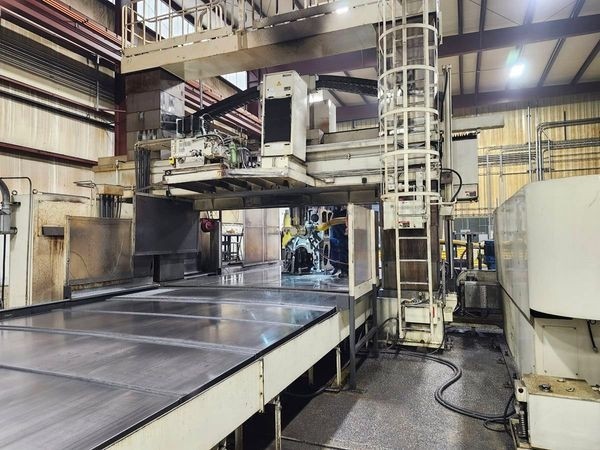

SNK RB 7VM CNC Vertical Machining Center

Stock #: 163260048

$269,000.00

See Product Details

Business Financing Available

  • Stock #: 163260048
  • Brand: SNK

Business Financing Available

  • Stock #: 163260048
  • Brand: SNK

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 163260048
  • Brand: Snk
  • Model: RB 7VM
  • Year: 2006
  • Location: MI

Specifications

  • Manufacturer: Shin Nippon Koki (SNK)
  • Model: RB-7VM
  • Year: 2006
  • Serial: B7K4050
  • Machine Type: Double-column bridge / gantry, 5-face machining
  • Control: FANUC 31i-B
  • Table: 3,500 × 8,000 mm (137.8" × 314.9")
  • Table Capacity: 30 metric tons
  • Between Columns: 4,100 mm (161.4")
  • X Travel: 8,250 mm (324.8")
  • Y Travel: 4,500 mm (177.1")
  • Z Travel: 600 mm (23.6")
  • W / Crossrail Travel: 2,100 mm (82.7")
  • Z + W Combined: 2,700 mm
  • Table-To-Spindle-End Range: 0–2,500 mm
  • Spindle / Quill Diameter: 90 / 300 mm
  • Spindle Taper: ISO No. 50 / BT50
  • Spindle Speed: 8,000 RPM
  • Gear Ranges: 2
  • Spindle Motor, Low: AC 22/26 kW
  • Spindle Motor, High: AC 22/30 kW
  • Approx. Main Motor: 40 HP
  • Rapid X: 15 m/min (591 IPM)
  • Rapid Y: 15 m/min (591 IPM)
  • Rapid Z: 8 m/min (315 IPM)
  • Rapid W: 4 m/min (157 IPM)
  • Cutting Feed X/Y/Z: 1–6,000 mm/min
  • Cutting Feed W: 1–4,000 mm/min
  • ATC: 60 Tools
  • Tool Max. Diameter: 9.13"
  • Tool Max. Length: 15.7" / 399 mm
  • Tool Max. Weight: 44 lb / 20 kg

Equipped With

Machine Comes With A 90-Degree Head And A Universal Head. Has Probe Capability, Fanuc 15I Controller
