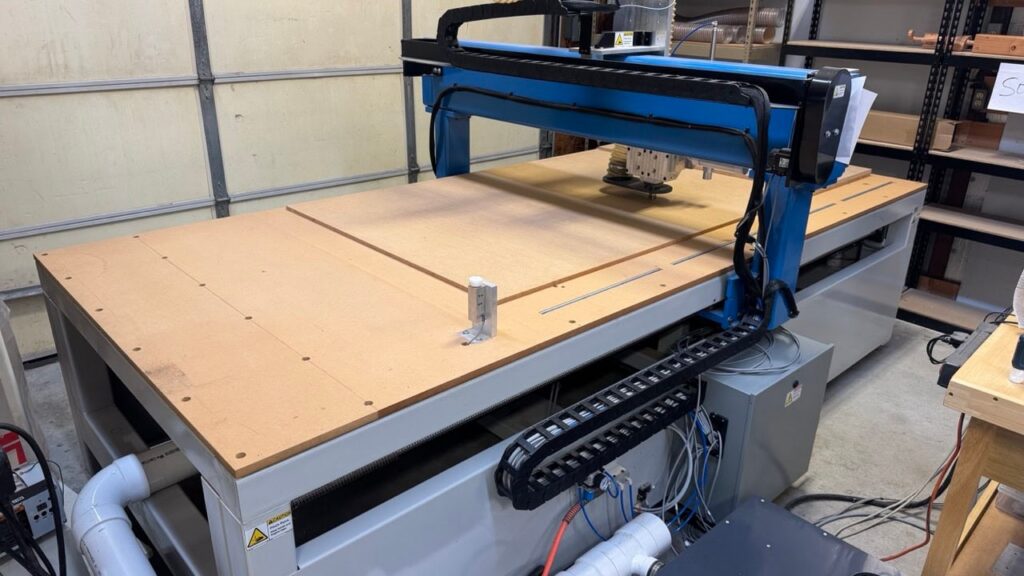

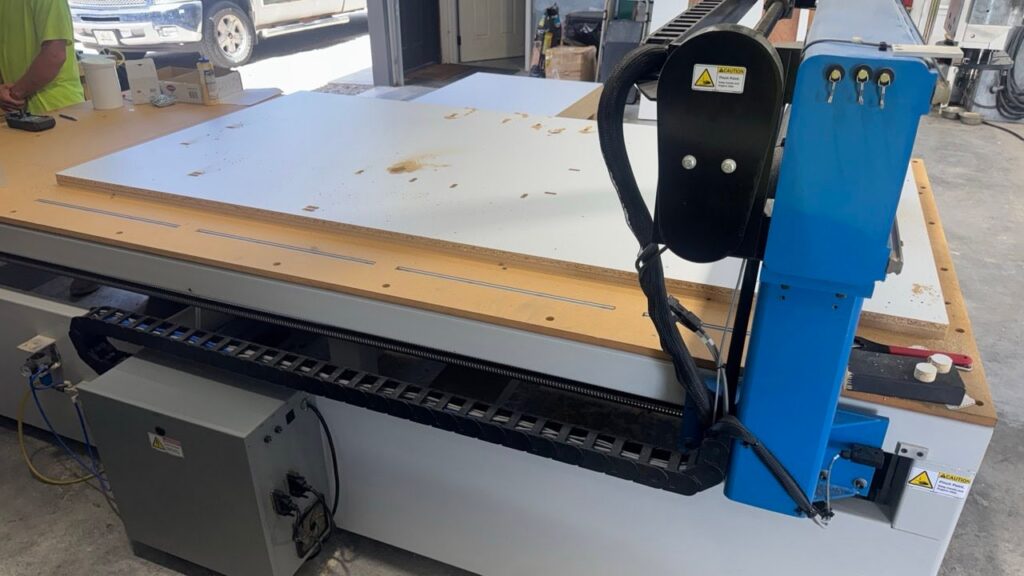

ShopSabre Pro 408 5′ x 8′ CNC Router (2019)

Stock #: 163260040

$33,900.00

See Product Details

Business Financing Available

  • Stock #: 163260040
  • Brand: ShopSabre

Business Financing Available

  • Stock #: 163260040
  • Brand: ShopSabre

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 163260040
  • Brand: Shopsabre
  • Model: Pro 408
  • Year: 2019
  • Location: IN
  • Approx. Shipping Weight: 3,600 Lbs.
  • Approx. Shipping Dimensions: 80″ X 135″ X 95″

Specifications

  • Working Area: 5′ X 8′
  • X-Axis: 60″
  • Y-Axis: 100″
  • Z-Axis Travel: 16″
  • Gantry Clearance: 12″

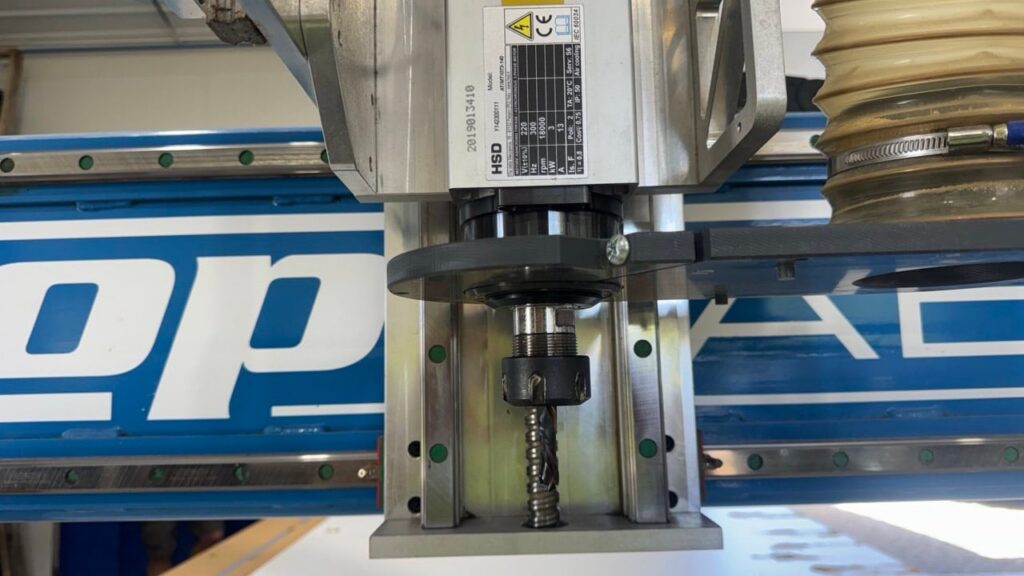

  • Spindle Motor: 4 HP HSD
  • Maximum Spindle Speed: 18,000 RPM
  • Spindle Collet: ER25
  • Rapid Traverse: 1,200 IPM
  • Cutting Speed: Up To 800 IPM
  • Drive Motors: Digital Brushless AC Servo
  • Drive System: Ball Screw X And Z, Dual Ball Screw Y
  • Linear Guides: 25 MM Precision Linear Guide Rails
  • Positional Repeatability: +/- 0.001″

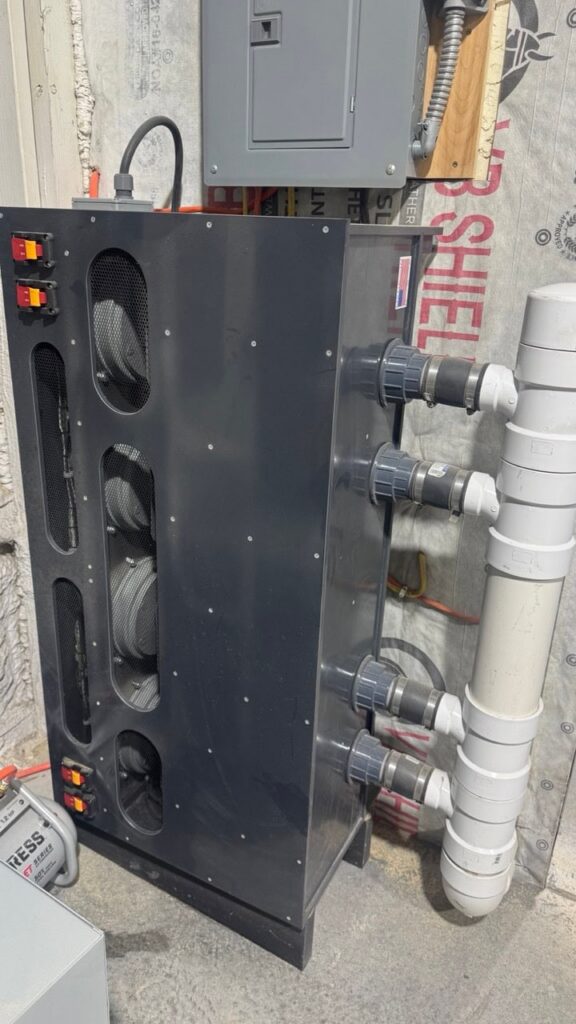

  • Vacuum Zones: 4
  • Open Flow: 570 CFM
  • Maximum Vacuum: 10.69″ Hg

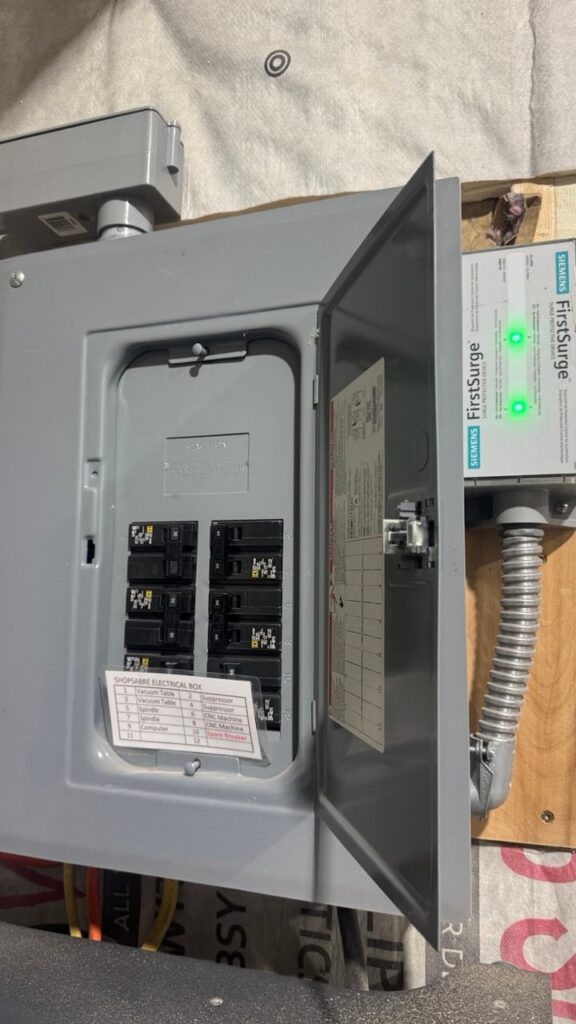

  • Power: 220V, Single Phase
  • Amperage: 30 Amp

Equipped With

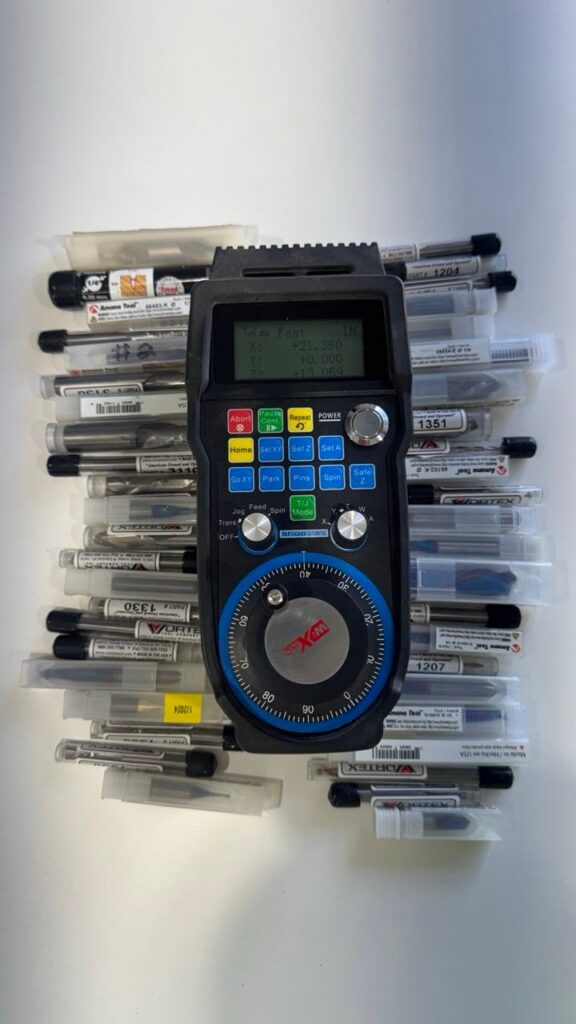

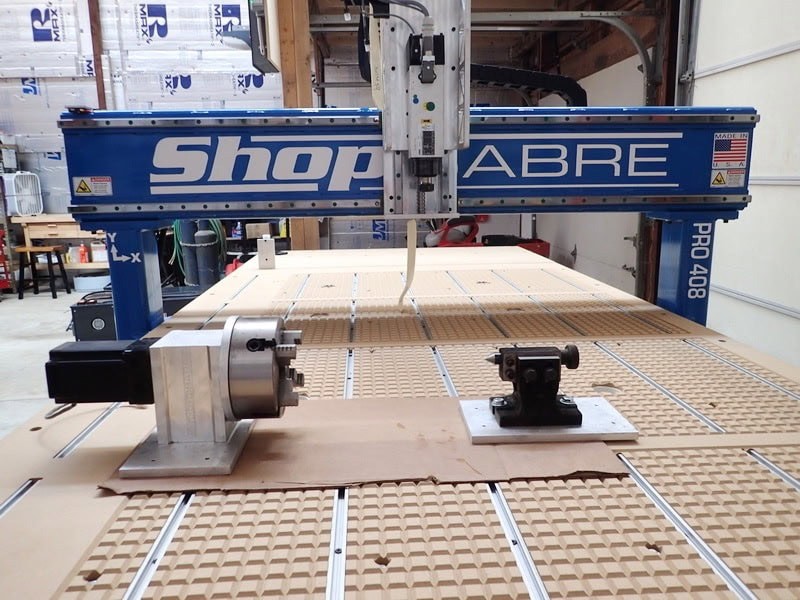

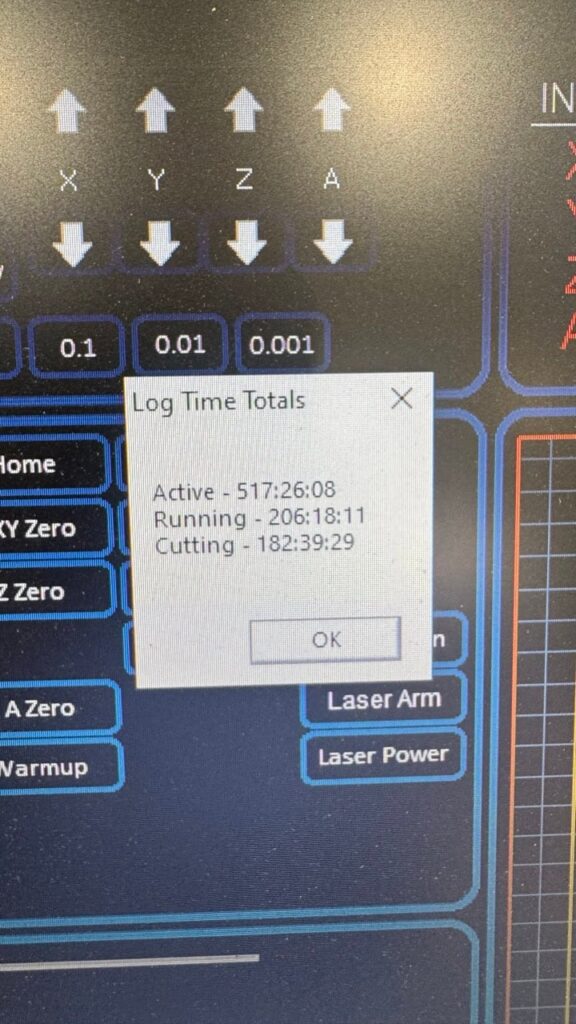

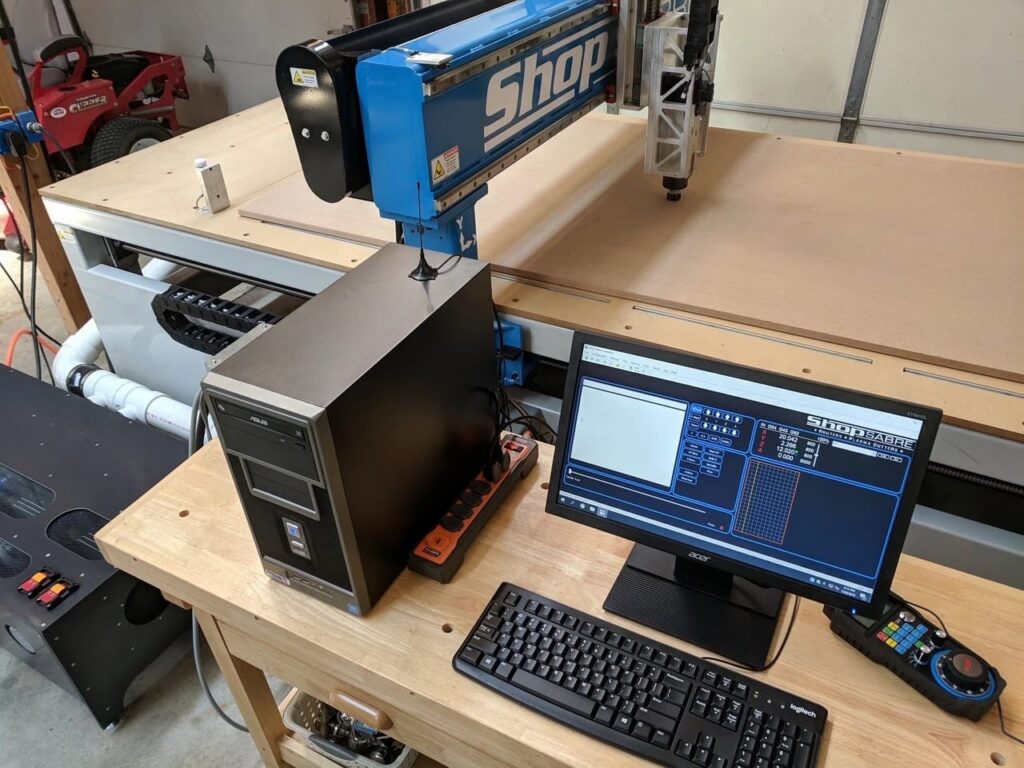

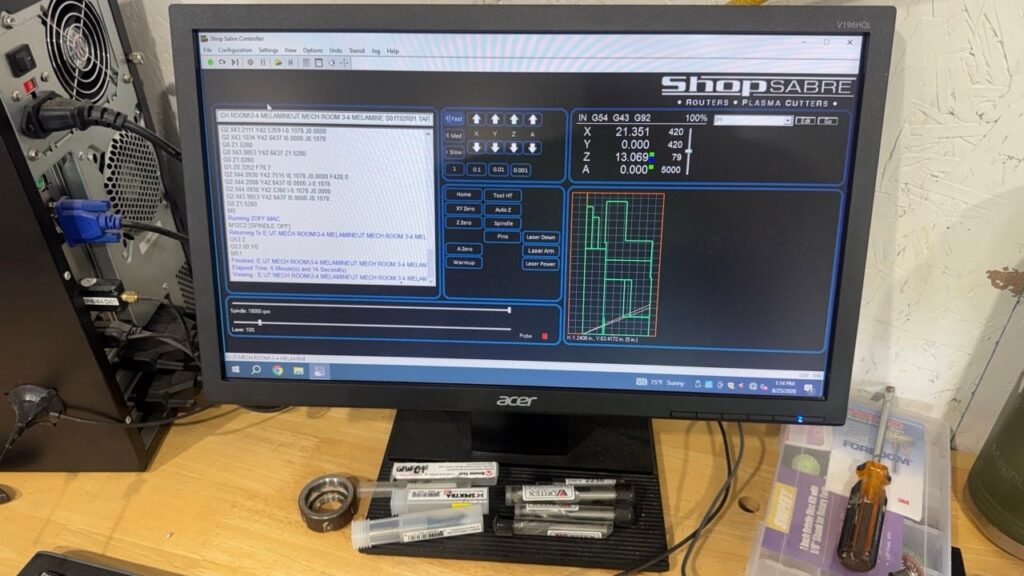

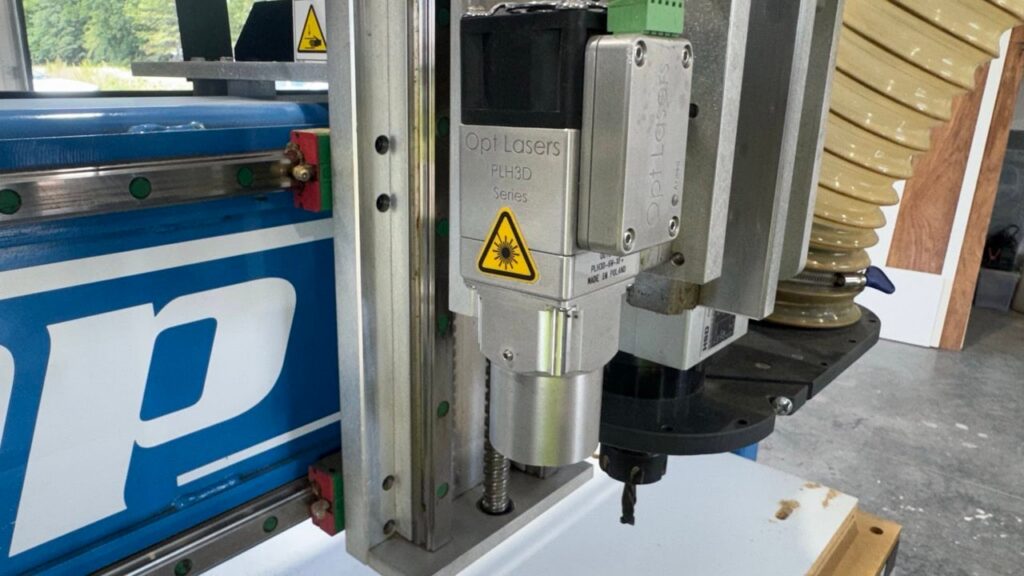

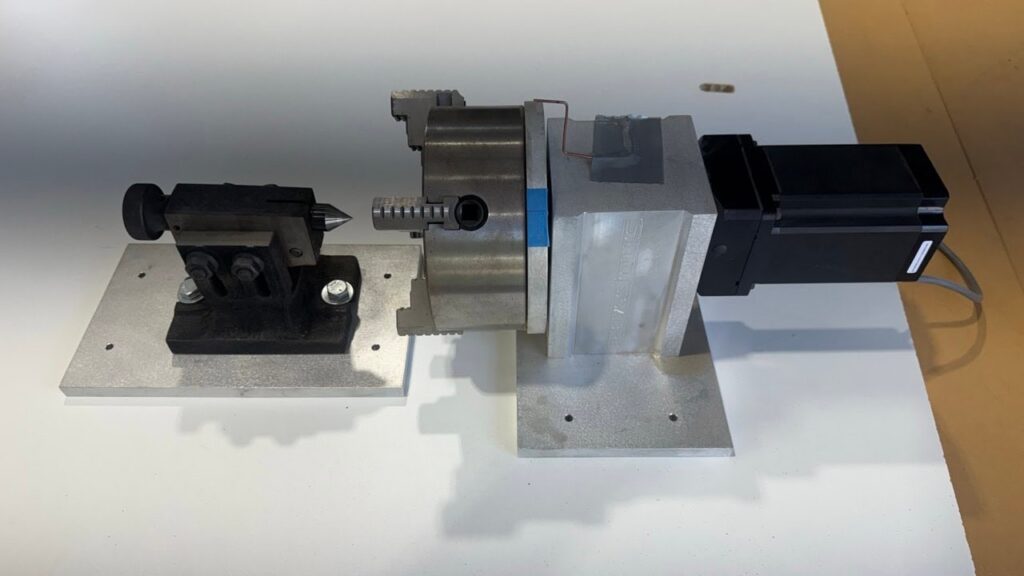

Shopsabre Wincnc Industrial Control, Vectric Vcarve Pro Cad/Cam Software, 4 HP Hsd Manual-Change Spindle, 4-Zone F4 Vacuum System, Mdf T-Slot Table, 4Th Axis Indexing System With 4-Jaw Chuck, Shopsabre Optlaser Marking And Engraving Attachment, Electronic Z Setter, Automatic Tool Measure Switch, Wireless Handheld Pendant With Jog Wheel, Pop-Up Table Reference Pins, Quick-Release Dust Skirt, Er25 Collets And Collet Wrenches, Assorted Router Tooling, Manuals And Documentation

Additional Info

This machine can be inspected under power upon request.
