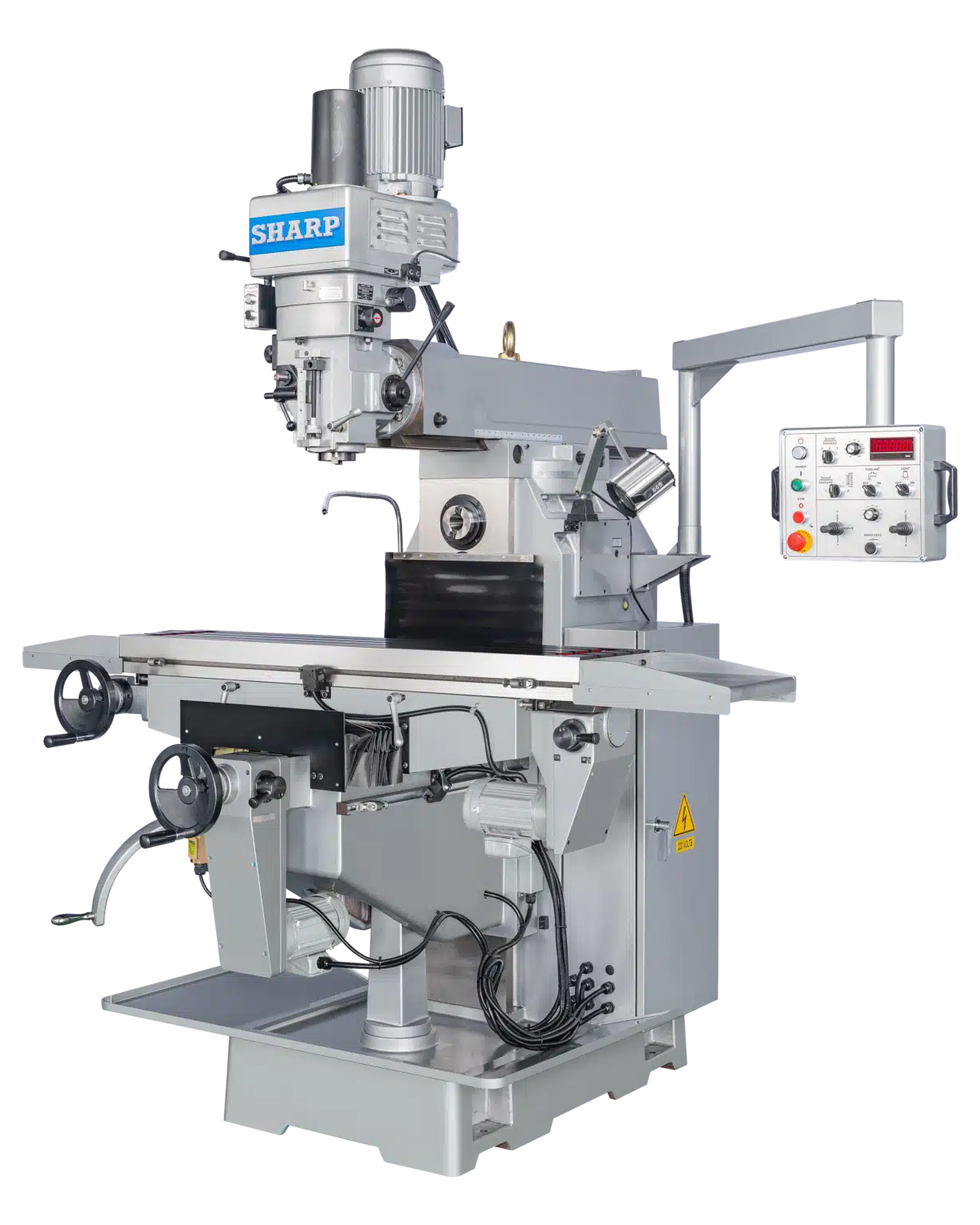

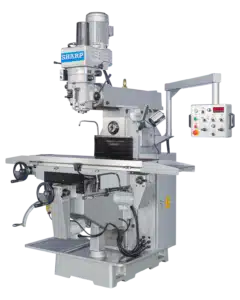

Sharp VH-25-DVS Vertical / Horizontal Milling Machine

Stock #: Sharp-VH-25

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-VH-25
Brand: Sharp
Model: VH-25-DVS
Approx. Shipping Weight: 4,850 lbs. / 2,200 Kg
Approx. Shipping Dimensions: 7.45′ x 10.17′ x 8.27′ / 2.27m x 3.1m x 2.52m

Specifications

Table Size: 11.81 x 53.93 in. / 300 x 1370 mm
T-slots (No., Size, Pitch): 3 x 5/8 x 2.75 in. / 3 x 16 x 70 mm
Longitudinal Travel (X): 39.37 in. / 1000 mm
Cross Travel (Y): 15.74 in. / 400 mm
Vertical Quill Travel (Z): 5.51 in. / 140 mm
Knee Travel: 18.5 in. / 470 mm
Ram Travel: 27.5 in. / 700 mm
Spindle Nose (Vertical): NST #40
Spindle Speeds (Vertical): 60 – 4,500 rpm
No. of Spindle Speeds (Vertical): Variable
Spindle Nose (Horizontal): NST #40
Spindle Speeds (Horizontal): 60 – 1,400 rpm
No. of Spindle Speeds (Horizontal): Variable
Spindle Motor (Vertical): 5 HP / 3.7 KW
Spindle Motor (Horizontal): 5 HP / 3.7 KW
Quill Diameter: 4.13 in. / 105 mm
Quill Travel: 5.51 in. / 140 mm
Quill Center Taper: NST #40
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev / 0.04, 0.08, 0.15 mm/rev
Head Swivel: 360°
Head Tilt (Left/Right): 90°
Head Tilt (Up/Down): 45°
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Flood Coolant System, Rapid Knee Traverse, Longitudinal Table Power Feed w/ Rapid Traverse, Splash Pan, 1 in. Horizontal Arbor with 2 Arbor Supports, Wired 220V. 440V needs an optional transformer
Optional Accessories: Power draw bar, 6 in. KURT vise, Digital Readout System, Clamping kit, 440V transformer, CE mark, UL components
