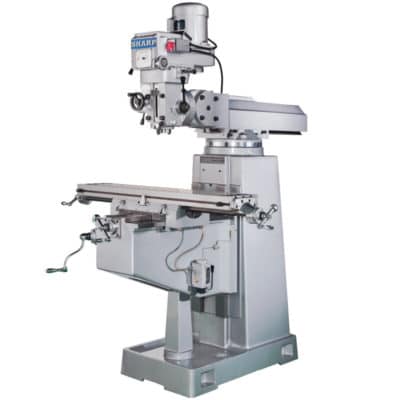

Sharp TMV-1 Vertical Milling Machine

Stock #: Sharp-TMV-1

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

X/Twitter

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-TMV-1
Brand: Sharp
Model: TMV-1
Approx. Shipping Weight: 3,300 lbs. / 1,496.85 Kg
Approx. Shipping Dimensions: 9.83′ x 6.25′ x 7.64′ / 2.99m x 1.9m x 2.32m

Specifications

Table Size: 10 x 54 in. / 254 x 1371 mm
T-slots (No., Size, Pitch): 3, 5/8 in., 2.5 in. / 3, 16 mm, 63.5 mm
Longitudinal Travel (X): 39 in. / 990 mm
Cross Travel (Y): 16.3 in. / 414 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Ram Travel: 18.5 in. / 470 mm
Knee Travel: 15.3 in. / 388 mm
Spindle Center to Column: 9.8 – 28.3 in. / 248 – 718 mm
Spindle Nose to Table: 5.375 – 16.9 in. / 136.5 – 429 mm
Spindle Speeds: 60 – 4500 rpm
No. of Spindle Speeds: Variable
Spindle Nose: NT-40
Quill Diameter: 4.2 in. / 106.68 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: NT-40
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev / 0.038, 0.076, 0.152 mm/rev
Head Swivel: 360°
Head Tilt (Left/Right): 90°
Head Tilt (Up/Down): 45°
Spindle Motor: 5 HP / 220V/440V
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: One Shot Lube System, Hard-Chromed Ways, Front and Rear Rubber Way Covers, Tool box with tools, Wired 220V or 440V
Optional Accessories: Auto Lube Pump with 2 Adjustments, “Sharp” Power Table Feed with Safety Handle, “Sharp” Power Cross Feed with Safety Handle, “Sharp” Power Knee Feed with Safety Handle, 6 in. “Kurt” Vise with Swivel Base, Right Angle Milling Attachment with Arbor, Drill Chuck & Drill Arbor, 6 in. Riser Block, Coolant System with Chip Pan (pump included), “Maxi Torque Rite” Power Draw Bar, Clamping Kit (52 pcs/Steel Rack), Halogen Work light, CE mark, 380V and 575V transformer, UL components upgrade with electrical box, UL compliance certificate under State of California, Digital Readout System
