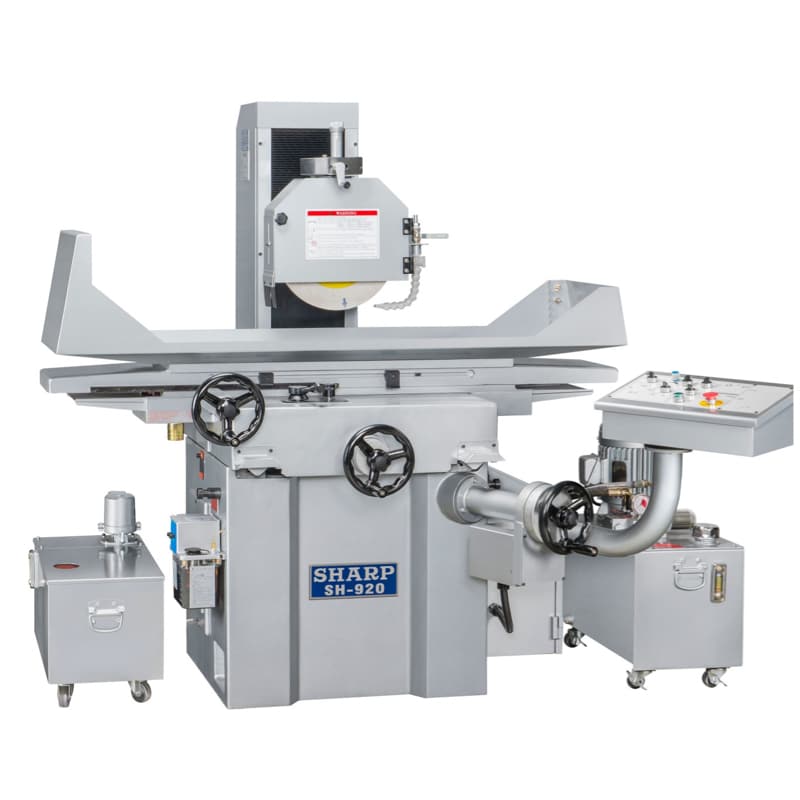

Sharp SH-920 Surface Grinder
Stock #: Sharp-SG-820-2AN
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-SH-920
- Brand: Sharp
- Model: SH-920
- Approx. Shipping Weight: 3,800 lbs. / 1,814.3 Kg
- Approx. Shipping Dimensions: 6.4′ x 6.1′ x 5.9′ / 1.95m x 1.86m x 1.80m
Specifications
- Max Grinding Length: 26 in. / 660 mm
- Max Grinding Width: 11 in. / 280 mm
- Center Height: 20 in. / 500 mm
- Table Size: 9 x 20 in. / 300 x 600 mm
- Longitudinal Travel: 26 in. / 660 mm
- Cross Travel: 11 in. / 280 mm
- Longitudinal Hand Feed Per Revolution: 0.1 in. / 2.54 mm
- Longitudinal Hydraulic Feed: 6.6-82 ipm / 167.6-2,082.8 mm/min
- Cross Hand Feed Per Revolution: 0.1 in. / 4 mm
- Cross Hand Wheel Graduation: 0.0005 in. / 0.02 mm
- Cross Intermittent Feed: 0.0039-0.39 in./feed / 0.1-10 mm/feed
- Cross Continuous Traverse Feed: 39.37 in./min / 1000 mm/min
- Vertical Hand Feed Per Revolution: 0.05 in. / 1.27 mm
- Vertical Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
- Vertical NC Down Feed: 18.9 ipm / 480.06 mm/min
- Spindle Motor: 3 HP / 2.23 KW
- Spindle Speed: 1,720 rpm
- Power Consumption (220V): 5.4 KVA/25 amps
- Power Consumption (440V): 5.4 KVA/12.5 amps
- Voltage: 220V/440V
- Phase: 3 phase
Equipped With
Standard Accessories: Coolant System (25 Gal.), Wheel Balancer, Wheel Balancing Stand & Arbor, Ballscrew on Cross Feed, Electronic Crossfeed & Stroke Setting, Wheel Flange, Grinding Wheel 14” x 1.25“ x 5″(SH-920, SH-1224) 14″ x 1.5″ x 5″(SH-1632, SH-1640, Auto Lube System, Spindle head rapid up & down, Wired 220V or 440V. Please specify, Splash guard both front and back
Optional Accessories: NC spindle down feed with touch screen, servo motor, ballscrew, Auto parallel dresser, 15HP Upgraded from 10HP, Coolant System w/Paper Filter & Magnetic Separator (30 Gal), Parallel Dresser (Manual), Parallel Dresser (Semi-Automatic), Spare Wheel Adaptor (Flange), Radius and Angle Dresser, Mist collection system
