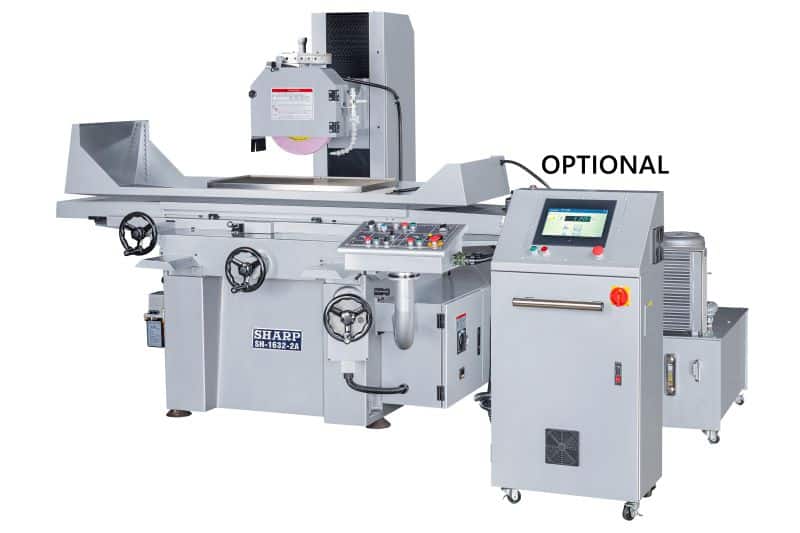

Sharp SH-1632-2A Surface Grinder

Stock #: Sharp-SH-1632-2A

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-SH-1632-2A
Brand: Sharp
Model: SH-1632-2A
Approx. Shipping Weight: 7,300 lbs. / 3,311.2 Kg
Approx. Shipping Dimensions: 6.4′ x 6.13′ x 5.91′ / 2.55m x 2.10 x 1.89 M

Specifications

Max Grinding Length: 24 in. / 610 mm
Max Grinding Width: 11 in. / 279 mm
Center Height: 24 in. / 600 mm
Table Size: 16 x 32 in. / 400 x 800 mm
Longitudinal Travel: 36 in. / 914 mm
Cross Travel: 17.6 in. / 447 mm
Longitudinal Hand Feed Per Revolution: 0.1 in. / 2.54 mm
Longitudinal Hydraulic Feed: 6.6-82 ipm / 167.6-2,082.8 mm/min
Cross Hand Feed Per Revolution: 0.1 in. / 4 mm
Cross Hand Wheel Graduation: 0.0005 in. / 0.02 mm
Cross Intermittent Feed: 0.0039-0.39 in./feed / 0.1-10 mm/feed
Cross Continuous Traverse Feed: 39.37 in./min / 1000 mm/min
Vertical Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Vertical NC Down Feed: 18.9 ipm / 480.06 mm/min
Spindle Motor: 5 HP / 3.72 KW
Spindle Speed: 1,720 rpm
Power Consumption (220V): 5.4 KVA / 25 amps (8KVA / 35 amps)
Power Consumption (440V): 5.4 KVA / 12.5 amps (4KVA / 5.5 amps)
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Coolant System (25 Gal.), Wheel Balancer, Wheel Balancing Stand & Arbor, Ballscrew on Cross Feed, Electronic Crossfeed & Stroke Setting, Wheel Flange, Grinding Wheel 14” x 1.5” x 5” (SH-1632), Auto Lube System, Spindle head rapid up & down, Wired 220V or 440V. Please specify, Splash guard both front and back, 2-way auto (longitudinal and cross), Hydraulic table (w/ over travel protection) with pre-set functions, Auto crossfeed (intermittent and continuous mode), Slide ways are hand scraped and TURCITE coated, Preset hydraulic table speed control (6 fpm – 83 fpm), Extensive ribbing work table design, Double longitudinal “V” ways and cross “V” ways, Extra wide bed, 5 HP motor
Optional Accessories: NC spindle down feed with touch screen, servo motor, ballscrew, Auto parallel dresser, 15HP Upgraded from 10HP, Coolant System w/Paper Filter & Magnetic Separator (30 Gal), Parallel Dresser (Manual), Parallel Dresser (Semi-Automatic), Spare Wheel Adaptor (Flange), Radius and Angle Dresser, Mist collection system, Optional NC downfeed with ballscrew and servo feed
