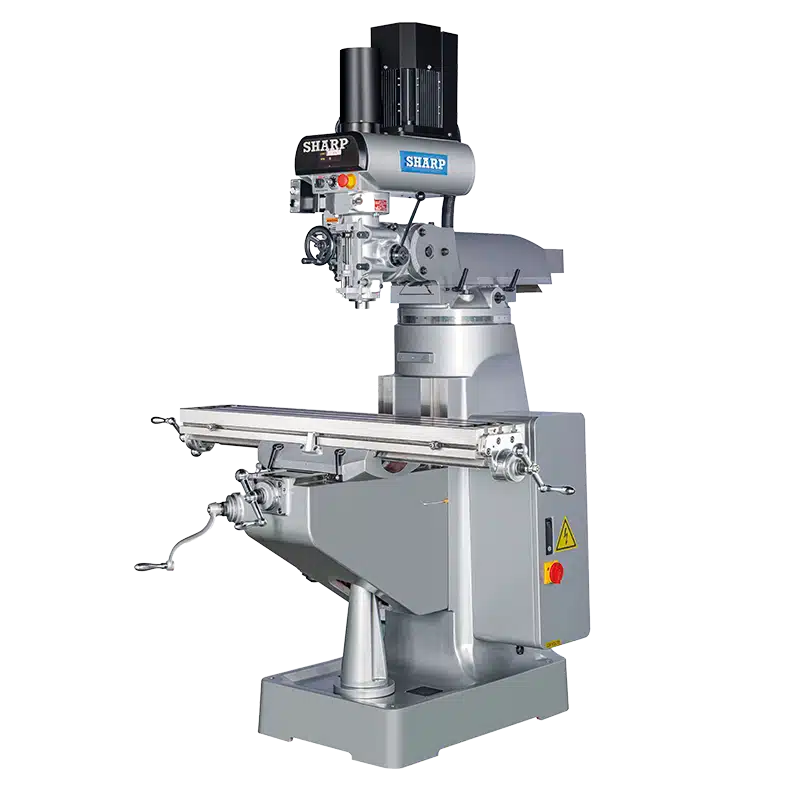

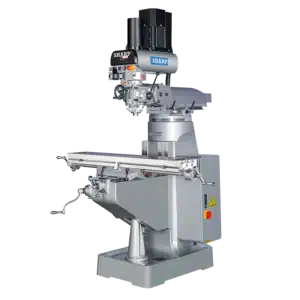

Sharp LMV-49-SMD Vertical Milling Machine

Stock #: Sharp-LMV-49-SMD

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-LMV-49-SMD
Brand: Sharp
Model: LMV-49-SMD
Approx. Shipping Weight: 2,100 lbs. / 952 Kg
Approx. Shipping Dimensions: 7′ x 6.5′ x 6.75′ / 2.1m x 2m x 2m

Specifications

Table Size: 9 x 49 in. / 228.6 x 1,244.6 mm
Longitudinal Travel (X): 36.6 in. / 929.64 mm
Cross Travel (Y): 12 in. / 304.8 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Knee Travel: 16 in. / 406.4 mm
Ram Travel: 12 in. / 304.8 mm
Spindle Nose to Table: 2.125 – 18 in. / 53.975 – 457.2 mm
Spindle Speeds: 65 – 4500 rpm
No. of Spindle Speeds: Variable (Digital)
Spindle Nose: R-8
Quill Diameter: 3.375 in. / 85.7 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: R-8
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev
Head Swivel: 360°
Head Tilt (Left/Right): 45°
Head Tilt (Up/Down): 45°
Spindle Motor: 11 HP / 8.2 KW
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Servo Motor Drive, Digital Variable Speed Spindle, Load Meter for real-time spindle power monitoring, Power Draw Bar, Meehanite Casting, Front & Rear Way Covers, One Shot Lubrication System, Transformer in electrical control cabinet for 110V power to DRO or X, Y, Z-Knee power feeds, Hardened & Ground Slideways with Turcite-B coating, Precision Quill with 5 in. travel, hard chrome-plated, mounted on high precision angular contact bearings, Backlash elimination through double-nut design, Patented Knuckled Head Design with six bolts fitted into circular T-slots, Precision thrust bearings at table end to eliminate end play, Digital display for spindle speed
