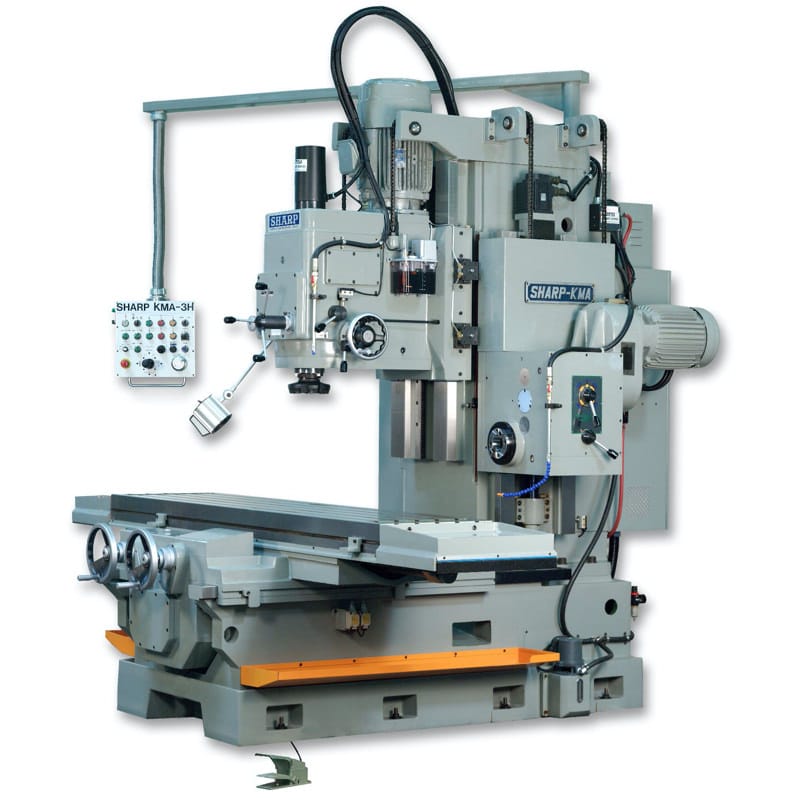

Sharp KMA-3H Bed Type Vertical / Horizontal Milling Machine

Stock #: Sharp-KMA-3H

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-KMA-3H
Brand: Sharp
Model: KMA-3H
Approx. Shipping Weight: 19,140 lbs. / 8,700 Kg
Approx. Shipping Dimensions: 14.58′ x 8.33′ x 9.41′ / 4.44m x 2.53m x 2.86m

Specifications

Table Size: 19.68 x 86.62 in. / 499.87 x 2,200.14 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 3.56 in. / 5 x 19.05 x 90.42 mm
Longitudinal Travel (X): 59 in. (79 in. Opt) / 1,498 mm (2,006 mm Opt)
Cross Travel (Y): 23.6 in. / 599 mm
Vertical Quill Travel (Z): 27.5 in. / 698 mm
Horizontal Head Travel (Up/Down): 25.5 in. / 647 mm
Vertical Spindle Nose: NST #50
Vertical Spindle Speeds: 45 – 1,500 rpm (12 steps)
Vertical Head Feeds: 0.002 – 0.008 in./rev / 0.05 – 0.2 mm/rev
Horizontal Spindle Nose: NST #50
Horizontal Spindle Speeds: 40 – 1,450 rpm (12 steps)
Spindle Center to Column: 21.62 in. / 549.14 mm
Spindle Nose to Table: 4 – 31.5 in. / 101.6 – 800.1 mm
Distance Between Vertical and Horizontal Spindle: 21.5 in. / 546 mm
Longitudinal Feeds: 1.12 – 39.37 ipm / 26 – 1,000 mm/min
Longitudinal Rapids: 129.875 ipm / 3,300 mm/min
Cross Feeds: 1.12 – 39.37 ipm / 26 – 1,000 mm/min
Cross Rapids: 129.875 ipm / 3,300 mm/min
Horizontal/Vertical Rapids: 150 ipm / 3,800 mm/min
Vertical Spindle Motor: 20 HP / 14.91 KW
Horizontal Spindle Motor: 7.5 HP / 5.59 KW
Table Feed and Rapid Motor: 4.7 HP / 3.5 KW
Vertical Rapid Motor: 1.14 HP / 0.85 KW
Coolant Motor: 0.125 HP / 0.093 KW
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Coolant system, Auto lubrication system, Draw-in bolt (1 pc), Tool box, Wired 220V or 440V
Optional Accessories: Power drawbar w/ foot pedal control, 6 in. “KURT” vise with swivel base D688, Halogen work light, Outboard support of table to increase longitudinal travel
