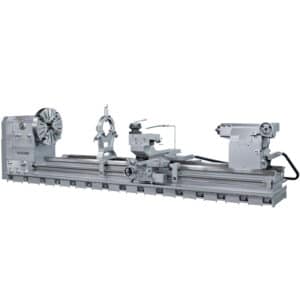

Sharp Heavy Duty 34″ Large Swing Lathe
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-M24-34-Series
- Brand: Sharp
- Model: 3460M, 3480M, 34120M, 34160M, 34200M, 34240M
- Approx. Shipping Weight: 3460M: 16,940 lbs., 3480M: 18,040 lbs., 34120M: 19,360 lbs., 34160M: 20,900 lbs., 34200M: 22,440 lbs., 34240M: 23,980 lbs.
- Approx. Shipping Dimensions: 3460M: 13.75′ L x 6.75′ W x 4.91′ H, 3480M: 15.41′ L x 6.76′ W x 4.75′ H, 34120M: 18.66′ L x 6.76′ W x 4.75′ H, 34160M: 22′ L x 6.76′ W x 4.75′ H, 34200M: 19.5′ L x 6.75′ W x 4.75′ H, 34240M: 28.5′ L x 6.75′ W x 4′ H
Specifications
- Swing Over Bed: 33.9 in.
- Swing Over Cross Slide: 21.3 in.
- Swing Over Gap: 3460M: 45.3 in., 3480M: 47.3 in., 34120M: 47.3 in., 34160M: 45.3 in., 34200M: 47.2 in., 34240M: 47.3 in.
- Gap Width (In Front Of Face Plate): 11.81 in.
- Distance Between Centers: 3460M: 59 in., 3480M: 78.7 in., 34120M: 236.29 in., 34160M: 157.5 in., 34200M: 196.9 in., 34240M: 236.29 in.
- Spindle Speed: 3460M: 11 – 810 RPM, 3480M: 11 – 810 RPM, 34120M: 11 – 810 RPM, 34160M: 11 – 810 RPM, 34200M: 16 – 810 RPM, 34240M: 16 – 810 RPM
- Spindle Nose: A2-11
- Spindle Bore: 6 in.
- Threads (Inch): 2 – 28 tpi (36)
- Modular Threads: 0.5 – 7 MP (22)
- Diametral Pitch Threads: 4 – 56 DP (36)
- Longitudinal Feeds: 0.0020 – 0.0276 in./rev
- Cross Feeds: 0.001 – 0.0138 in./rev
- Leadscrew Pitch, Diameter: 2 tpi / 1.77 in.
- Cross Slide Travel: 16.9 in.
- Compound Travel: 14.6 in.
- Compound Width: 3460M: 25.8 in., 3480M: 26.8 in., 34120M: 26 in., 34160M: 26 in., 34200M: 26 in., 34240M: 25 in.

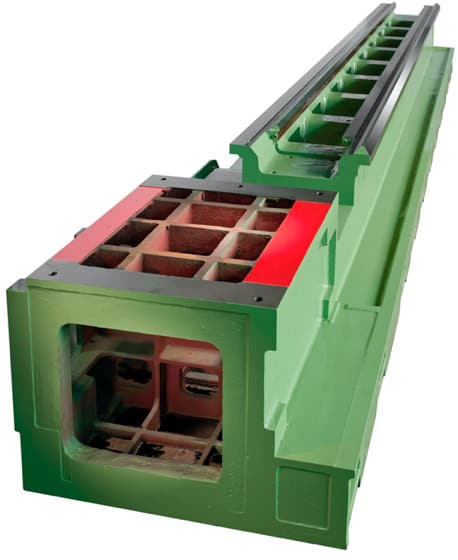

- Bed Length: 3460M: 149.6 in., 3480M: 169.3 in., 34120M: 208.7 in., 34160M: 248 in., 34200M: 287.4 in., 34240M: 326.8 in.
- Bed Width: 24 in.
- Quill Diameter: 3460M: 4.9 in., 3480M: 4.5 in., 34120M: 4.9 in., 34160M: 4.9 in., 34200M: 4.9 in., 34240M: 4.9 in.
- Quill Travel: 11.8 in.
- Quill Center Taper: MT #6
- Spindle Motor: 20 HP
- Voltage: 220V/440V
- Phase: 3 phase
- Power Consumption (220V): 16 KVA / 45 amps
- Power Consumption (440V): 16 KVA / 22.5 amps
Equipped With

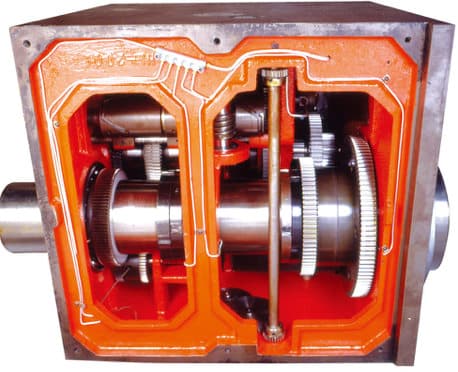

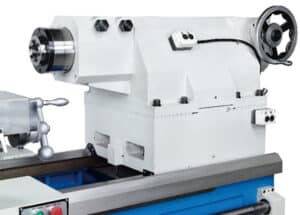

Standard Accessories: 12 spindle speeds, 2 stage spindle start up, headstock oil bath system, electro magnetic brake, lubrication system, coolant system, manual tailstock, steady rest 16″, work lamp
Optional Accessories: 3 jaw chuck (different sizes), 4 jaw chuck (different sizes), steady rest (larger sizes), follow rest (different sizes), face plate with 4 jaws (different sizes), rear chuck adapter, 40 HP motor in lieu of 20 HP motor, 50 HP motor in lieu of 20 HP motor, taper attachment, digital readout system
