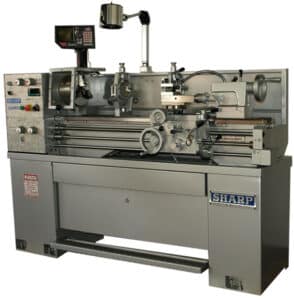

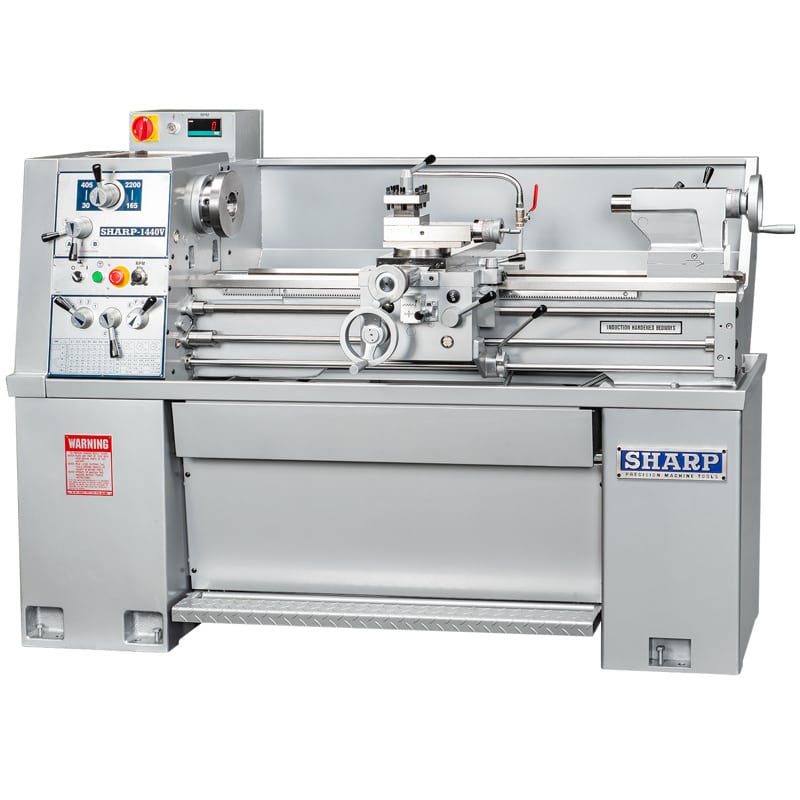

Sharp 1440V Precision Lathe

Stock #: Sharp-1440V

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-1440V
Brand: Sharp
Model: 1440V
Approx. Shipping Weight: 1650 lbs / 748.42 Kg
Approx. Shipping Dimensions: 6.29′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m

Specifications

Swing Over Bed: 14 in. / 355.6 mm
Swing Over Cross Slide: 8.62 in. / 218.94 mm
Swing Over Gap: 20 in. / 508 mm
Gap Width (In Front Of Face Plate): 9.25 in. / 234.9 mm
Distance Between Centers: 40 in. / 1016 mm
Spindle Speed: 30 – 2200 RPM
Spindle Nose: D1-4 camlock
Spindle Bore: 1.5 in. / 38.1 mm
Threads (Inch/Metric): 4 – 112 tpi / 0.45 – 7.5 mm (40 / 22)
Longitudinal Feeds: 0.0012 – 0.03 in./rev / 0.03 – 0.7 mm/rev
Cross Feeds: 0.0003 – 0.01 in./rev / 0.007 – 0.3 mm/rev
Leadscrew Pitch, Diameter: 8 tpi, 7/8 in. / 8 tpi, 22.225 mm
Cross Slide Travel: 6.6 in. / 167 mm
Compound Travel: 4 in. / 101.6 mm
Compound Width: 3.5 in. / 88.9 mm
Bed Length: 66 in. / 1676.4 mm
Bed Width: 8.5 in. / 206.24 mm
Quill Diameter: 1.75 in. / 44.45 mm
Quill Travel: 4.5 in. / 114.3 mm
Quill Center Taper: MT #3
Voltage: 220V/440V
Phase: 3 phase
Power Consumption (220V): 3.2 KVA / 10 amps
Power Consumption (440V): 3.2 KVA / 5 amps

Equipped With

Standard Accessories: 3-jaw 8″ chuck, steady rest, Removeable gap, back plate, Coolant system, 4 way toolpost, Full length splash guard, Center sleeves, dead center, tool kit, wired 220V, for 440V, need new motor, or transformer

Optional Accessories: 3-jaw chuck, different sizes, 4-jaw chuck, different sizes, Chuck guard w/ limit switch, Follow rest, Roller jaw set for steady rest, Taper attachment, Quick change tool holder set (7 pcs. Holder), Live center – MT#3, Drill & arbors, Face plate (12″), 4-way carriage stop, Micrometer carriage stop safety cover on end of spindle, Halogen work light, tool guard (at front of compound slide with limit switch), Lead screw cover (accordion style), 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs., 5C lever collet closer
