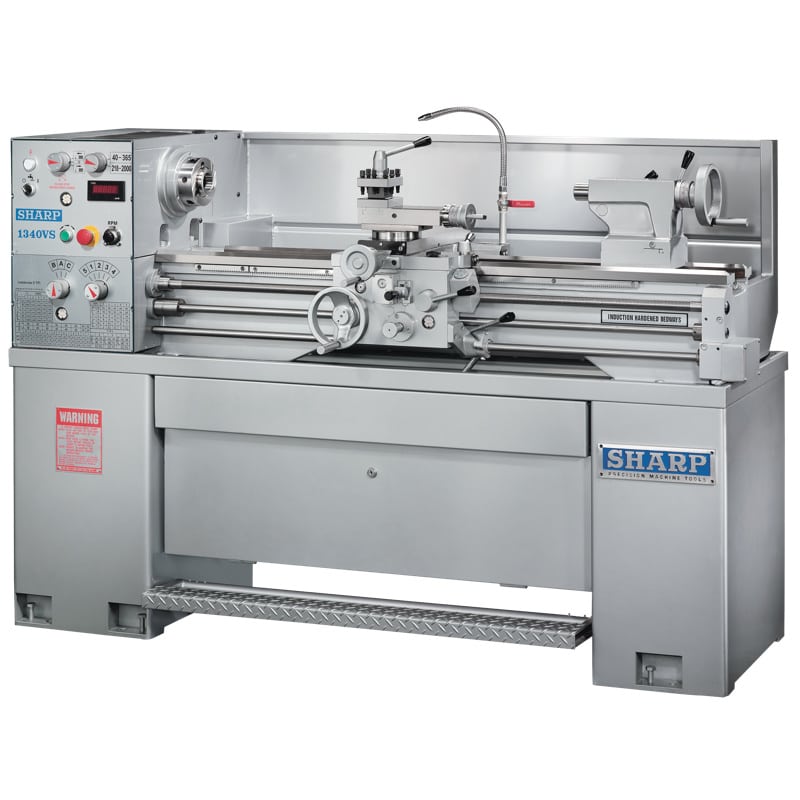

Sharp 1340VS Precision Lathe
Stock #: Sharp-1340VS
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-1340VS
- Brand: Sharp
- Model: 1340VS
- Approx. Shipping Weight: 1550 lbs / 703.06 Kg
- Approx. Shipping Dimensions: 6.19′ L x 1.68′ W x 3.81′ H / 1.88m x 0.51m x 1.16m
Specifications
- Swing Over Bed: 13 in. / 330.2 mm
- Swing Over Cross Slide: 7.6 in. / 195 mm
- Swing Over Gap: 19 in. / 490 mm
- Gap Width (In Front Of Face Plate): 9.43 in. / 240 mm
- Distance Between Centers: 40 in. / 1016 mm
- Spindle Speed: 40 – 2000 RPM
- No. of Spindle Speeds: Variable (high/low)
- Spindle Nose: D1-4 camlock
- Spindle Bore: 1.56 in. / 39.62 mm
- Threads (Inch/Metric): 2 – 56 tpi / 0.5 – 12 mm
- Longitudinal Feeds: 0.0016 – 0.046 in. / 0.0406 – 1.168 mm
- Cross Feeds: 0.0005 – 0.015 in. / 0.0127 – 0.381 mm
- Leadscrew Pitch, Diameter: 8 tpi, 0.87 in.
- Cross Slide Travel: 6.18 in. / 157 mm
- Compound Travel: 3.75 in. / 95 mm
- Compound Width: 4.5 in. / 114.3 mm
- Bed Length: 64 in. / 1625.6 mm
- Bed Width: 8.5 in. / 206 mm
- Quill Diameter: 1.56 in. / 39.62 mm
- Quill Travel: 4 in. / 101.6 mm
- Quill Center Taper: MT #3
- Spindle Motor: 3 HP / 2.23 KW
- Voltage: 220V/440V
- Phase: 3 Phase
- Power Consumption (220V): 3 KVA / 10 amps
- Power Consumption (440V): 3 KVA / 5 amps
Equipped With
Standard Accessories: 3-jaw 8″ chuck, steady rest, Removeable gap, back plate, Coolant system, 4 way toolpost, Full length splash guard, Center sleeves, dead center, tool kit, wired 220V, for 440V, need new motor, or transformer, Can run on single phase motor
Optional Accessories: 3-jaw chuck, different sizes, 4-jaw chuck, different sizes, Chuck guard w/ limit switch, Follow rest, Roller jaw set for steady rest, Taper attachment, Quick change tool holder set (7 pcs. Holder), Live center – MT#3, Drill & arbors, Face plate (12″), 4-way carriage stop, Micrometer carriage stop safety cover on end of spindle, Halogen work light, tool guard (at front of compound slide with limit switch), Lead screw cover (accordion style), 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs., 5C lever collet closer
