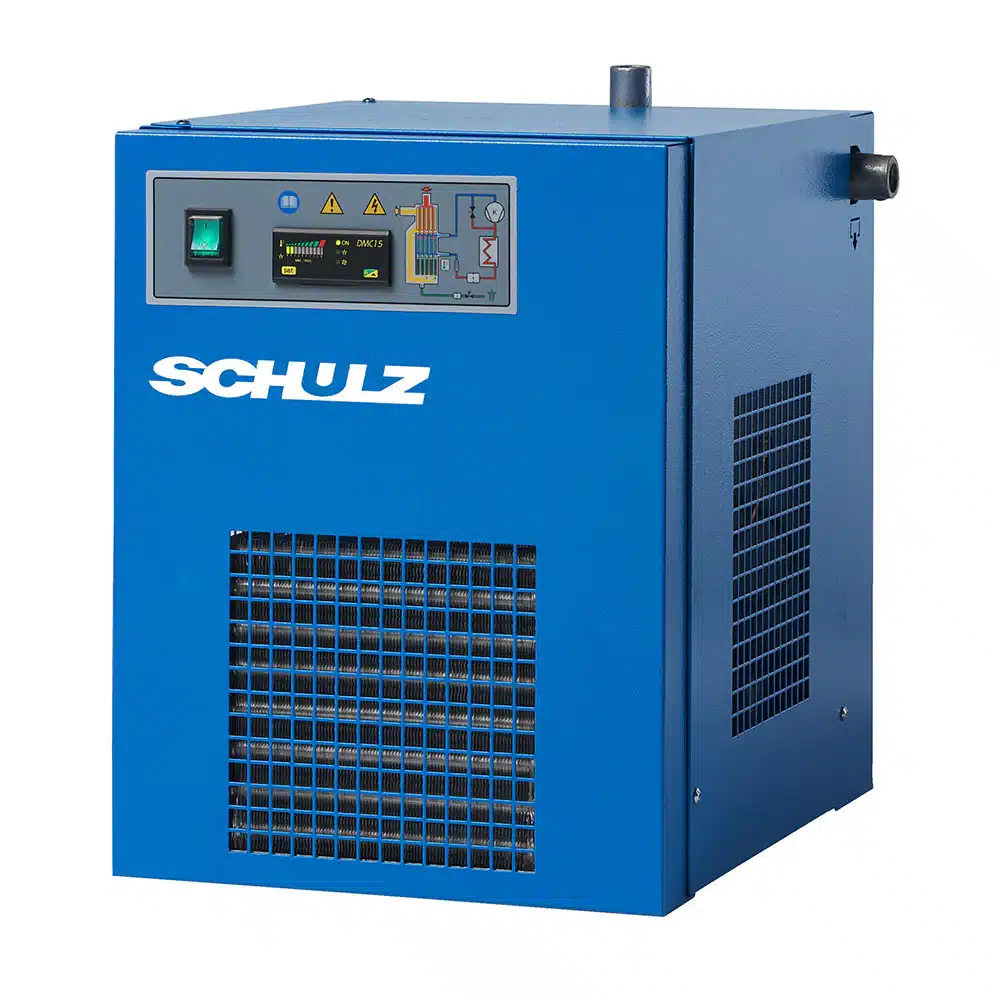

Schulz ADS-75-UP 75 CFM Refrigerated Air Dryer
Stock #: ADS75-UP
$1,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: ADS75-UP
- Brand: Schulz of America
- Model: ADS-75
- Approx. Shipping Weight: 75 lbs. / 34 Kg
- Approx. Shipping Dimensions: 30″ x 14″ x 16″ / 0.76m x 0.36m x 0.41m
Specifications
- Capacity: 75 CFM / 2124 L/min
- Voltage: 115 V / Single Phase
- Rated Pressure: 100 PSI / 6.9 bar
- Maximum Pressure: 203 PSI / 14 bar
- Dryer Type: Non-Cycling Refrigerated
- Refrigerant: R134a
- Inlet/Outlet Connection: 1″ NPTF
- Power Consumption: Approx. 5.1 A
- Frequency: 60 Hz
Equipped With
Standard Accessories: Electronic controller with LED indicators for temperature and dew point monitoring, Quick-connected electronic automatic drain valve (timer-controlled, easy to clean without special tools), High-efficiency refrigerant compressor, Removable panels for easy maintenance access, Advanced refrigeration technology for consistent dry air supply, Designed for high ambient/inlet temperatures up to 100°F, Energy-efficient operation matching compressor displacement, Digital display for temperature and dew point, Non-cycling design for reliable performance in sensitive applications
