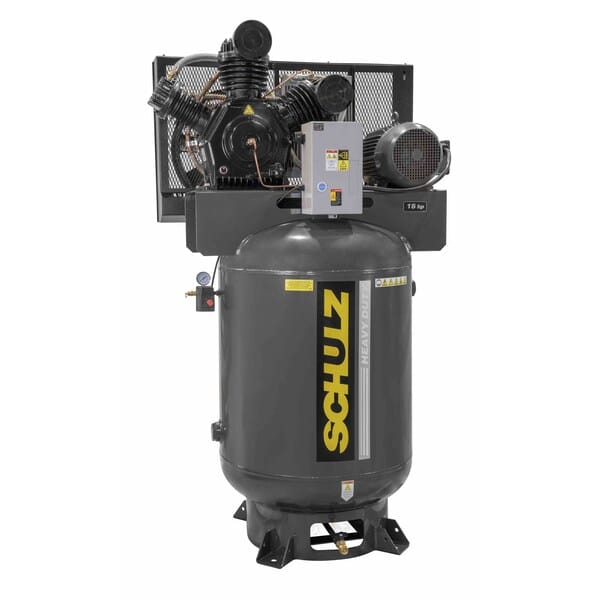

Schulz 15120VW60X-3 15 HP Piston Air Compressor
Stock #: 932.9368-0
$9,150.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 932.9368-0
- Brand: Schulz
- Model: 15120VW60X-3
- Approx. Shipping Weight: 1100 lbs. / 499 Kg
- Approx. Shipping Dimensions: 49″ x 30″ x 79″ / 1.24m x 0.76m x 2.01m
Specifications
- Motor Horsepower: 15 HP / 11.19 KW
- Voltage: 208-230/460 V / Three Phase
- Max Operating Pressure: 175 PSI / 12.07 bar
- Free Air Delivery @ 175 PSI: 45.2 CFM / 1280 L/min
- Theoretical Displacement: 60 CFM / 1699 L/min
- Number of Stages: 2
- Number of Pistons: 2-V
- Tank Capacity: 120 Gallons / 454 L
- Tank Type: Vertical
- Lubrication: Oil-Lubricated
- Pump Material: Cast Iron
Equipped With
Standard Accessories: Cast iron construction, Low RPM two piston V design, High-quality cast iron blocks, V-cylinder design for superior cooling and increased efficiency, Mounted and prewired magnetic starters for safe operation, TEFC high efficiency motors, Auto start/stop pressure switch operation, Powder coated ASME certified receivers, Enclosed metal belt guard, Easy access to adjust belt tension, Balanced drive pulleys, Oversized check valves, ASME safety relief valves, Pressure gauge, Manual condensate drain, Swedish stainless steel reed valves, Deeper cylinder fins for heat dissipation, Oil sight glass
