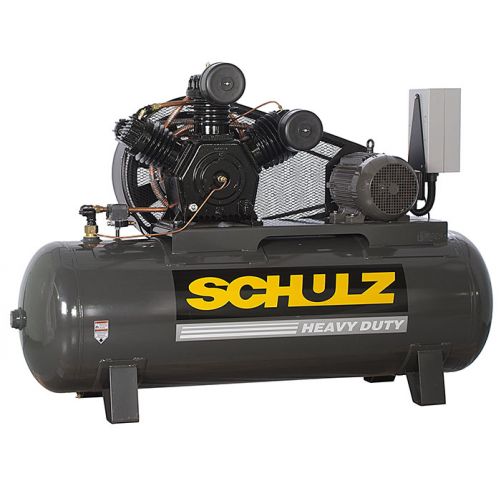

Schulz 15120HW60X-3 15 HP Piston Air Compressor
Stock #: 932.9337-0
$6,195.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 932.9337-0
- Brand: Schulz
- Model: 15120HW60X-3
- Approx. Shipping Weight: 1100 lbs. / 499 Kg
- Approx. Shipping Dimensions: 78.3″ x 28″ x 51.2″ / 1.99m x 0.71m x 1.30m
Specifications
- Motor Horsepower: 15 HP / 11.19 KW
- Voltage: 208-230/460 V / Three Phase
- Max Operating Pressure: 175 PSI / 12.07 bar
- Free Air Delivery @ 175 PSI: 60 CFM / 1699 L/min
- Theoretical Displacement: N/A
- Number of Stages: 2

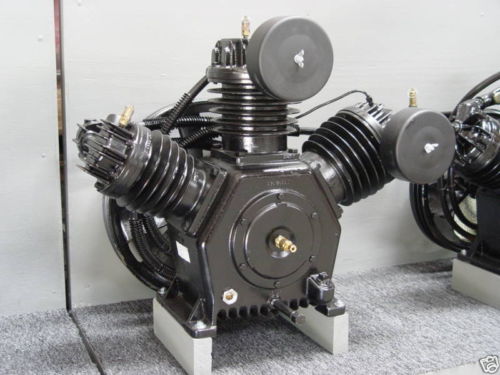

- Number of Pistons: 2 (V-Series)
- Tank Capacity: 120 Gallons / 454 L
- Tank Type: Horizontal
- Lubrication: Oil-Lubricated (Splash)
- Pump Material: Cast Iron
Equipped With
Standard Accessories: WEG TEFC electric motor, V-Series cast iron pump with space between cylinders for cooler operation, Deeper cylinder fins for enhanced heat dissipation, Oversized main bearings for durability, Swedish steel valves for efficiency, CNC machined components for precise fit and performance, Notched belts, Enclosed metal belt guard, Powder coated components to resist rust and corrosion, Magnetic starter mounted and wired, Auto start/stop pressure switch operation, Powder coated ASME certified receiver, Pressure gauge, Manual condensate drain, Oil sight glass
