Samchully HS-05 High Speed 5″ 3-Jaw Hydraulic Power Chuck
Stock #: 114250383
$1,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 114250383
- Location: Decatur, GA
- Brand: Samchully
- Model: HS-05
- Serial #: 20K022
- Approx. Shipping Weight: 15 lbs
- Approx. Shipping Dimensions: 12″ x 12″ x 12″
Specifications
- Chuck Size: 5″
- Through-Hole Diameter: 33 mm
- Grip Diameter Max: 135 mm
- Grip Diameter Min: 12 mm
- Jaw Stroke Diameter: 5.4 mm
- Plunger Stroke: 10 mm
- Max Input Force: 17.5 kN
- Max Static Gripping Force: 36 kN
- Max RPM: 7000 RPM
- Series: HS
Equipped With

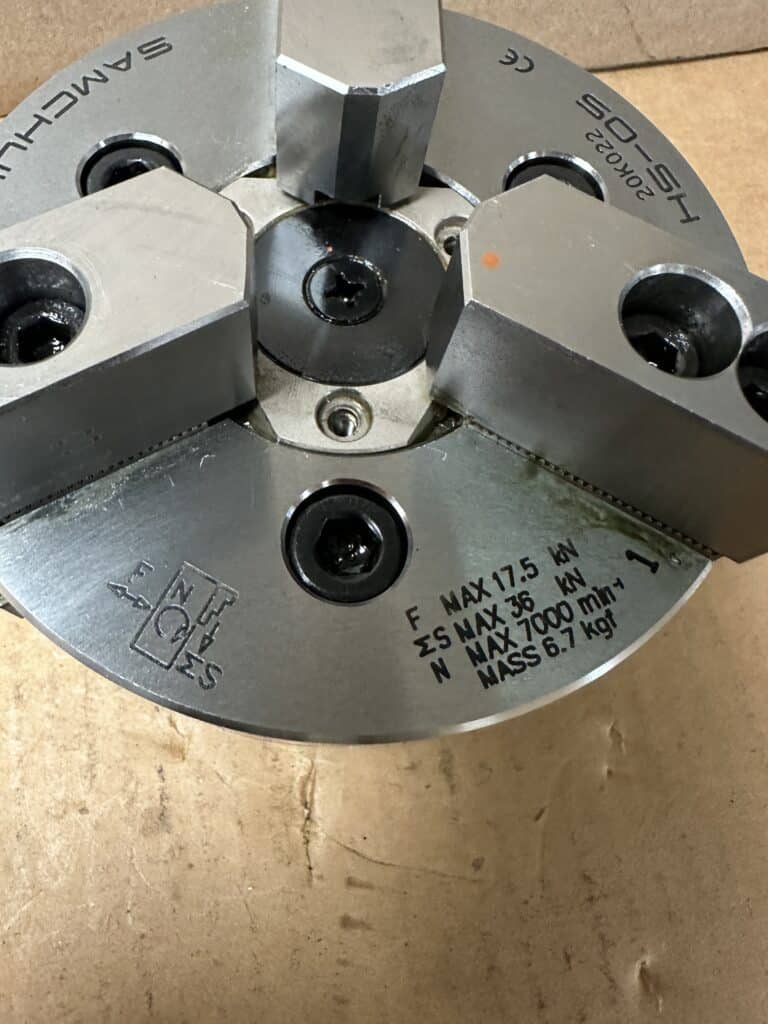

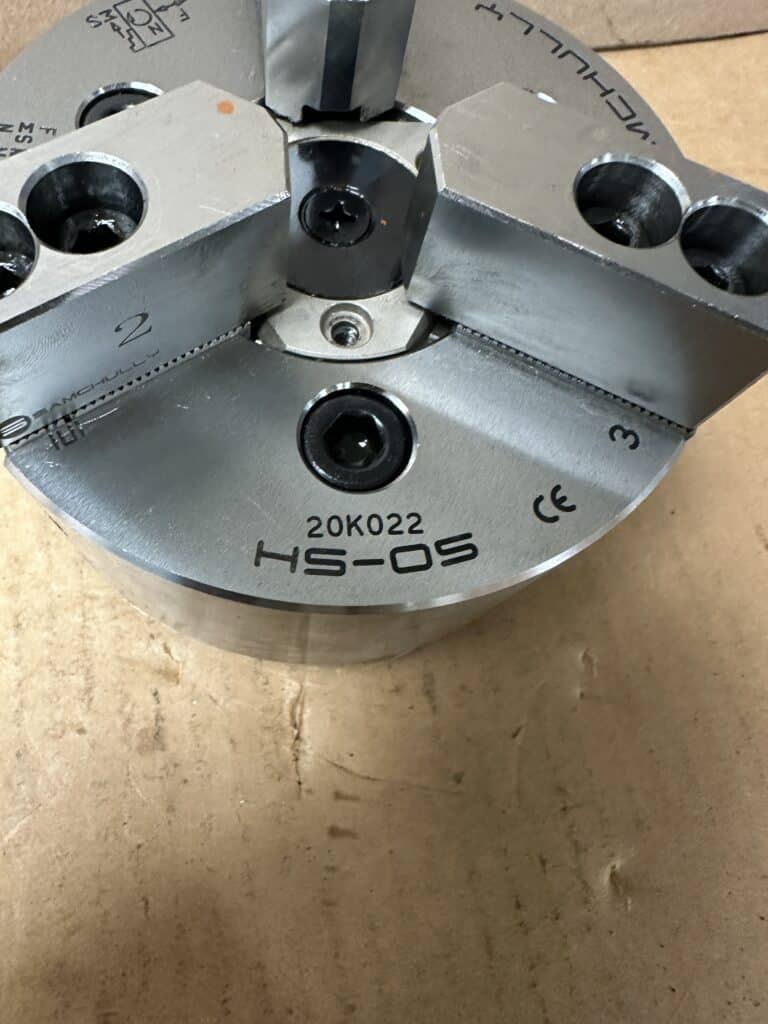

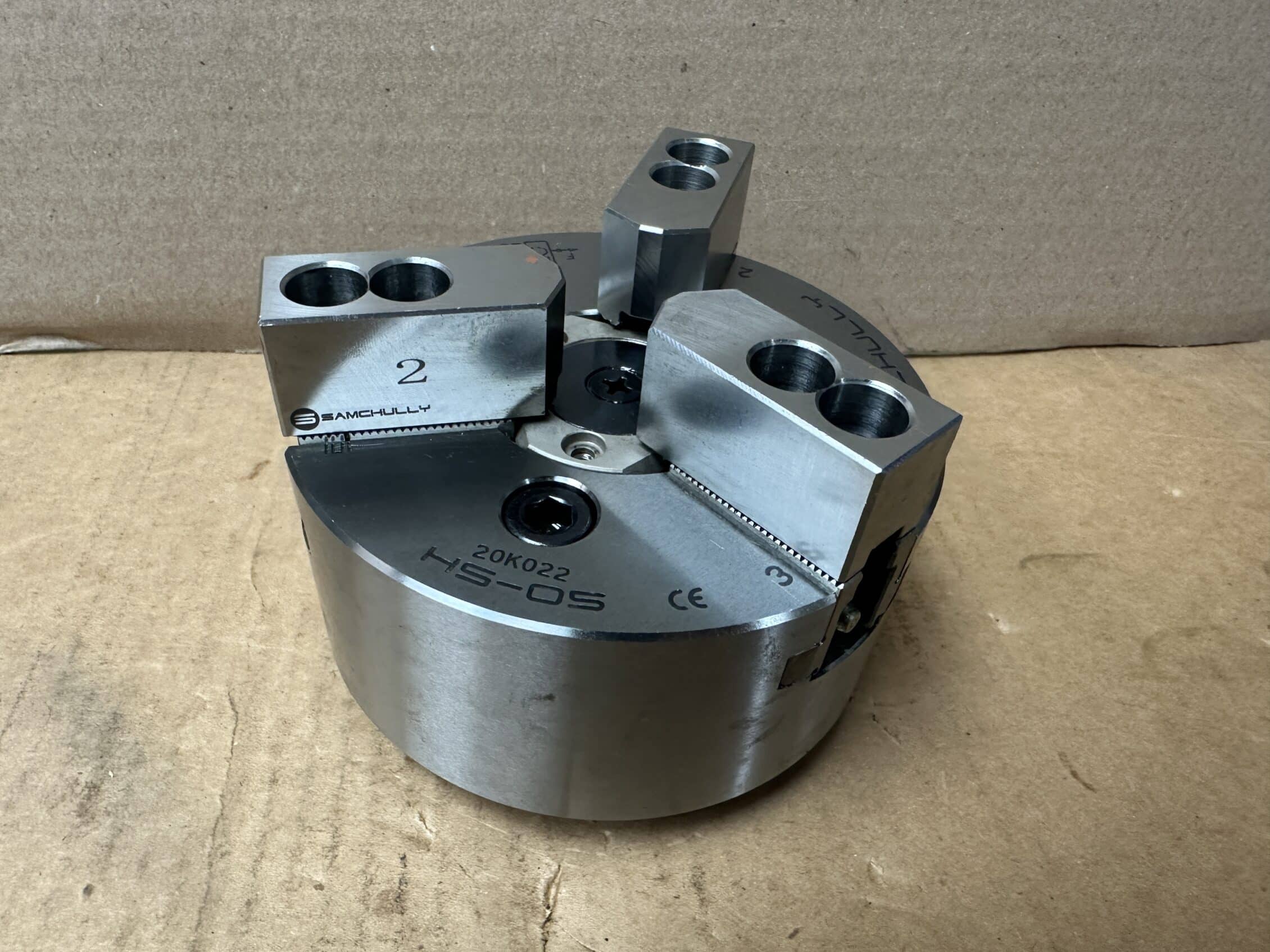

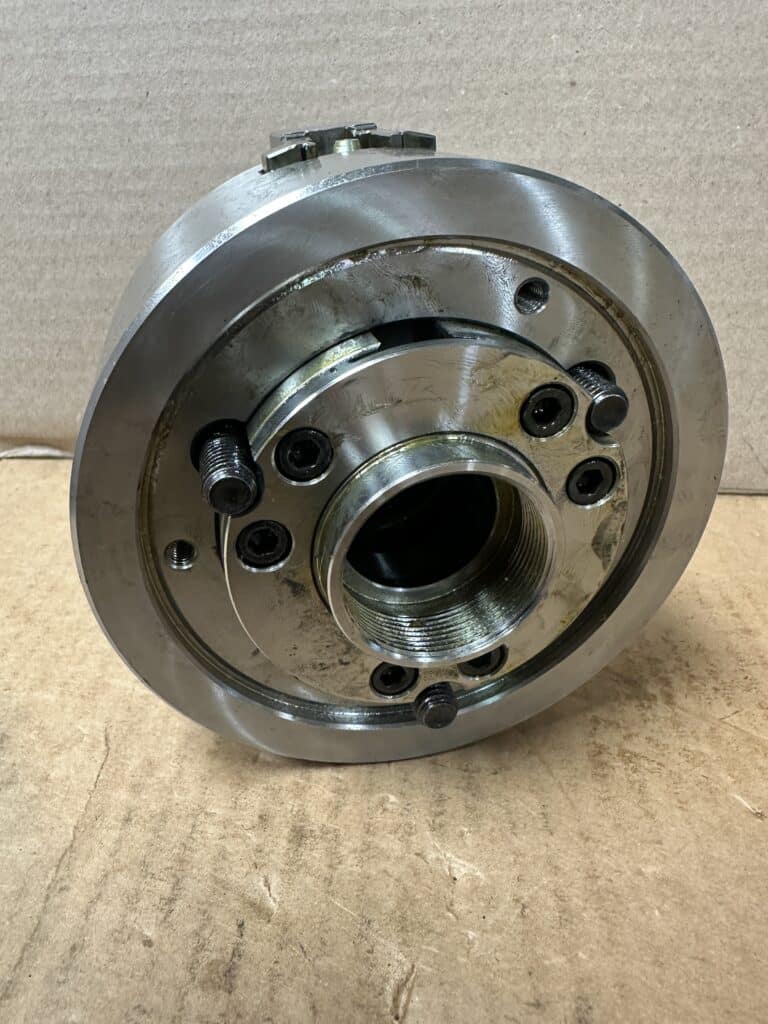

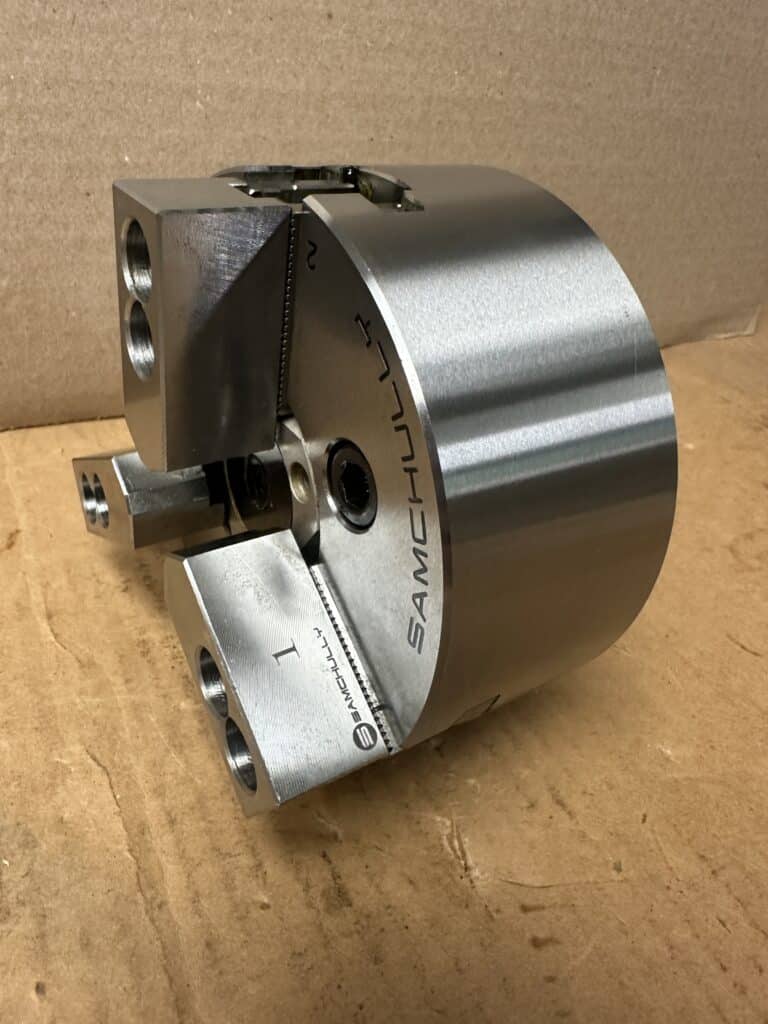

As Pictured
