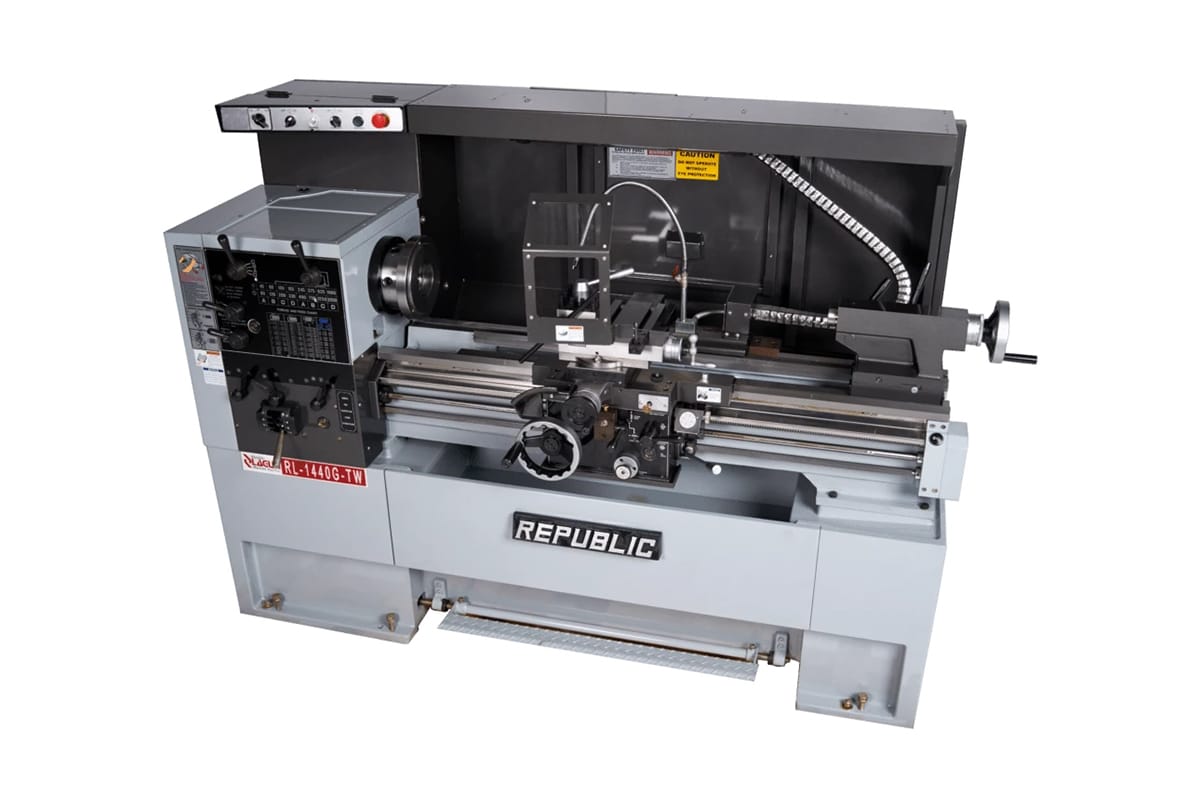

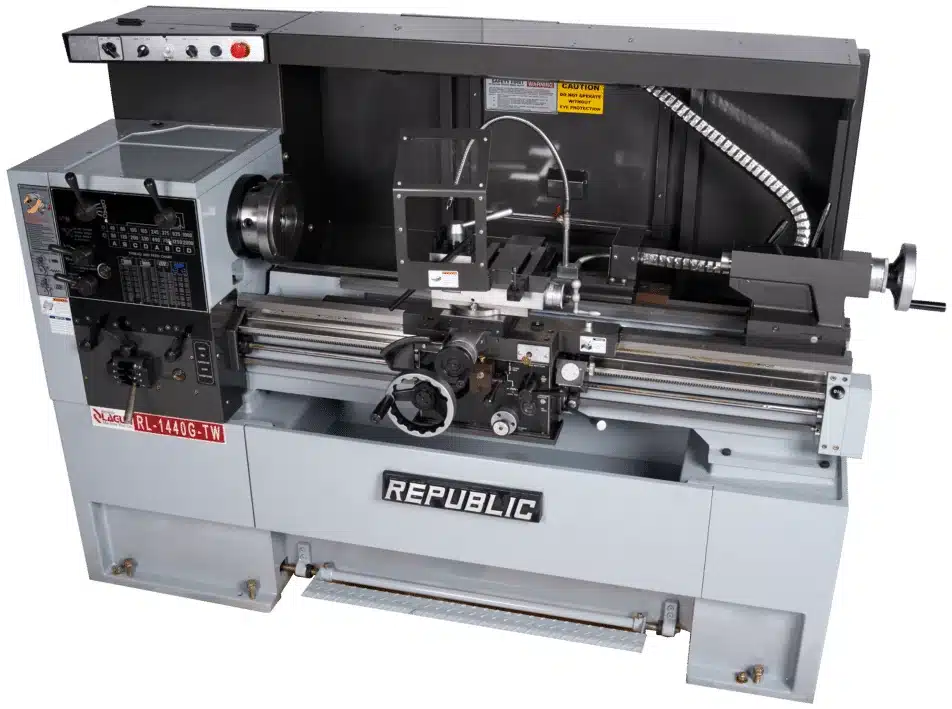

Republic Lagun Machine Tool RL-1440/60 & RL-1640/60 Gear Head Lathe
Stock #: Lagun-RL-1440-G-TW
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Lagun-RL-1440/60, Lagun-RL-1640/60
- Brand: Republic Lagun
- Model: RL-1440/60 / RL-1640/60
Specifications
- Swing Over Bed: 14 3/16″ (360 mm) / 16″
- Swing Over Cross Slide: 8 3/8″ (214 mm)
- Distance Between Centers: 40″ (1,000 mm) or 60″ (1,500 mm)
- Length of Bed: 20″ (513 mm)
- Spindle Speed RPM Range: 40-2,000 RPM
- Hole Through Spindle: 2.07″ (52.5 mm)
- Spindle Nose: D1-6
- Motor HP: 5 HP
- Disk Clutch Headstock: No
- Inch Thread Range (TPI): 2-72 TPI
- Metric Thread Range: 0.2-14
- Tailstock Spindle Taper: M.T.4
- Digital Threading Control: No
- CNC or Manual: Manual
Features
High Speed Lathe: 5 HP 2-Speed Drive, 16 Speeds from 40 to 2,000 RPM, Cam Lock Spindle D1-6, Geared Head, Gap Bed, Hardened and Ground Bed Ways, 3 V Ways, Manual Operation
