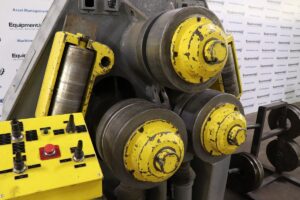

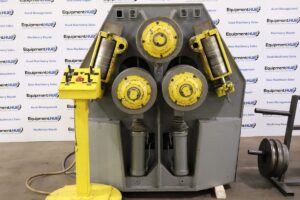

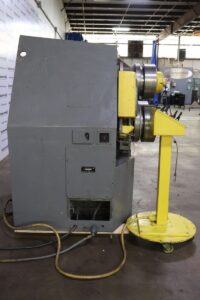

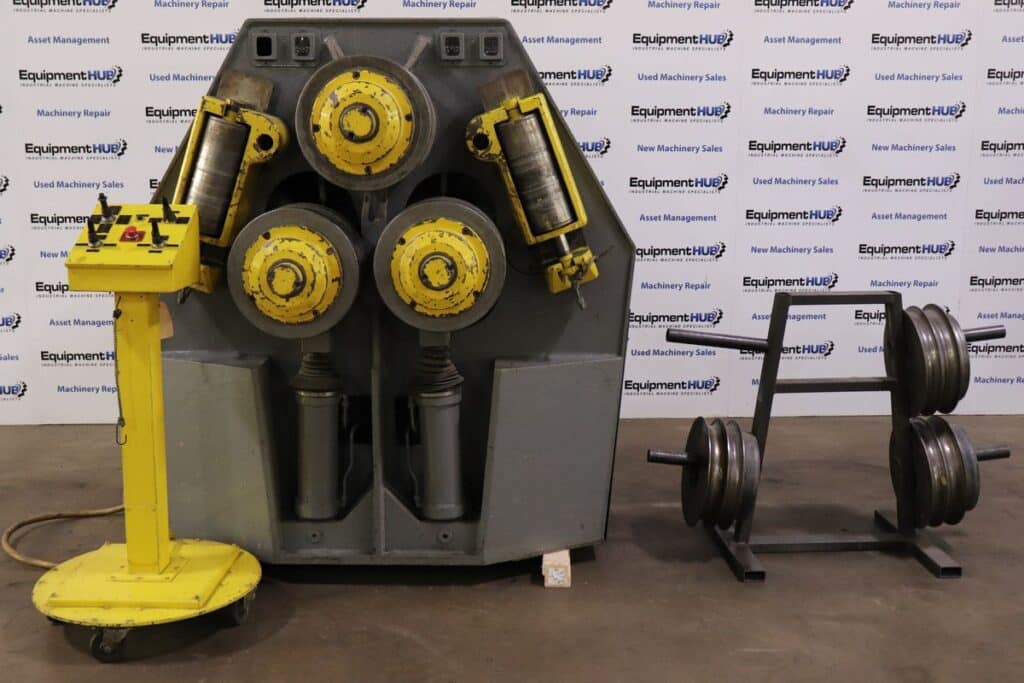

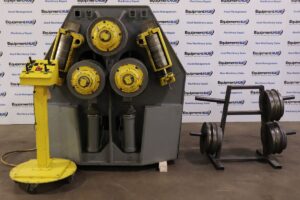

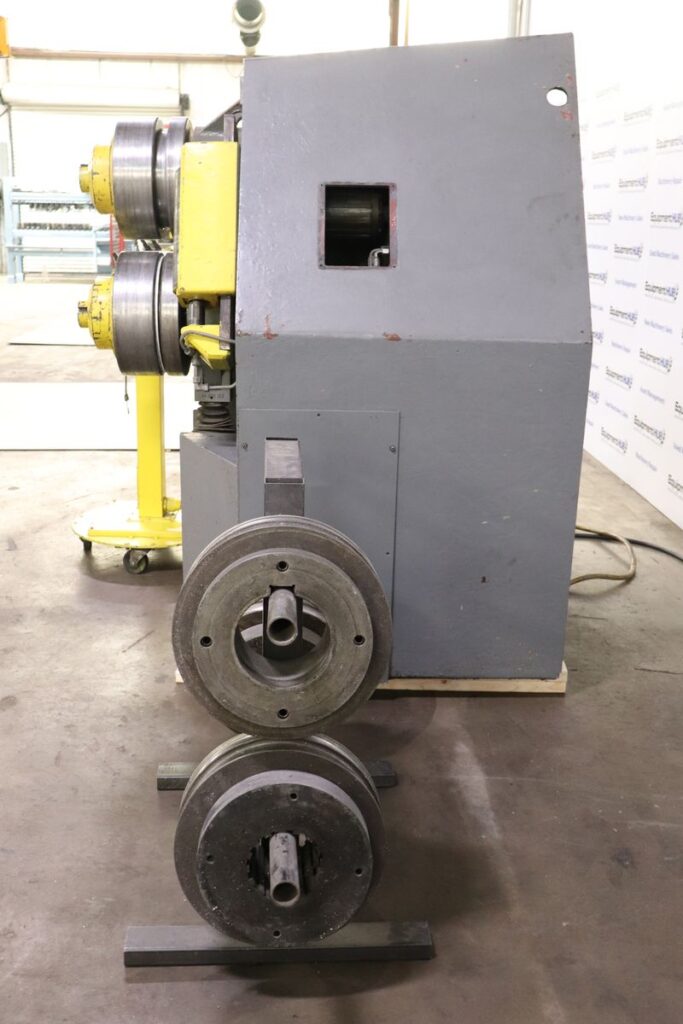

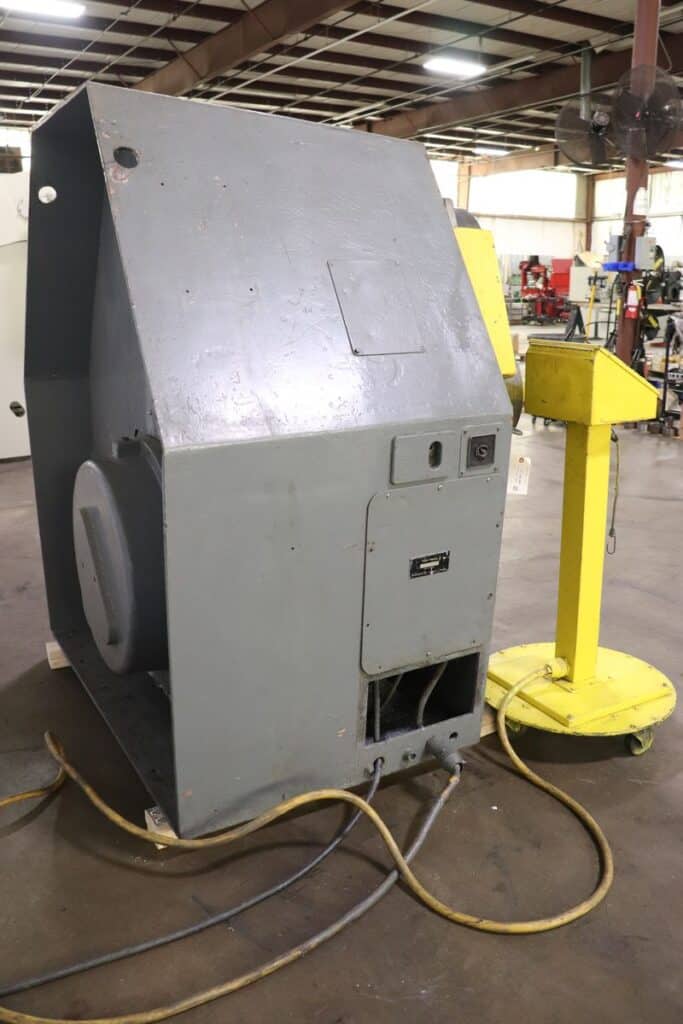

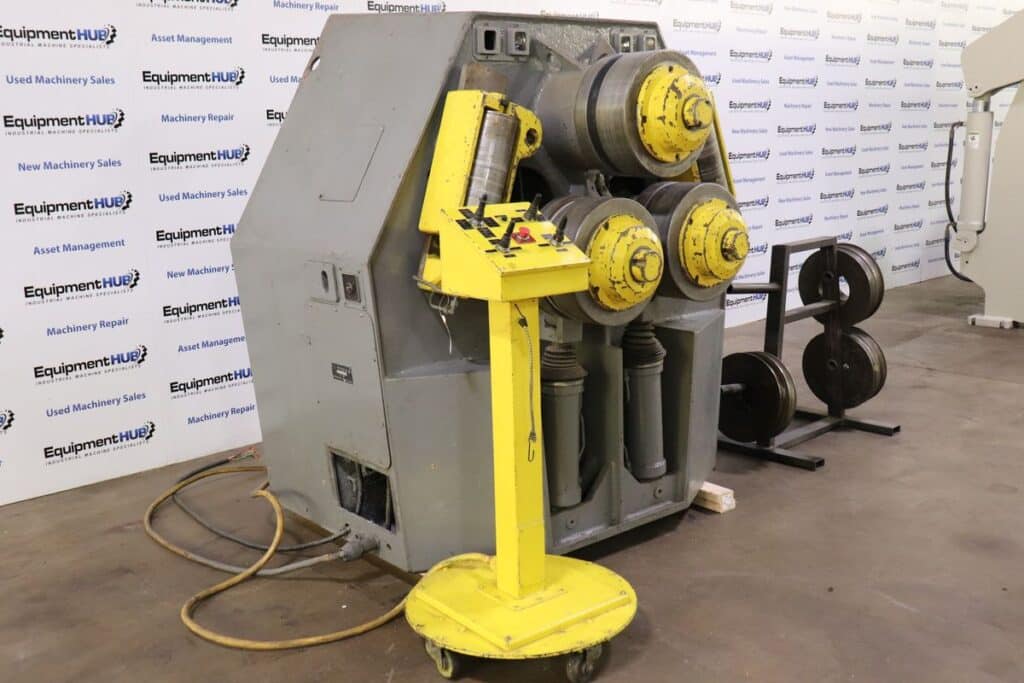

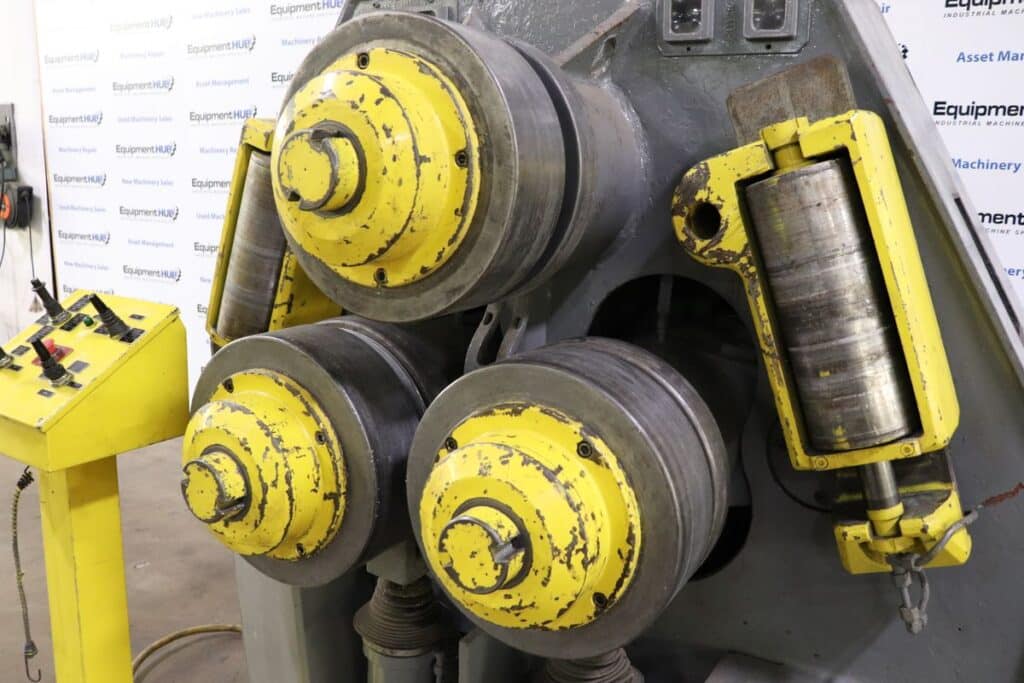

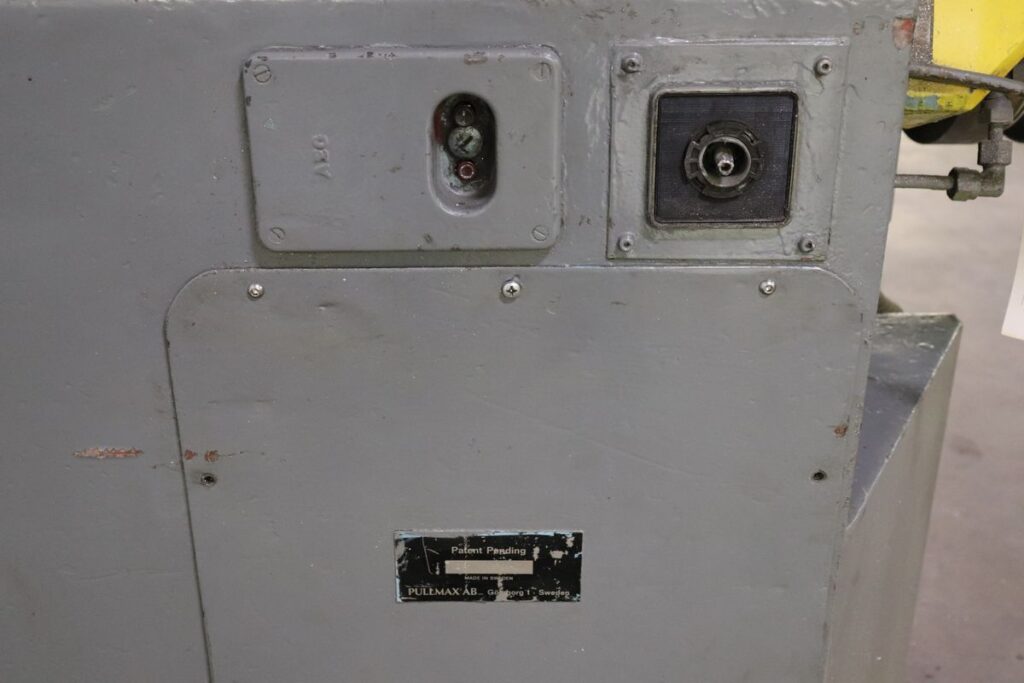

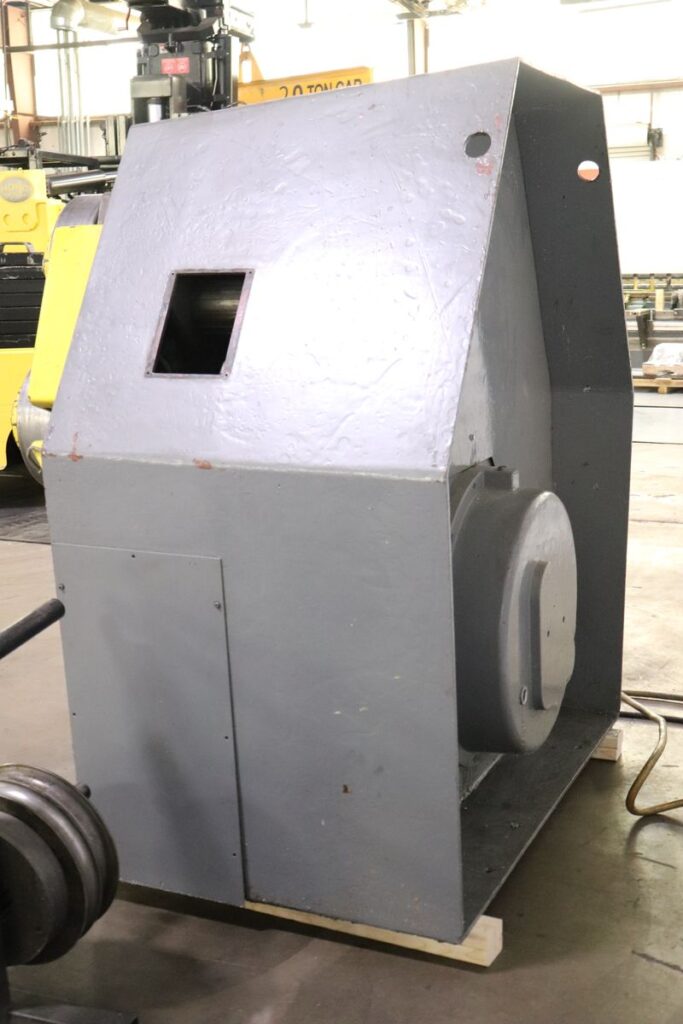

Pullmax Z41 5″ x 5″ x 1/2″ Hydraulic Angle Roll

Stock #: 120250032

$34,500.00

See Product Details

Business Financing Available

  • Stock #: 120250032
  • Brand: Pullmax

Business Financing Available

  • Stock #: 120250032
  • Brand: Pullmax

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

  • Hidden
  • Hidden
  • Hidden
  • Hidden
  • Hidden
  • This field is for validation purposes and should be left unchanged.

Product Description

General Info

  • Stock #: 120250032
  • Location: Stone Mountain, Ga
  • Brand: Pullmax
  • Model: Z41
  • Serial #: 53300-07
  • Approx. Shipping Weight: 13,000 Lbs.
  • Approx. Shipping Dimensions: 10′ L x 5′ W x 6′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Angle Leg Out Max: 5” X 5” X ½” to 63” Diameter
  • Angle Leg Out Min: 1-¾” X 1-¾” X ¼” to 32” ¬¬-Diameter
  • Angle Leg In Max: 4” X 4” X ⅝” to 60” Diameter
  • Angle Leg In Min: 1-¾” X 1-¾” X ¼” 36” Diameter
  • Tee Leg Out Max: ST 5WF 30 LBS to 60”
  • Tee Leg Out Min: 1-¼” X 1-¼” X ¼” to 18” Diameter
  • Tee Leg In Max: ST 5WF 30 LBS to 60”
  • Flat Bar On Edge: 5” X ¾” to 50” Diameter
  • Flat Bar On Flat: 8” X 1-½” to 32” Diameter
  • Square Bar: 2-¾” X 2-¾” to 40”
  • Round Bar: 3” to 30” Diameter
  • Round Pipe: 4” Sch 40 to 50”
  • I – Beam on Web: 10” X 4” to 70” Diameter
  • I – Beam on Flange: 4” X 2-⅝” to 140” Diameter
  • Channel Flange Out: 10” X 2-⅝” to 70” Diameter
  • Channel Flange In: 10” X 2-⅝” to 70” Diameter
  • Channel Flange Up: 5” X 1-¾” to 140” Diameter
  • Electrical: 460V/3PH

Equipped With

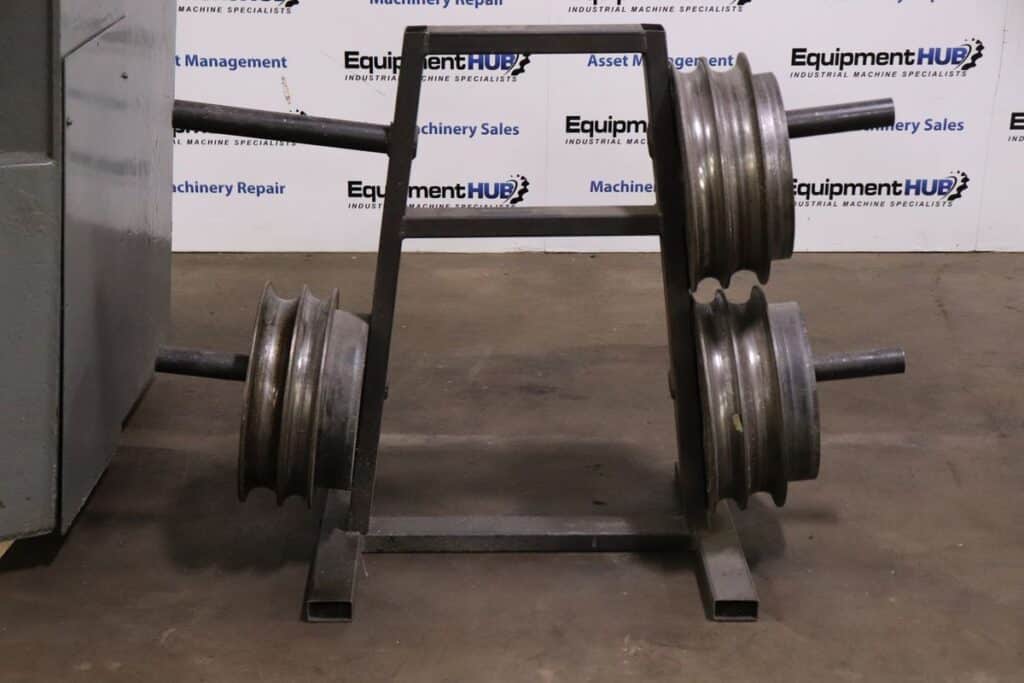

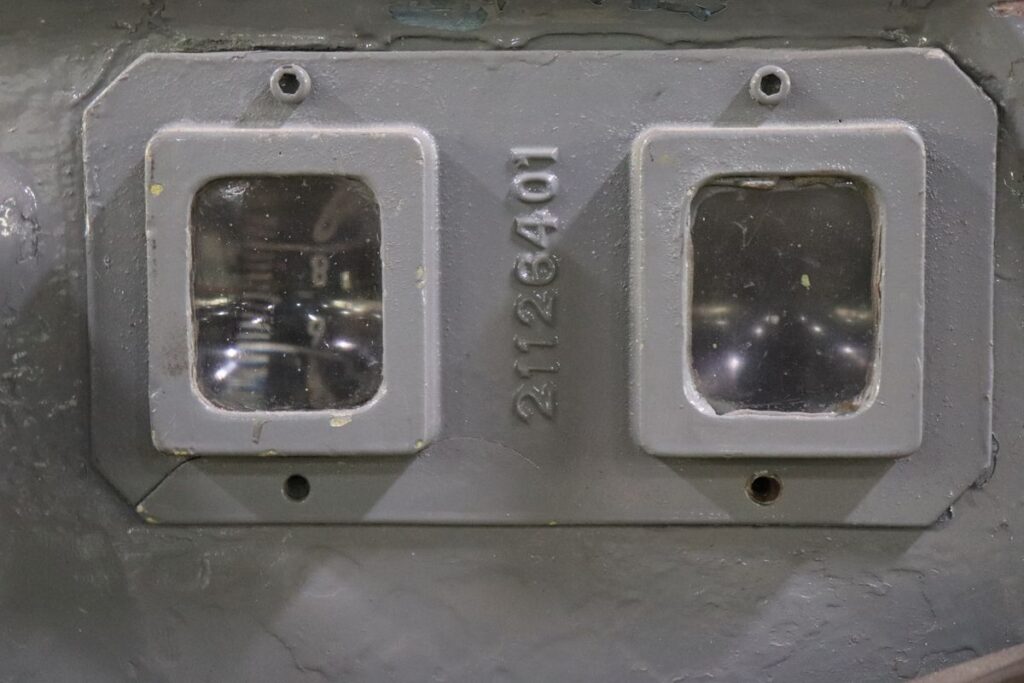

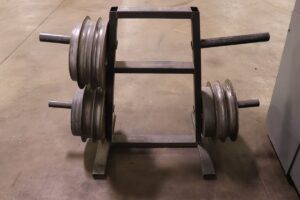

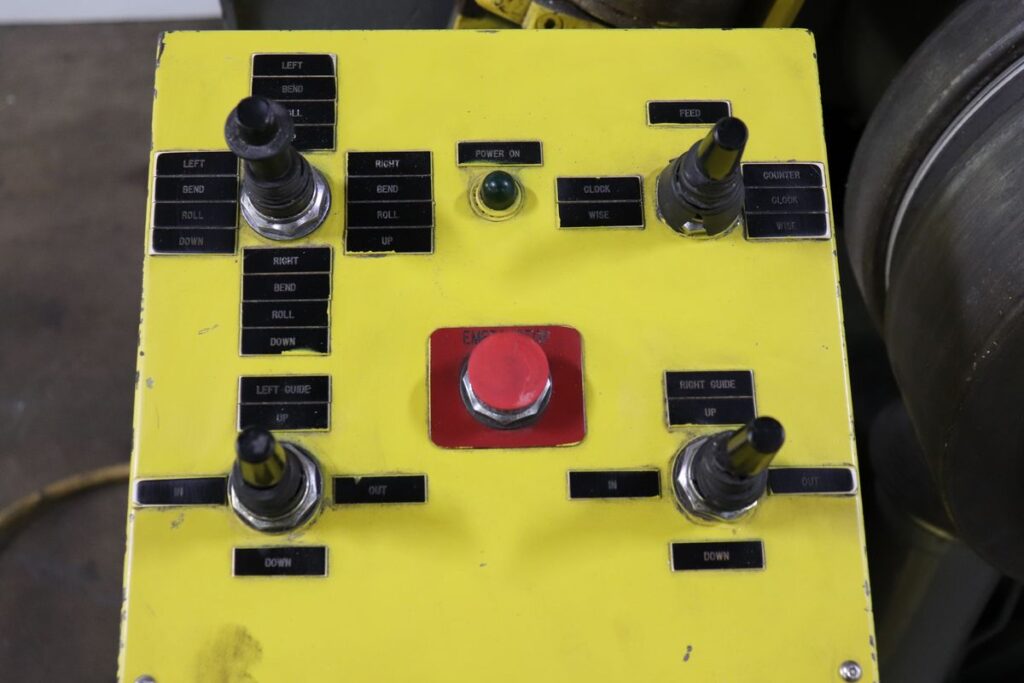

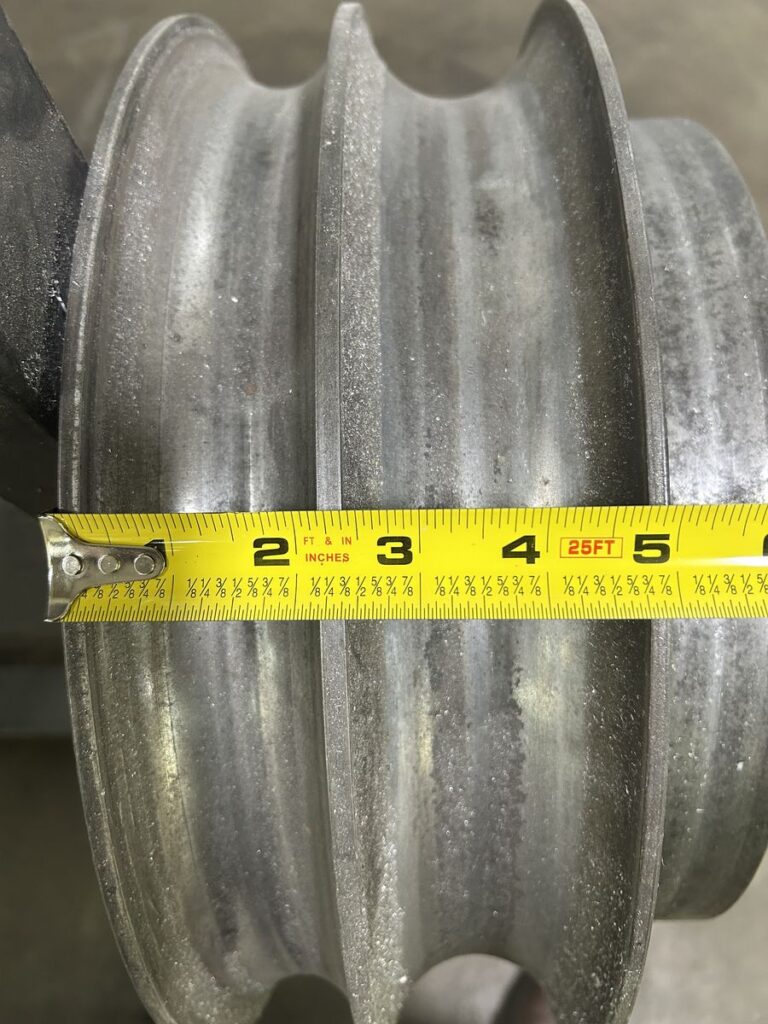

Free Standing Operator Console with Joystick, Mechanical Scales for Vertical Travel of Rolls, Dies

Additional Info

The Pullmax Angle Roll can be demoed upon request, check out the video on the listing to see it in operation.
