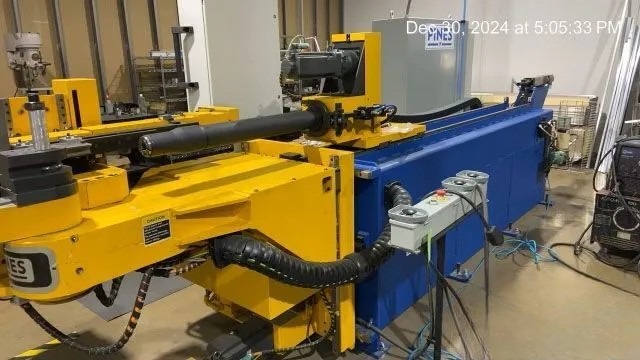

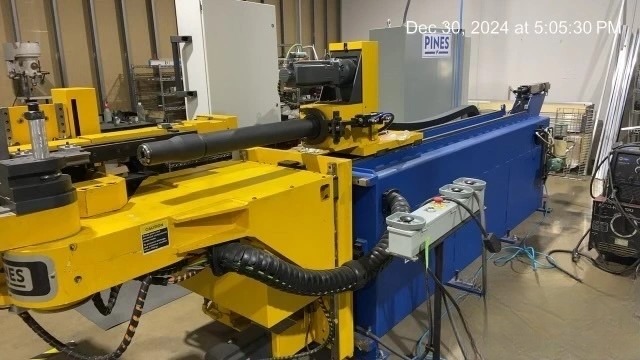

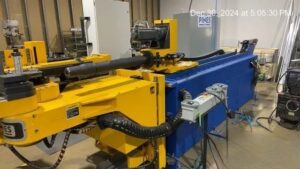

Pines e40 Electric 10-Axis CNC Rotary Bender (2021)

Stock #: 153260044

$255,500.00

See Product Details

Stock #: 153260044
Brand: Pines

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 153260044
Brand: Pines

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 153260044
Brand: Pines
Model: e40
Year: 2021

Specifications

Maximum Radius: 6”
Minimum Radius To Diameter Ratio: 1D
Programmable Motion: 10-Axis
Maximum Bend Angle: 190º
Bend Arm Repeatability: +/- 0.05º
Carriage Repeatability: +/- .005”
Bend Arm Forward Speed: 25 RPM
Standard Tube Length Over Mandrel: 13’
B-Axis Travel: 360º
B-Axis Speed: 60 RPM
Y-Axis Travel: 6’
Y-Axis Speed: 2000 IPM
Working Height: 48.5”
Voltage: 480 3 Phase 60 Hz. 50 amp circuit required (220/3/60 @ 80 amps also available)
Round Tubing, Mild Steel Y.P. To 40,000 PSI: 1-1/2” x .109”
Round Tubing, Non-Ferrous Y.P. To 25,000 PSI: 1-5/8” x .187”
Round Tubing, Stainless Steel Y.P. To 60,000 PSI: 1-3/8” x .065”
Steel Pipe, Schedule 80: 1”
Square Tubing, Mild Steel: 1-1/8“ x .125”

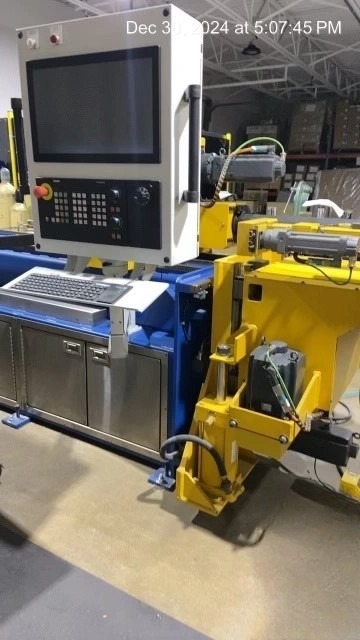

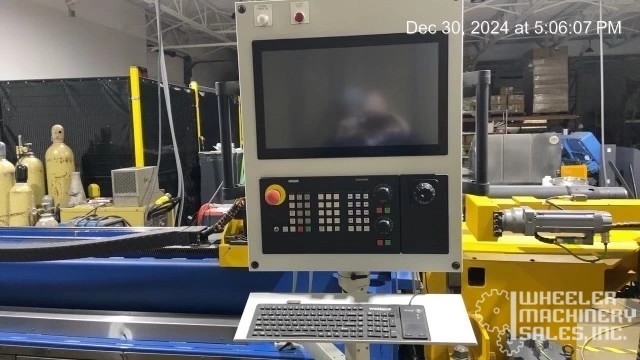

Machine Control: Siemens 840D 10-Axis CNC Control SIMATIC IPC 477E. 22" Multitouch neutral. Windows 10 Emb loaded with Sinumerik Operate and WinCC RT software

Equipped With

Counterclockwise Rotation, Servo Controlled Swing Arm, Hitch Feed Capable, Pdi Zone Recapture, In-Line Programable Pressure Die Assist – With Z-Axis Shift, Clamp Die Holder, Electric Swing & Stationary Arms – Quick Change, Programmable Pressure Tooling, Wiper Die Holder, Programable Mandrel Extractor – Tangent Position And Extract Length, Heavy Duty Automatic Mandrel Lubricator, Laser Safety Scanner, Dual Palm Remote Operator Control, Roll Forming (Calendaring) Capability On Top Stack (Additional Tooling Required), Self-Diagnostic Program, Carriage Push For Shorter Grip Lengths, Spring Back Compensation, Servo Drives Power To 10 Axes (Y, B, C, Pda, Pda Z, Mandrel, Nose X, Nose Z, Clamp, And Pressure Die)
