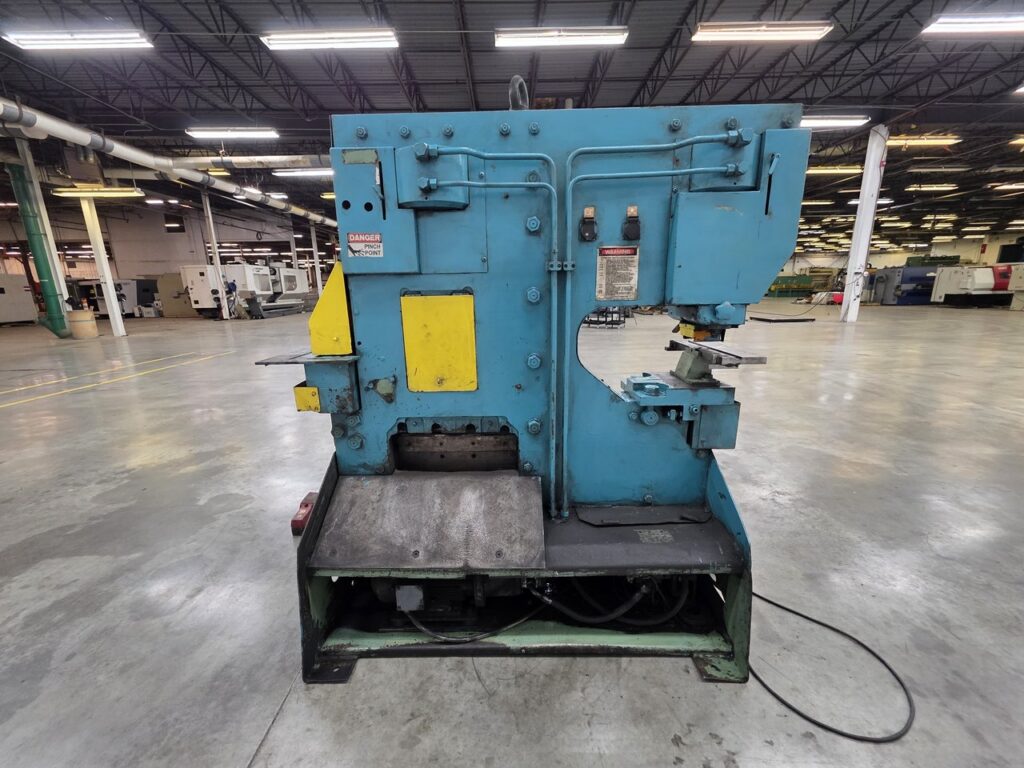

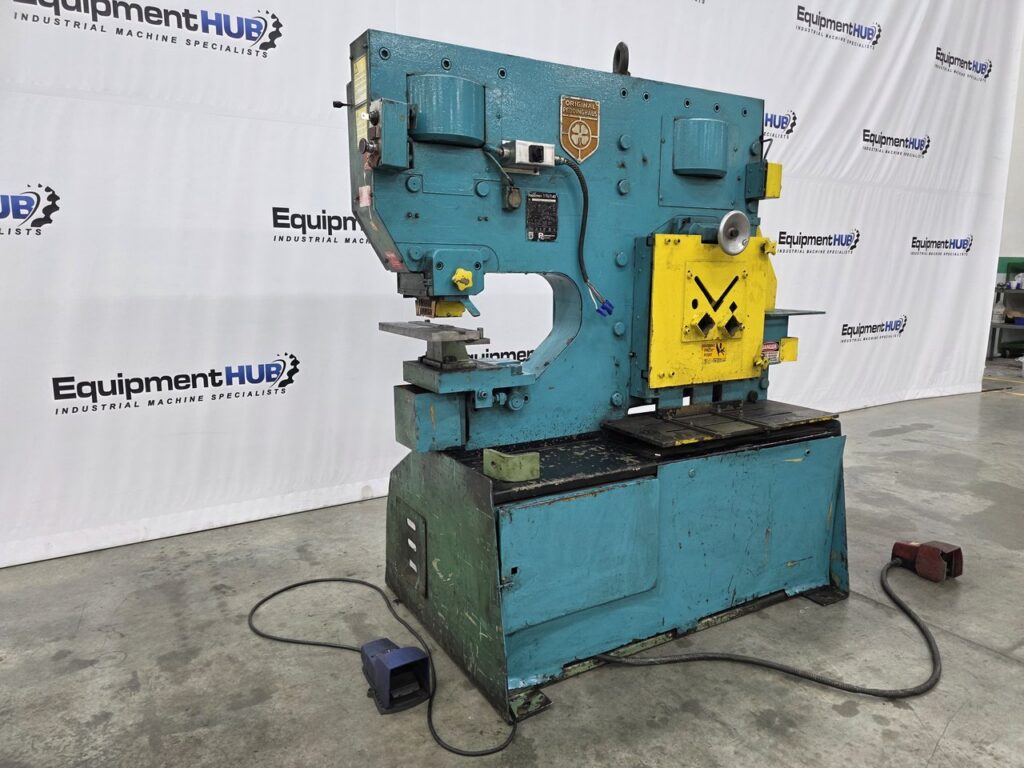

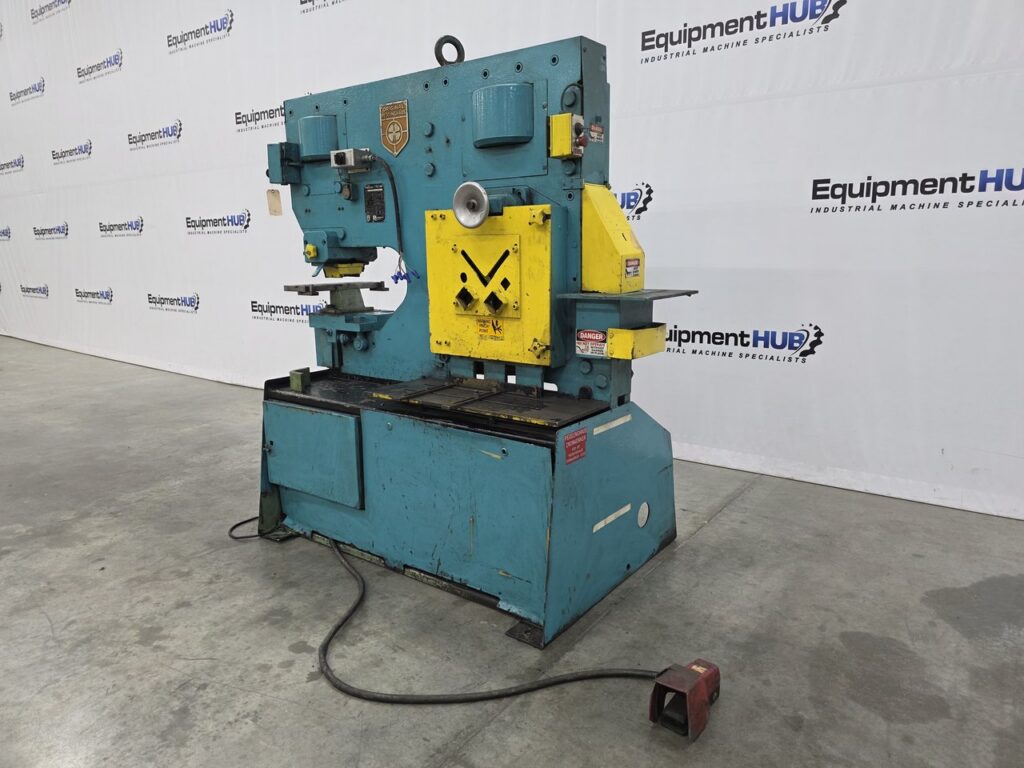

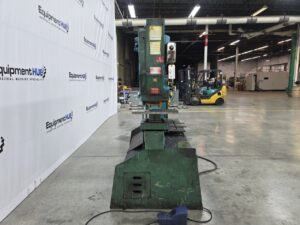

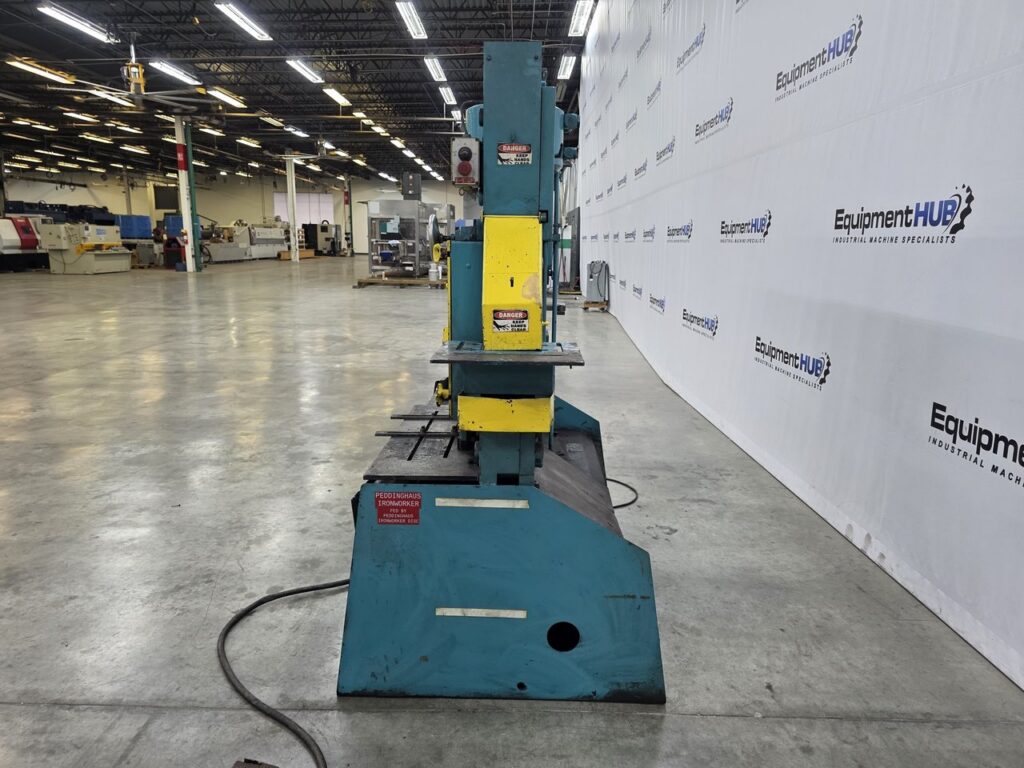

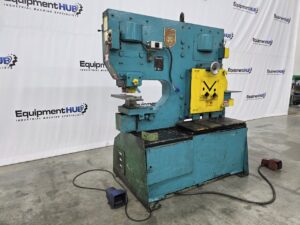

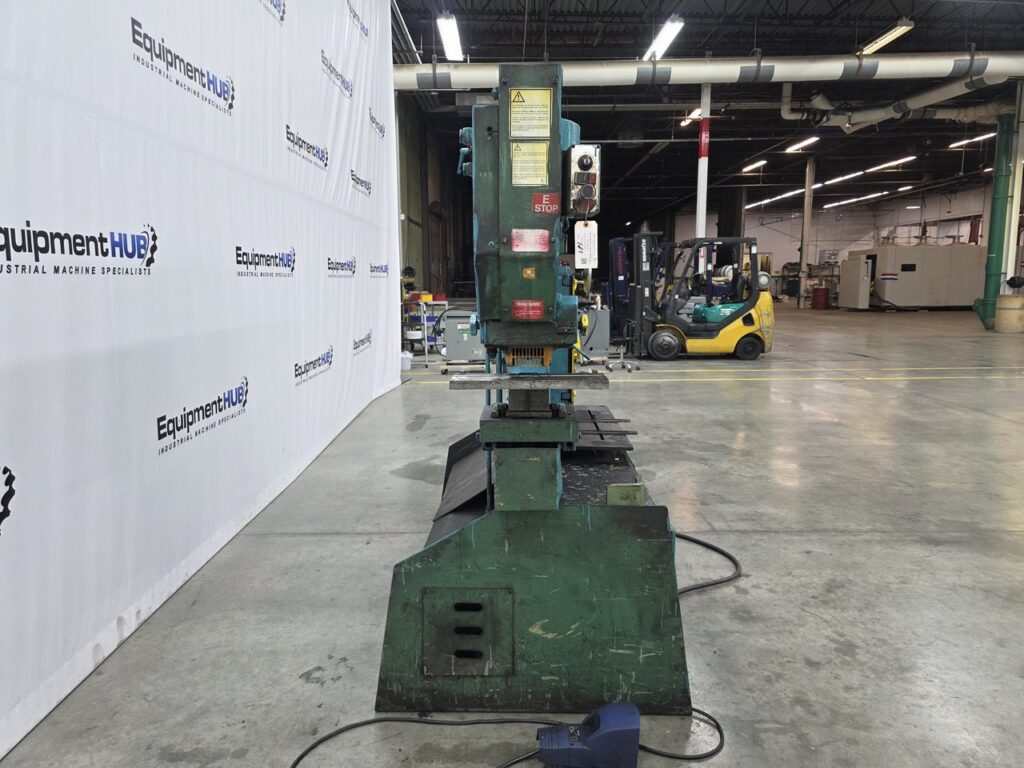

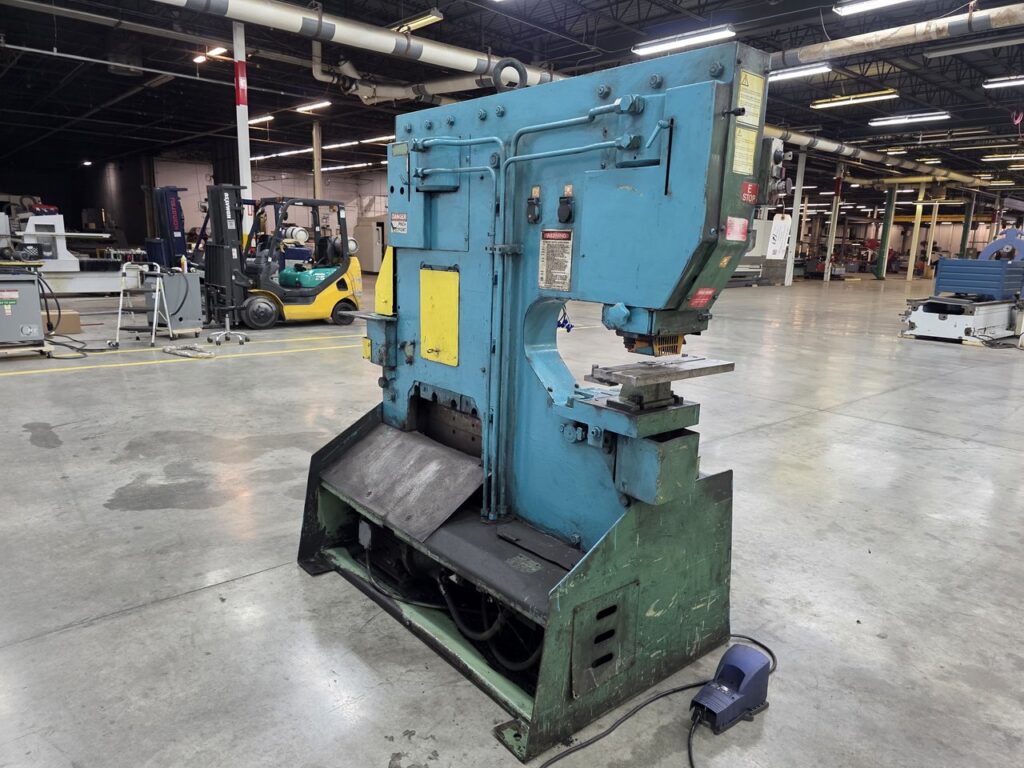

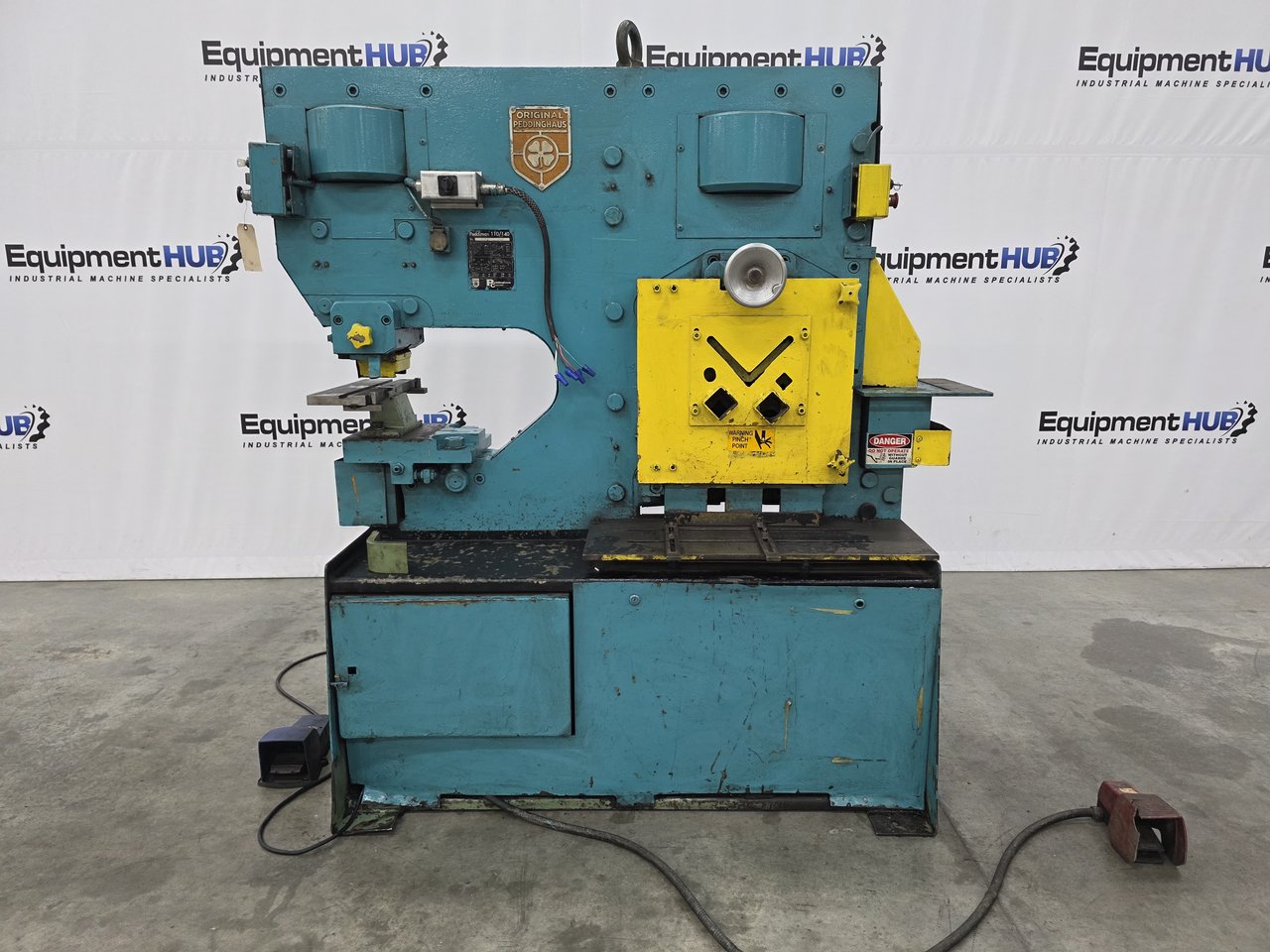

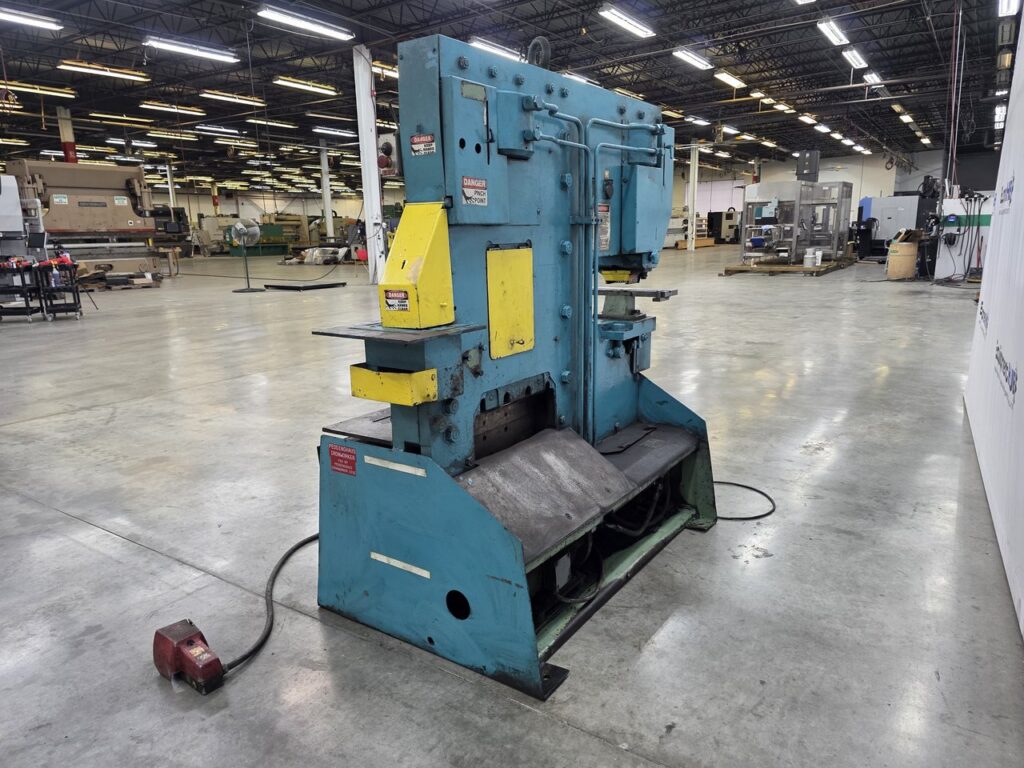

Peddinghaus Peddimax 110/140 110 Ton Ironworker
Stock #: 190260070
$14,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 190260070
- Location: Stone Mountain, GA
- Brand: Peddinghaus
- Model: Peddimax 110/140
- Approx. Shipping Weight: 6,500 Lbs.
- Approx. Shipping Dimensions: 7’ x 4’ x 7’

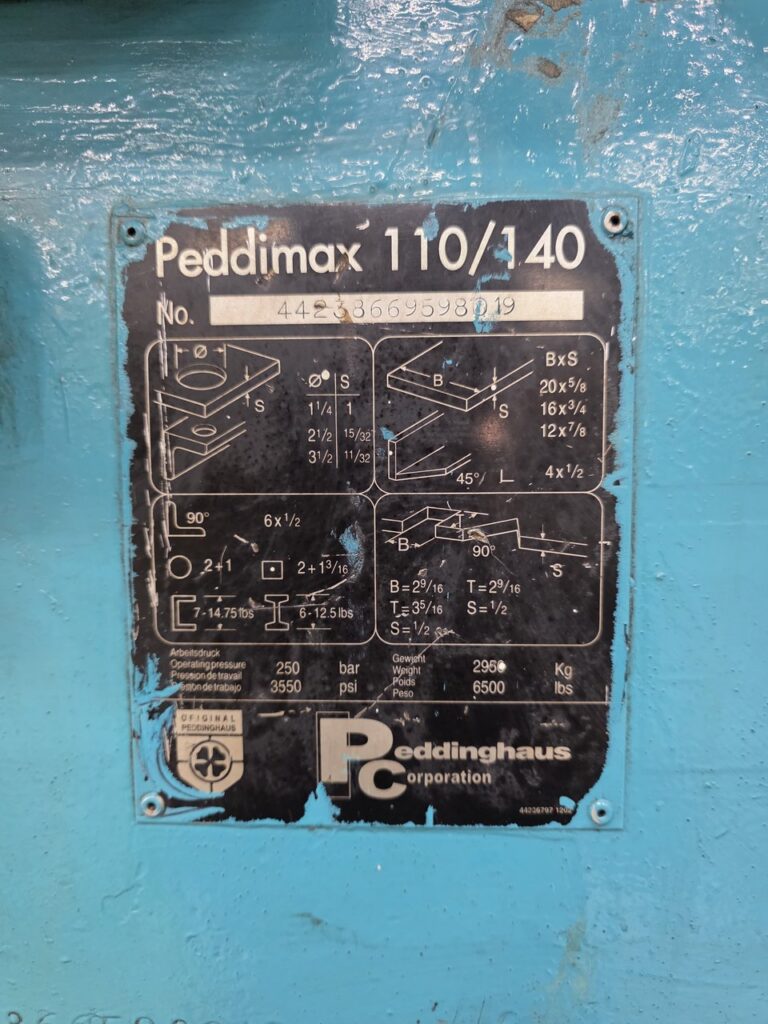

Specifications

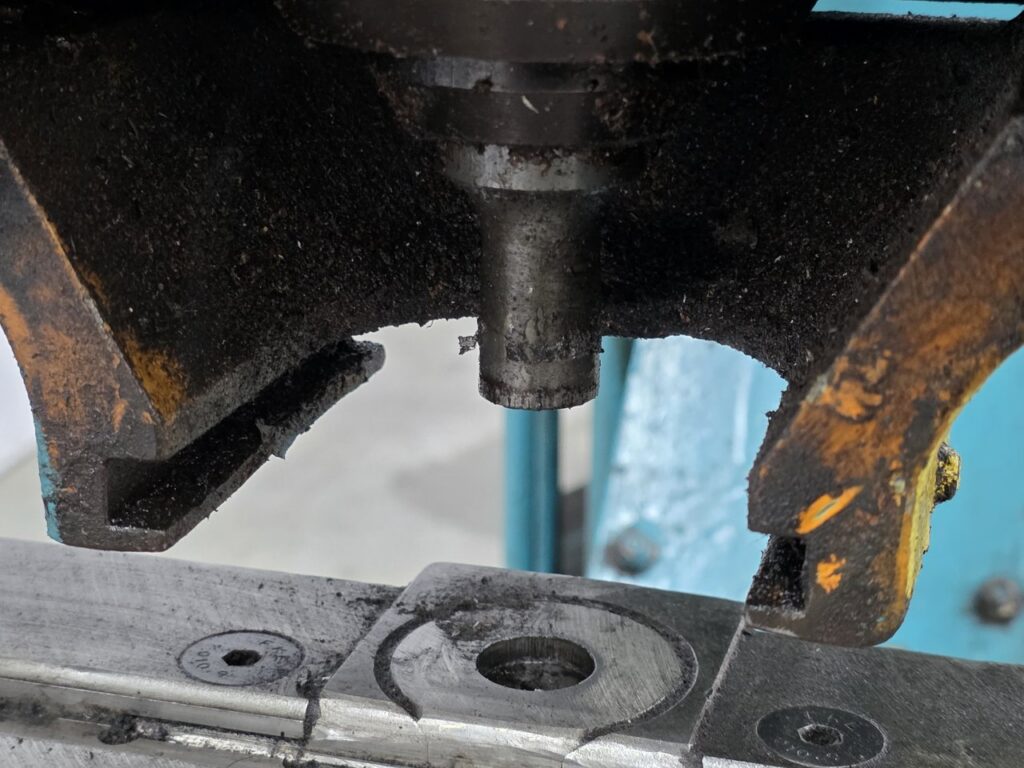

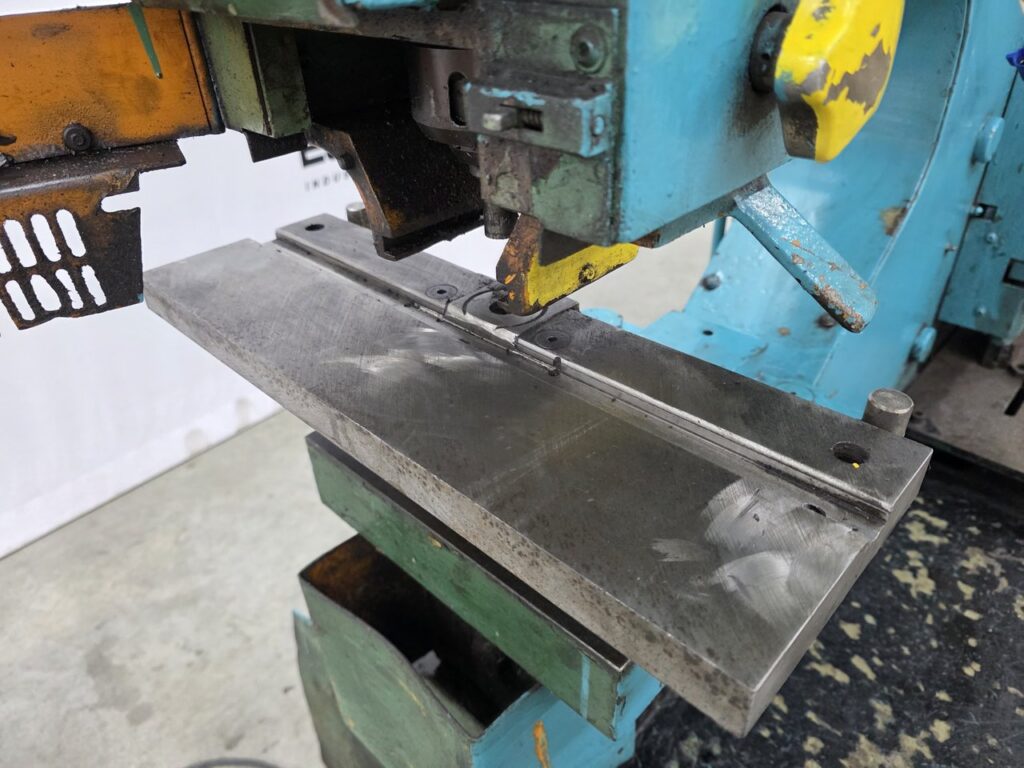

- Punch Tonnage: 110 Ton
- Shear Tonnage: 140 Ton
- Punch Stroke: 3/8" – 2"
- Punch Capacity: 1.25" x 1"
- Punch Throat Depth: 20"
- Punch Strokes Per Minute: 22

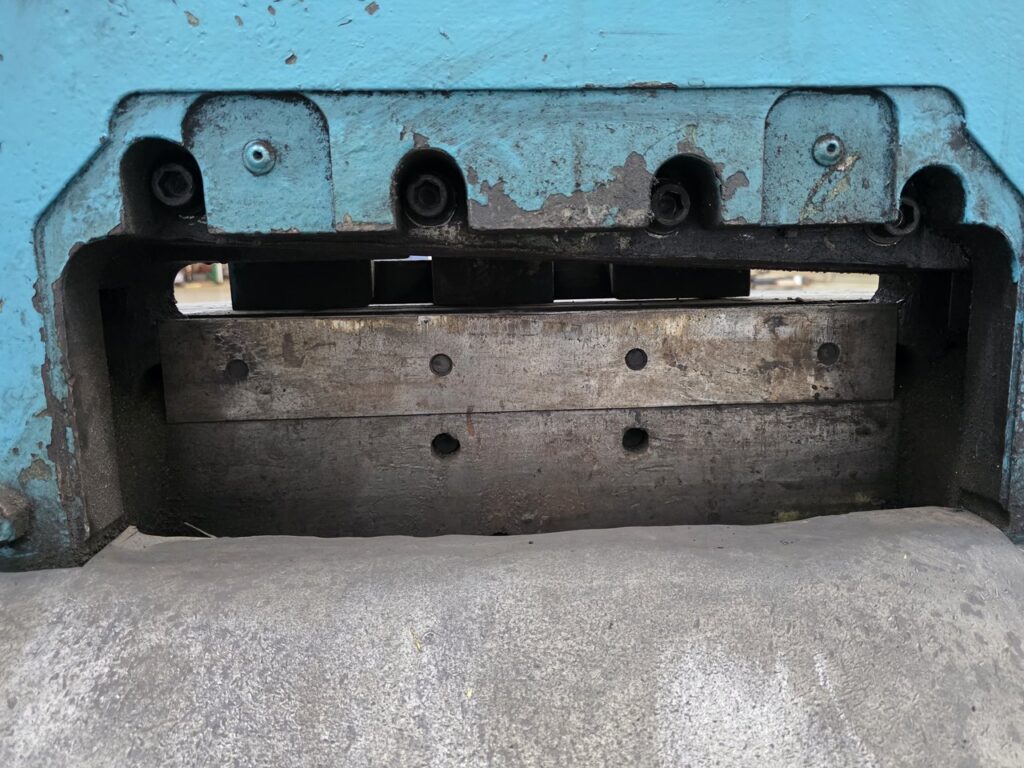

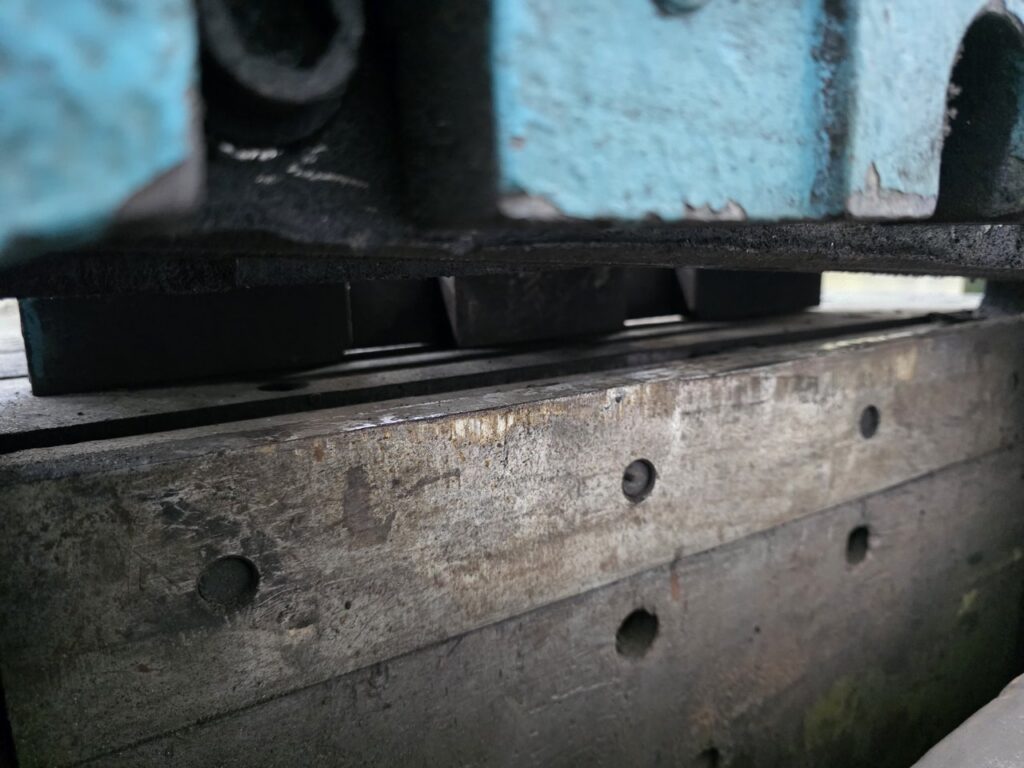

- Flat Bar Shear Capacity: 20" x 5/8"; 16" x 3/4"; 12" x 1"
- Flat Bar Shear Length: 20-1/4"
- Flat Bar Shear Working Height: 28-3/8"

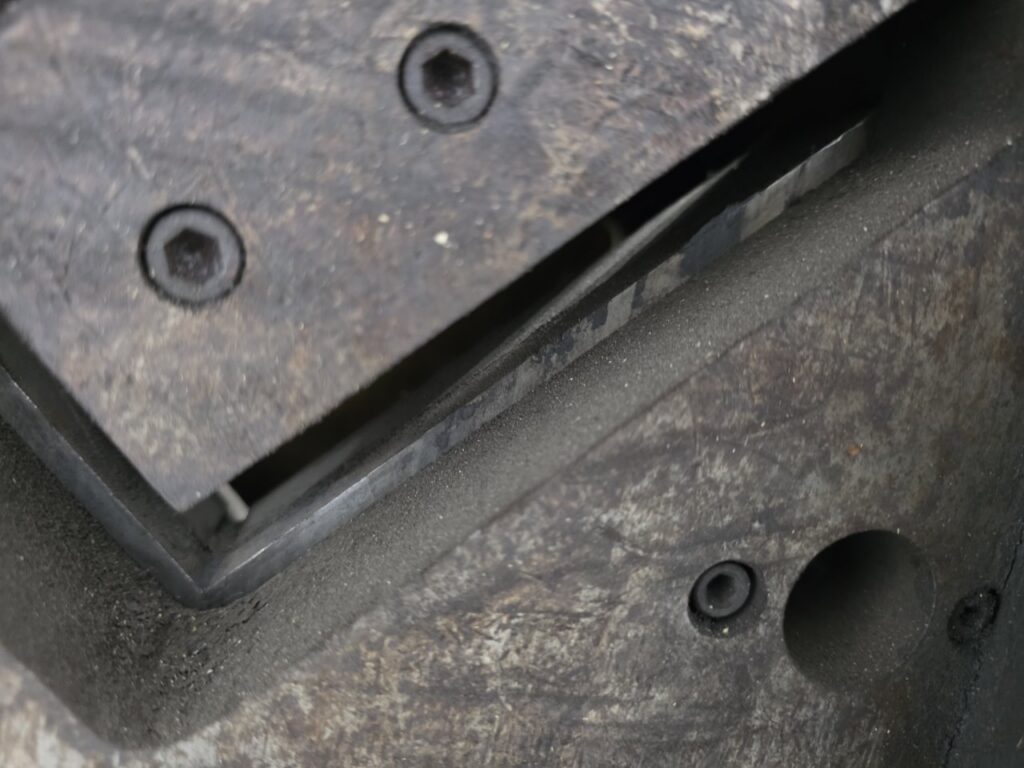

- Angle Shear Capacity, 90 Degree: 6" x 6 " x 1/2"
- Angle Shear Capacity, 45 Degree: 4" x 4" x 1/2"
- Round Bar Capacity: 2" and 1"
- Square Bar Capacity: 2" and 1-3/16"

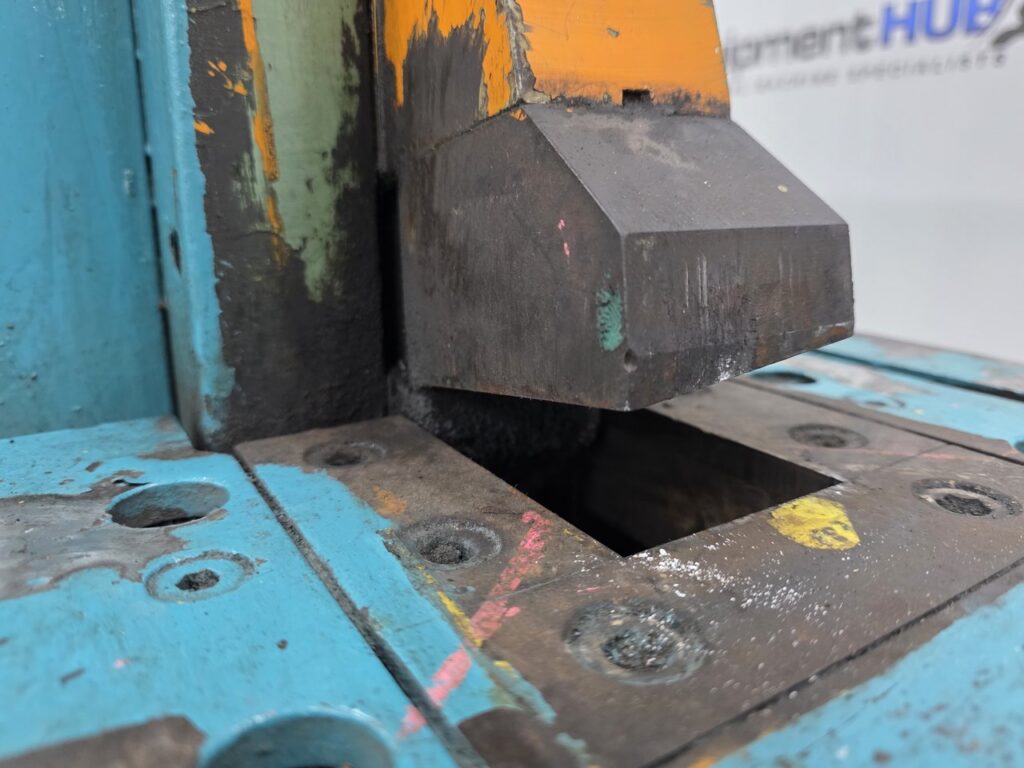

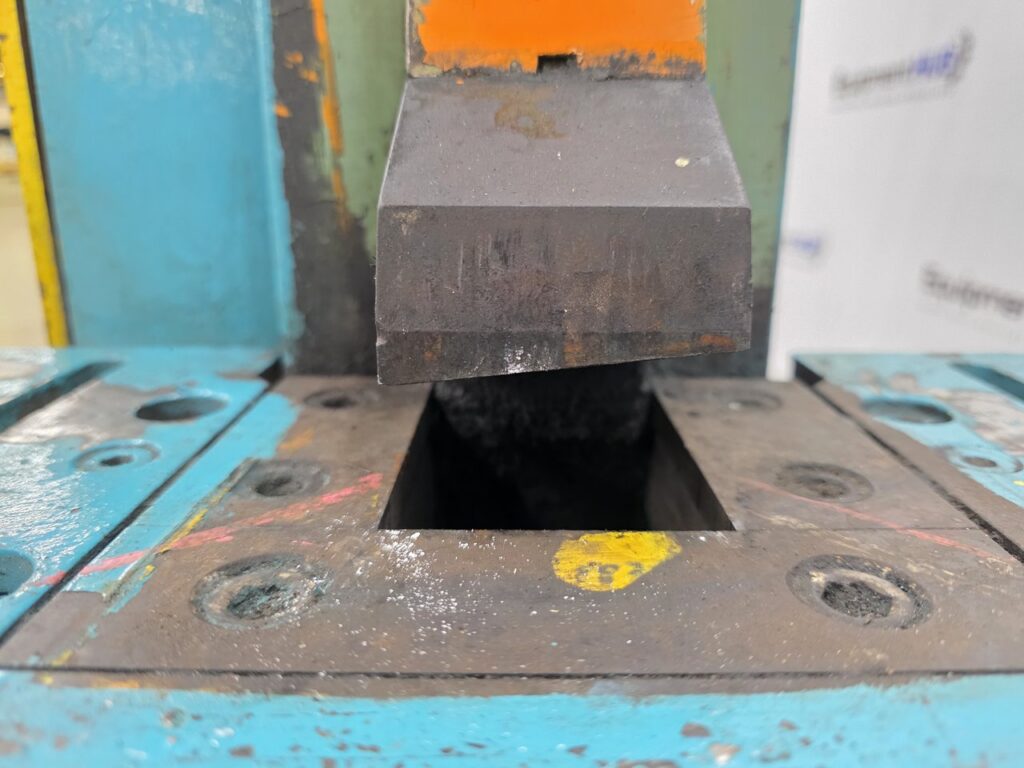

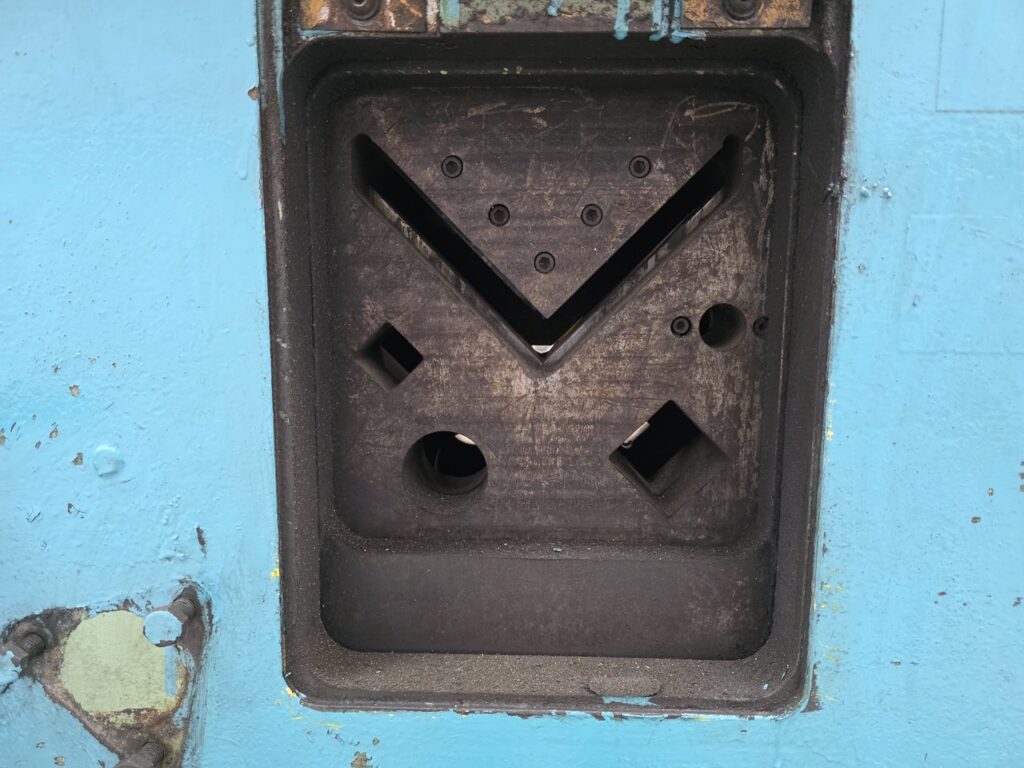

- Notcher Capacity, Plate: 1/2" square, 1/2" triangular
- Notcher Capacity, Angle: 3" x 3/8" square, 3" x 3/8" triangular
- Notch Width: 2-9/16" square
- Notch Depth: 3-5/16" square, 2-9/16" triangular
- Notch Station Working Height: 45-1/2" to center of blades
- I-Beams: 6" H x 12.5 lbs
- Flanges: 7" H x 14.75 lbs
- Oil Capacity: 28 gallons
- Motor: 10 HP (7.5 KW)
- Volts: 230 / 460 (Wired at 230)
- Max Amperage: 30.8 / 15.4
Equipped With

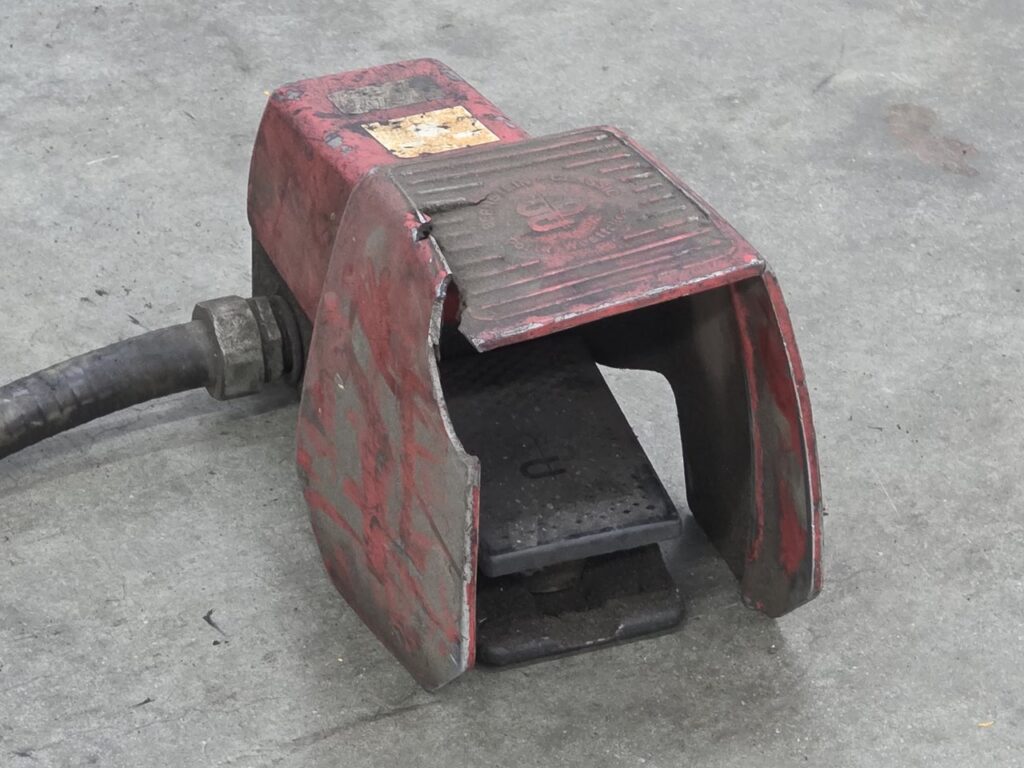

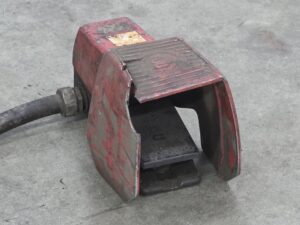

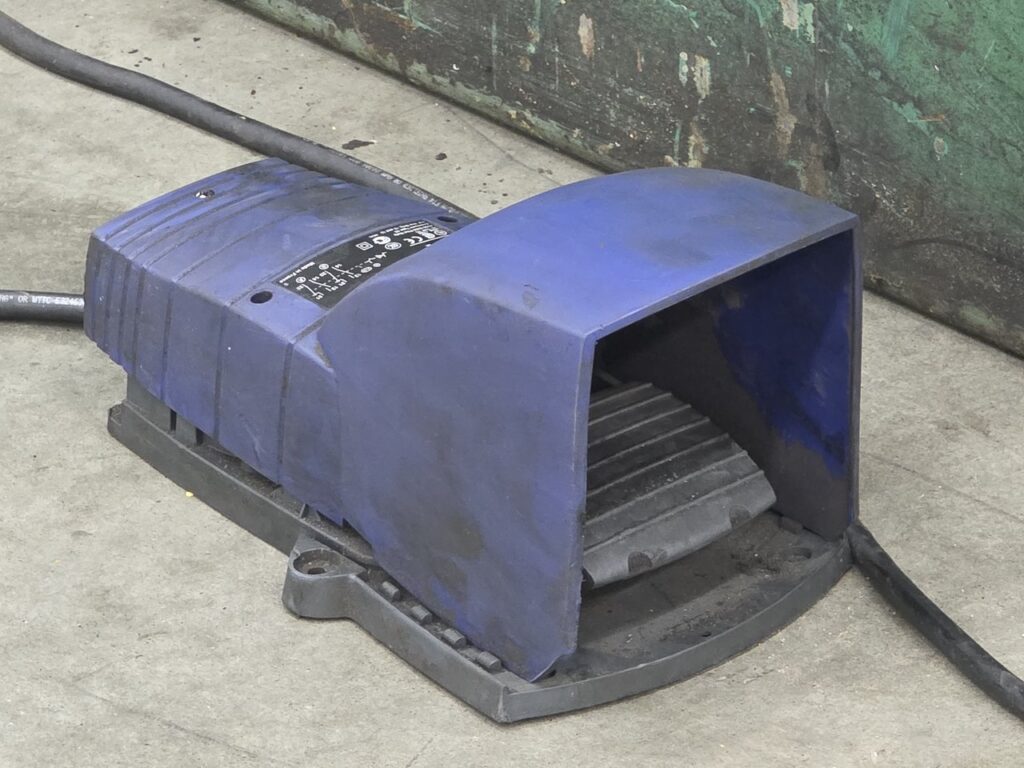

Two Foot Pedals
Additional Info
View the video to see the machine under power. Machine can be demoed upon request.
