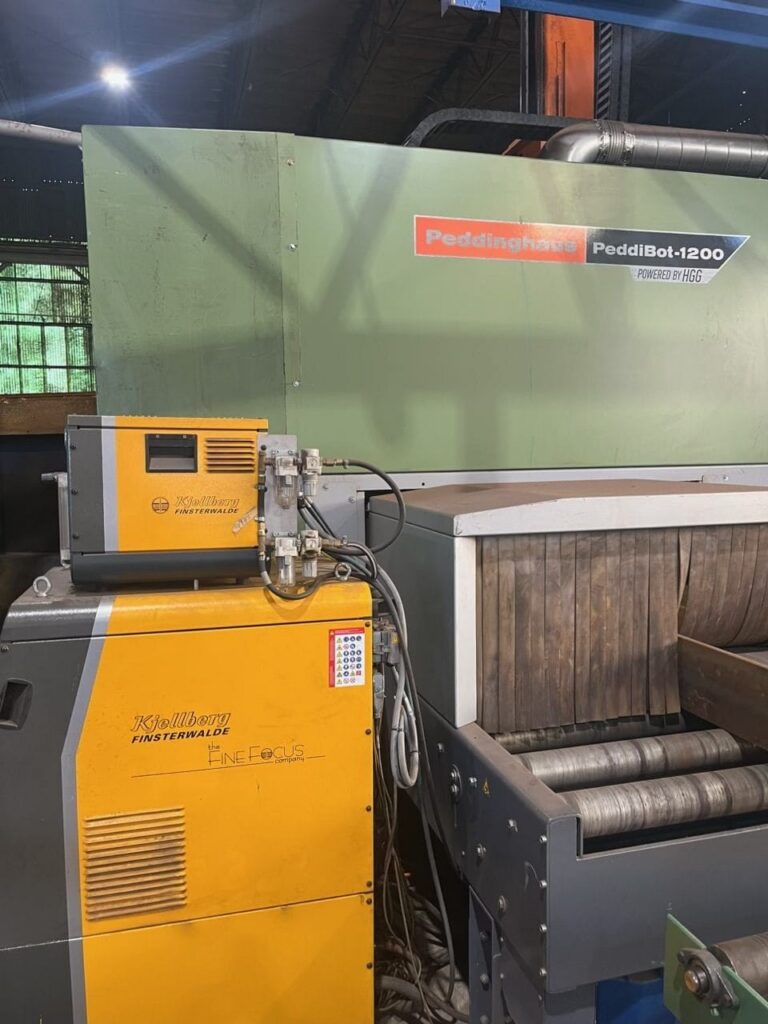

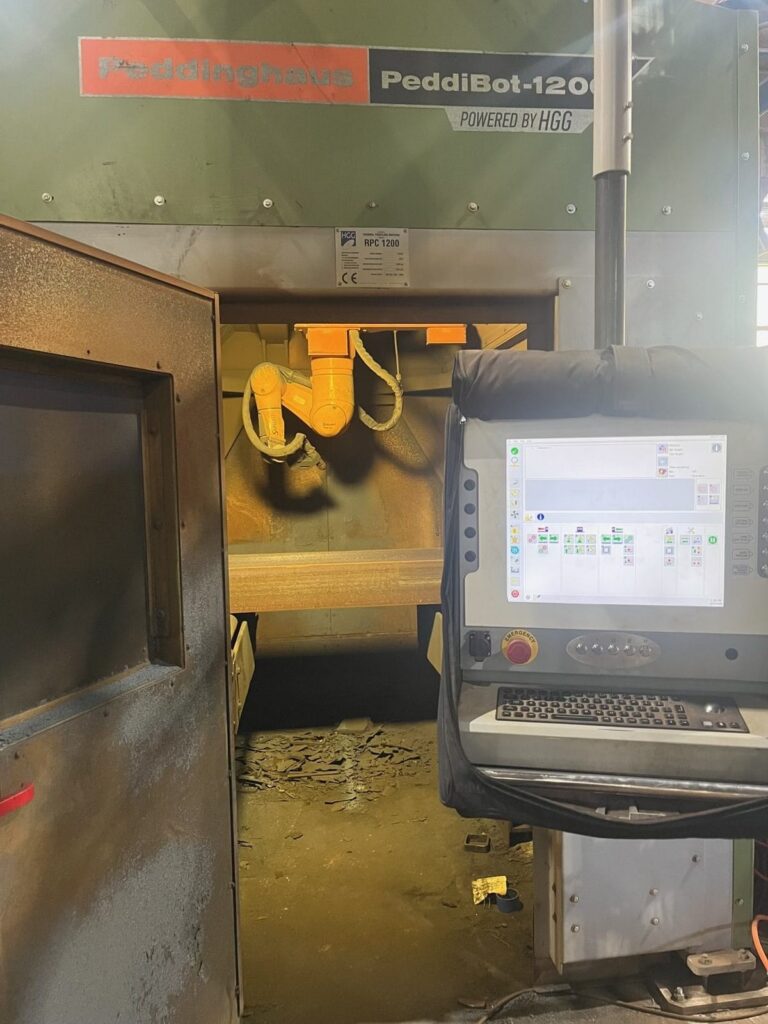

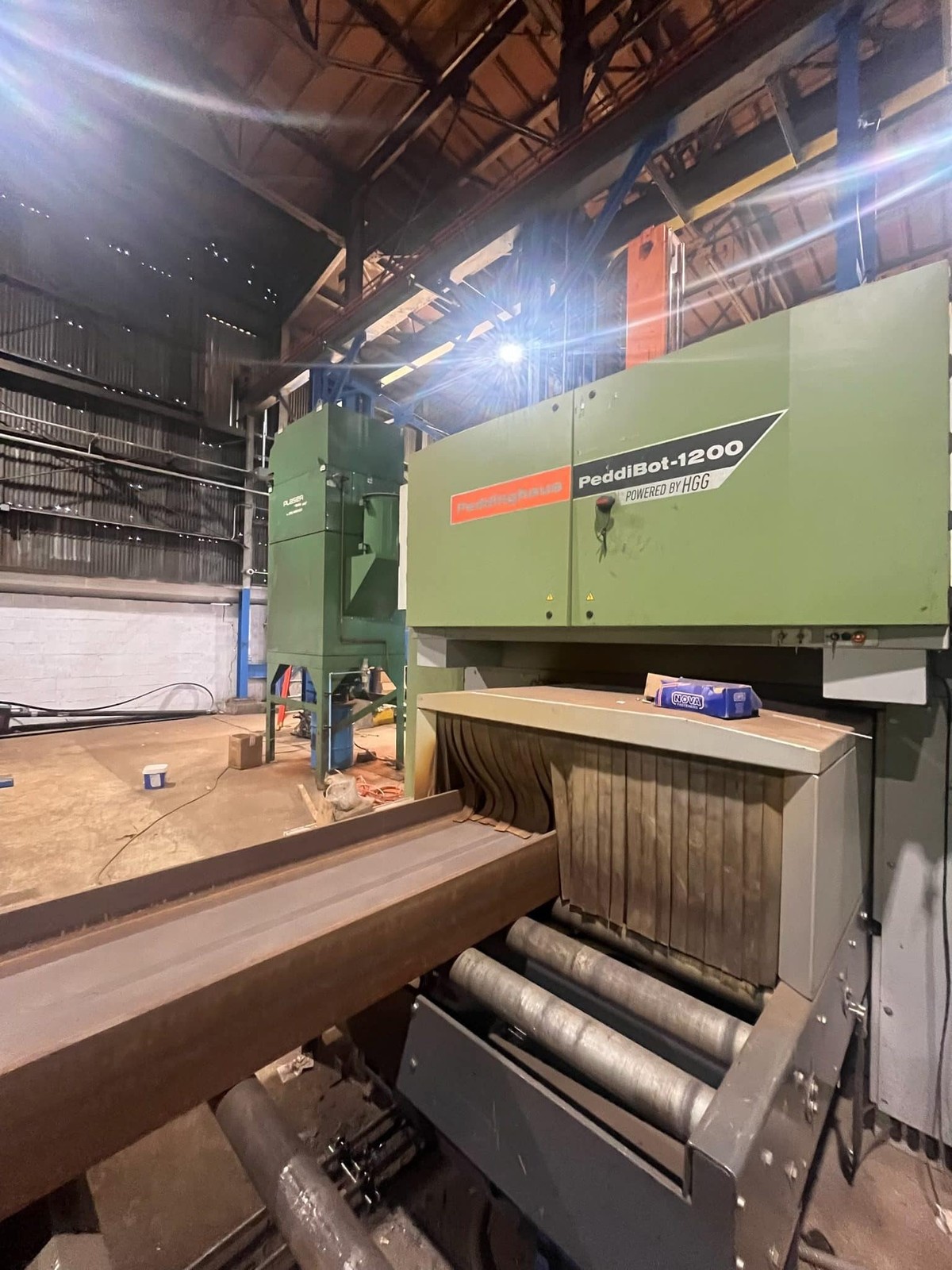

Peddinghaus Peddibot-1200 6-Axis Robotic CNC Thermal Cutting Machine (2022)
Stock #: 123260005
$399,900.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 123260005
- Brand: Peddinghaus
- Model: Peddibot-1200
- Year: 2022
Specifications
- Max Profile Dimensions: 48″ x 16.5″
- Min Profile Dimensions: 3″ x 3″
- Max Profile Thickness: 2″
- Min Profile Thickness: 0.1875″
- Max Profile Weight: 26,455 lbs
- Max Bevel Angle: 45º
- Material Processing: 4 Sides
- Max Plasma Edge Start Thickness: 2″
- Max Plasma Piercing Thickness: 2″
- Plasma Processing Speed: 20″/min @ 2″; 70″/min @ 1/4″
- Torch Amps: 440
- Plate Width: 7-7/8″ x 48″
- Plate Thickness: 5/16″ x 1-5/8″
- Plate Length: 11-13/16″ x 120″
- Effective Cutting Zone: 48″ x 59″
Equipped With

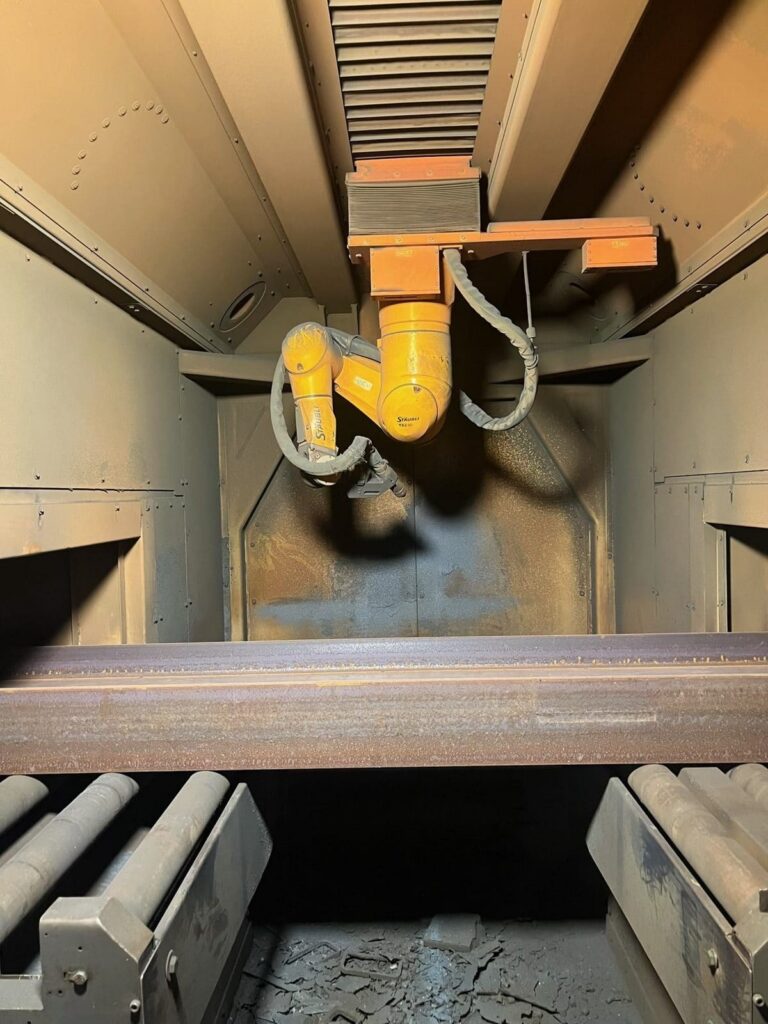

6-Axis StäUbli Robot Arm, Kjellberg Hifocus 440I Plasma Torch, Raptor 3D Cad/Cam Software Integration, Trailing Edge Detection, Machine Housing, Profile Scanning System, 4-Sided Layout Marking
Additional Info
Can be inspected upon request.
