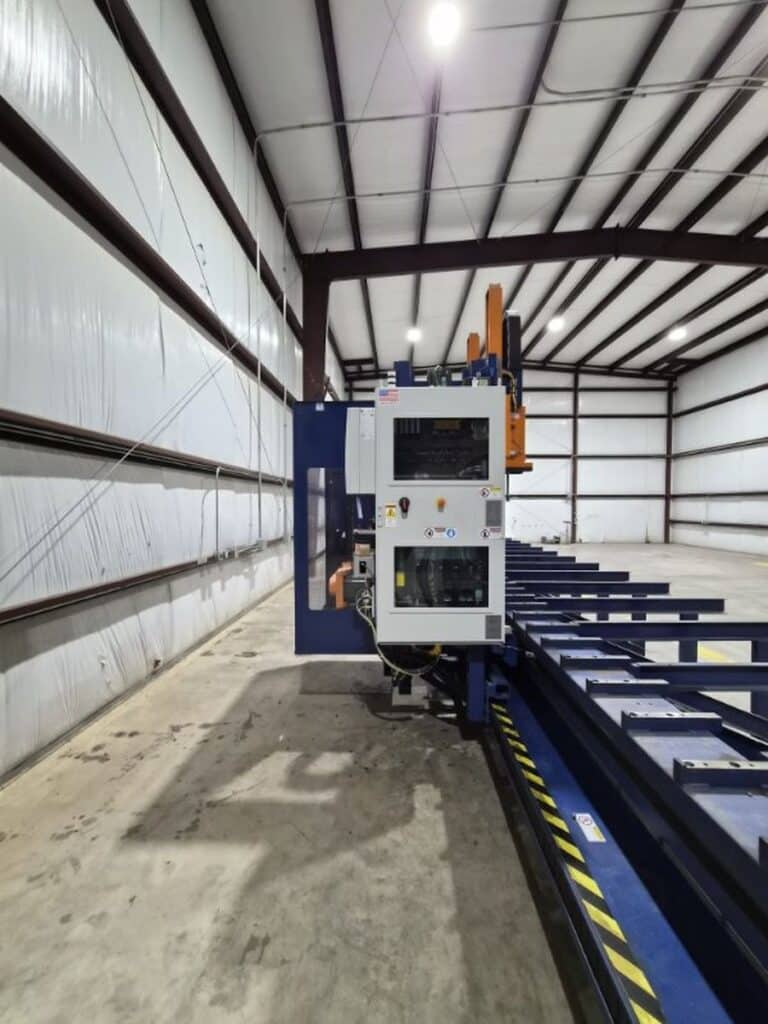

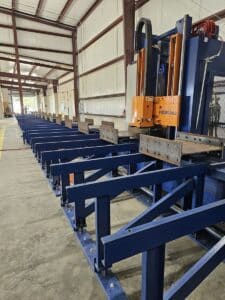

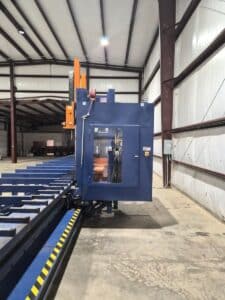

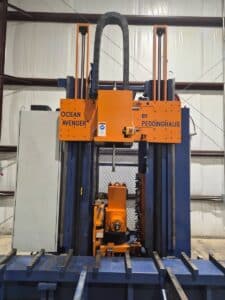

Peddinghaus Ocean Avenger + MDL-1250/1C Multifunction CNC Beam Drill Line (2023)
Stock #: 171260013
$224,900.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 171260013
- Location: MO
- Brand: Peddinghaus
- Model: Ocean Avenger + MDL-1250/1C
- Year: 2023
- Loading Fee: Rigging Required
Specifications
- Maximum Profile Height: 48″
- Maximum Profile Length: 80′
- Maximum X-Axis Speed: 150’/Min
- Maximum Y-Axis Speed: 60’/Min
- Spindle Motor Power: 25 HP
- Spindle Speeds: 0 – 3,000 RPM Continuously Variable
- Drilling Feed Rate: 0 – 30″/Min Continuously Variable
- Vise Clamping Power: 0 – 30″/Min Fully Adjustable

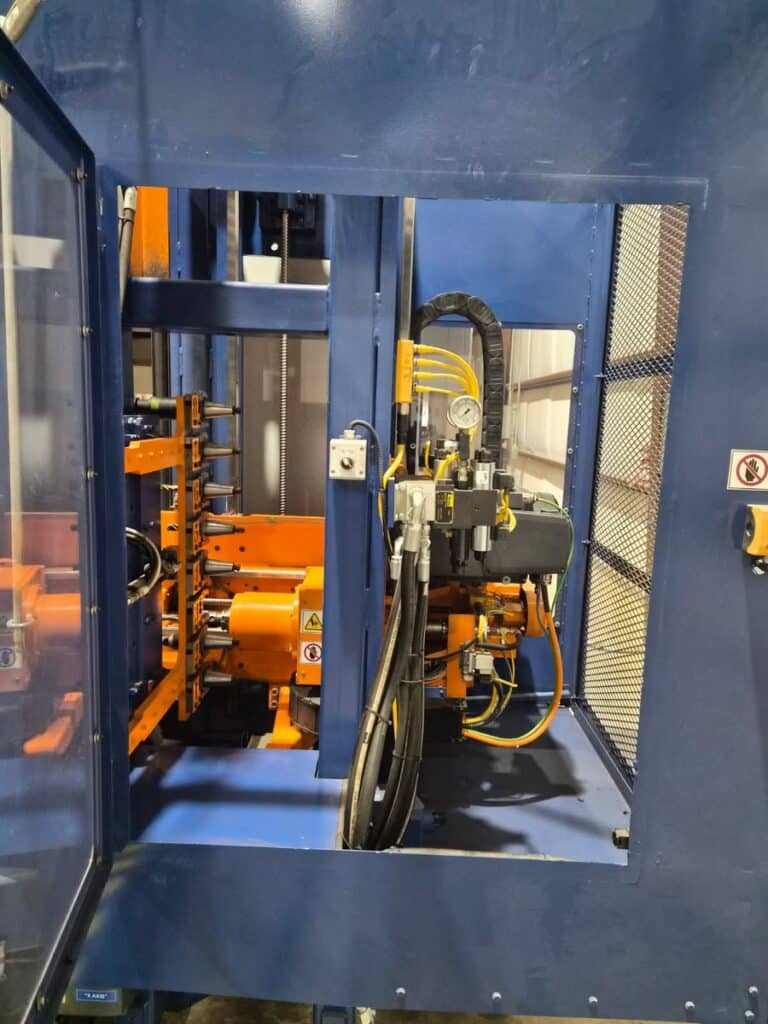

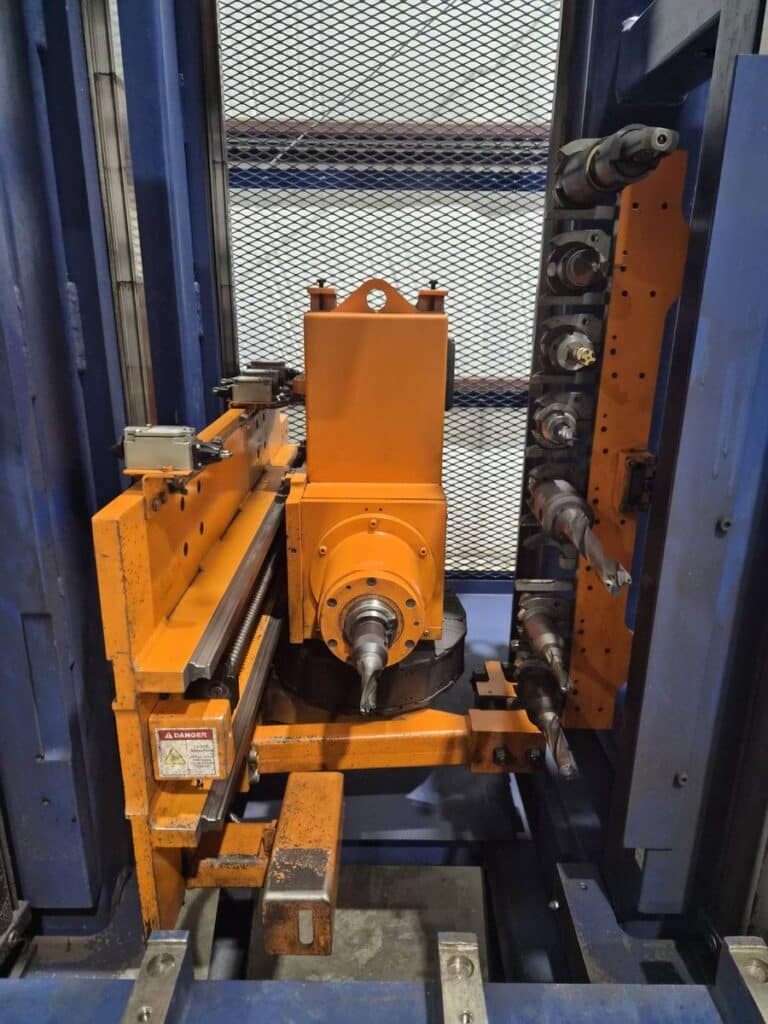

- Tool Changer Stations: 8-Station
- Machine Capabilities: Drilling, Milling, Slotting, Carbide Scribing, and Optimized Hole Processing

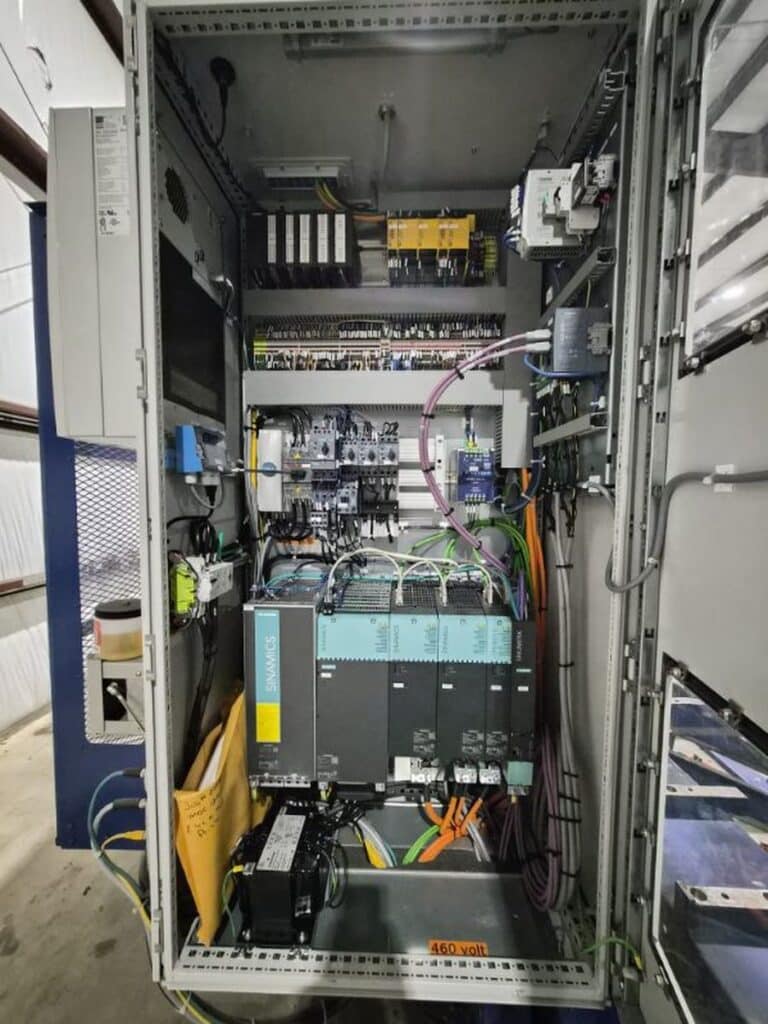

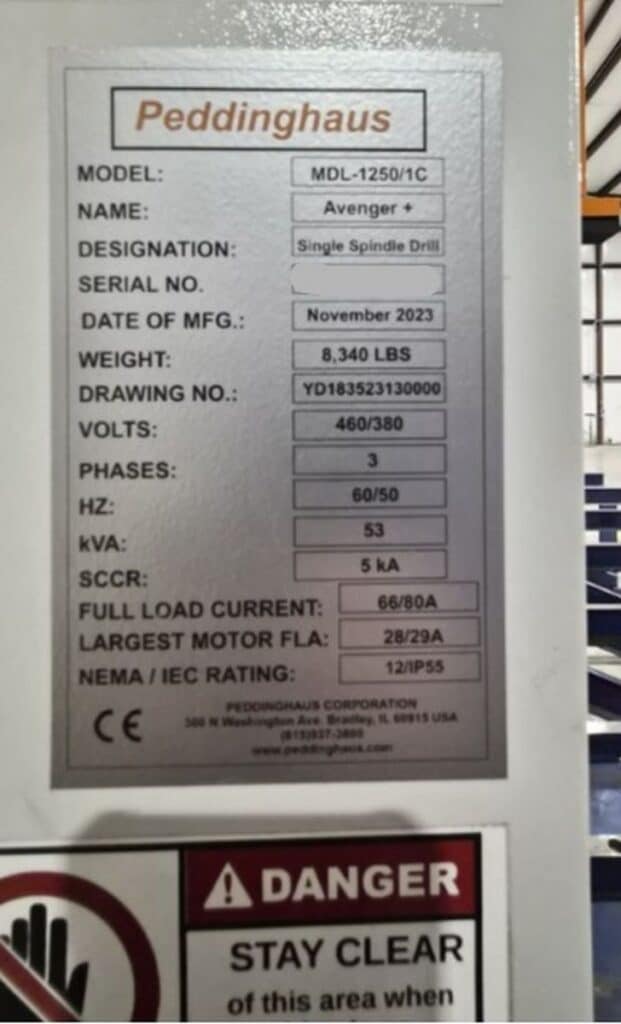

- Power Required: 460V / 3 Phase
Equipped With

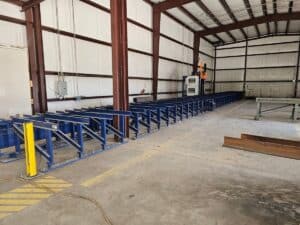

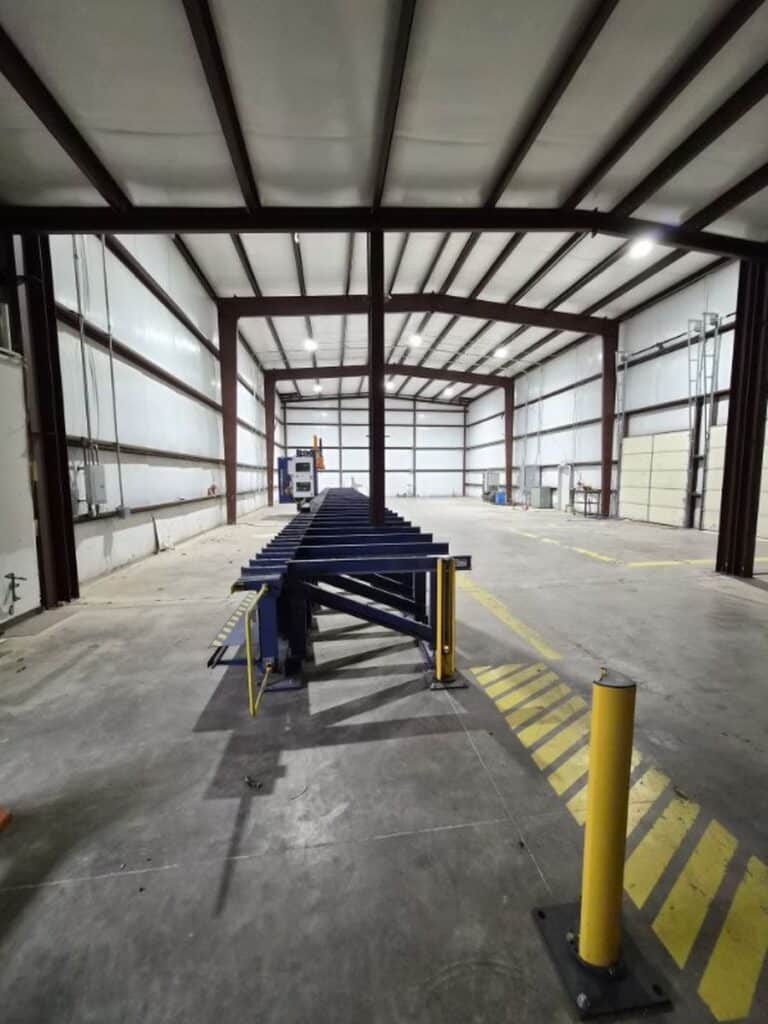

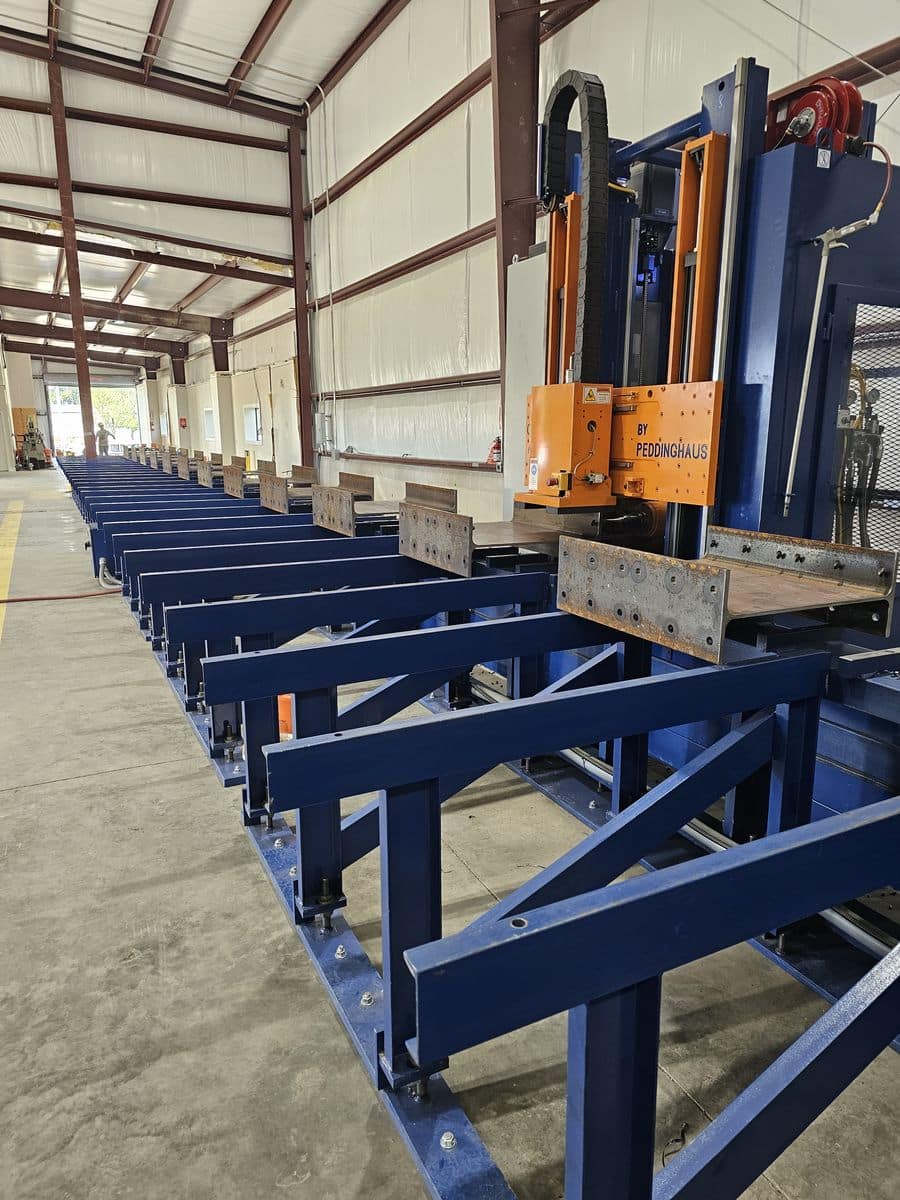

80′ Table Length, 8-Position Tool Changer, Automatic Drilling, Automatic Marking
Additional Info
Machine is under power and available to demo.
