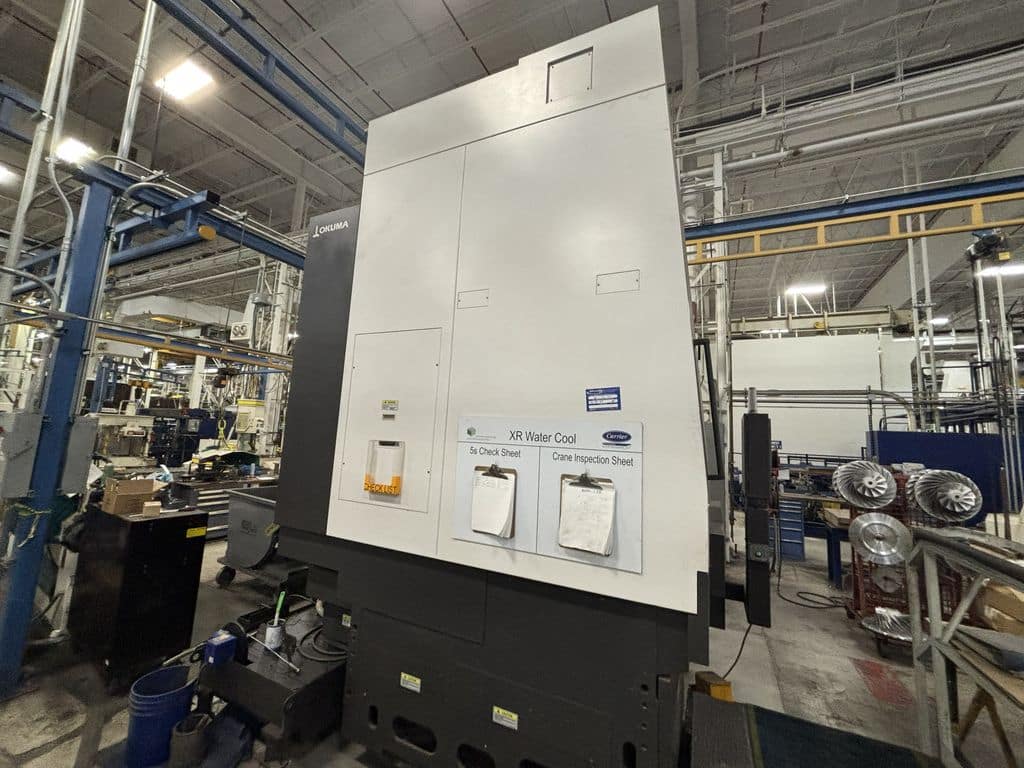

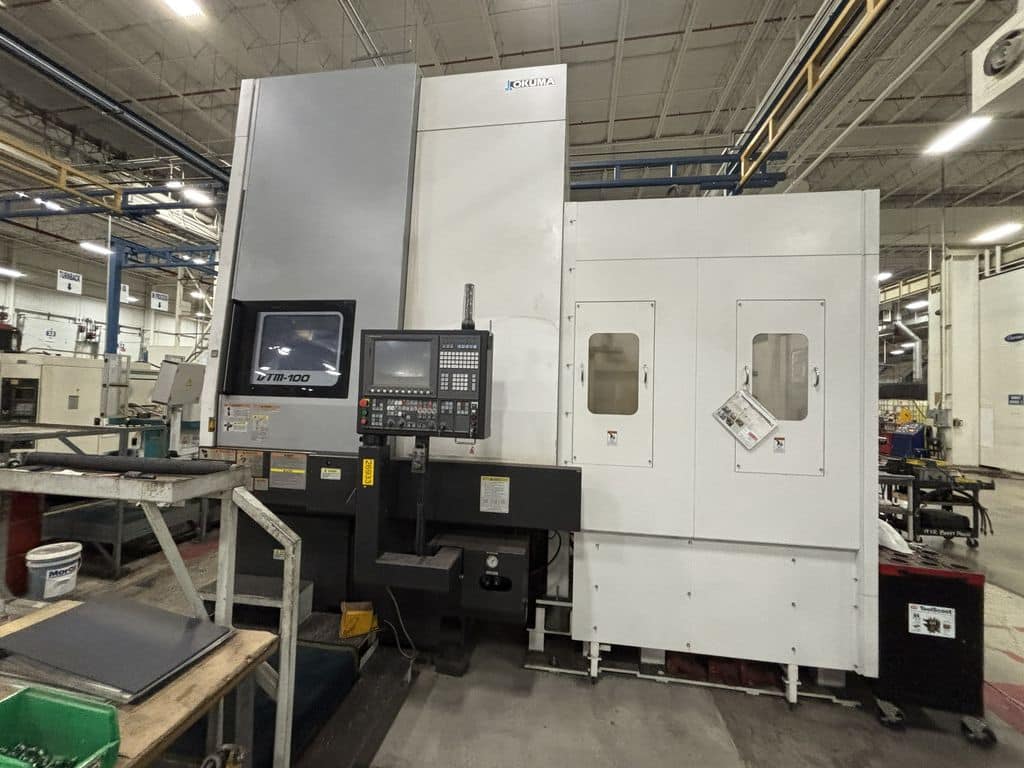

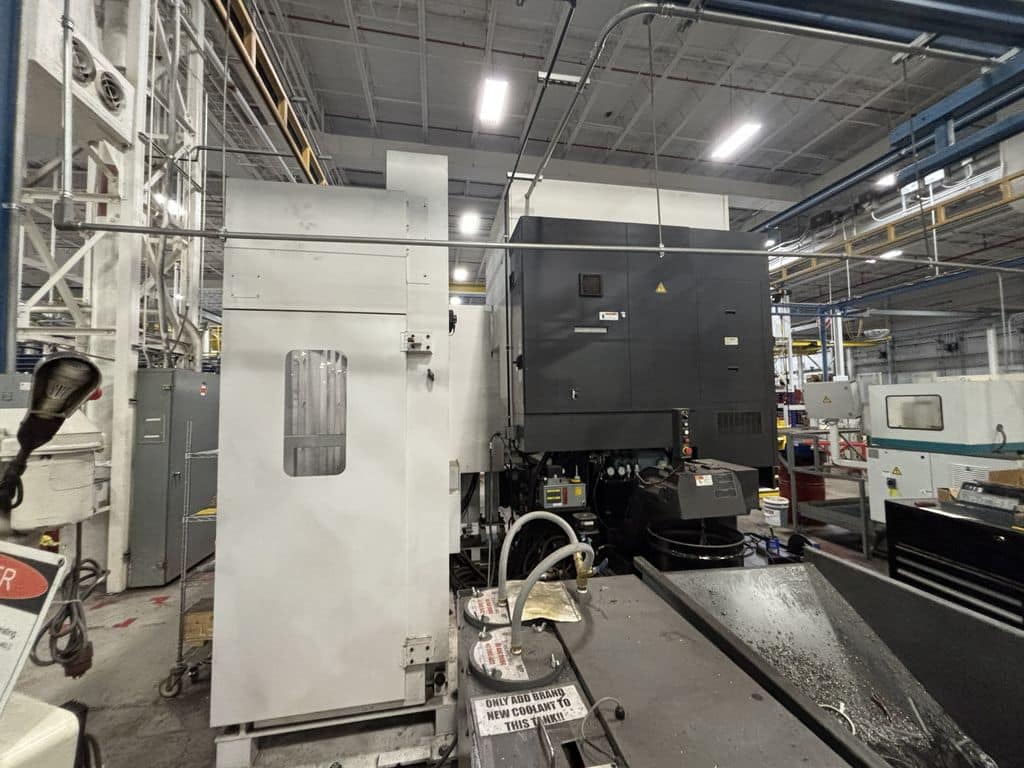

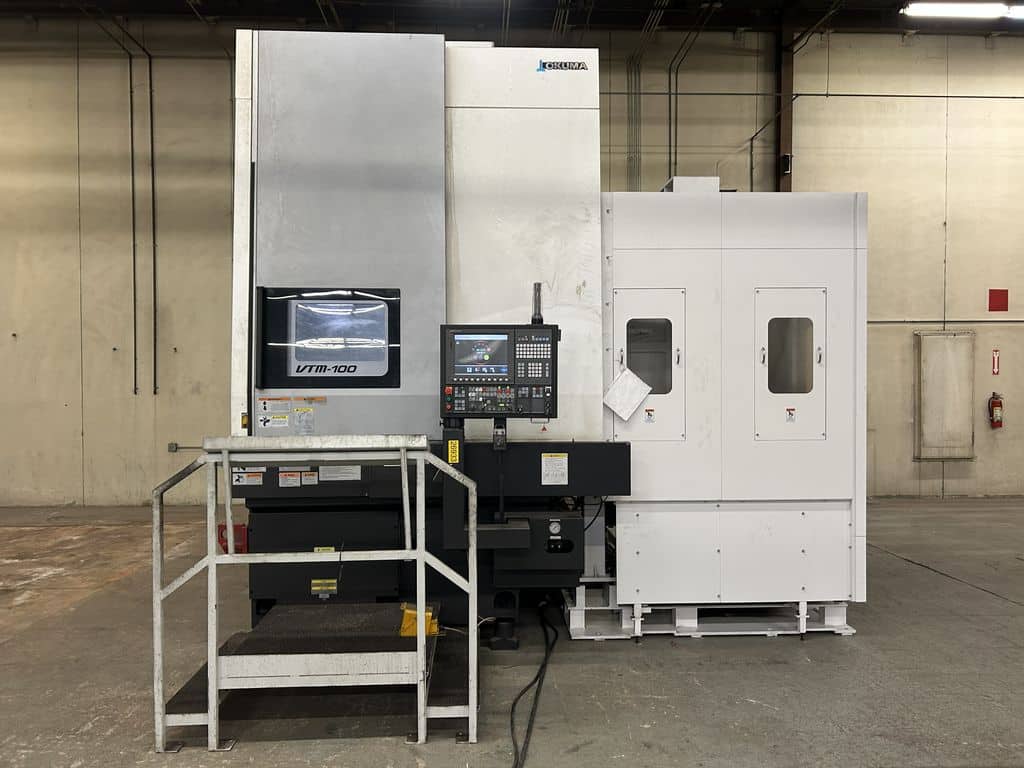

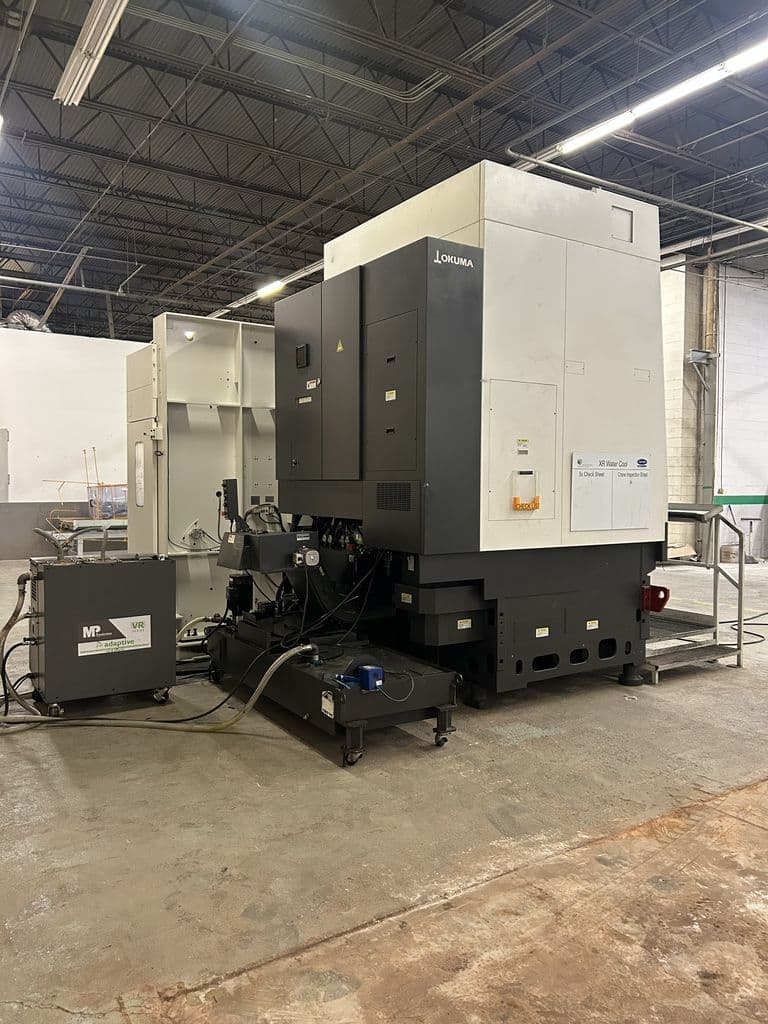

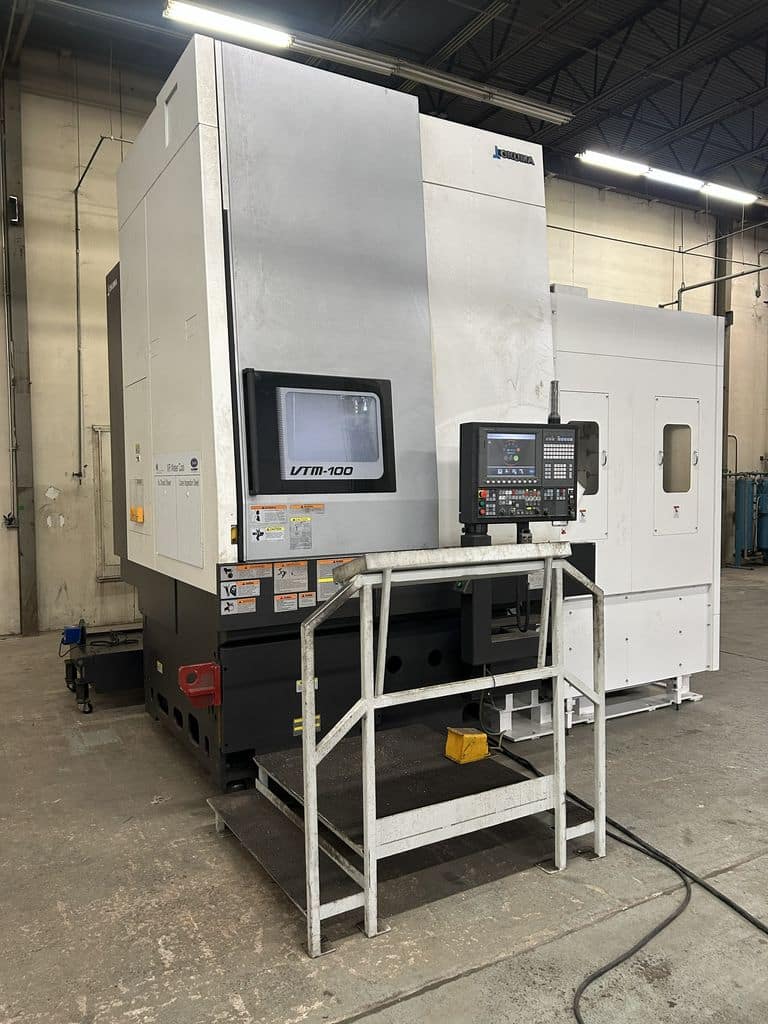

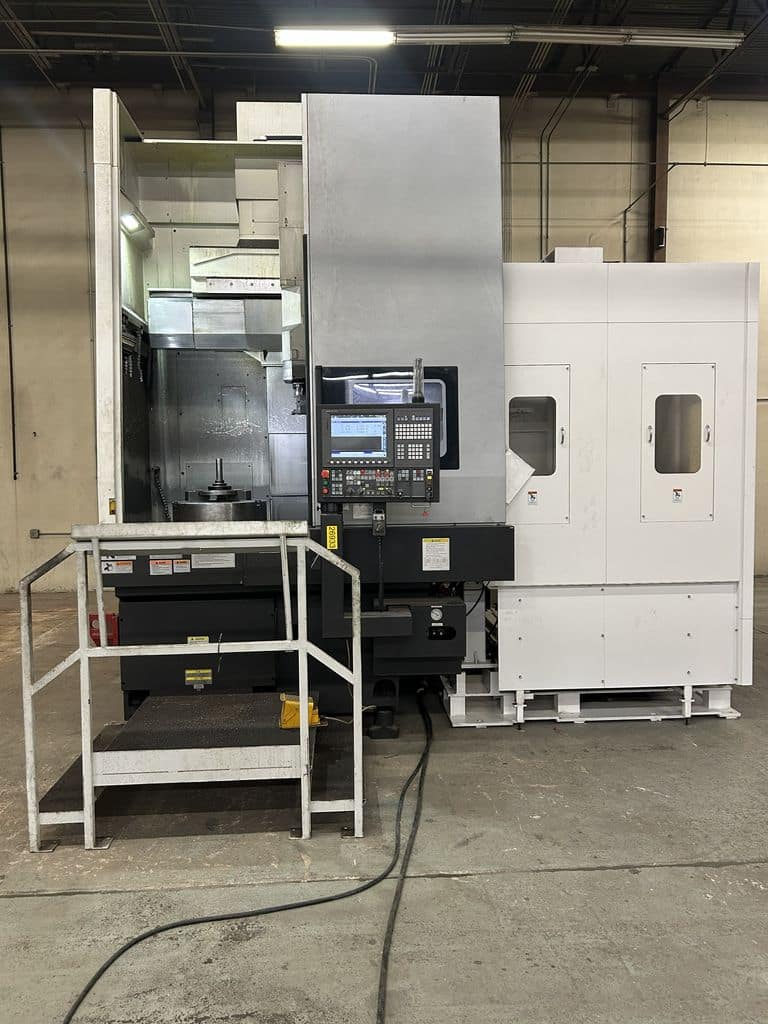

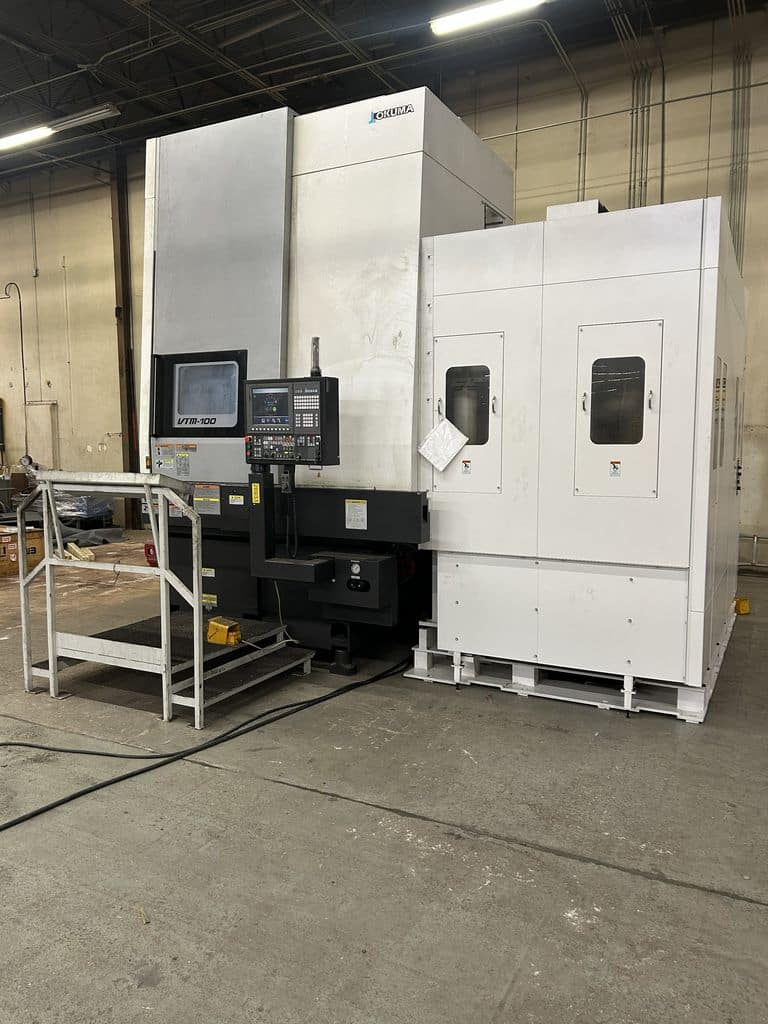

Okuma VTM-100 CNC Vertical Turning Center Lathe, VTL
Stock #: 150260006
$249,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 150260006
- Location: Decatur, GA
- Brand: Okuma
- Model: VTM-100

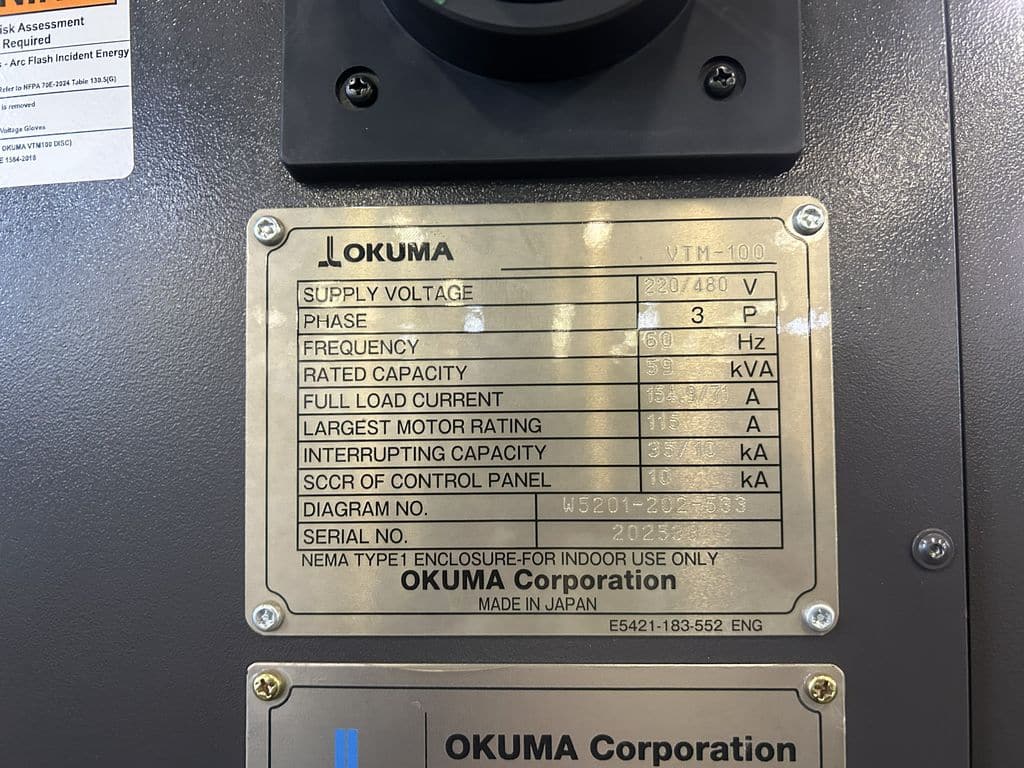

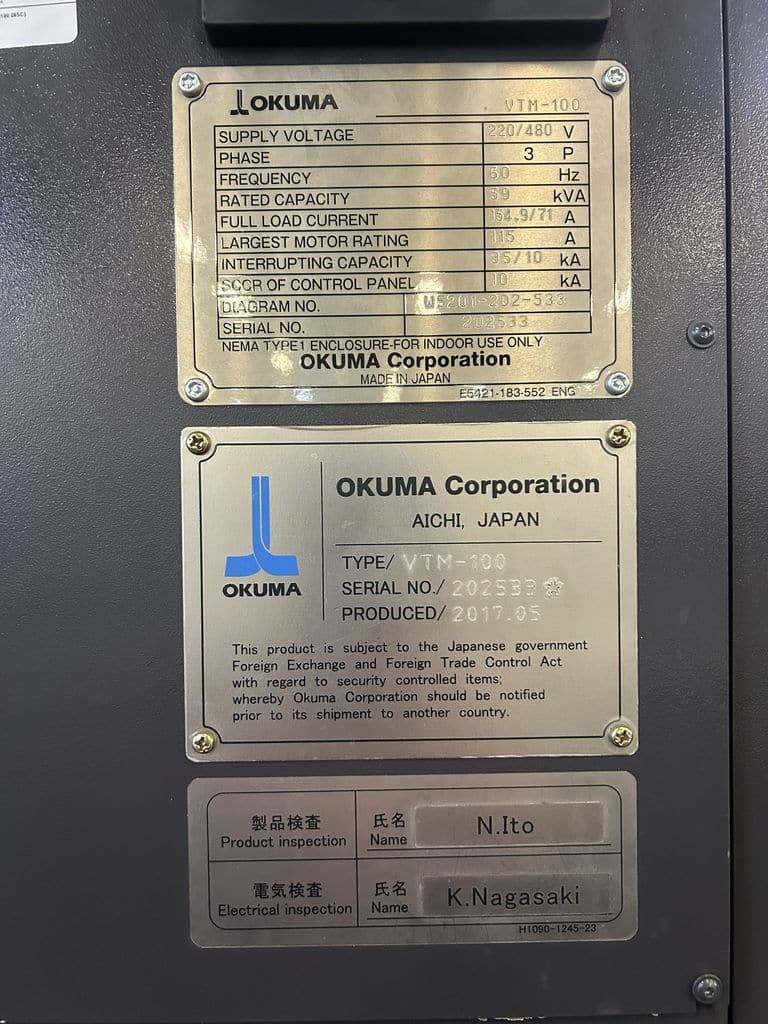

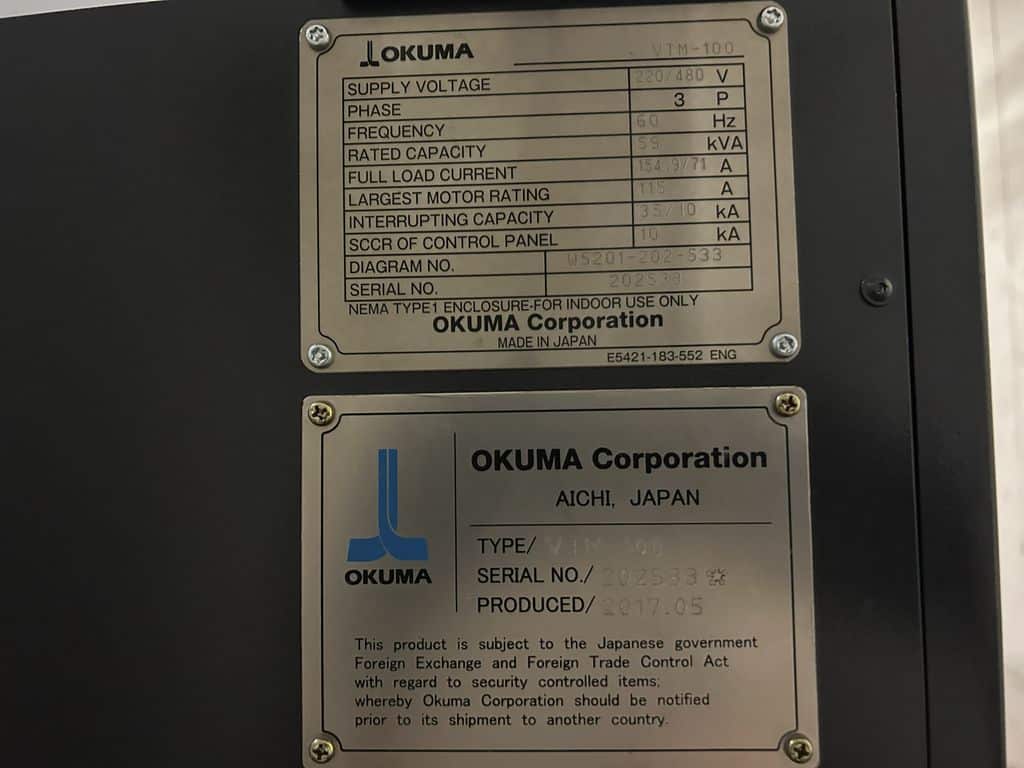

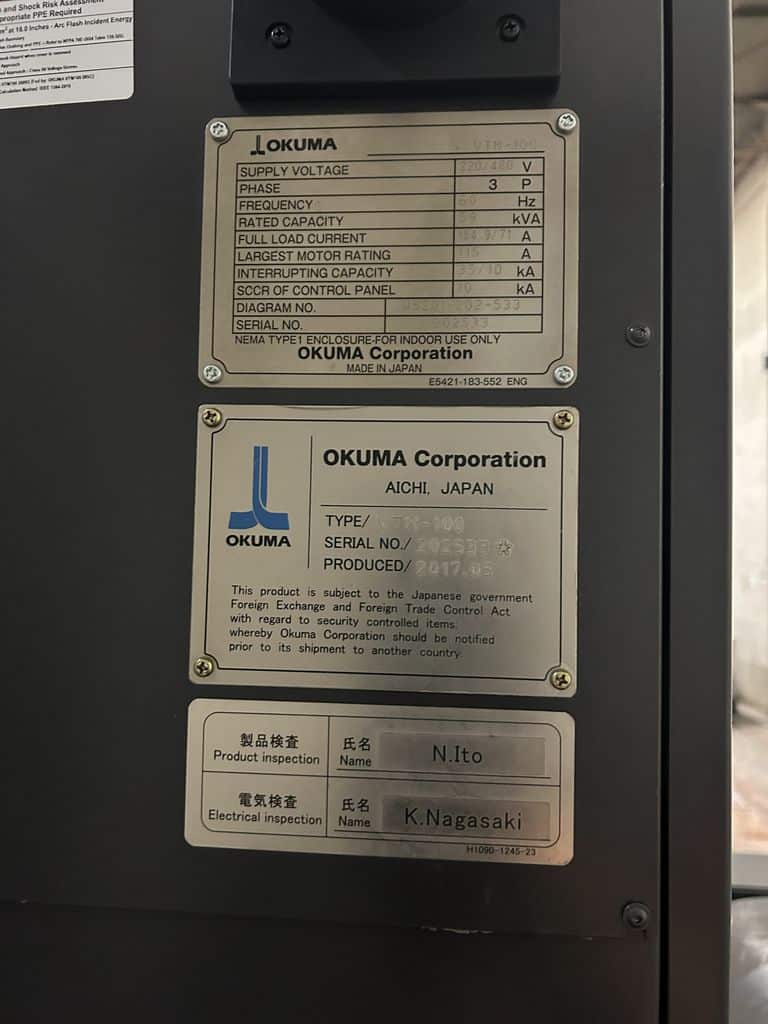

- Serial #: 202533
- Year: 2017
- Approx. Shipping Weight: 30,000 Lbs.
- Approx. Shipping Dimensions: 30′ L x 8’6″ W x 12’11” H
Specifications
- Max. Machining Diameter: 39.37″
- Max Machining Height: 33.07″
- Max Swing Diameter: 39.37″
- Max Workpiece Load: 2,640 Lbs.
- X-Axis Travel: 25.59″
- Z-Axis Travel: 30.07″
- C-Axis: 360° (0.001°)
- Rapid Traverse X-Axis: 630 IPM
- Rapid Traverse Z-Axis: 630 IPM
- Spindle Nose: A2-11
- Spindle Bore: 4.33″
- Spindle Speed: 10 – 1,250 RPM
- Spindle Motor: 40 HP
- Turret Type: ATC Single Tool
- Tool Size: 1.0″, 1.25″
- Boring Bar Diameter: ø1.5″, ø2.0″
- Max Spindle Speed: 10 – 4500 RPM
- Speed Ranges: 2 Auto Ranges
- Taper: 50
- Capacity: 60 Tools
- Max Tool Diameter: 6.70″ – 9.84″
- Max Tool Length: 19.69″
- Max Tool Weight: 66 Lbs.
- Power Source: AC 22/480V, Three Phase, 60 Hz
Equipped With

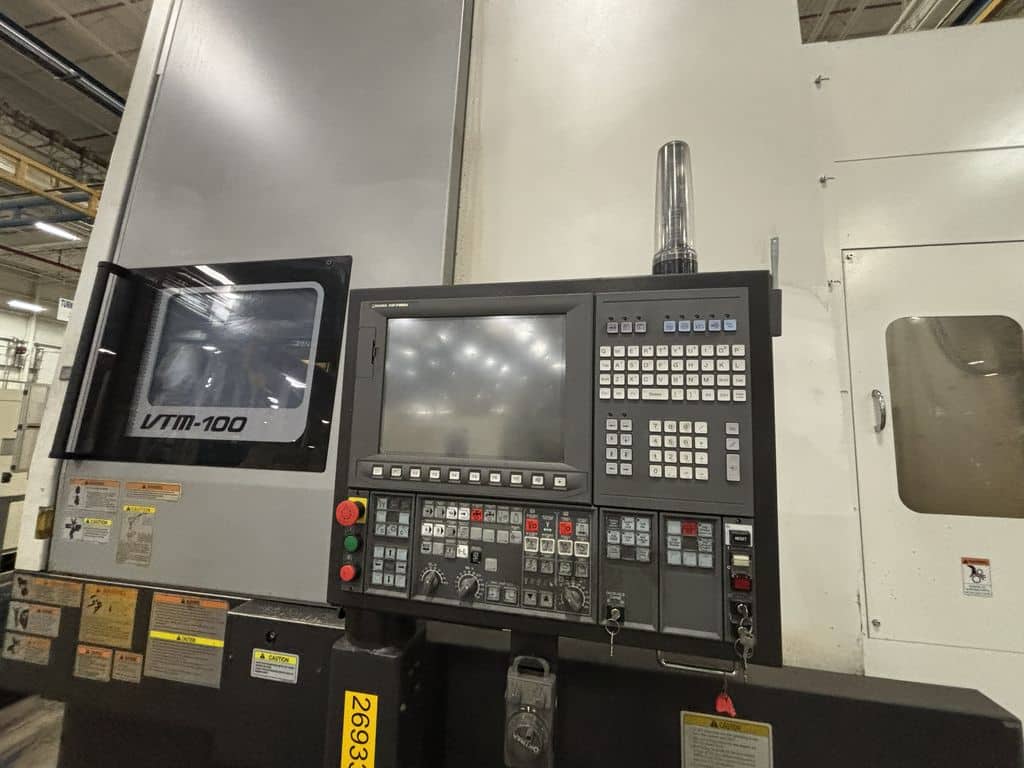

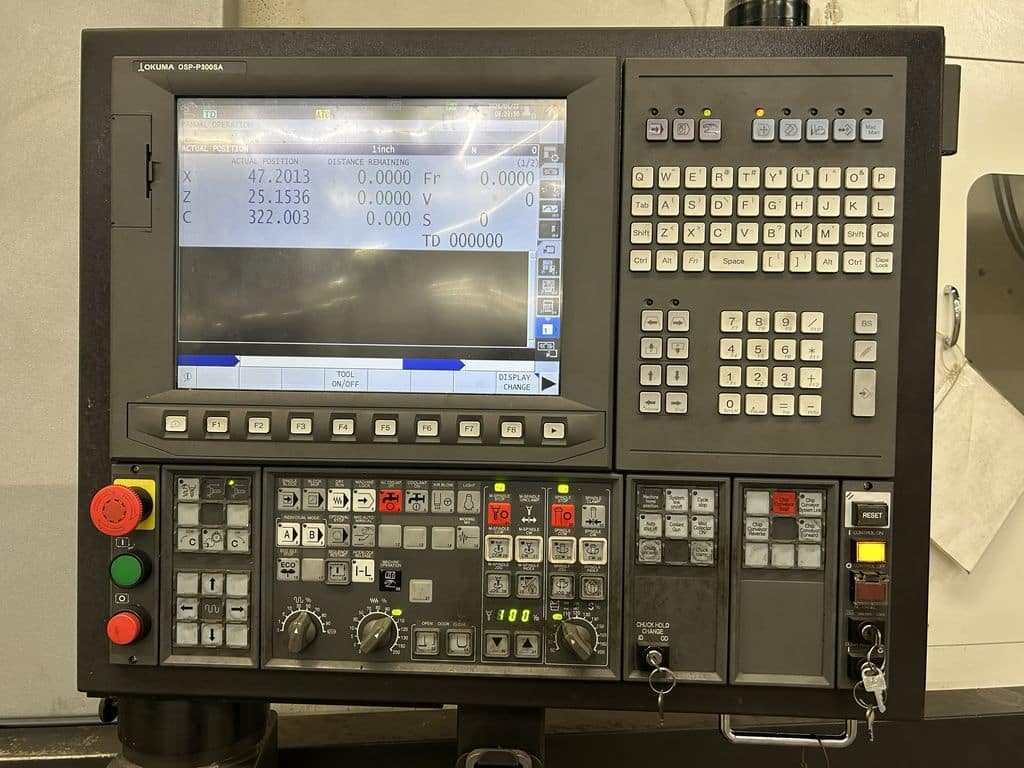

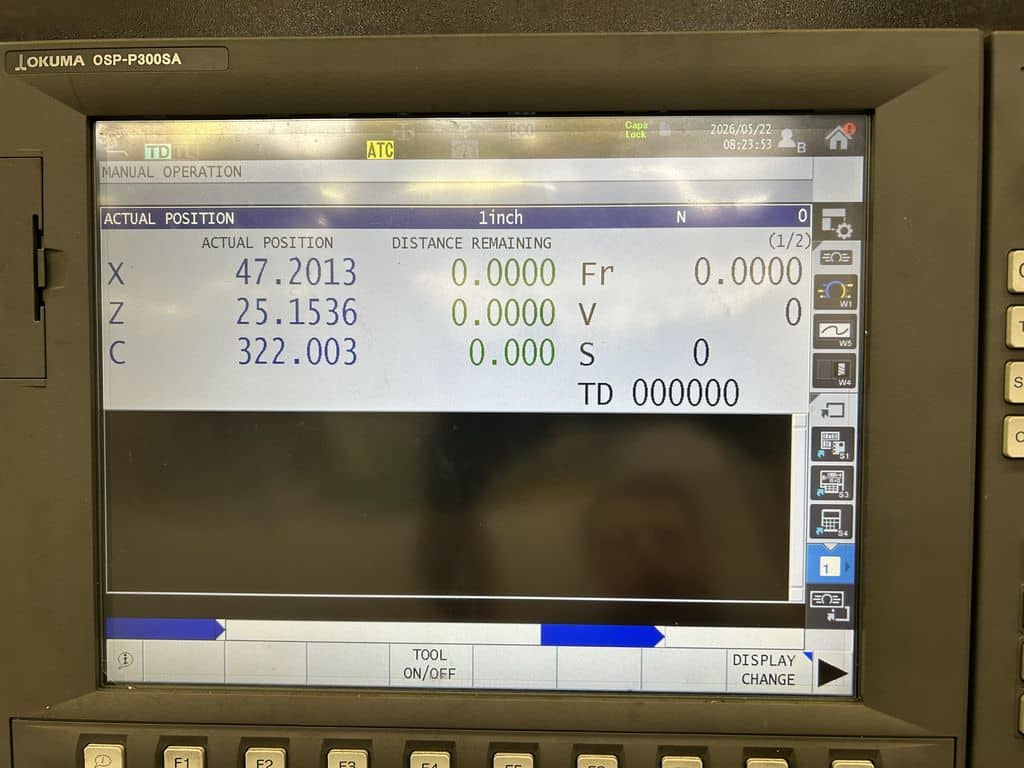

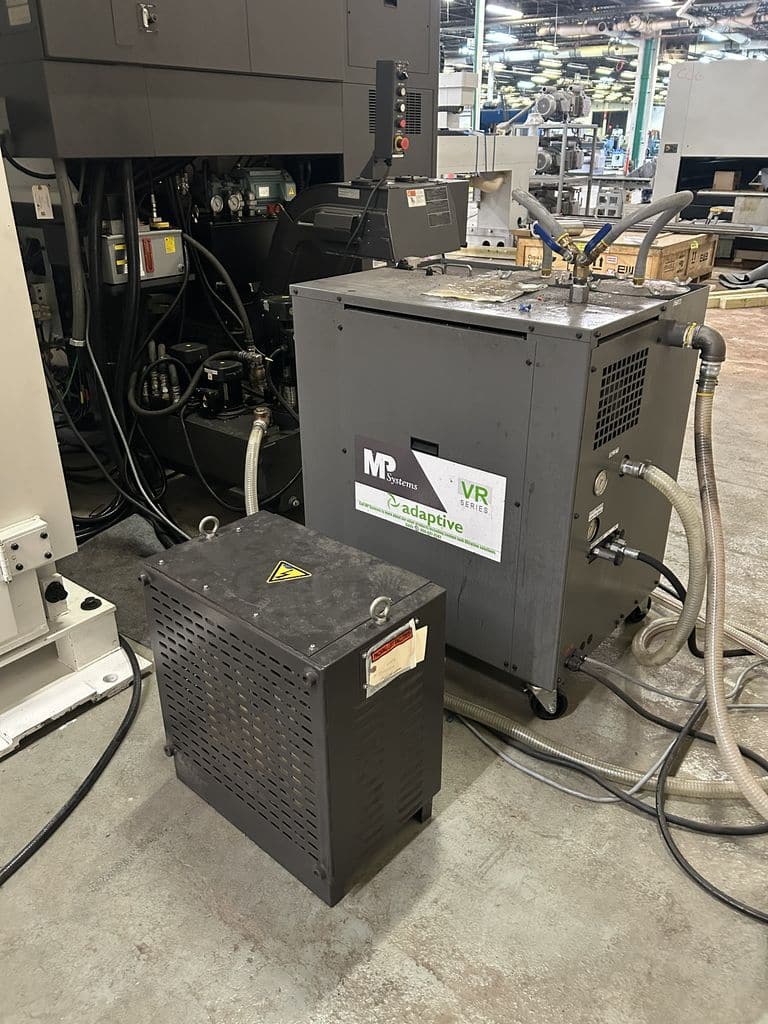

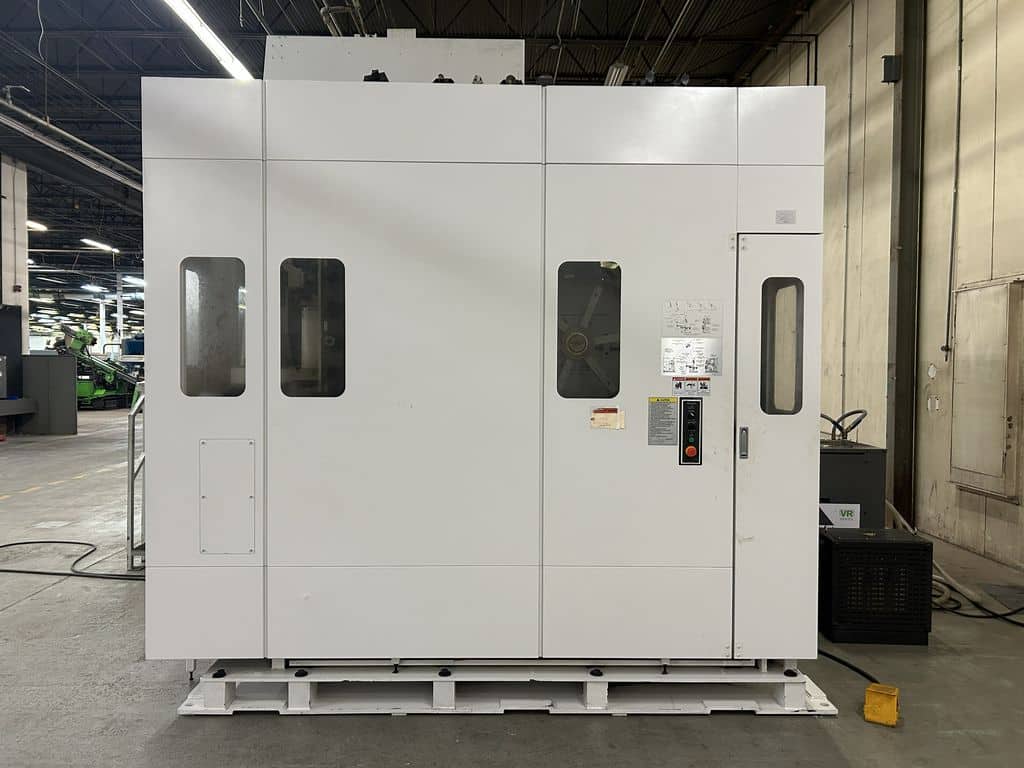

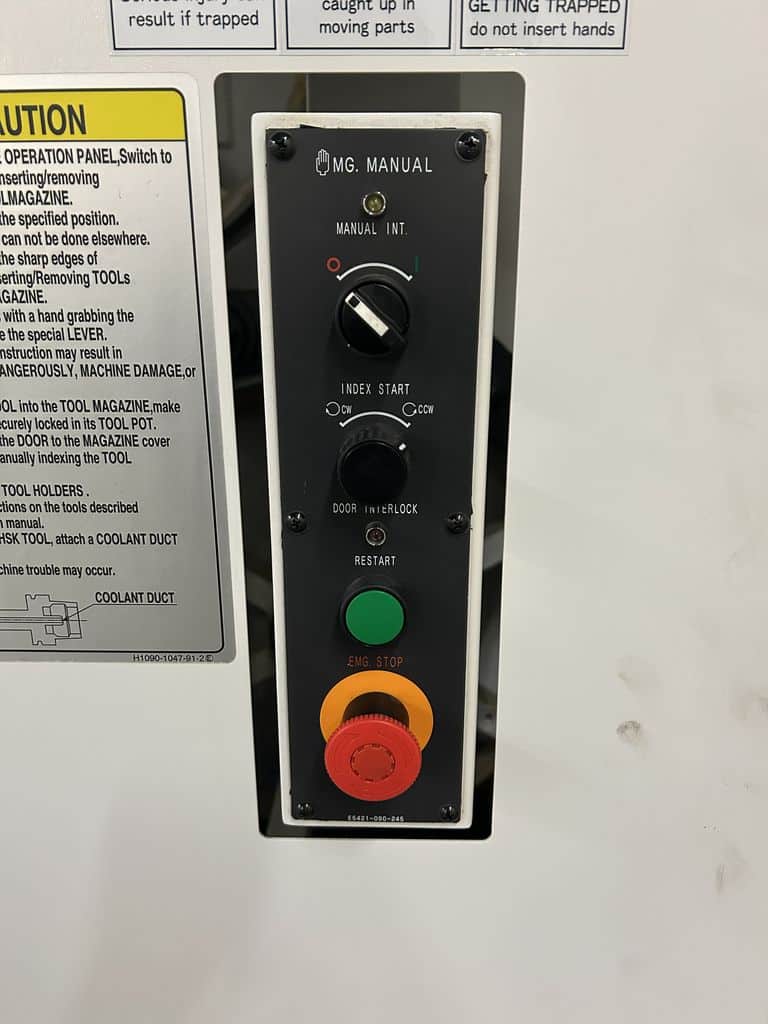

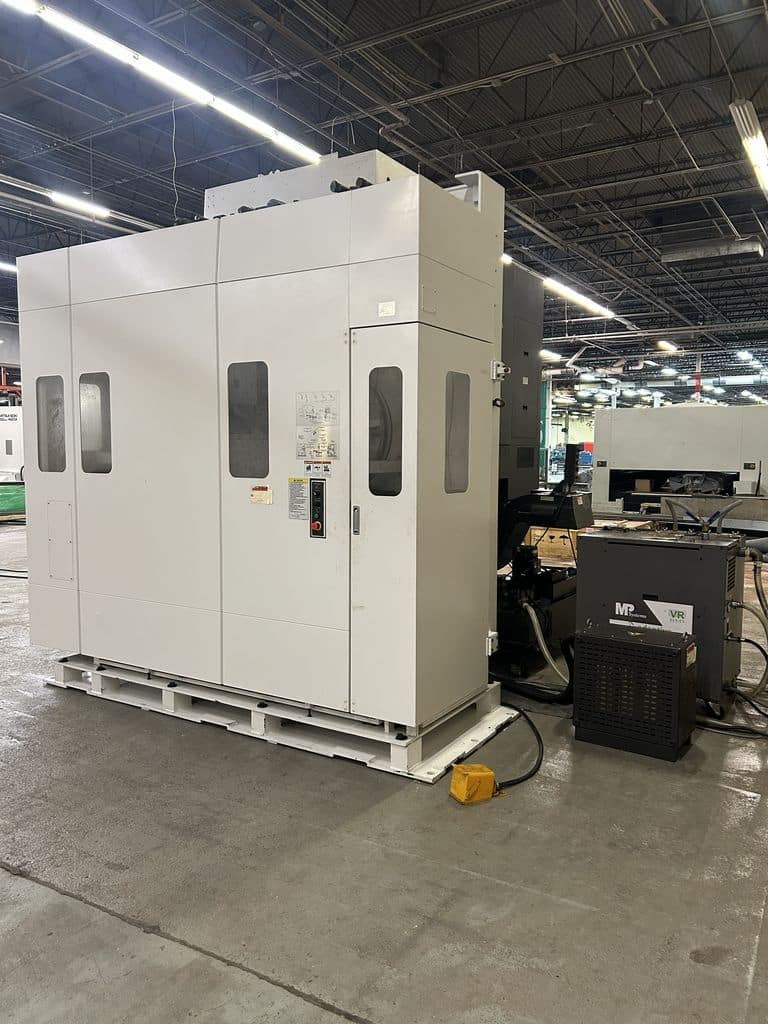

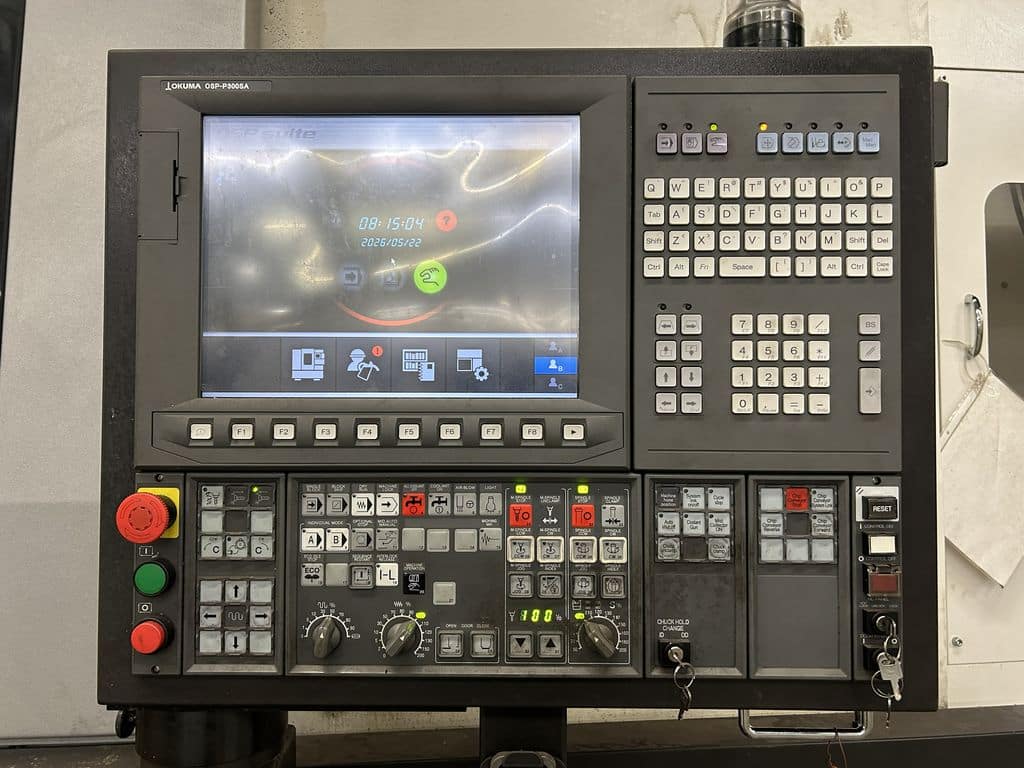

Okuma OSP-P300SA CNC Control, Coolant System, 60 Station Automatic Tool Changer
Additional Info
The Okuma VTM-100 can be demoed upon request.
