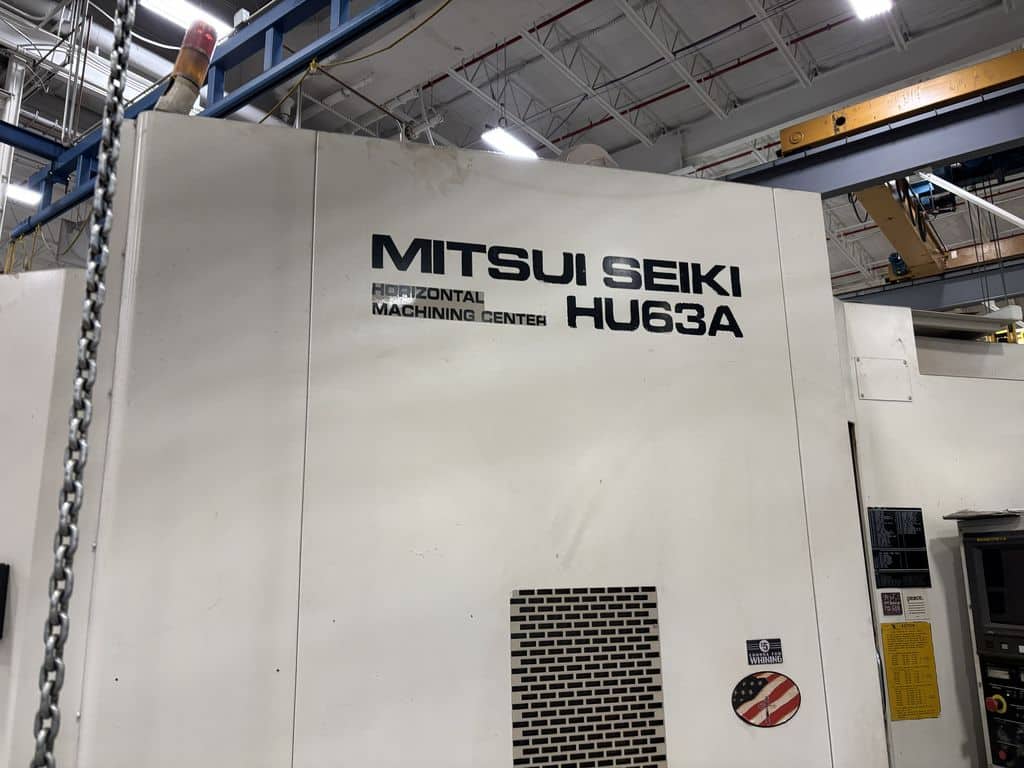

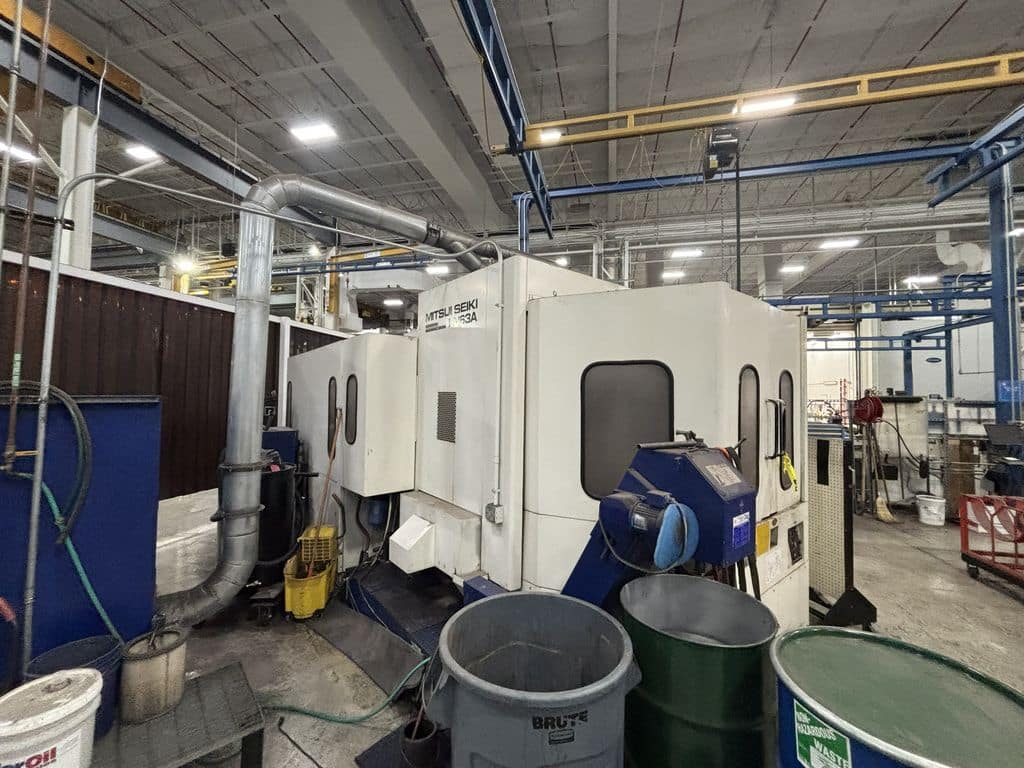

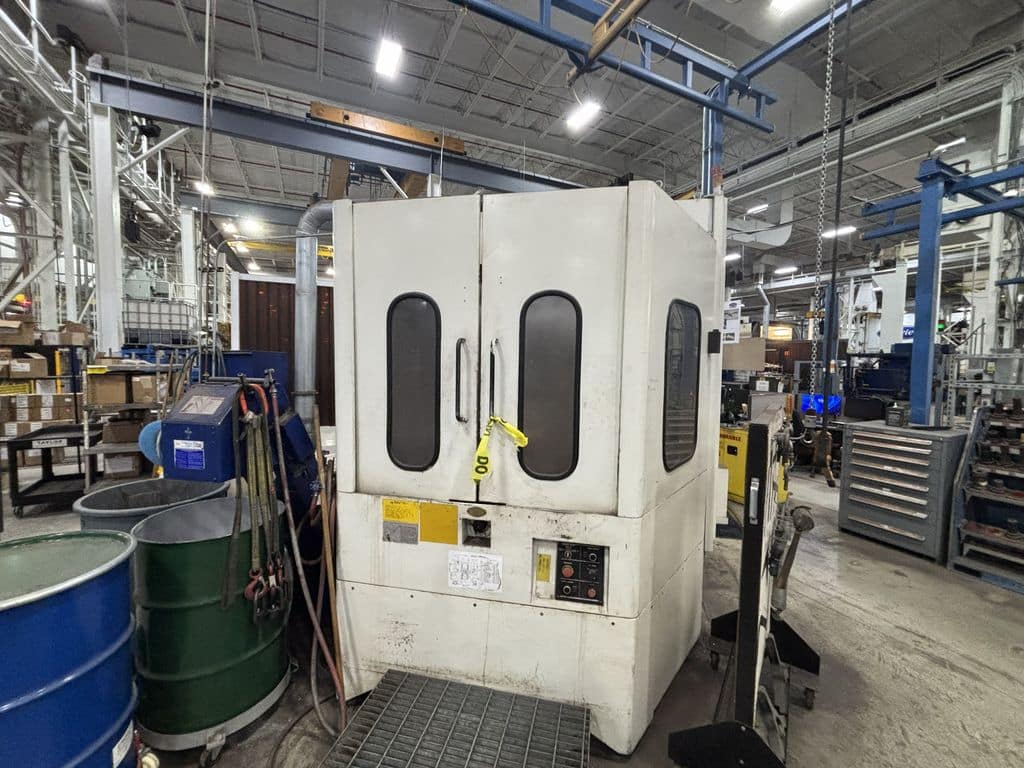

Mitsui-Seiki HU63A CNC 4-Axis Horizontal Machining Center, HMC
Stock #: 150260005
$49,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 150260005
- Location: Decatur, GA
- Brand: Mitsui-Seiki
- Model: HU63A

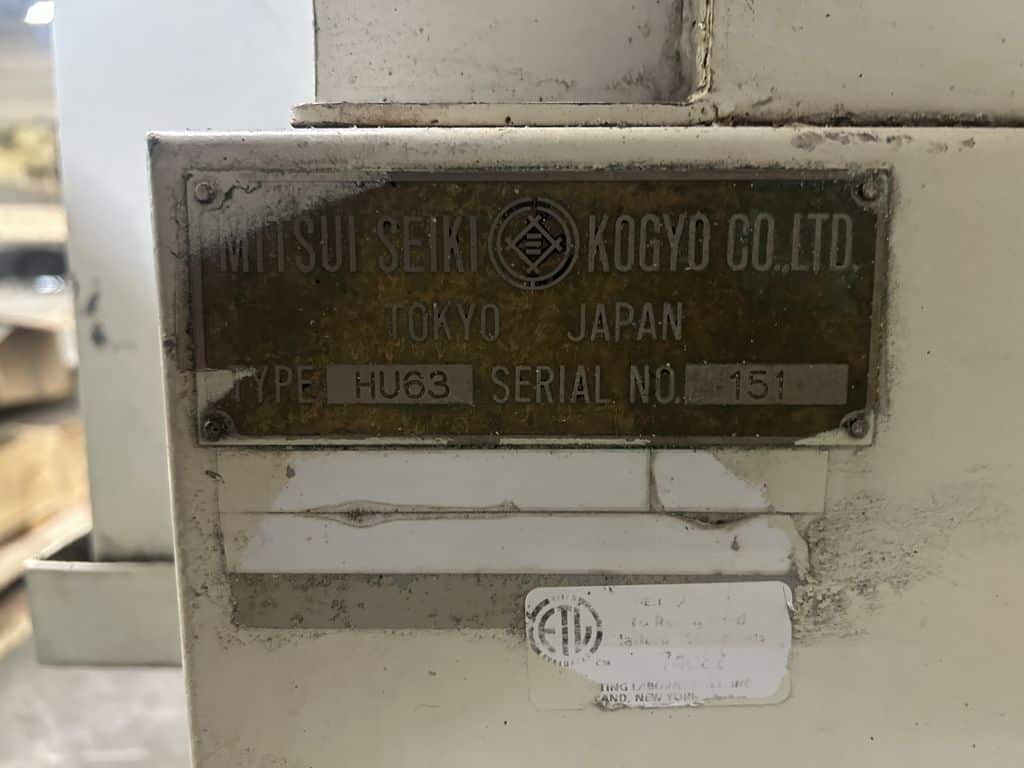

- Serial #: 151
- Approx. Shipping Weight: 40,000 Lbs.
Specifications
- X-Axis Travel: 35.4″
- Y-Axis Travel: 31.5″
- Z-Axis Travel: 31.5″
- Power: 30 HP
- RPM: 6,000 RPM
- ATC Capacity: 120

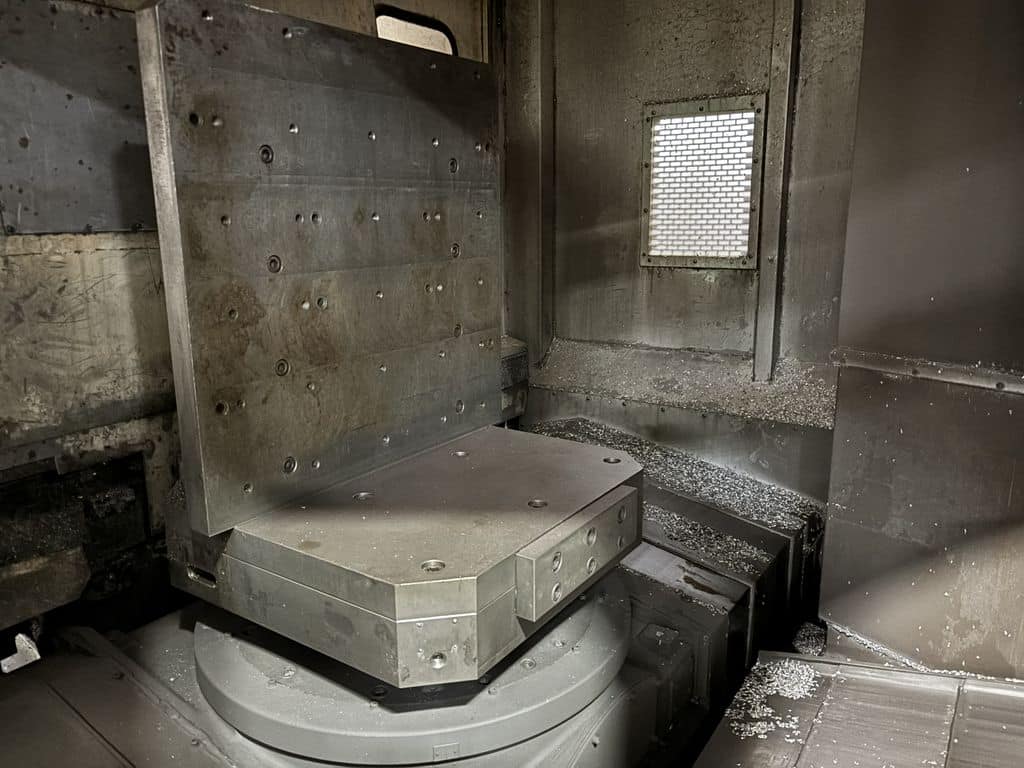

- Table/Pallet Size: 24.8″ x 24.8″
- Pallet Load Capacity: 1,760 lb. – 2,700 lb.
- # Axis: 4
- Spindle Taper: CT-50
Equipped With

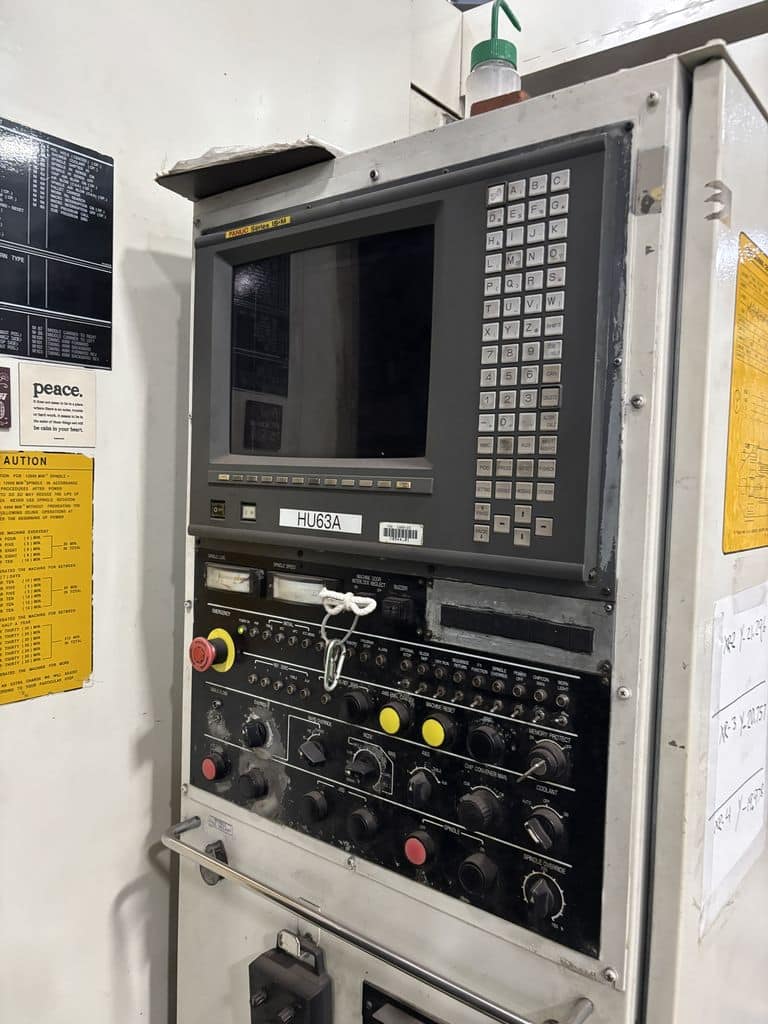

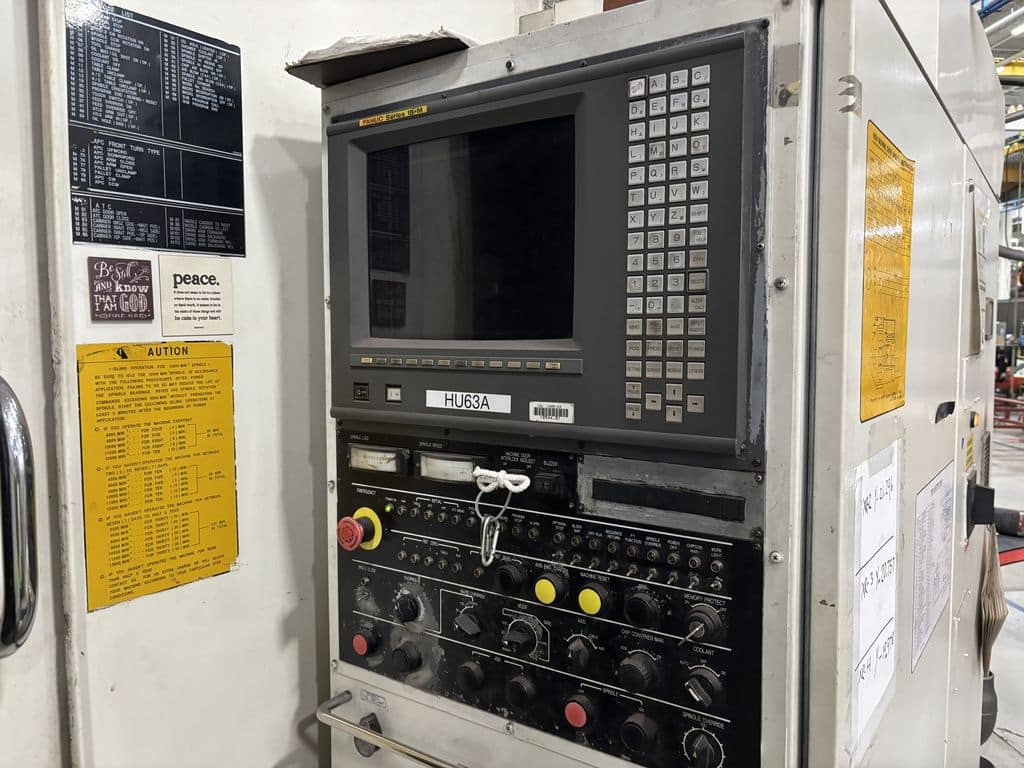

Fanuc Series 15-M CNC Control, Coolant Tank, Chip Conveyor
Additional Info
The Mitsui-Seiki HMC can be demoed upon request.
