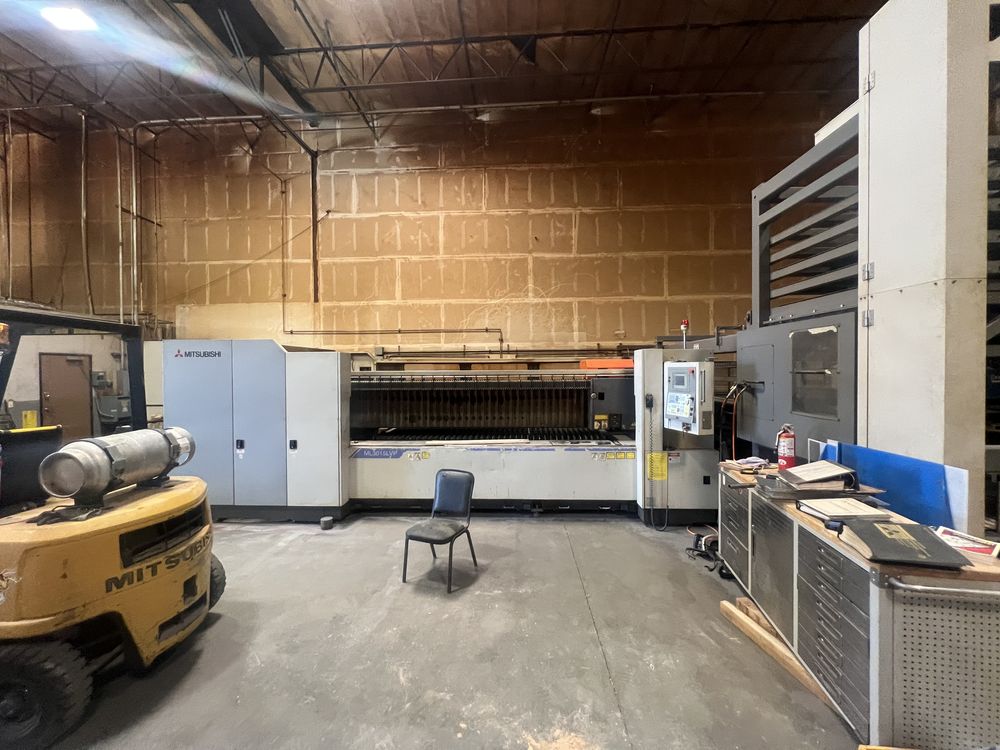

Mitsubishi ML3015LVP 5000 Watt CNC CO2 Laser
Stock #: 181250018
$19,125.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 181250018
- Location: North Las Vegas, NV
- Brand: Mitsubishi
- Model: ML3015LVP
- Year: 2002
- Approx. Shipping Weight: 27,340 Lbs.
- Approx. Shipping Dimensions: 420.3″ W x 90.6″ H x 183″ L
- Loading Fee: Rigging Required
Specifications
- Table Size: 5 Feet X 10 Feet
- X-Axis Travel:: 122 Inches
- Y-Axis Travel: 61 Inches
- Z-Axis Travel: 4.72 Inches
- Maximum Workpiece Size: 120.08 Inches X 60.04 Inches
- Maximum Workpiece Weight:: 2050 Pounds
- Maximum Processing Feedrate: 1180 Inches Per Minute
- Rapid Travel Speed (X, Y): 3345 / 4730 Inches Per Minute
- Pallet Change Time: Approximately 25 Seconds
- Motion Drive System Design: Precision Rack And Pinion, Direct Drive
- Laser Type: CO2 Laser
- Resonator Power: 5,000 Watts
Equipped With

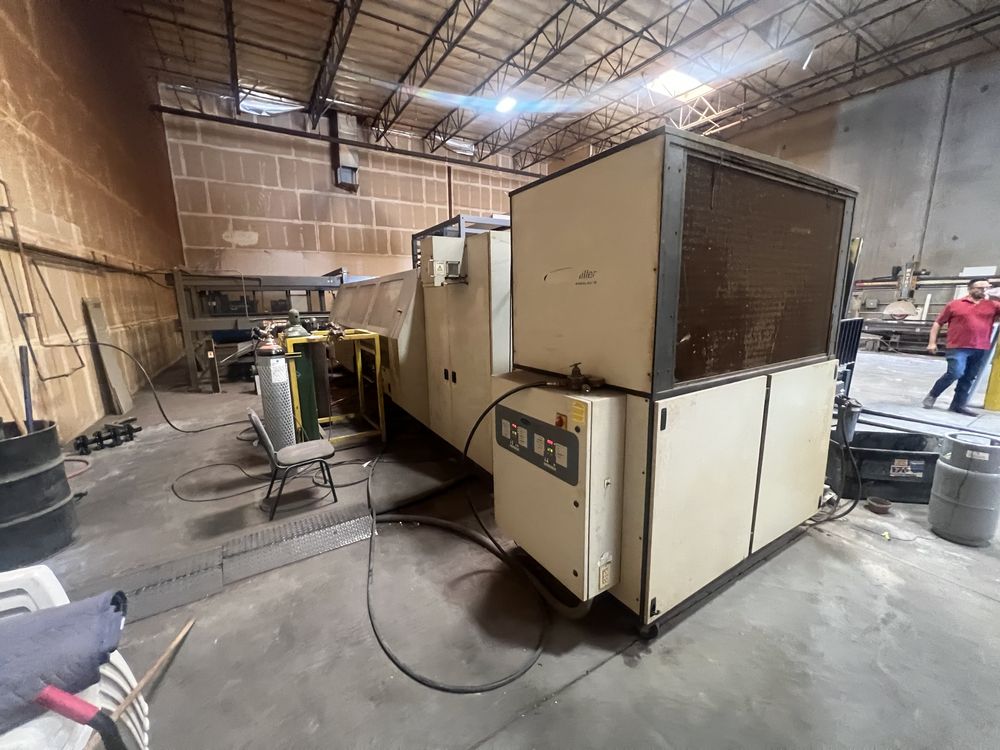

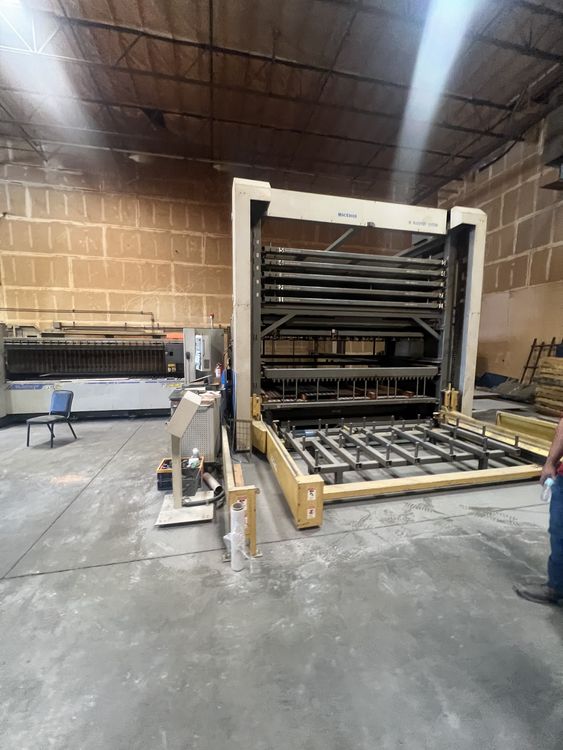

Mitsubishi PHX Cutting Head, Beam Optimizer, High-Speed Power Sensor, ATFR Mirror, Closed Loop Air Cooled Chiller, High-Speed Capacitance Height Sensor, Programmable Gas Assist With High Pressure Bypass System, Safety Covers, Automatic Heavy-Duty Pallet Changer, Ethernet LAN Interface, Multifunction Visible Alignment Laser, Floppy Disk Drive: 1.44MB IBM Compatible, Hard Disk Drive Capacity: 2.0 Gigabytes, Graphic Display: 10.4-Inch TFT Color LCD Touch Screen, CPU Type: 64 Bit / PC
Additional Info
Inspection Upon Request
