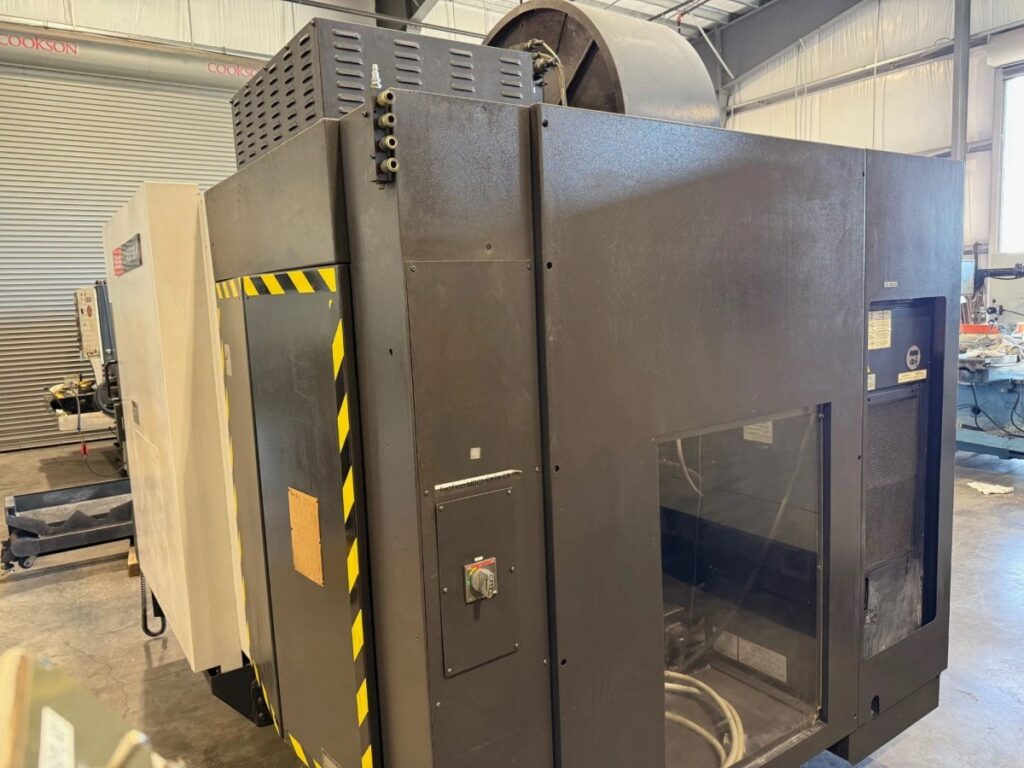

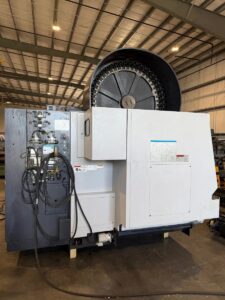

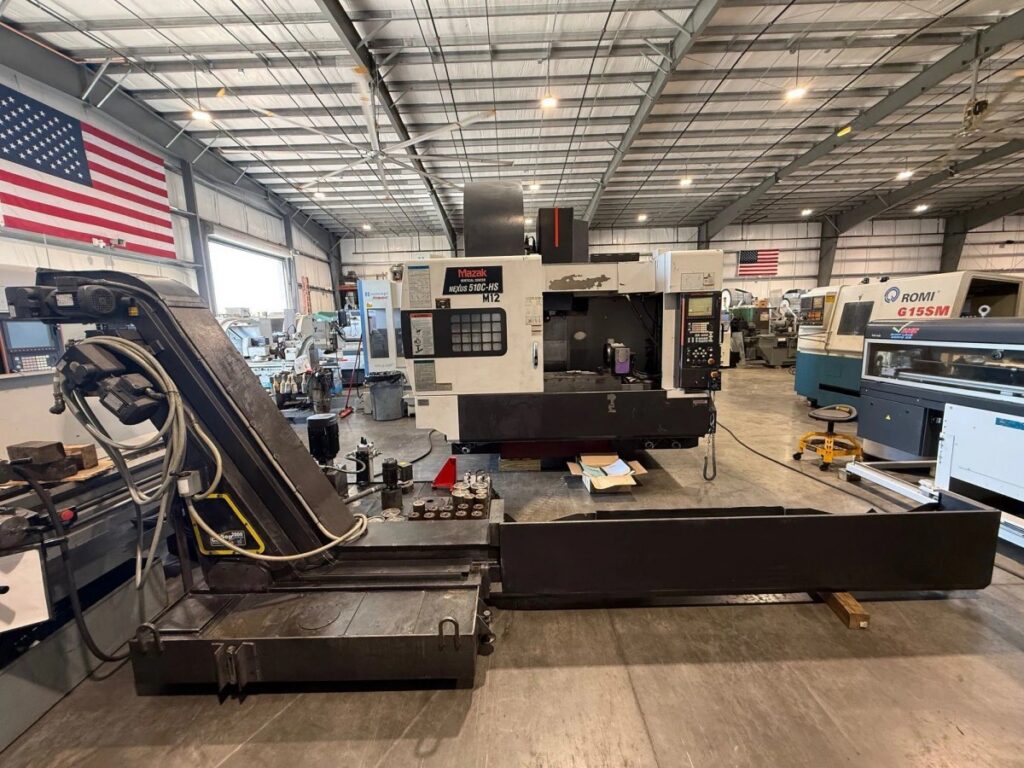

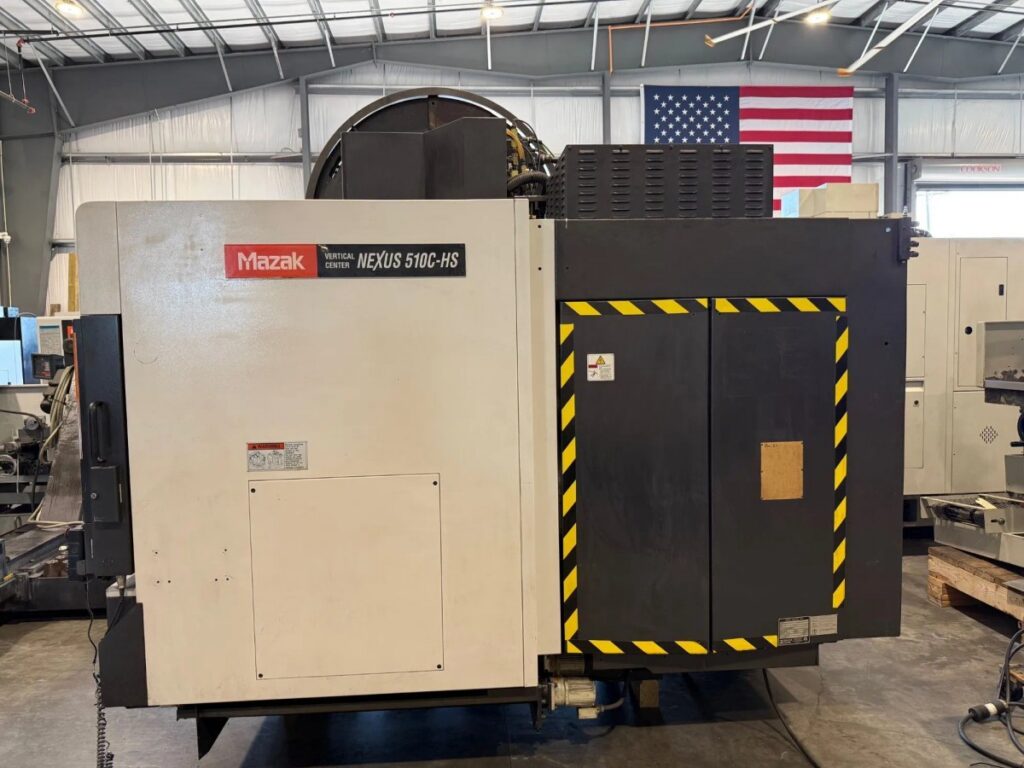

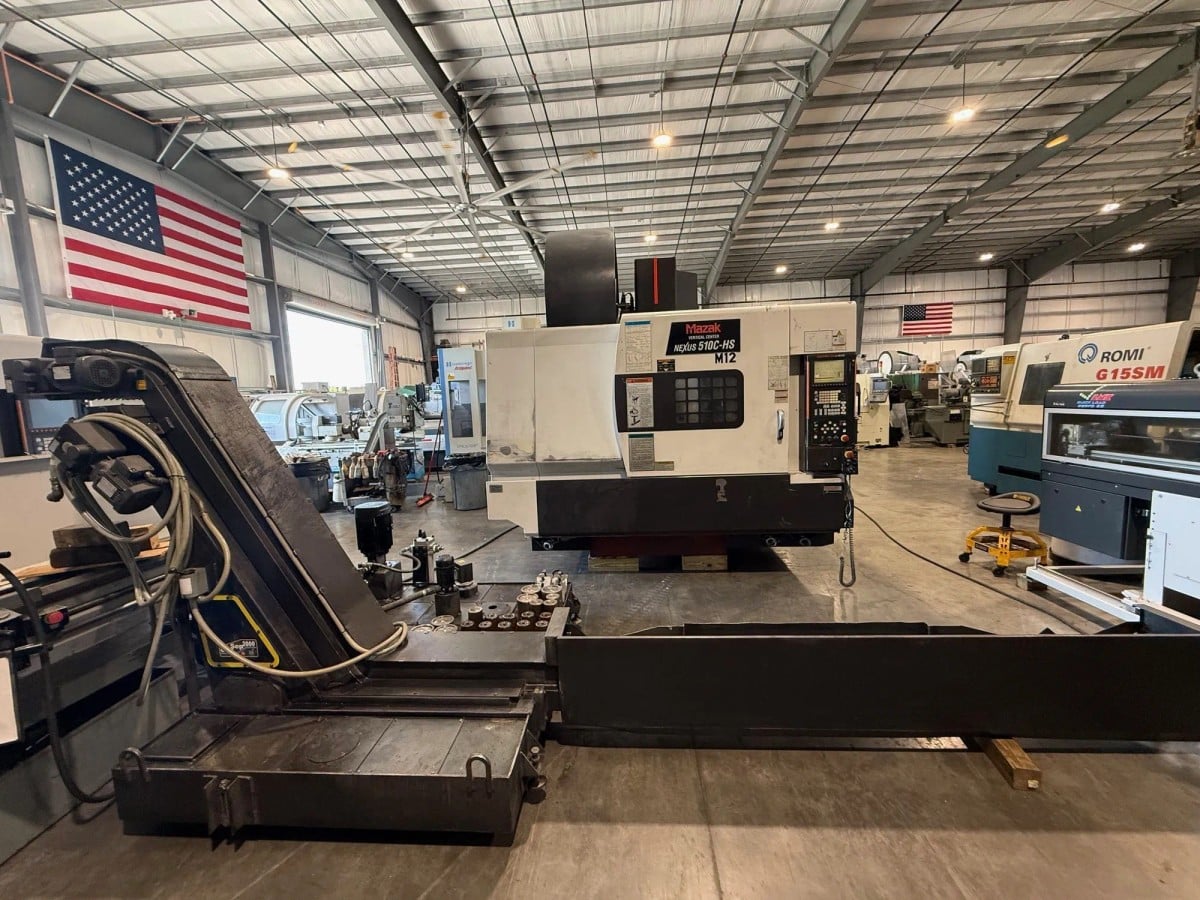

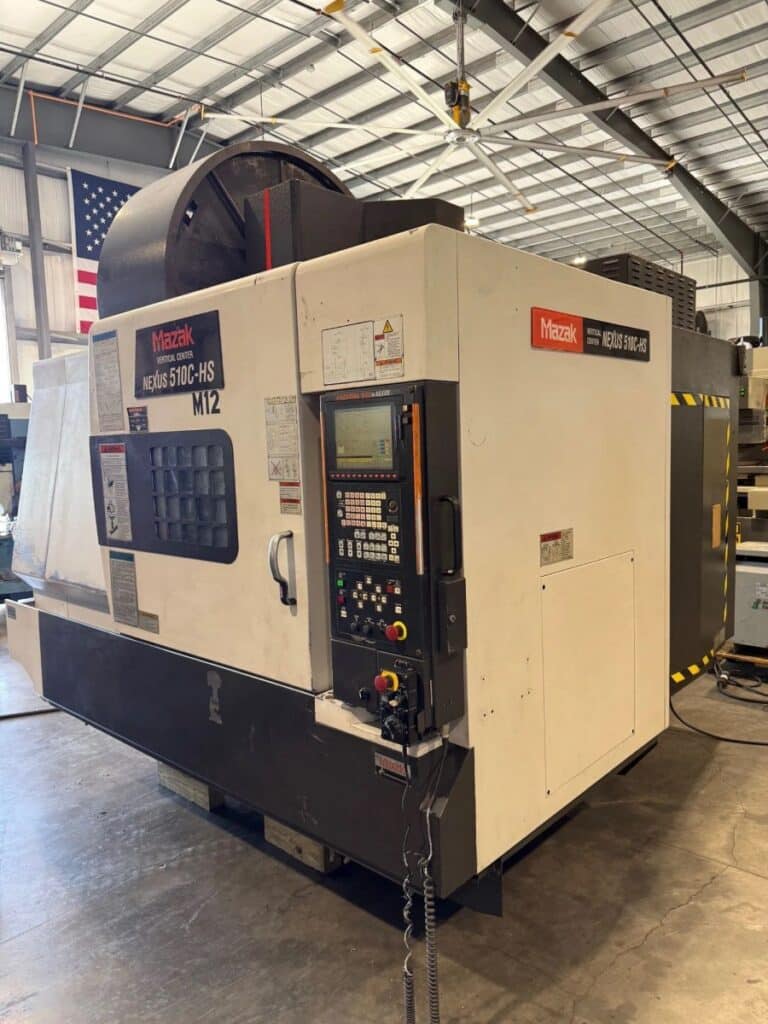

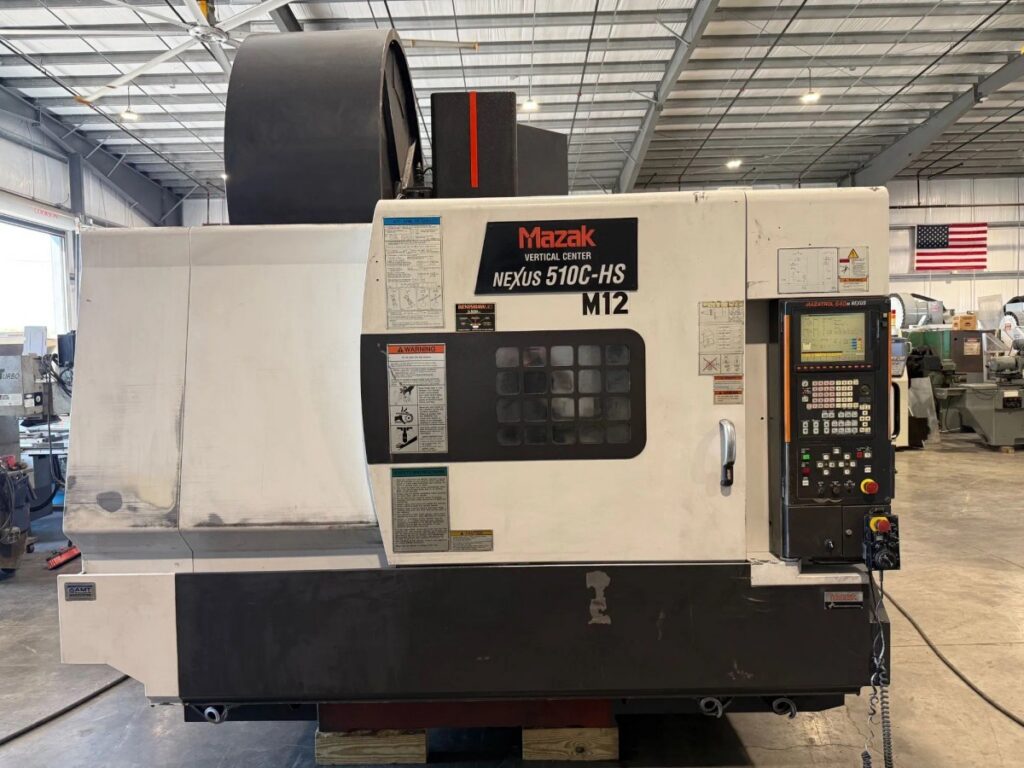

Mazak VCN 510C-HS CNC Vertical Machining Center High-Speed 4 Axis (2005)

Stock #: 173260003

$44,500.00

See Product Details

Business Financing Available

  • Stock #: 173260003
  • Brand: Mazak

Business Financing Available

  • Stock #: 173260003
  • Brand: Mazak

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 173260003
  • Location: F.O.B. Sarasota, Florida
  • Brand: MAZAK
  • Model: VCN 510C-HS
  • Serial #: 172816
  • Year: 2005
  • Approx. Shipping Weight: 17500 lbs
  • Approx. Shipping Dimensions: 118 in L x 112 in W x 120 in H

Specifications

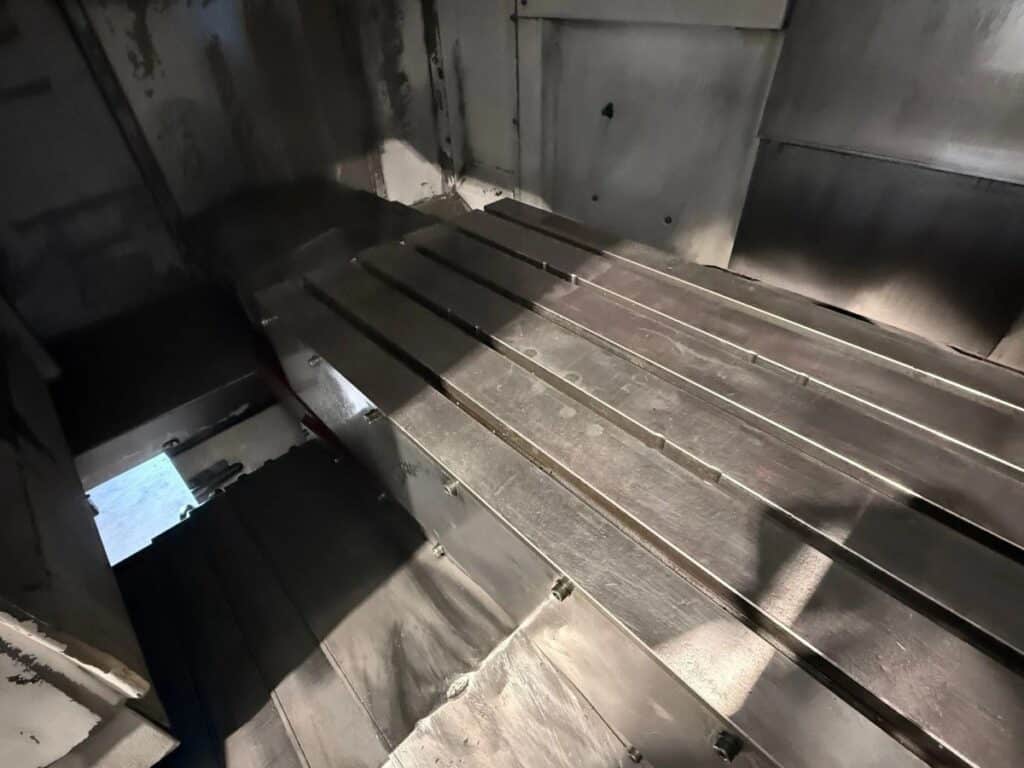

  • Table Size: 51.18 in x 21.65 in
  • Number of T Slots: 3
  • Maximum Table Load Capacity: 2640 lbs
  • X Axis Travel: 41.34 in
  • Y Axis Travel: 20.08 in
  • Z Axis Travel: 20.08 in
  • Distance from Table Top to Spindle Nose: 5.90 in – 25.98 in
  • Distance from Column Surface to Spindle Center: 22.67 in
  • Maximum Spindle Speed: 15000 RPM
  • Spindle Taper: Cat 40
  • Rapid Traverse on X, Y & Z Axes: 1417 IPM
  • Cutting Feedrate on X, Y & Z Axes: 0.03 – 315 IPM

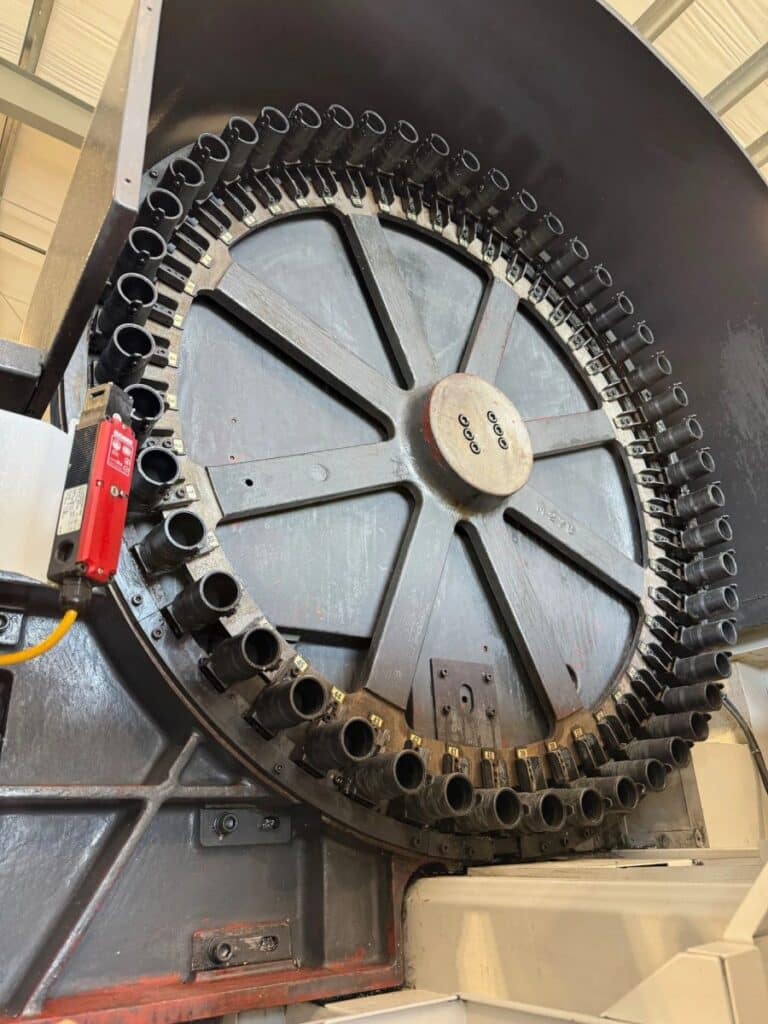

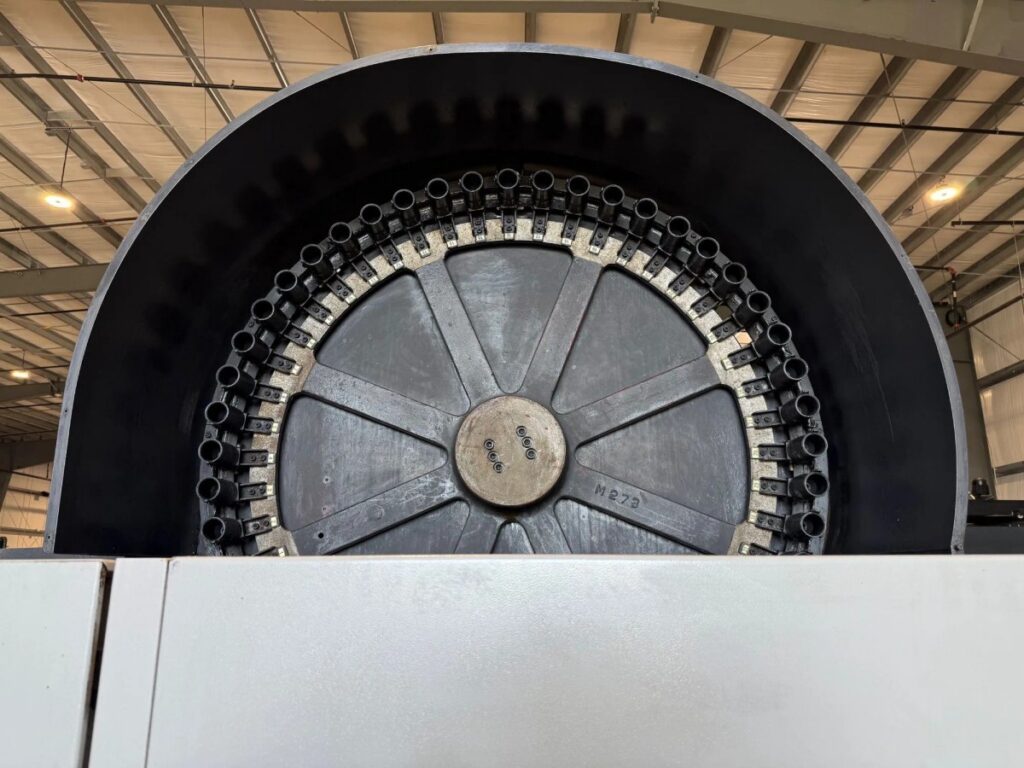

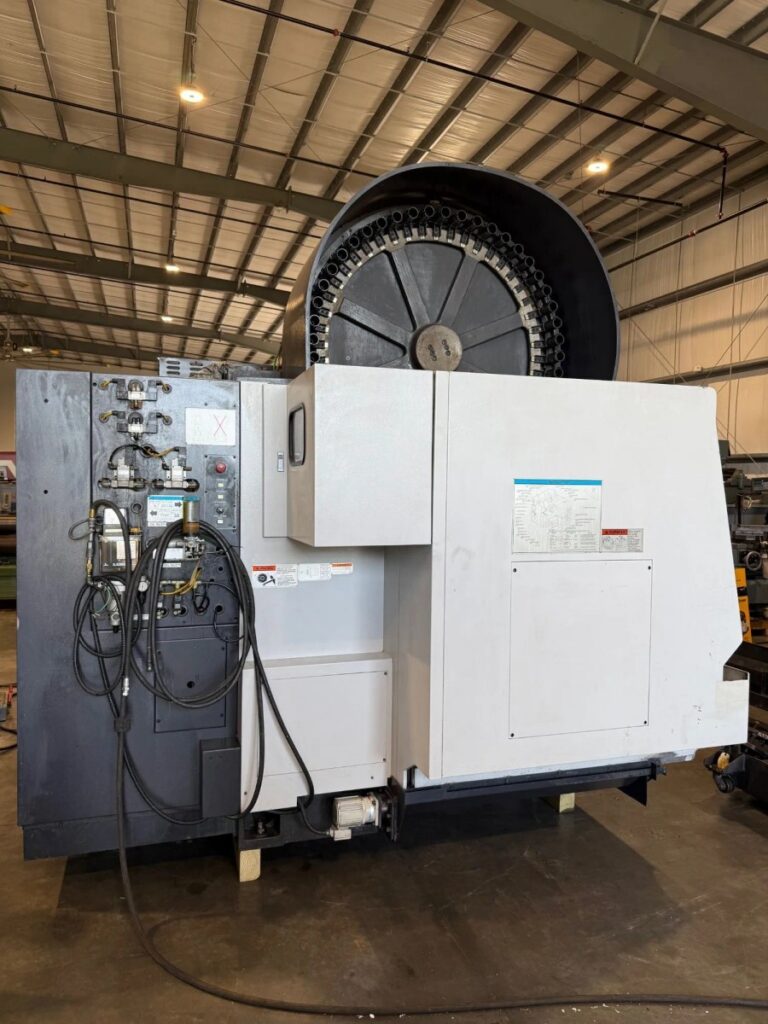

  • Side Mount Tool Changer Capacity: 48 tools
  • Maximum Tool Diameter: 3.15 in
  • Maximum Tool Length: 13.78 in
  • Maximum Tool Weight: 17.64 lbs
  • Tool Change Time: 1.3 seconds (tool to tool)

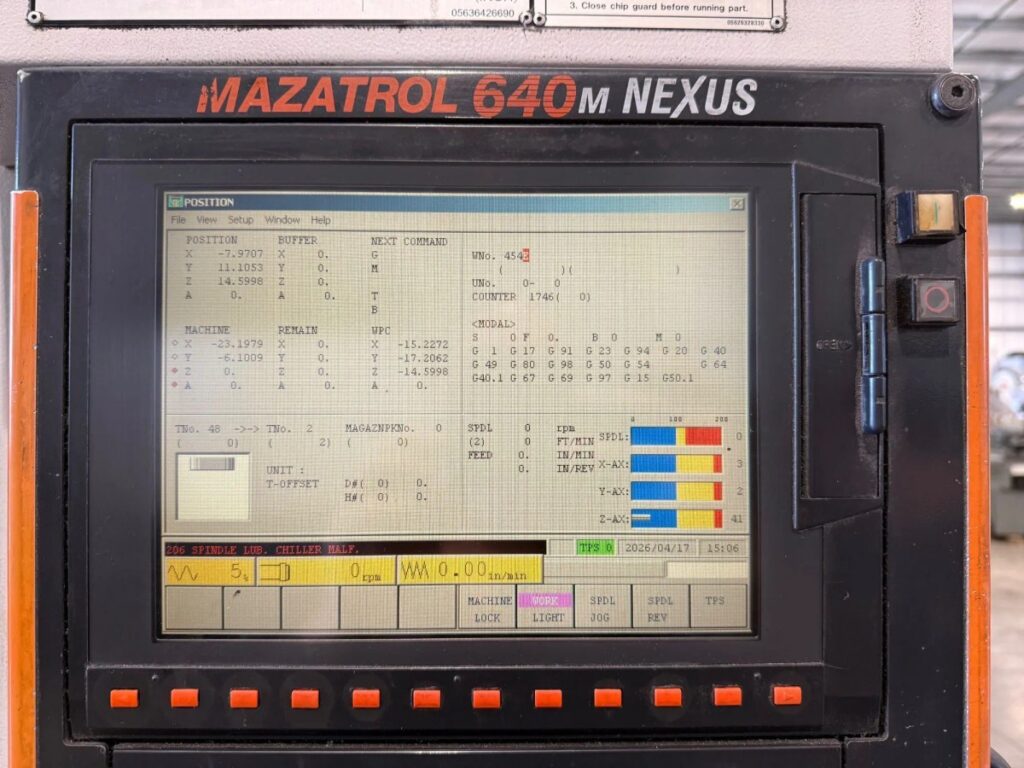

  • Control: Mazatrol 640M CNC
  • Main Spindle Motor: 25 HP

Equipped With

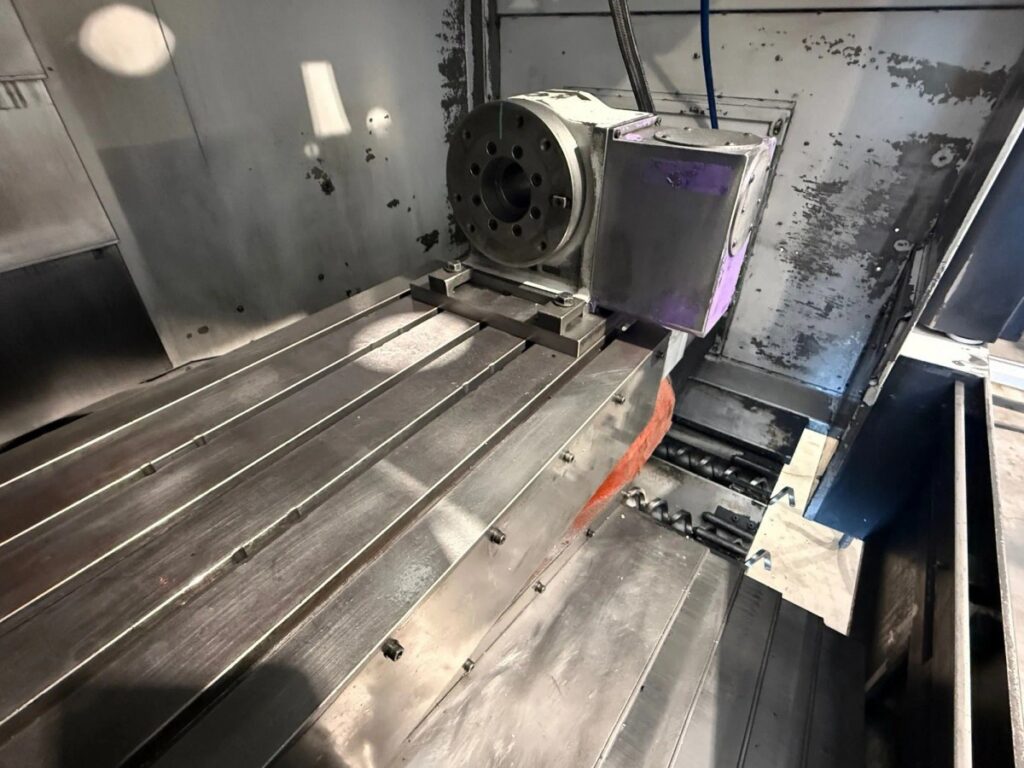

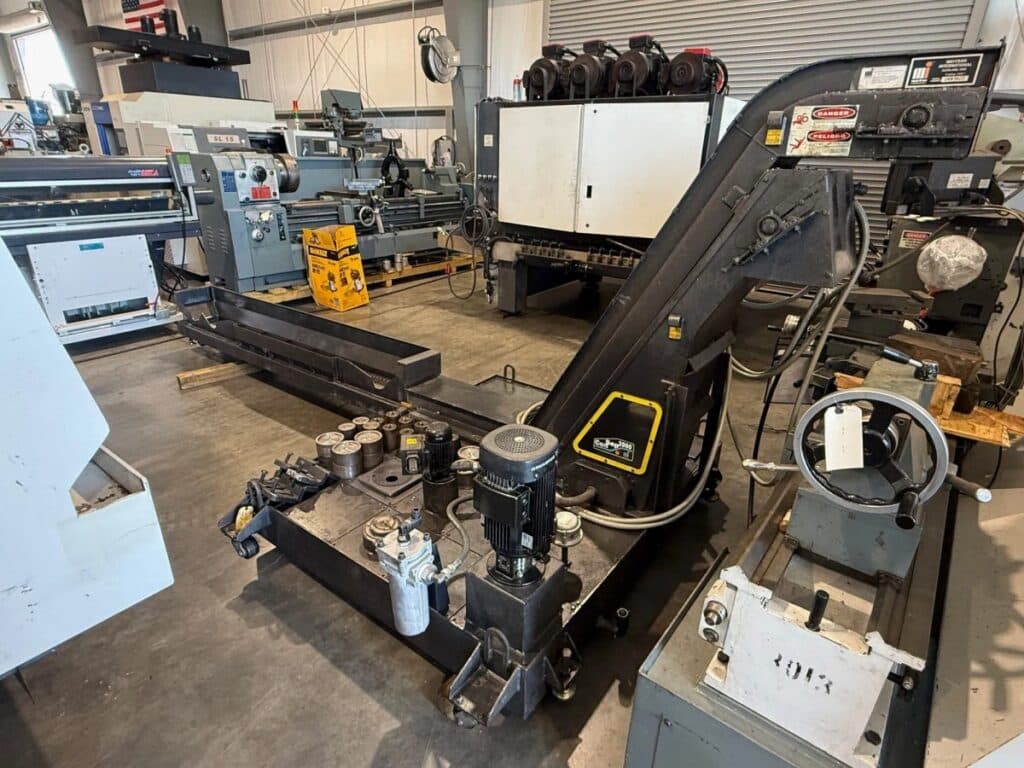

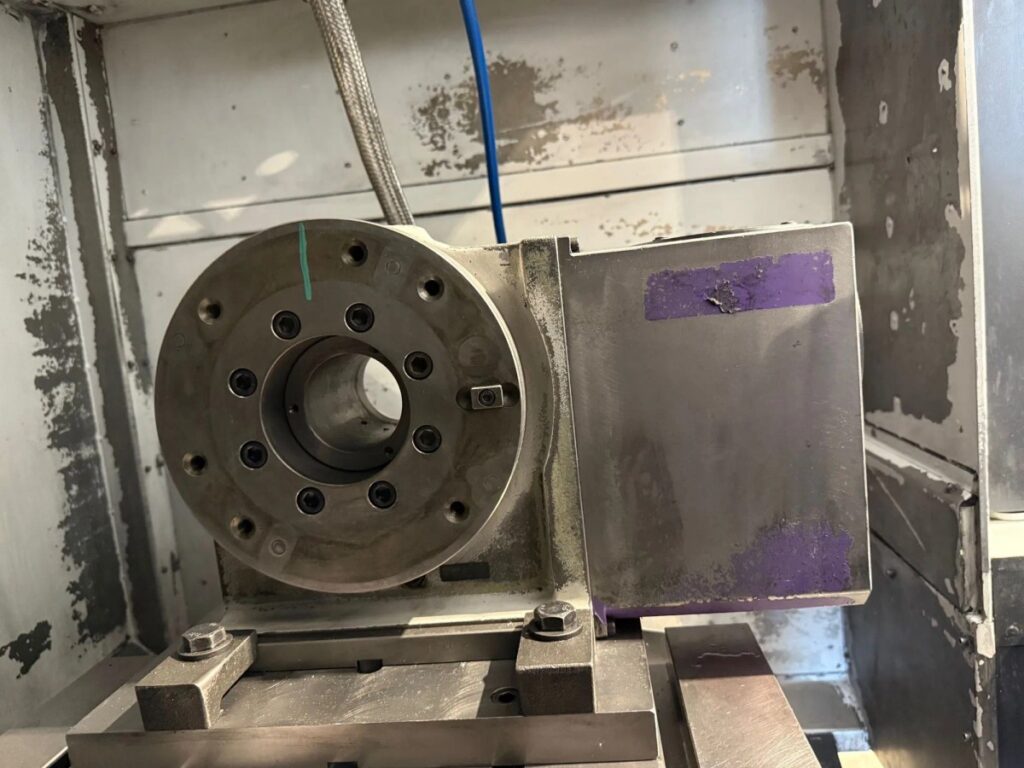

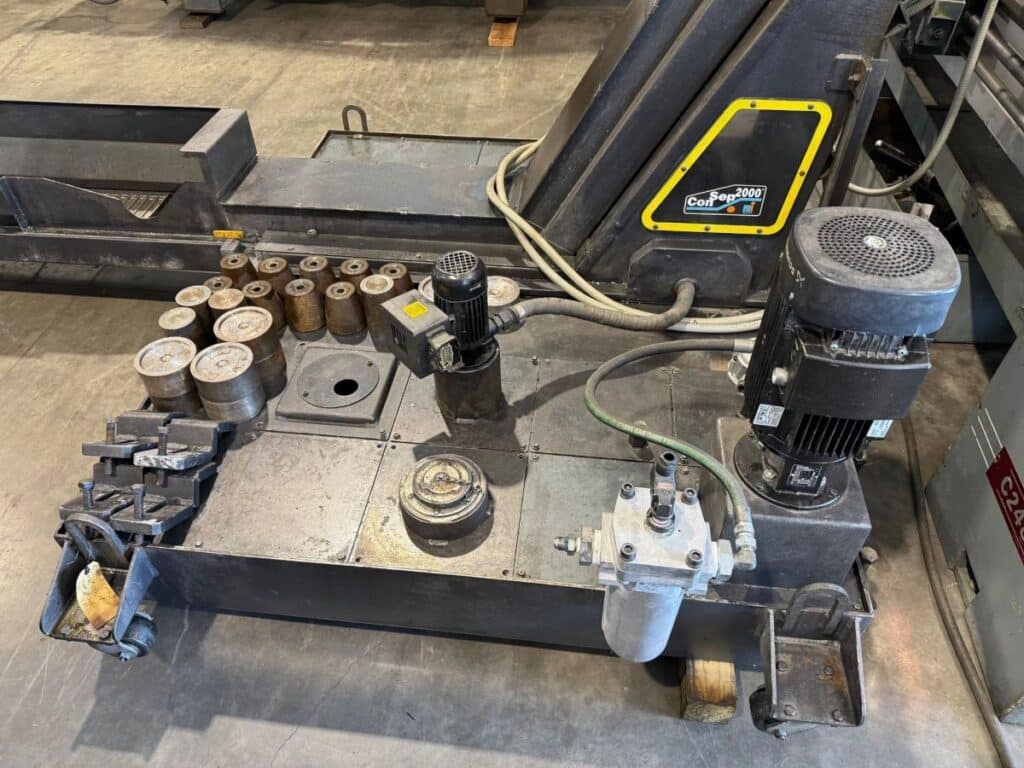

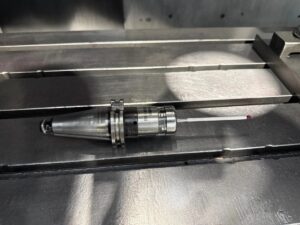

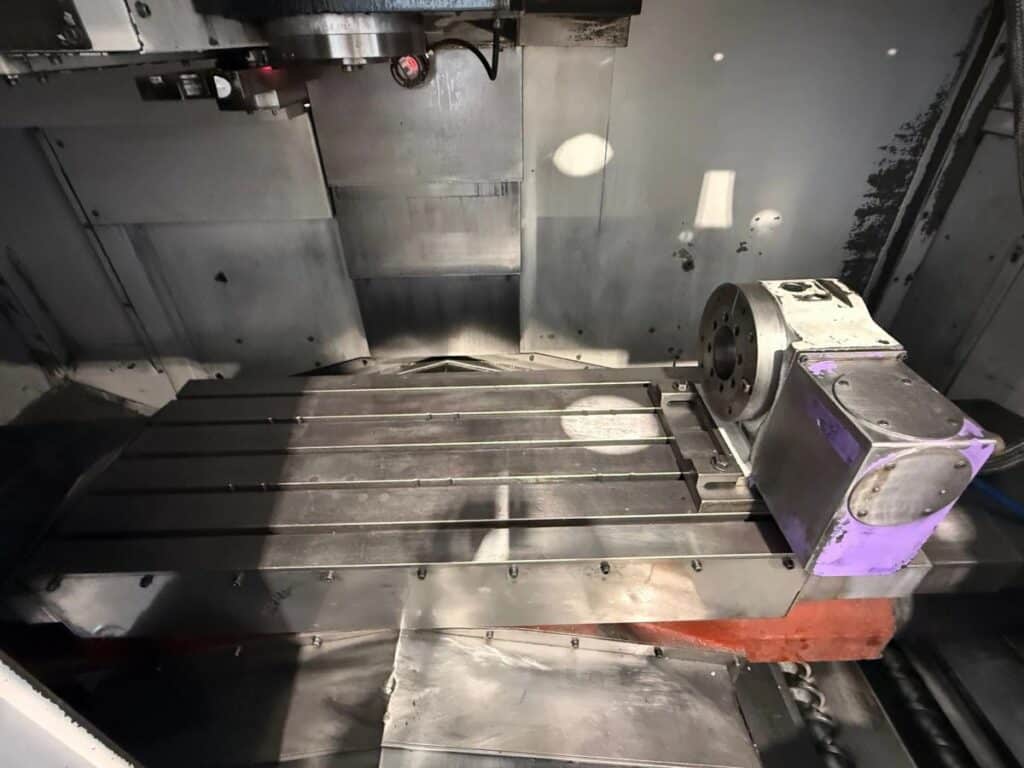

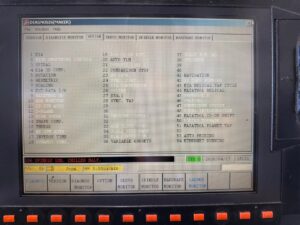

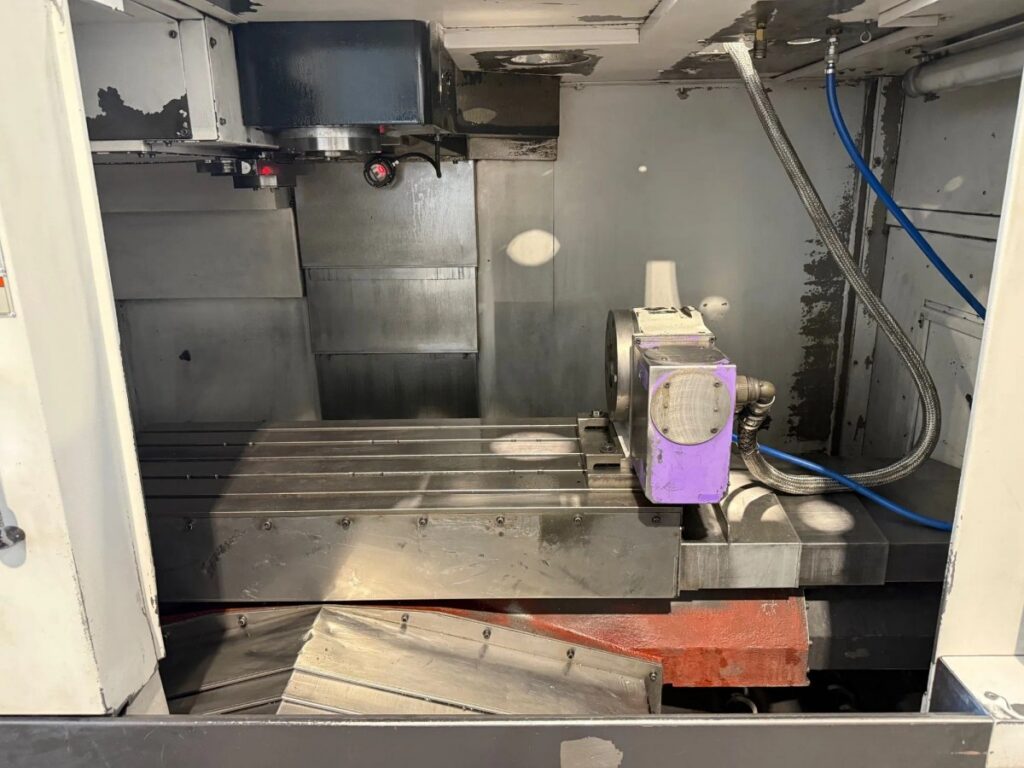

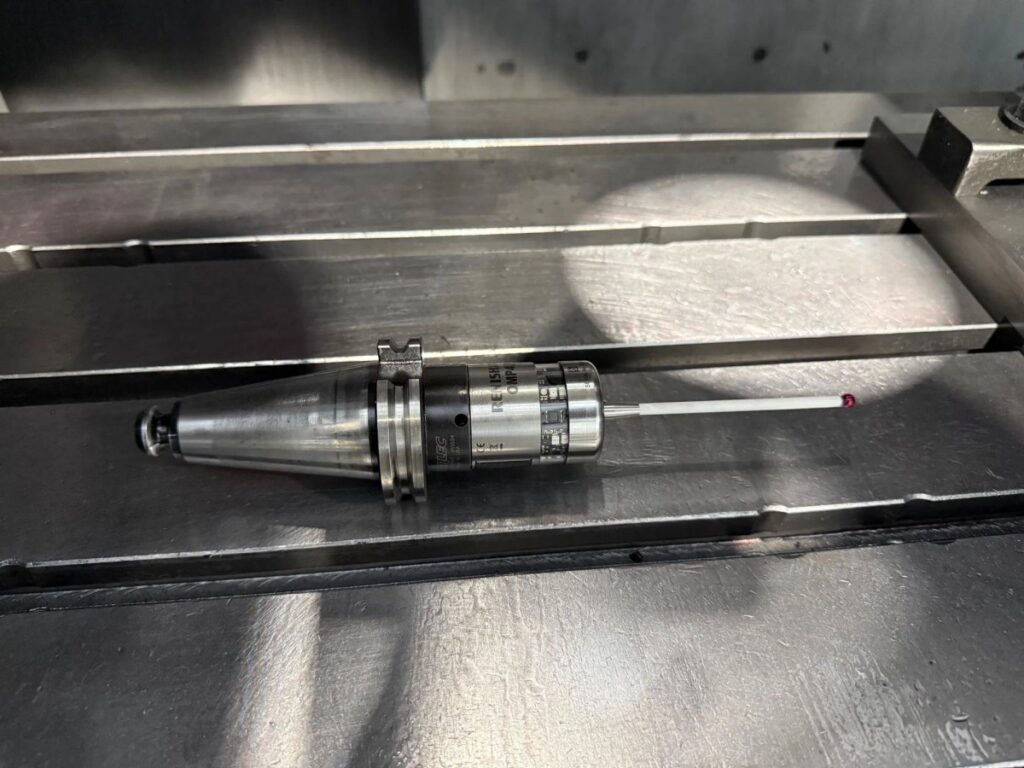

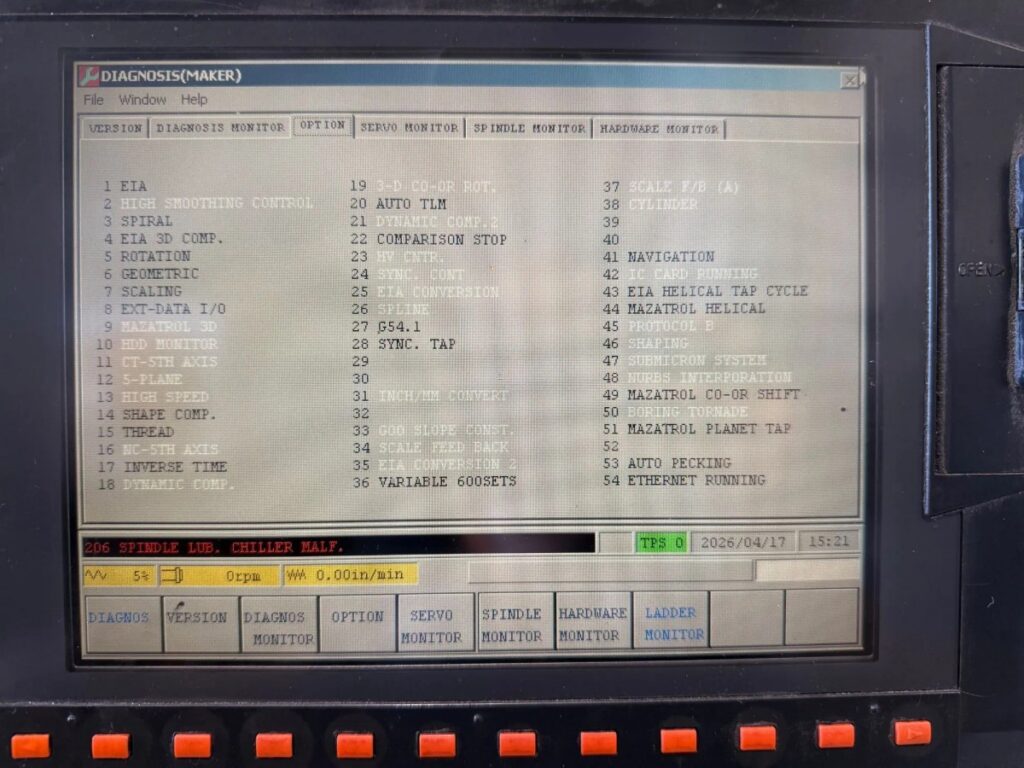

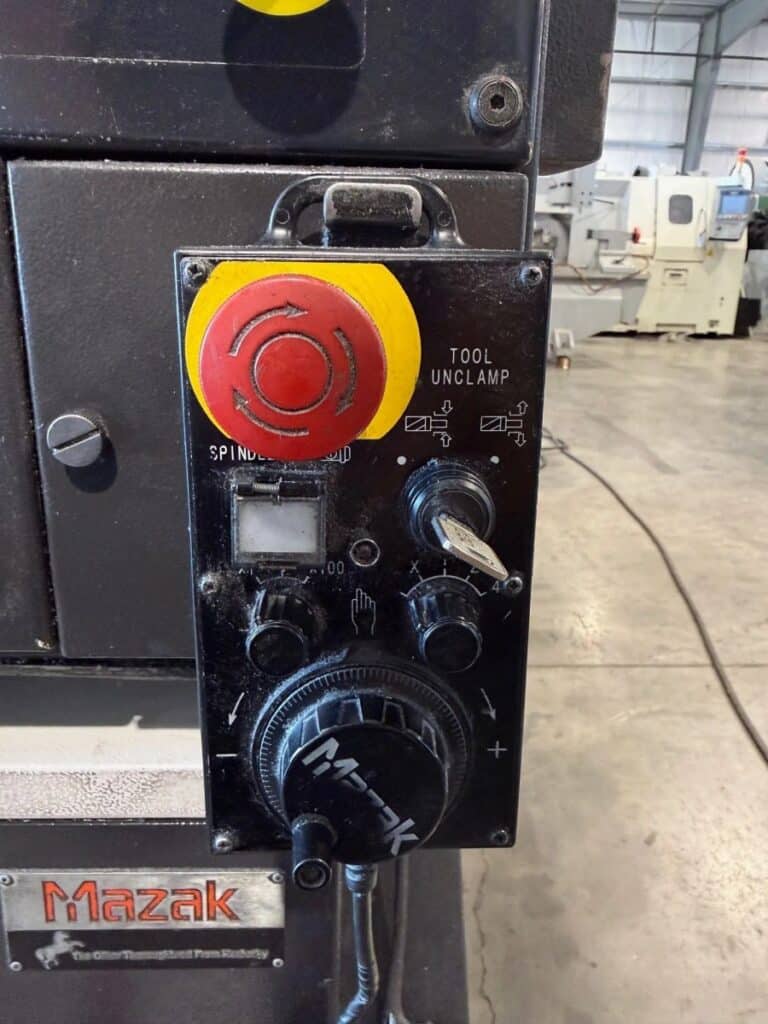

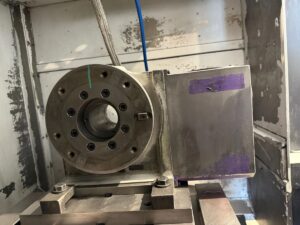

Synchronized Tapping, EIA, SPIRAL, EIA 3D Comp, Rotation, Geometric, Scaling, EXT-Data I/O, Shape Comp, Thread, Inverse Time, Auto TLM, Comparison Stop, G54.1, SYNC. TAP, Variable 600 Sets, Navigation, EIA Helical Tap Cycle, Mazatrol Helical, Mazatrol CO-OR Shift, Mazatrol Planet Tap, Auto Pecking, Ethernet Running, 10 in Rotary Table, RENISHAW Probing & Probe, MPG Manual Pulse Generator, Work Light, High Pressure Thru Spindle Coolant Option, Belt Type Chip Conveyor, Coolant Tank, Leveling Pads, Machine Manuals & Schematics
