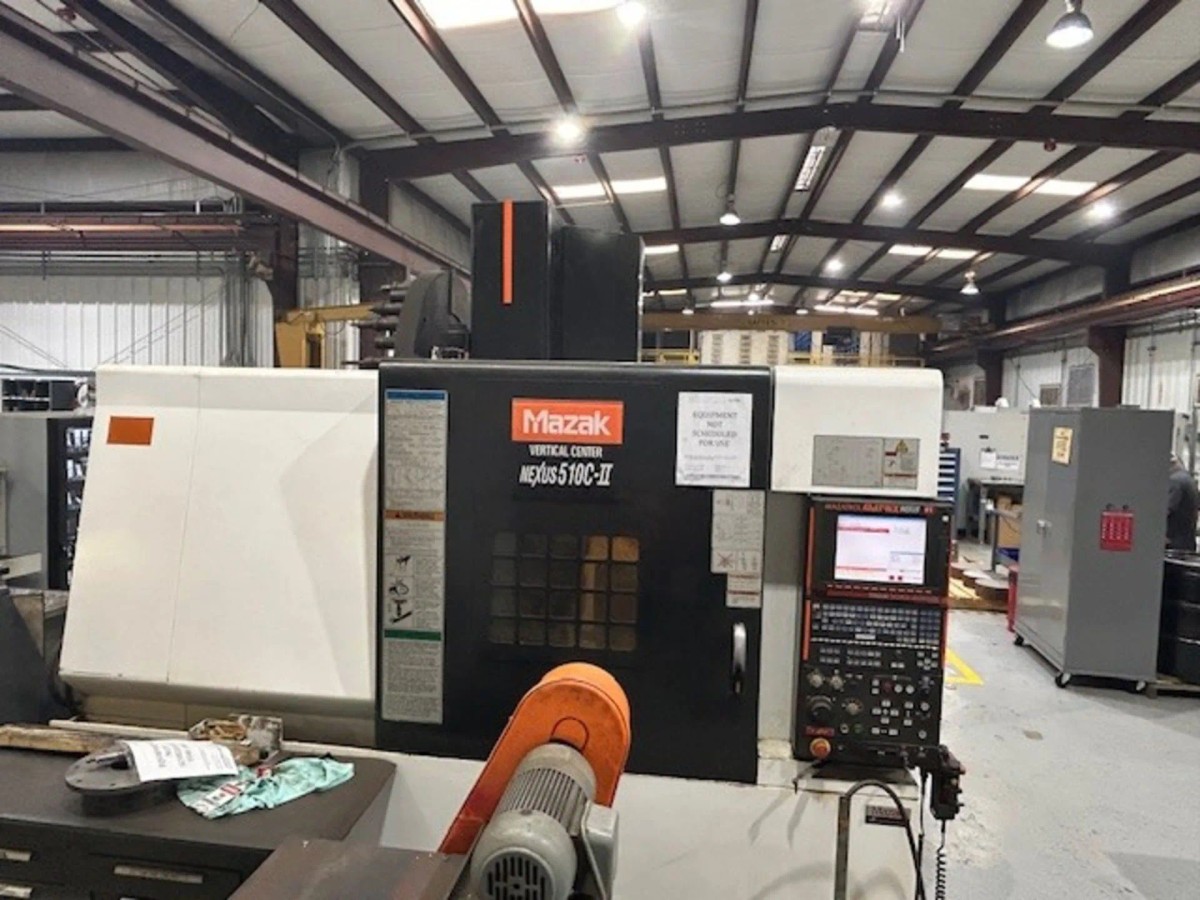

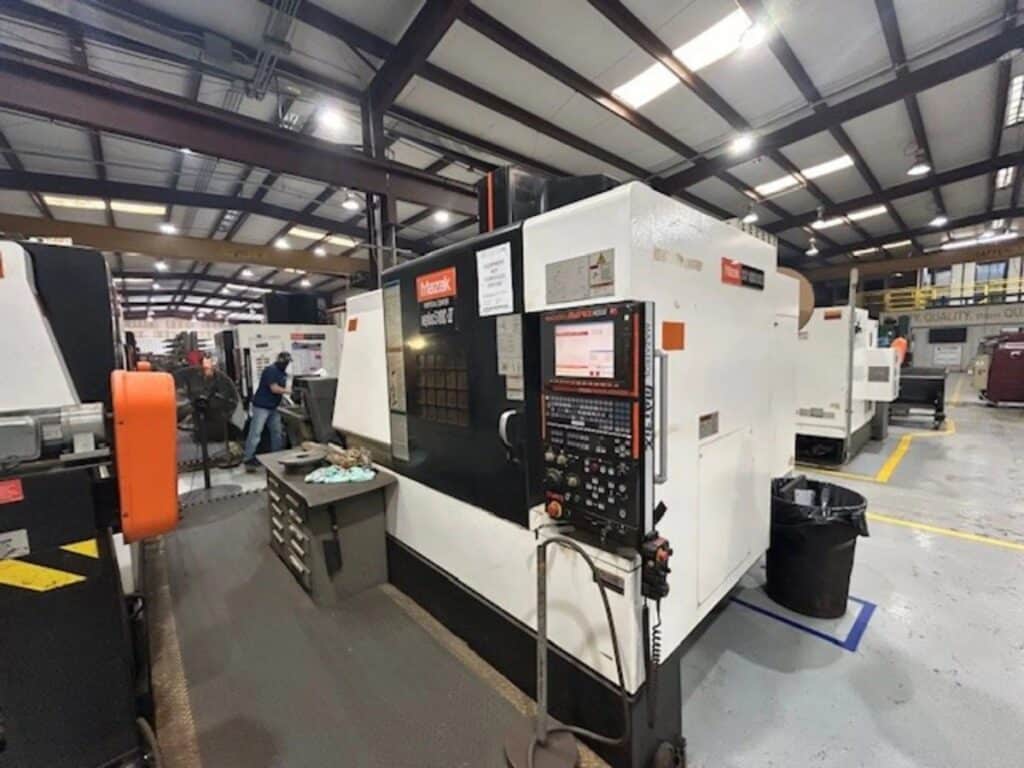

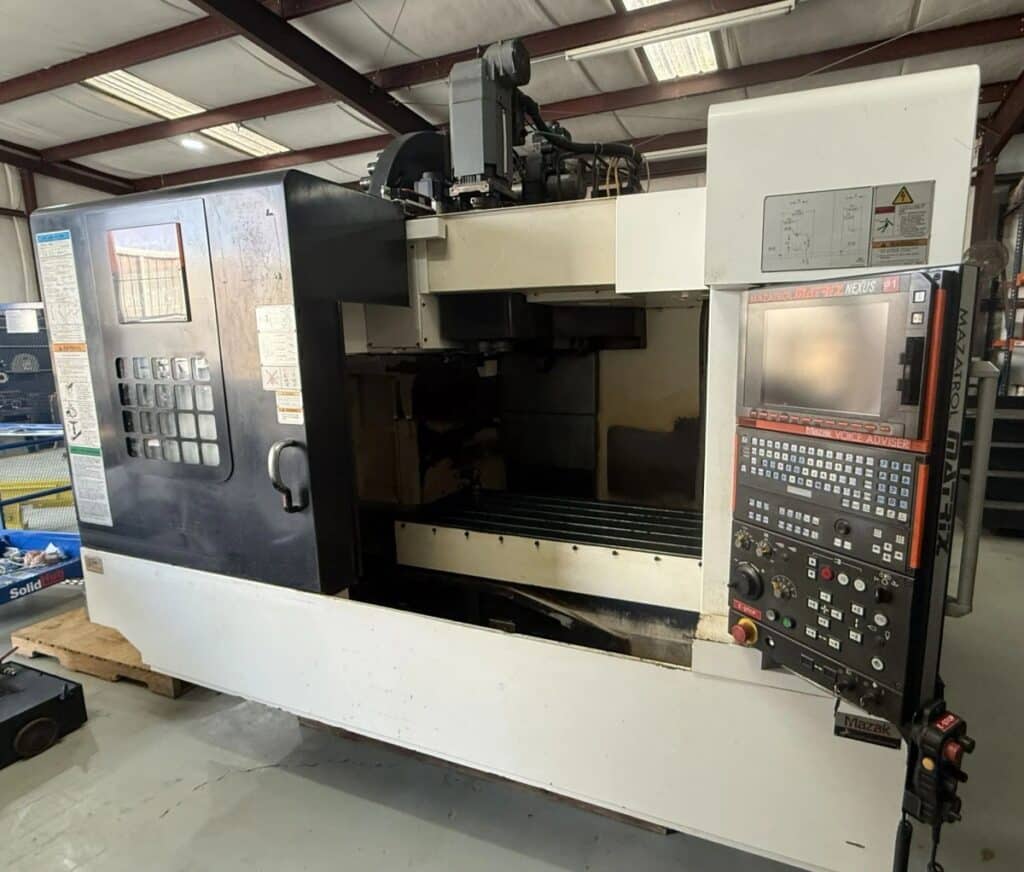

Mazak Nexus 510C-II CNC w/ 4th Axis, Low Hours (2011)
Stock #: 173260002
$43,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 173260002
- Location: United States
- Brand: MAZAK
- Model: NEXUS 510C-II

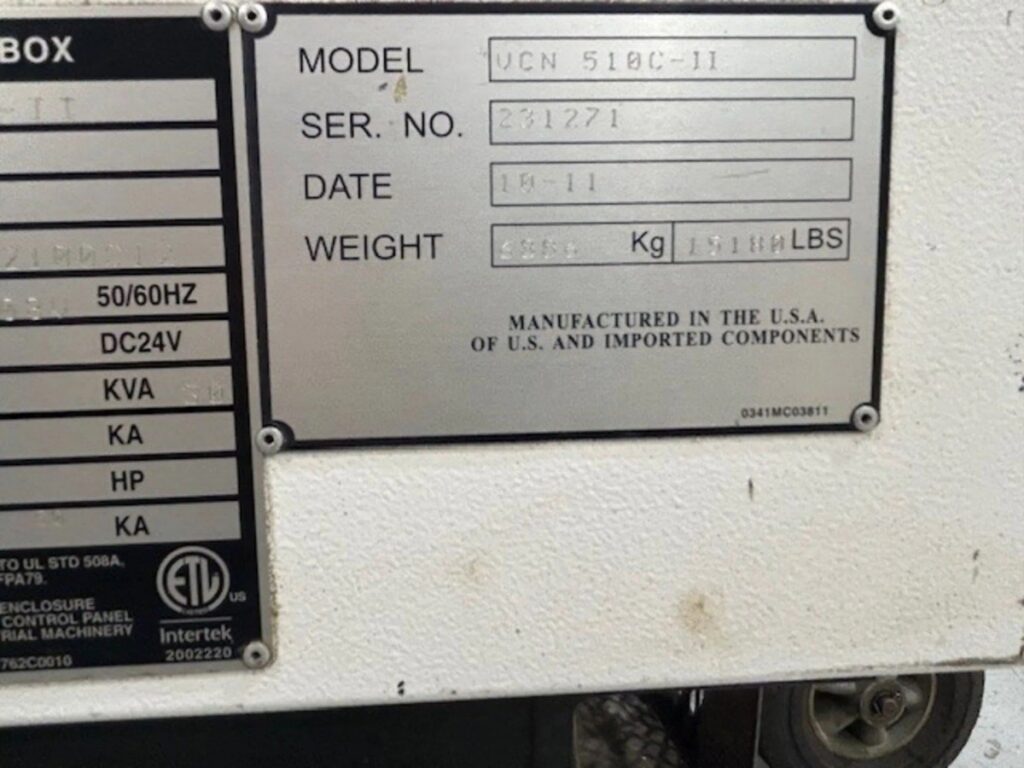

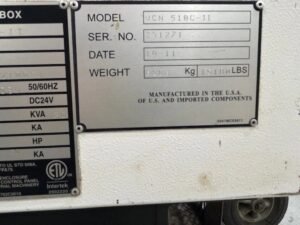

- Serial #: 231271
- Year: 2011
- Approx. Shipping Weight: 15200 lbs
- Approx. Shipping Dimensions: 120 x 112 x 114
Specifications
- X Travel: 41.3 in (1049 mm)
- Y Travel: 20 in (508 mm)
- Z Travel: 20 in (508 mm)
- Power: 25 hp (18.6 kW)
- Spindle Speed: 12000 RPM
- Tool Changer Capacity: 30
- Spindle Taper: Cat 40
- Pallet Width: 21.6 in (548.64 mm)
- Pallet Length: 51.1 in (1297.9 mm)
- Number of Axes: 4

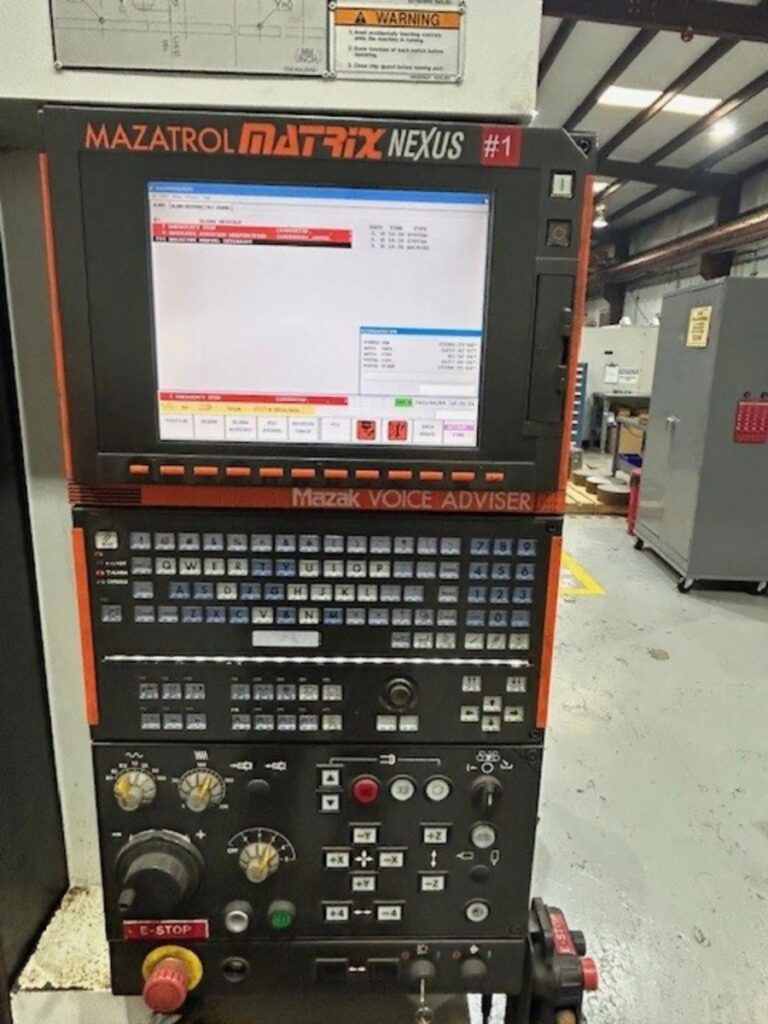

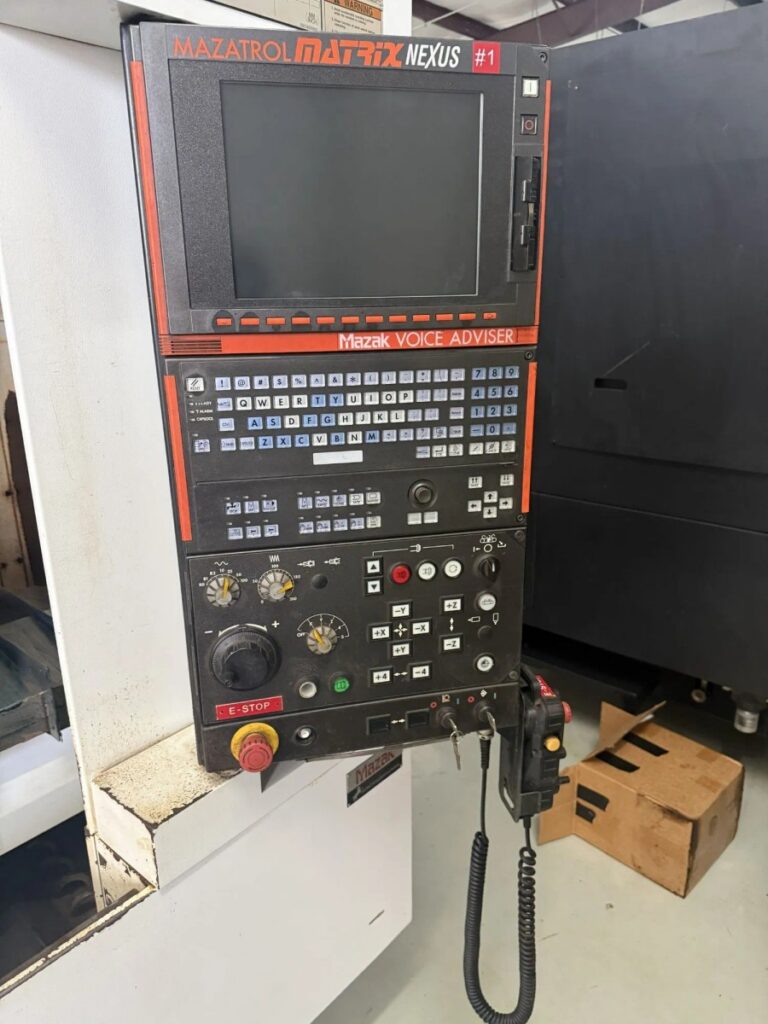

- Control: CNC (Mazatrol Matrix Nexus)
- Table Capacity: 2640 lbs
- Rapid Traverse Rate (X/Y/Z): 1417 IPM
- Tool Changer Style: Side-Mount Twin-Arm
- Tool Change Time: 1.3 Seconds
- Max Tool Length: 13.8 in
- Max Tool Weight: 17 lbs
- Spindle Drive: 25 HP
- USB Port: Included
Equipped With

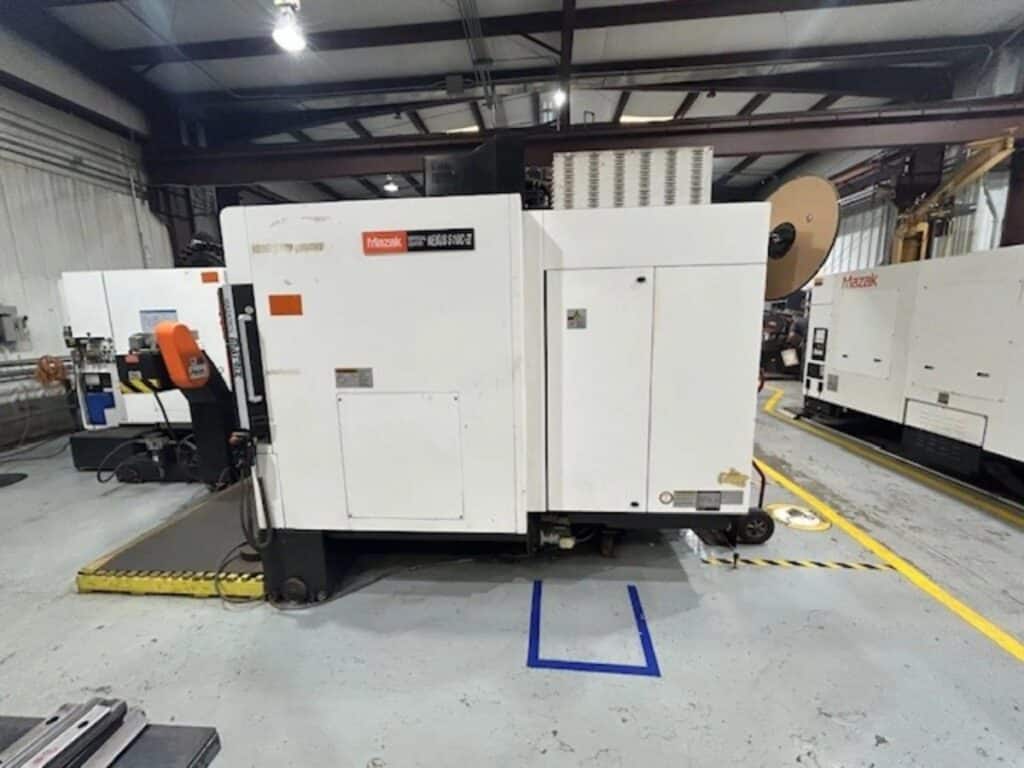

Renishaw Wireless Tool and Parts Probing System, Jorgensen Chip Conveyor System
Additional Info

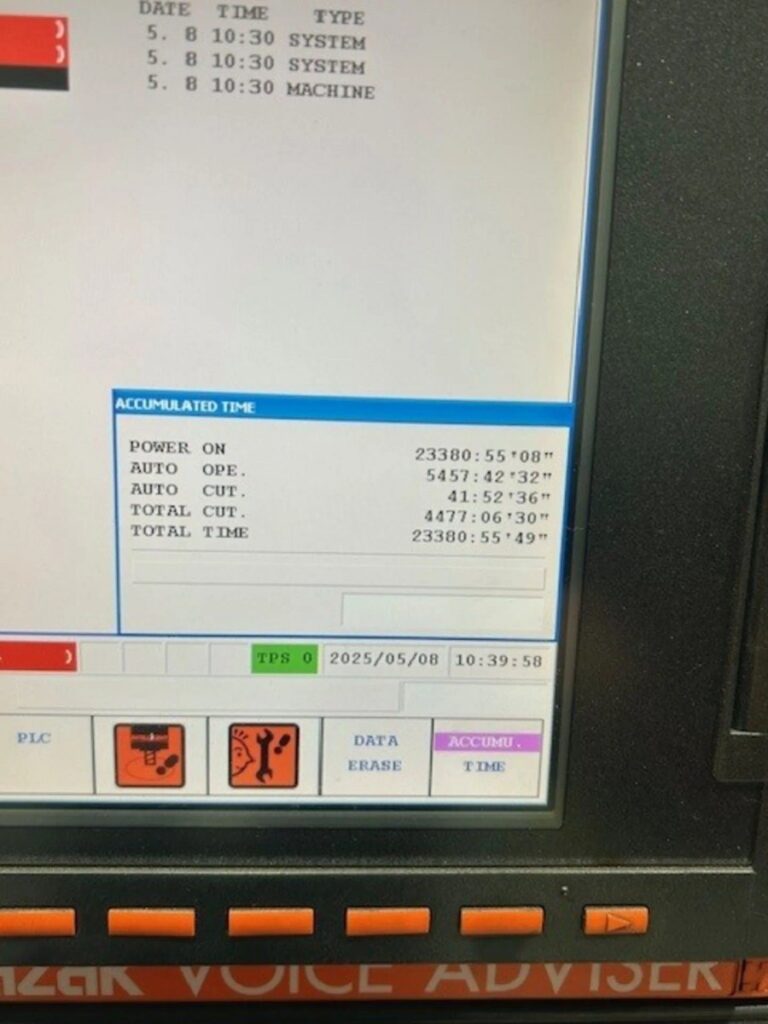

Low hours
