This item has been sold

Search our inventory for a comparable solution

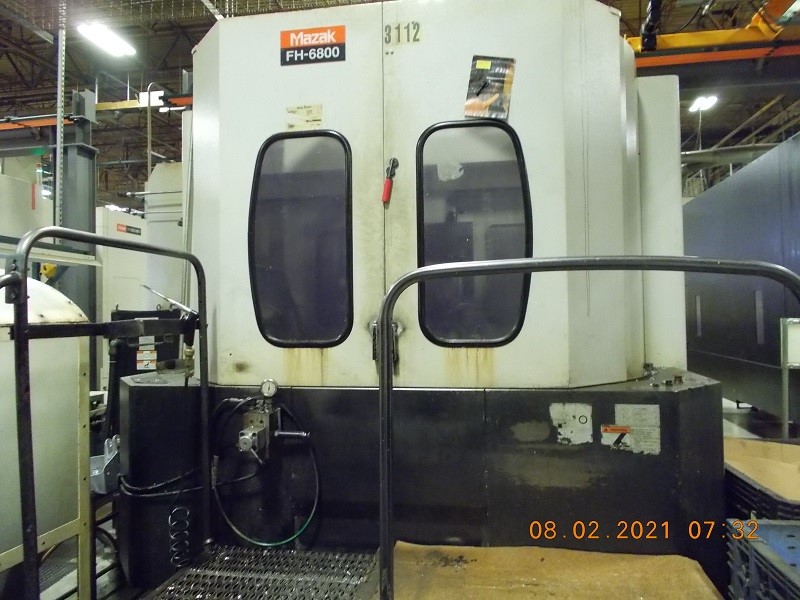

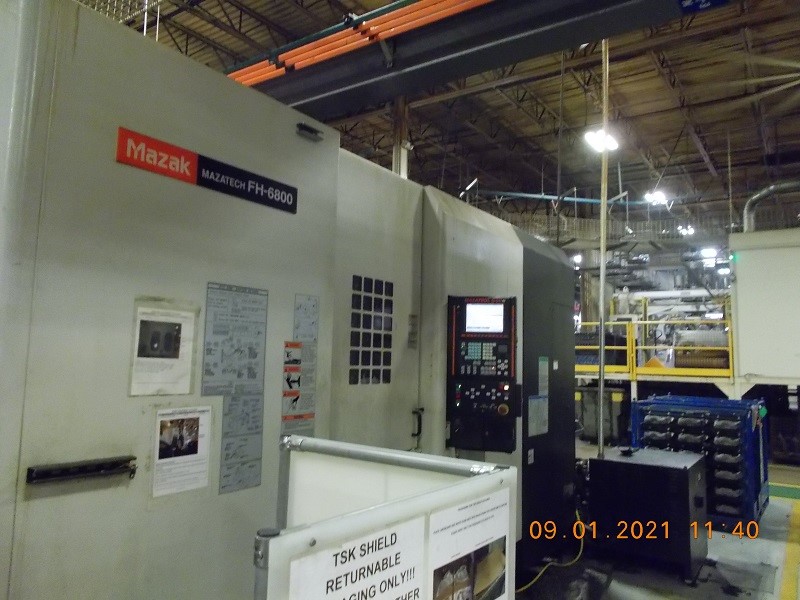

Mazak FH-6800 CNC Horizontal Machining Center

Name: Mazak FH-6800 CNC Horizontal Machining Center
SKU: 95301
Price: 54500.00 USD
Availability: OutOfStock

Stock #: CS-D-210001

$54,500.00

See Product Details

Out of stock

Stock #: CS-D-210001
Brand:

Not What You're Looking For?

Have Surplus Machinery to Sell?

Out of stock

Stock #: CS-D-210001
Brand:

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Instagram

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: CS-D-210001
Brand: Mazak
Model: FH-6800
Year: 2005
Approx. Shipping Weight: 39,000 Lbs.
Approx. Shipping Dimensions: 287.2″ x 131.9″ x 134.7″
Loading Fee: Rigging Required

Specifications

Pallet Change Time: 10 Seconds

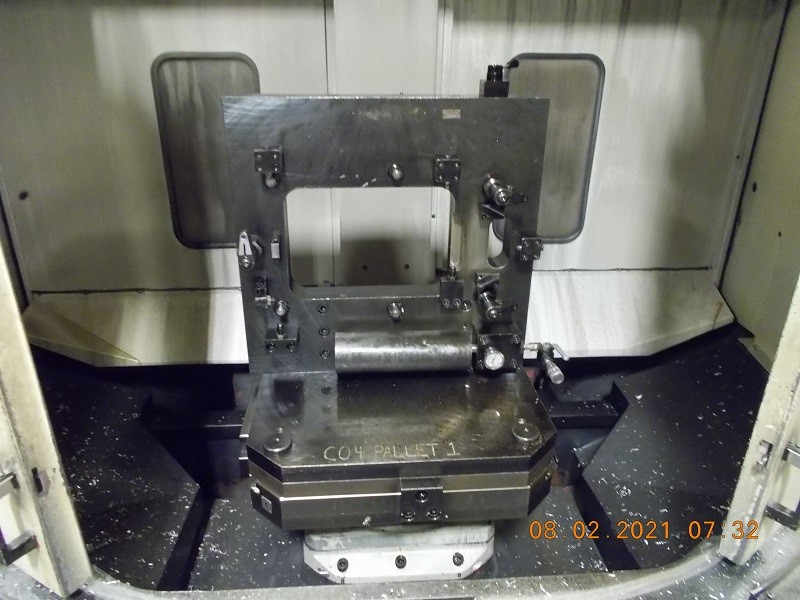

Pallet Load Capacity: 3,307 Lbs.
Pallet Size: 24.8″ x 24.8″
Travel: X – 41.34″, Y – 35.43″, Z – 38.58″
Pallet Index: 1 Degree
Spindle Speed: 10,000 RPM
Spindle Taper: #50
Spindle Motor: 50 / 40 HP
Spindle Center to Table Top: 3.93″ – 39.37″
Spindle Nose to Table Center: 3.93″ – 42.52″

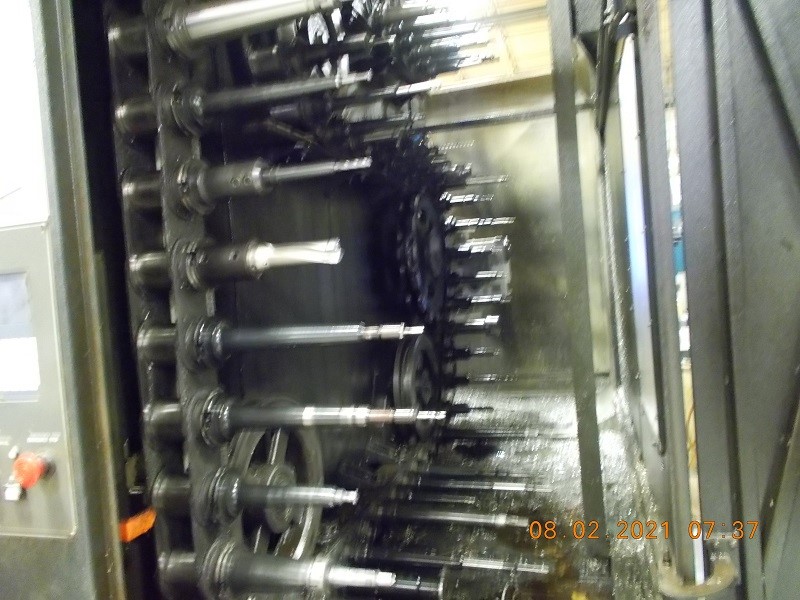

Tools: 100
Rapid Traverse Rates (X, Y & Z): 2362 IPM
Tool Change Time (T – T / C – C): 2.2 / 4.2 Seconds
Max Tool Diameter: 4.92″ / 10.24″
Max Tool Length: 24.8″
Max Tool Weight: 44 Lbs.
Max Workpiece Dia / Height: 41.34″ / 39.37″

Equipped With

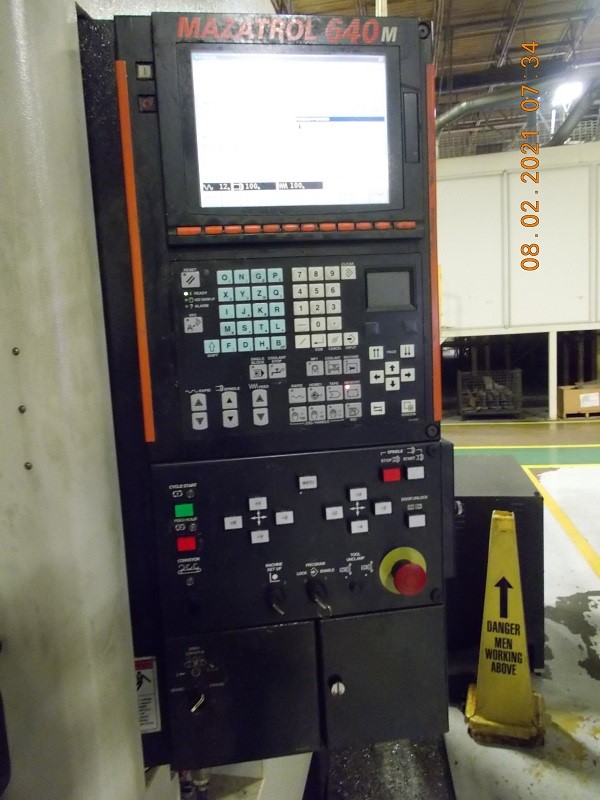

Mazatrol Fusion 640M Controller, 15″ Color TFT, PC/MCIA Interface, USB Port, Fourth Axis Rotary Table, 100 Tool Magazine, Renishaw Laser Auto Tool Length Measurement (NC4), Renishaw Touch Probe, Auto Tool Length Measurement, Tool Breakage Detection & Recovery, RFID Tool ID System, Through Spindle Coolant (300 PSI), Mayfran Chip Conveyor, Workpiece Air Blast, Auto Pecking Cycle with Load Detection, Rigid Tapping, Helical Interpolation

Additional Info

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
