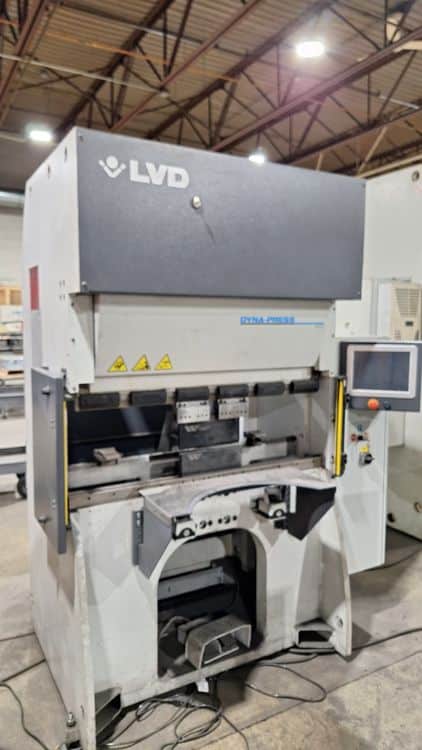

LVD Strippit Dyna Press 24/12 26 Ton x 49″ CNC Press Brake (2015)

Name: LVD Strippit Dyna Press 24/12 26 Ton x 49" CNC Press Brake (2015)
SKU: 194110
Price: 18125.00 USD
Availability: InStock

Stock #: 181250024

$18,125.00

See Product Details

Stock #: 181250024
Brand: LVD Strippit

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 181250024
Brand: LVD Strippit

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: 181250024
Location: Wyoming, MI
Brand: LVD Strippit

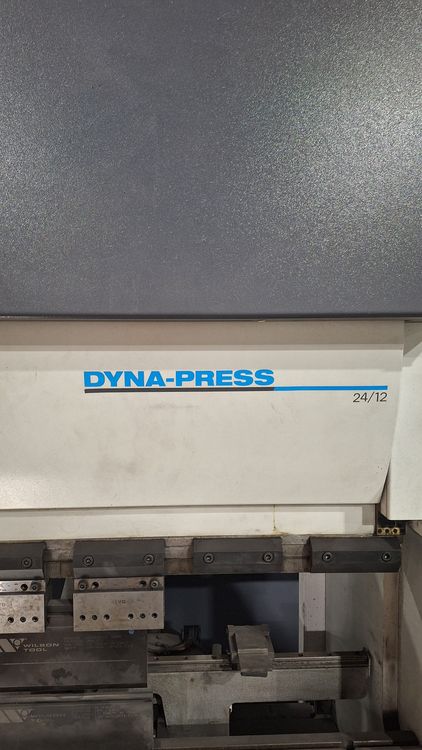

Model: Dyna Press 24/12
Year: 2015
Approx. Shipping Weight: 5,510 lbs
Approx. Shipping Dimensions: L 49.2″, W 42.9″,H 85.8″
Loading Fee: Rigging Required

Specifications

Bending Force: 26 Tons
Maximum Bending Length: 49″
Distance Between Uprights: 47″
Ram Travel: 47″
Open Height: 13.7″
Throat Depth: 3.9″
Approach Speed: Up to 236 in./min
Working Speed (Bending): Up to 59 in./min
Return Speed: 236 in./min
Backgauge System: 0.39 in./s
Backgauge X-Axis Travel: 9.8″
Backgauge R-Axis Travel: 3.9″
Main Motor Power: 8.0 HP
Voltage: Configurable (480V / 3-Phase)
Top Tooling Compatibility: Universal/W Style/US Style
Bottom Tooling Compatibility: Universal/LVD Style/US Style

Equipped With

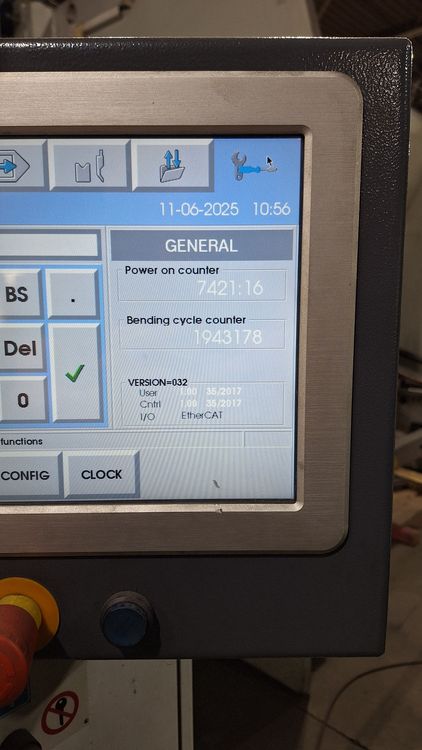

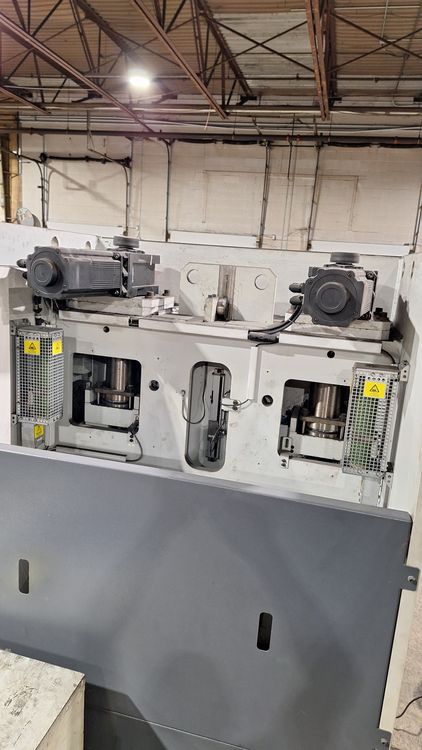

Electric Drive Advantage: Ball-Screw Driven Ram For Unparalleled Speed, Repeatability, And Minimal Power Consumption Compared To Hydraulics, High-Speed Production: Working Speed Up To 59 Inches Per Minute Drastically Reduces Cycle Times For Small-To-Medium Parts, Compact & Relocatable: At Approximately 5,510 Lbs, The 24/12 Model Is Built To Be Easily Moved Within Your Facility Using A Standard Forklift, Precision CNC Backgauge: Features A Highly Repeatable X (Depth) And R (Height) Axis Backgauge For Complex, Accurate Part Geometry, Intuitive LVD 12″ Touch Screen Control: Provides Simple, Icon-Driven Programming And Operation, Integrated Lightguard Safety System: Ensures Operator Protection During High-Speed Operation, Ergonomic Front Support Table: Allows Operator To Work Comfortably In Either A Seated Or Standing Position.
