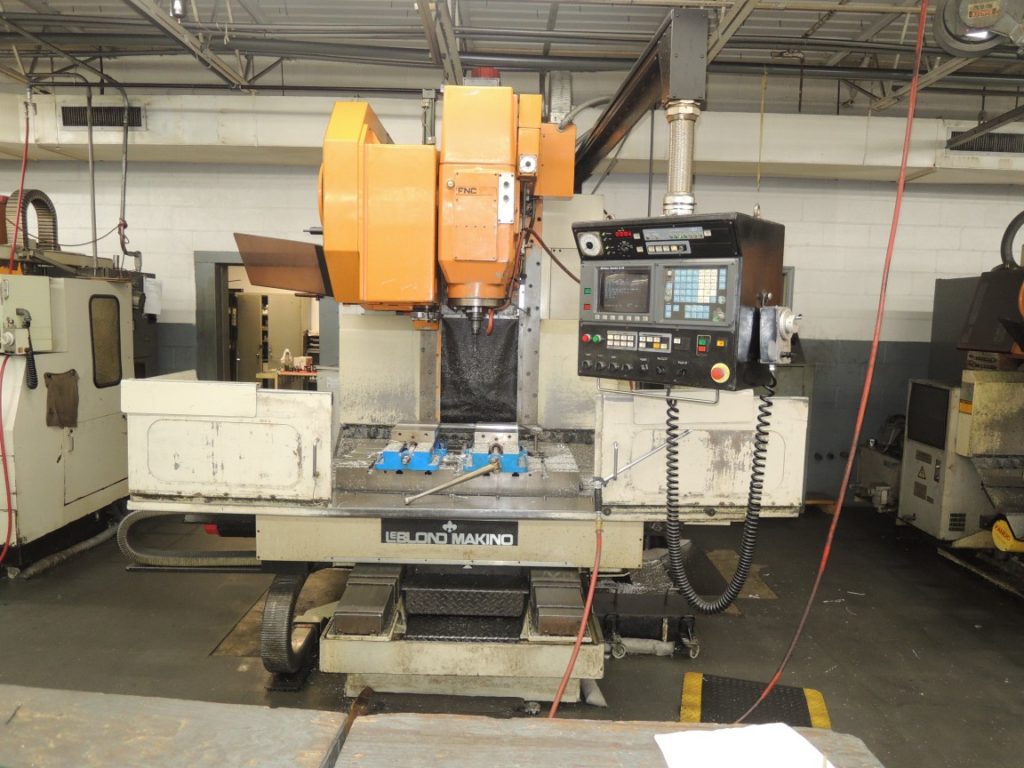

LeBlond Makino FNC 106 / A-30 CNC Vertical Machining Center
Stock #: CL-B-181009
$6,000.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info:
Stock #: CL-B-181009
Location: Anderson, SC 29625
Brand: LeBlond Makino
Model: FNC 106 / A-30

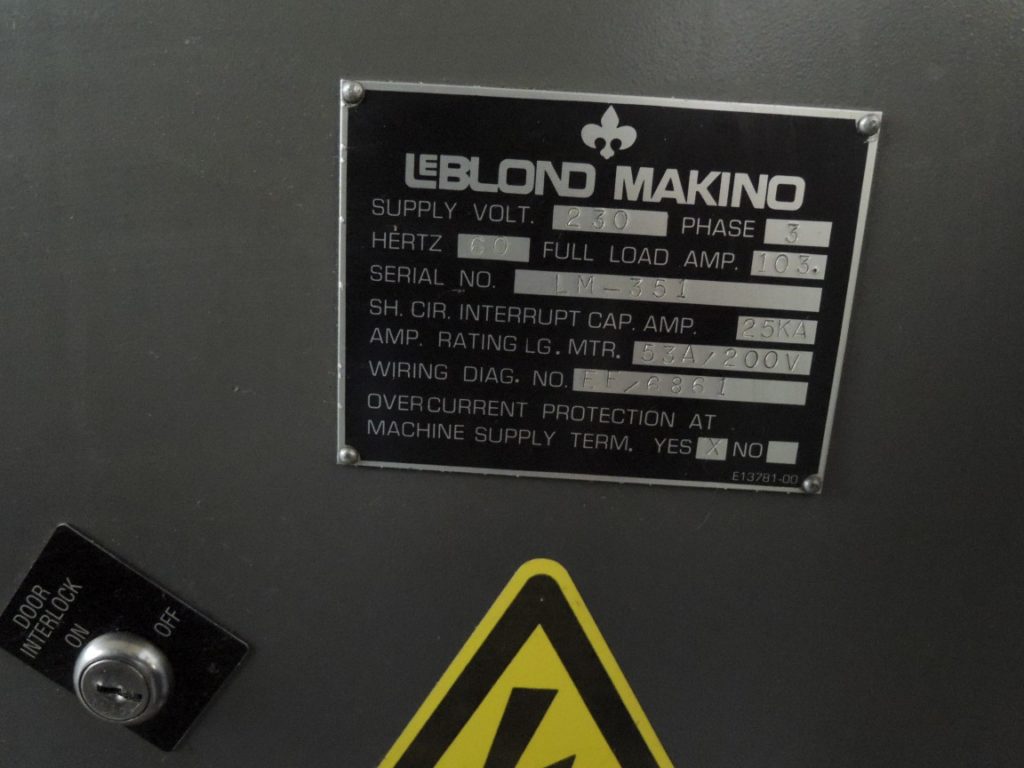

Serial #: LM-351
Approx. Shipping Weight: 32,000 Lbs.
Approx. Shipping Dimensions: 165″ L x 142″W x 119″H
Loading Fee: Rigging Required
Specifications:
Table Size: 55.125″ x 23.625″
Table Load Capacity: 3,300 lbs
X-Axis Travel: 41 5/16″
Y-Axis Travel: 23.625″
Z-Axis Travel: 22″
Spindle Taper: CAT 50
Spindle Speed – 2 Ranges: 10 ~ 4,000 RPM
Spindle Motor: 20 HP / 15 HP
Spindle Nose to Table Top: 8.875″ – 30.875″
Spindle Center to Column: 25.625″

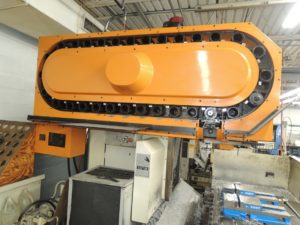

Tool Magazine Capacity: 30 Position ATC
Tool Change Time: 5.5 seconds
Max. Tool Diameter/Length/Weight: 8″/16″/33 lbs.
Rapid Traverse Rates: 480 IPM
Cutting Feedrate Range: 0.4 – 157 IPM
Equipped With:

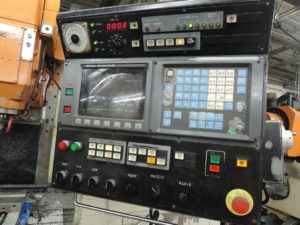

Fanuc O-M Controller, RS-232 Port
Additional Info:

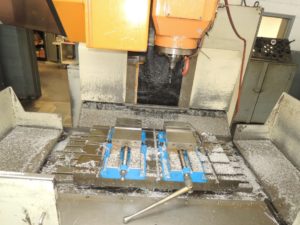

Machine is under power and can be demoed upon request. Kurt vices are not included.
This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
