Jay-Shree KPBF-832 88 Ton x 120″ 3+1 Axis CNC Hydraulic Press Brake (2026)

Name: Jay-Shree KPBF-832 88 Ton x 120" 3+1 Axis CNC Hydraulic Press Brake (2026)
SKU: 202983
Price: 42500.00 USD
Availability: InStock

Stock #: 141260010

$42,500.00

See Product Details

Stock #: 141260010
Brand: Jay-Shree

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 141260010
Brand: Jay-Shree

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

Product Description

General Info

Stock #: 141260010
Location: TN
Brand: Jay-Shree
Model: KPBF-832

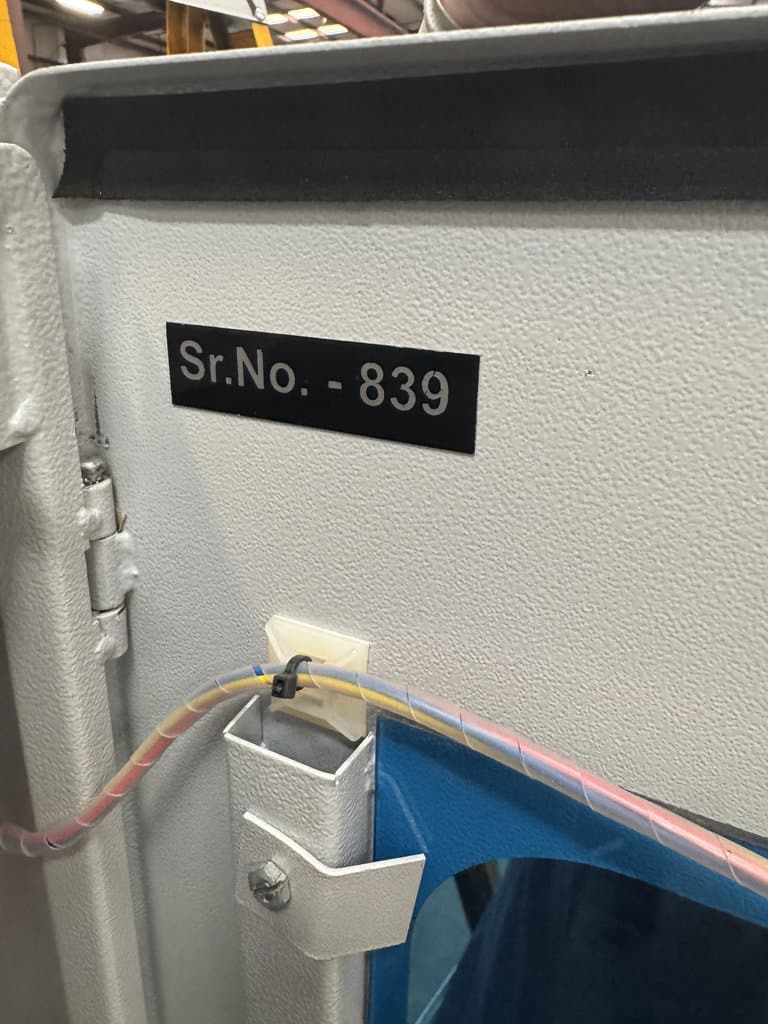

Serial #: 839
Year: 2026
Approx. Shipping Weight: 13,500 LBS.
Approx. Shipping Dimensions: 134″L x 61″W x 89″H

Specifications

Tonnage: 88 Tons
Maximum Bending Length: 120″
Distance Between Uprights: 106″
Throat Depth: 9.84″
Ram Stroke: 5.90″
Maximum Open Height: 14.56″
Ram Rapid Travel Speed: 3.93″ / sec
Ram Rapid Retract Speed: 3.14″ / sec
Backgauge Travel: 24″
Motor HP: 7.5HP
Hydraulic Oil Capacity: 60 Gallons
Electrical: 440V / 3PH

Equipped With

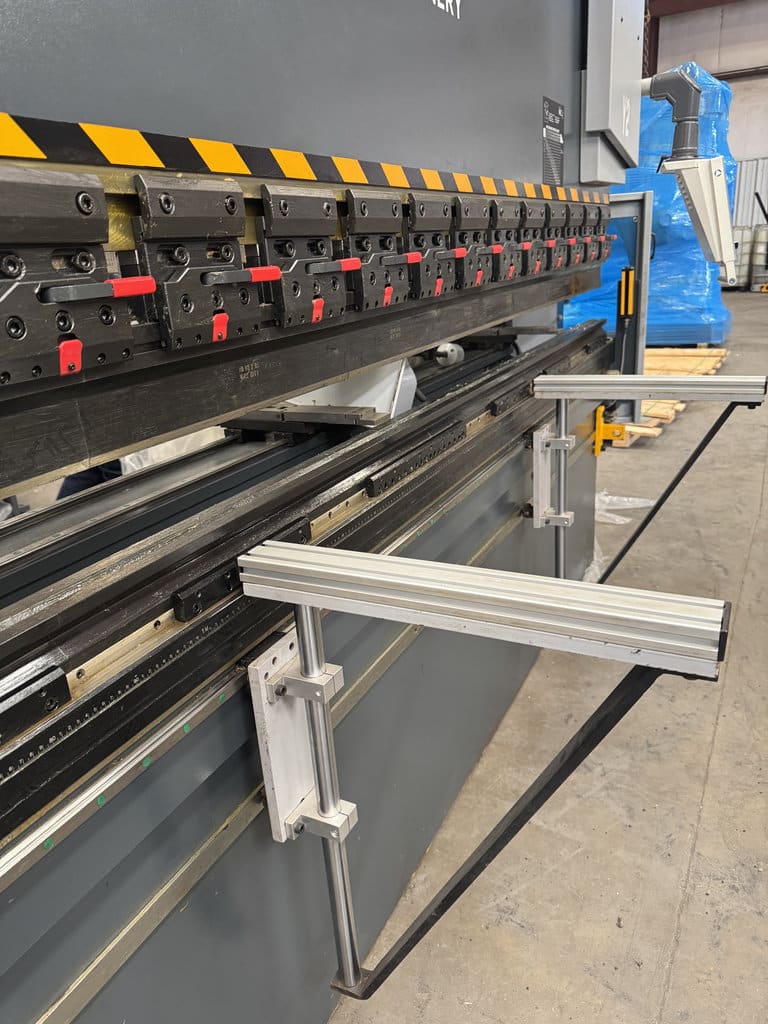

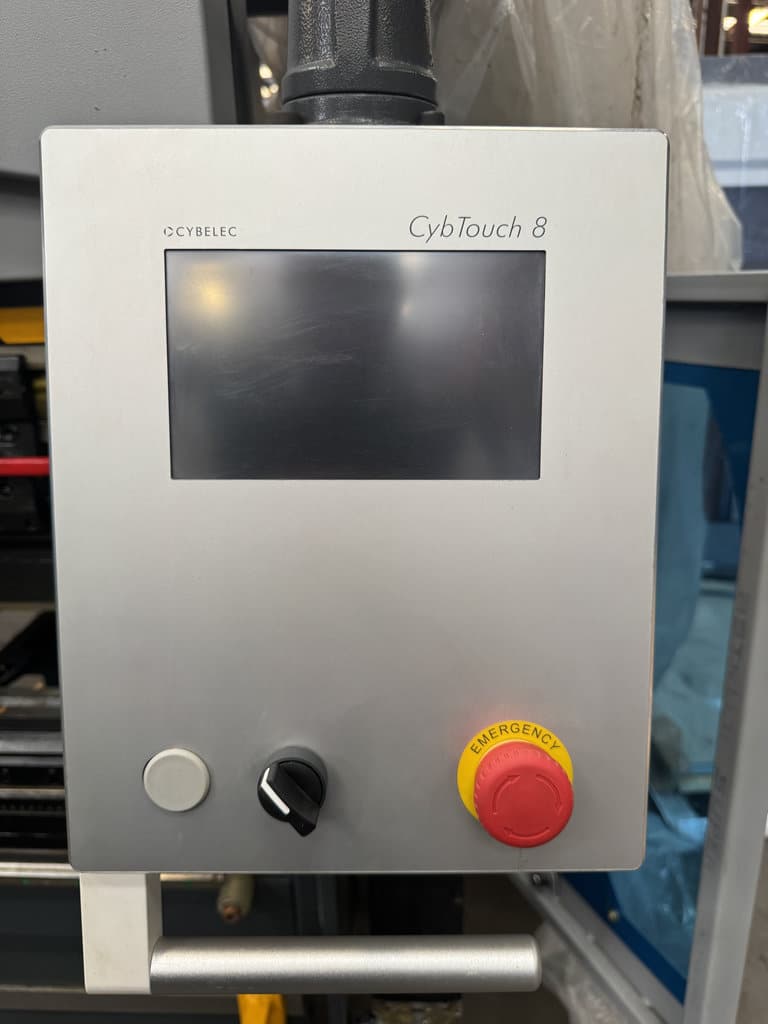

Cyblec Cybtouch 8 CNC Control (8″ high-resolution screen), Fully Synchronized Servo 3+1 Axis System (Y1, Y2, X + Motorized Crowning), Linear Glass Scale Encoders for High Accuracy, Heavy-duty Forged Hydraulic Cylinders, Adjustable Dwell Timing, Gooseneck Punch & Multi-Opening Die (10-gauge mild steel), Quick-Action Ram Clamps, Front Light Curtains for Safety, Linear Guide Rail for Back Gauge for High Accuracy, Front Light Curtains for Operator Safety
