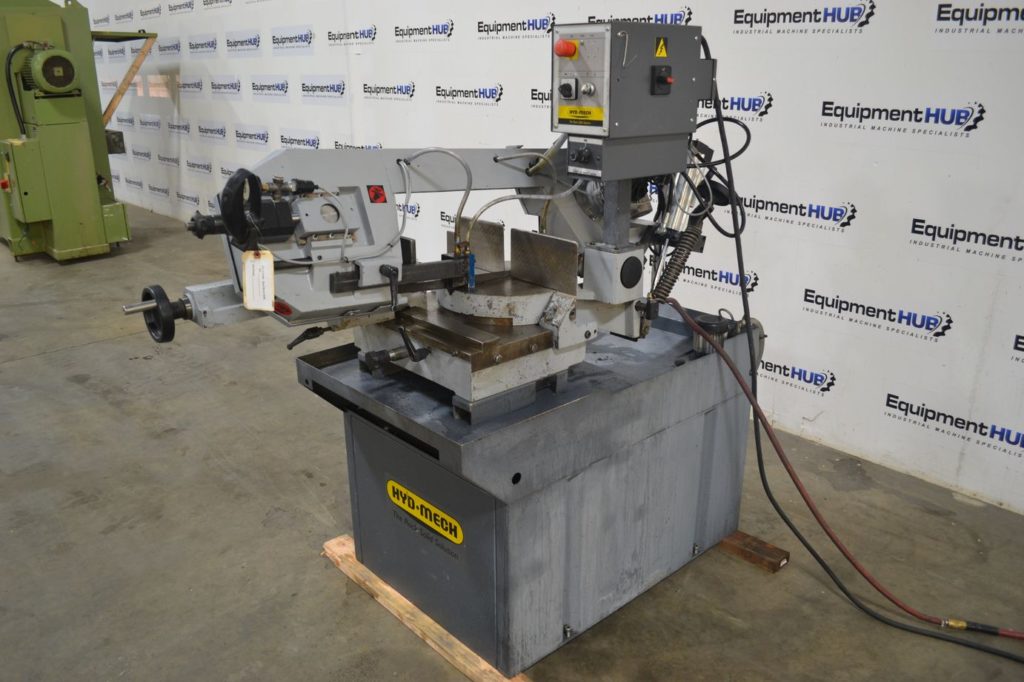

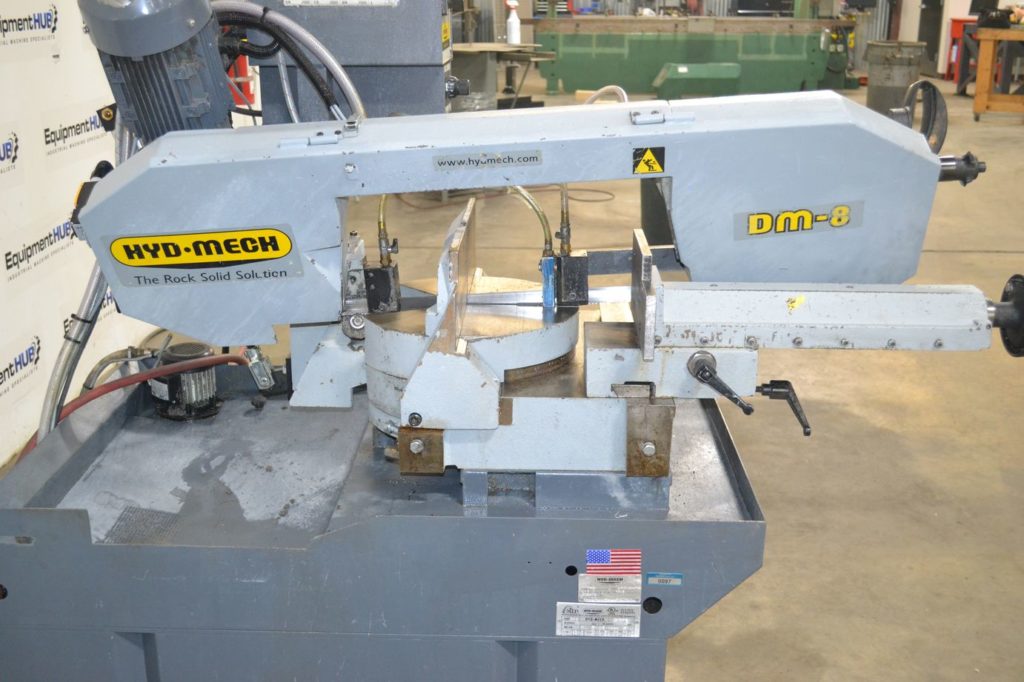

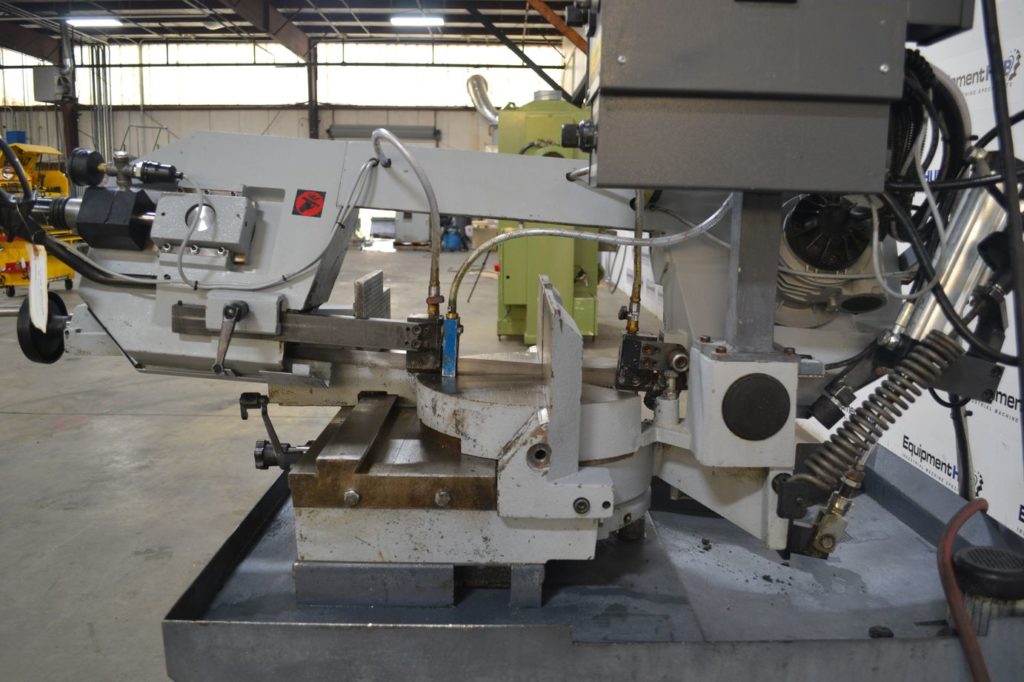

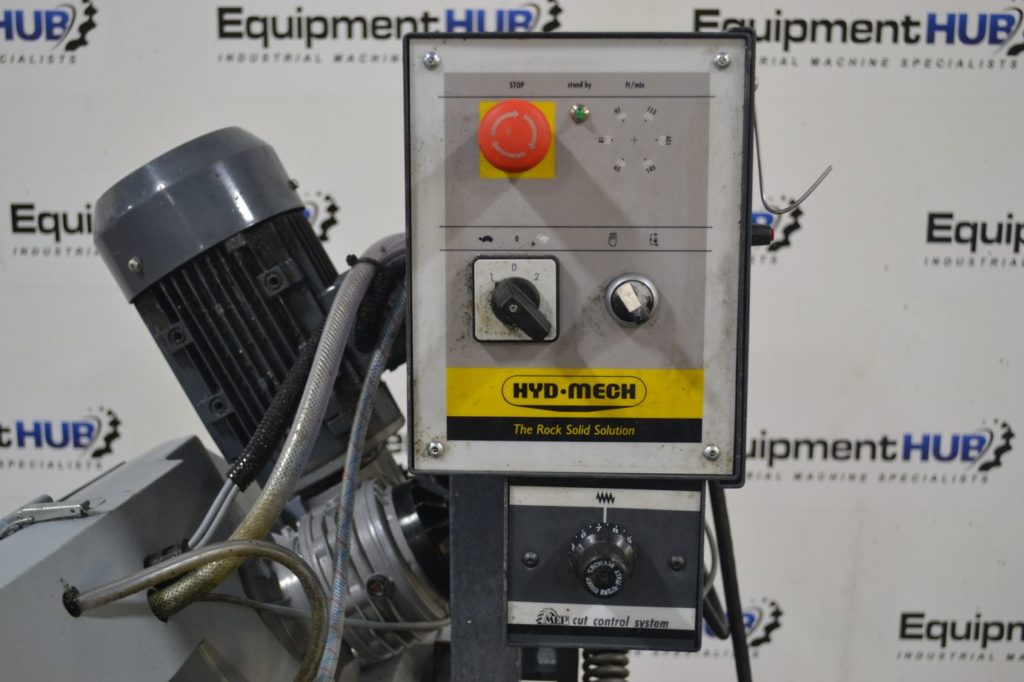

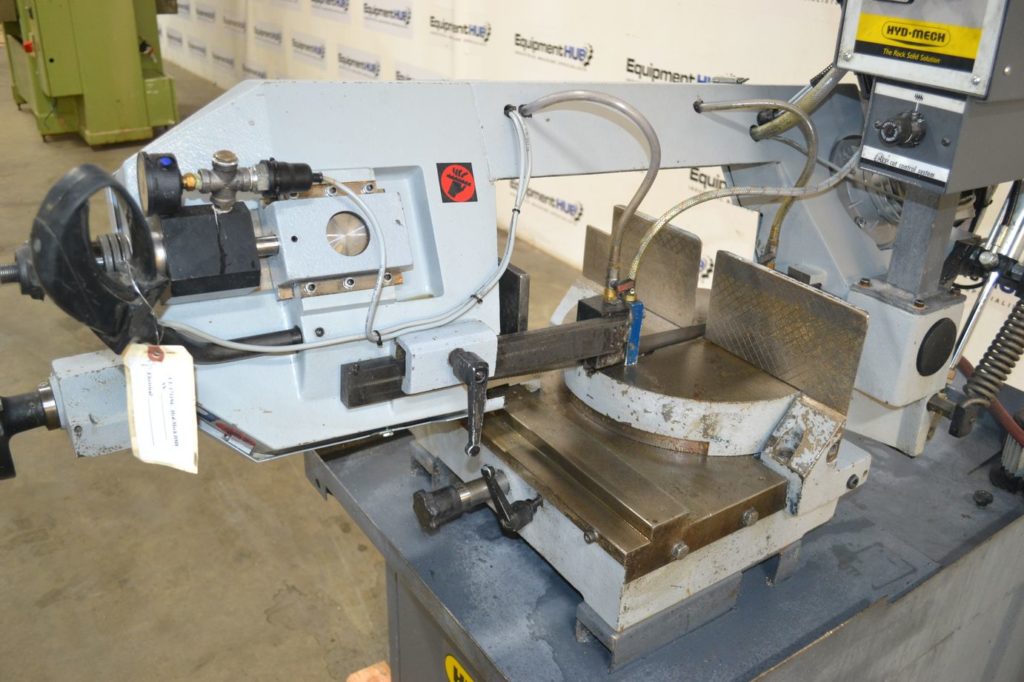

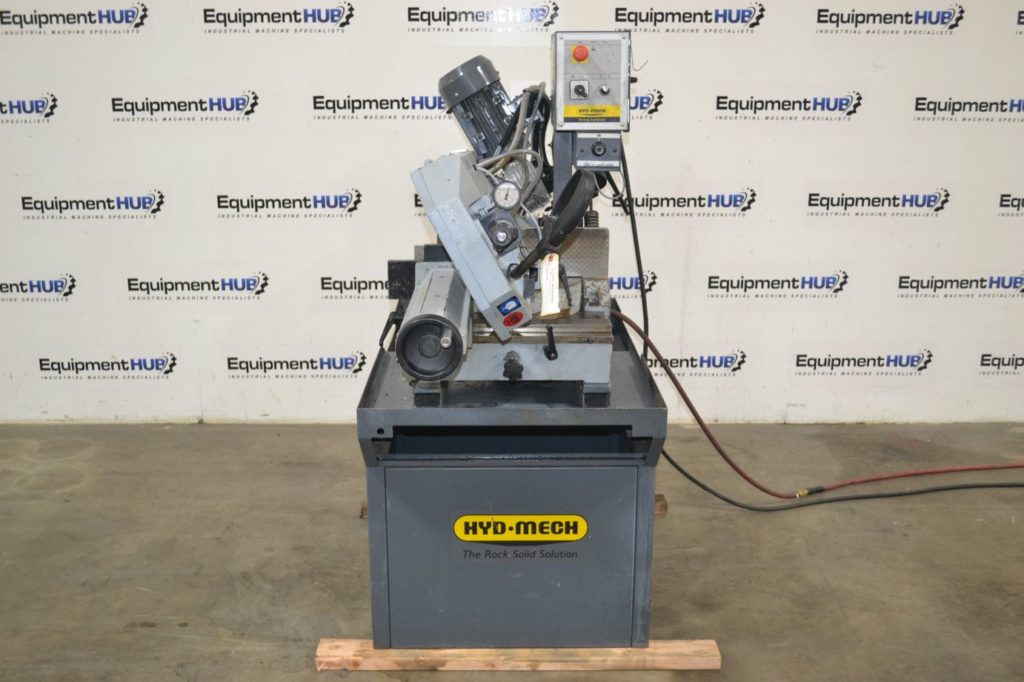

Hyd-Mech DM-8 Horizontal Double Mitering Band Saw
Stock #: CL-171194
$4,200.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CL-171194
Location: Stone Mountain, GA
Brand: Hyd-Mech
Model: DM-8
Serial #: WM0109470
Approx. Shipping Weight: 1,250 Lbs.
Approx. Shipping Dimensions: 68″ L x 48″ W x 75″ H
Skidding Fee: $125
Specifications:
Band Saw Rated Size: 108.27″ x 1.06″ x .03″
Max/Min Blade Length: 108.66″ to 107.87″
Blade Height: 1.06″
Blade Width: .03″
Band Saw Tension (bar/Kg/psi): 70/900/1015
1st Slow Speed ft./min: 11.21
2nd Fast Speed ft./min: 22.43
Spindle Motor: 2.5/2 HP
Cutting Capacity Round (0/45L/60L/45R): 8.27″/7.09″/3.94″/5.12″
Cutting Capacity Square (0/45L/60L/45R): 7.87″/7.09″/3.54″/5.12″
Electrical: 208V/ 60 Hz/ 3 Phase
Equipped With:

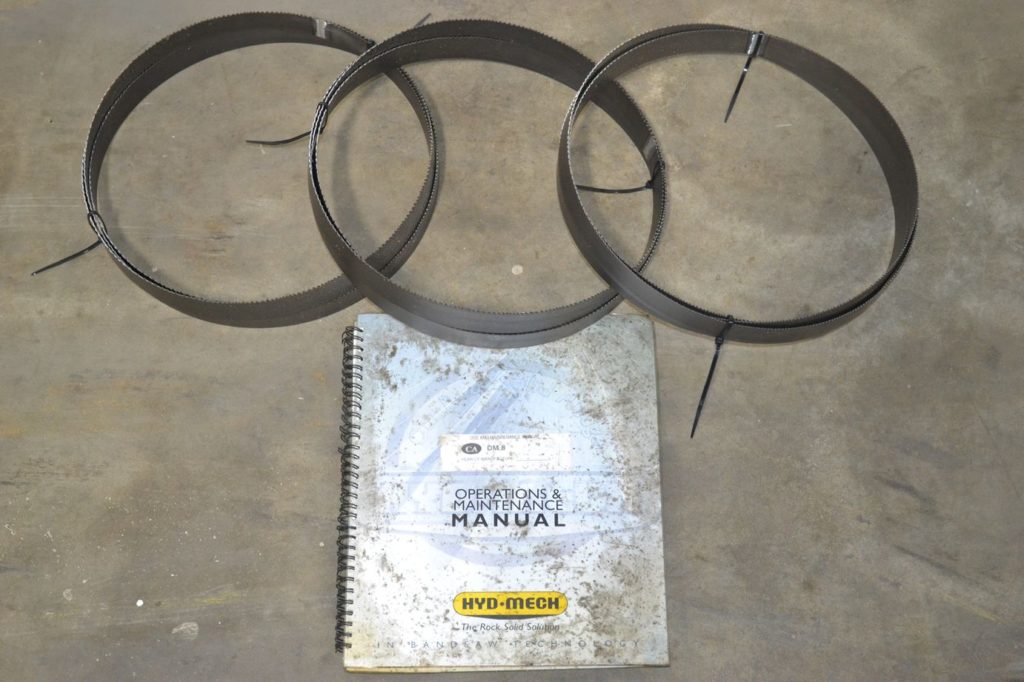

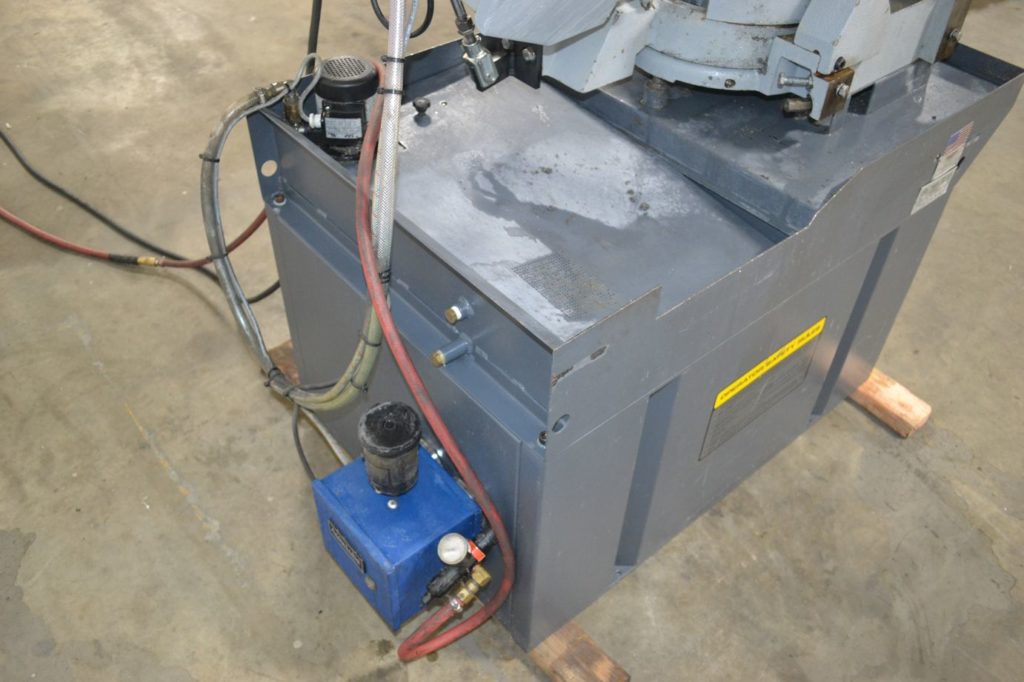

Coolant System, Pneumatic Accu-Lube, (3) Extra Saw Blades, Operation Manual, Vise, Pressure Regulated Band Tension Gauge, 2-Speed Drive, Manual & Automatic Mode
Additional Info:
The saw is in working condition. Below is a video of it in operation. We are glad to show under power. We ship out next day after payment is received.
