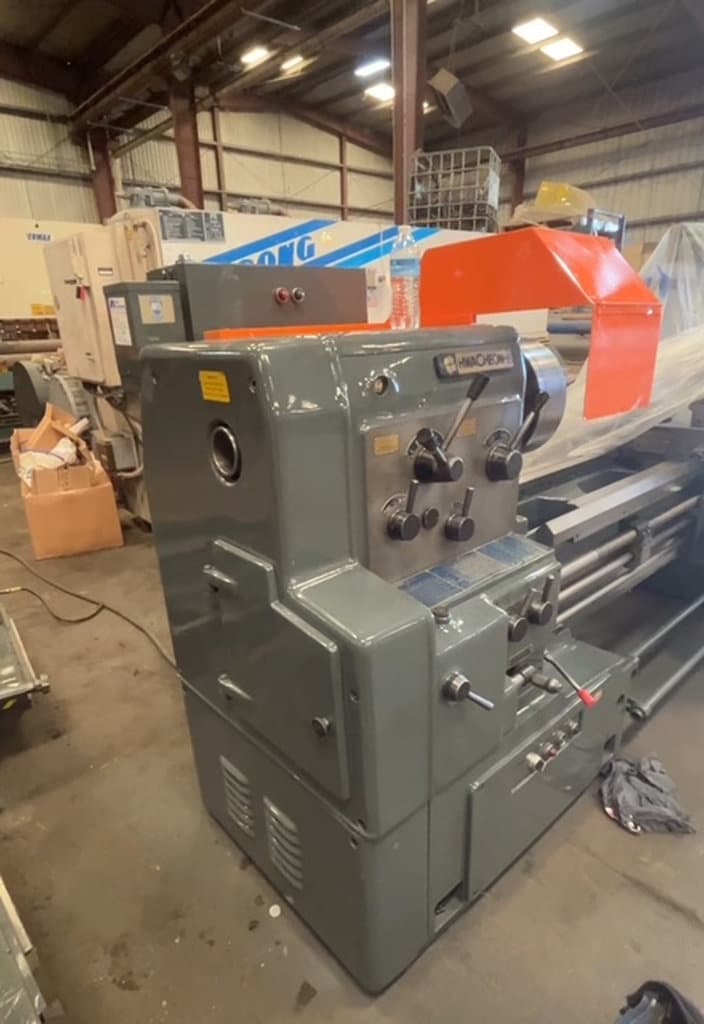

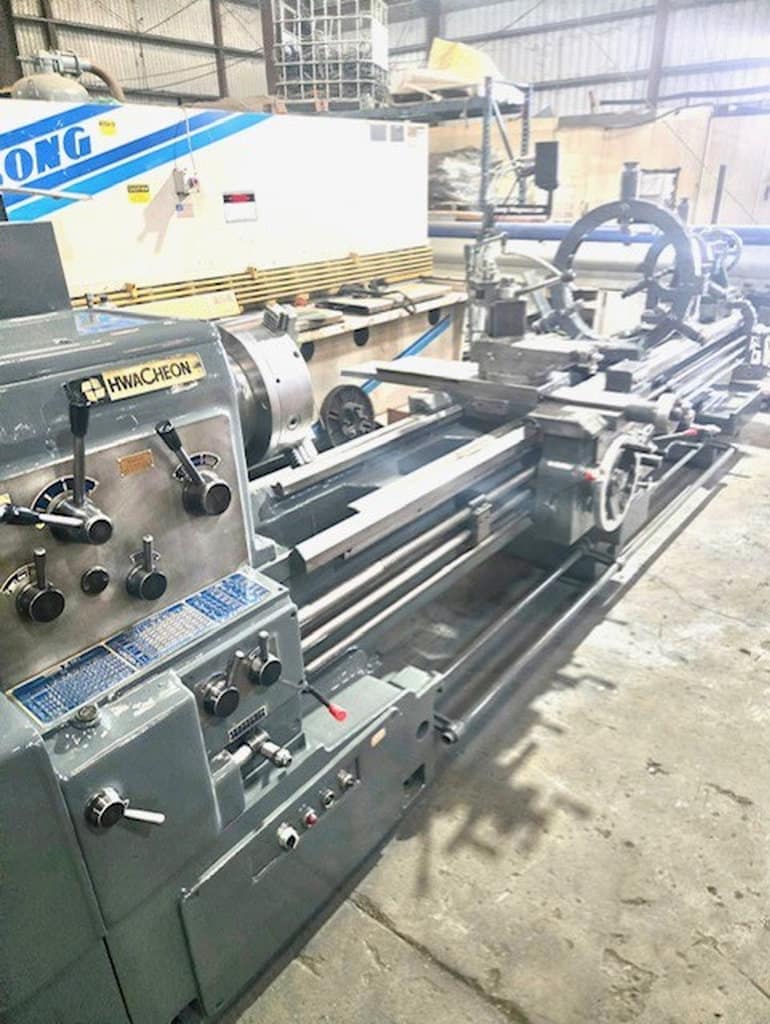

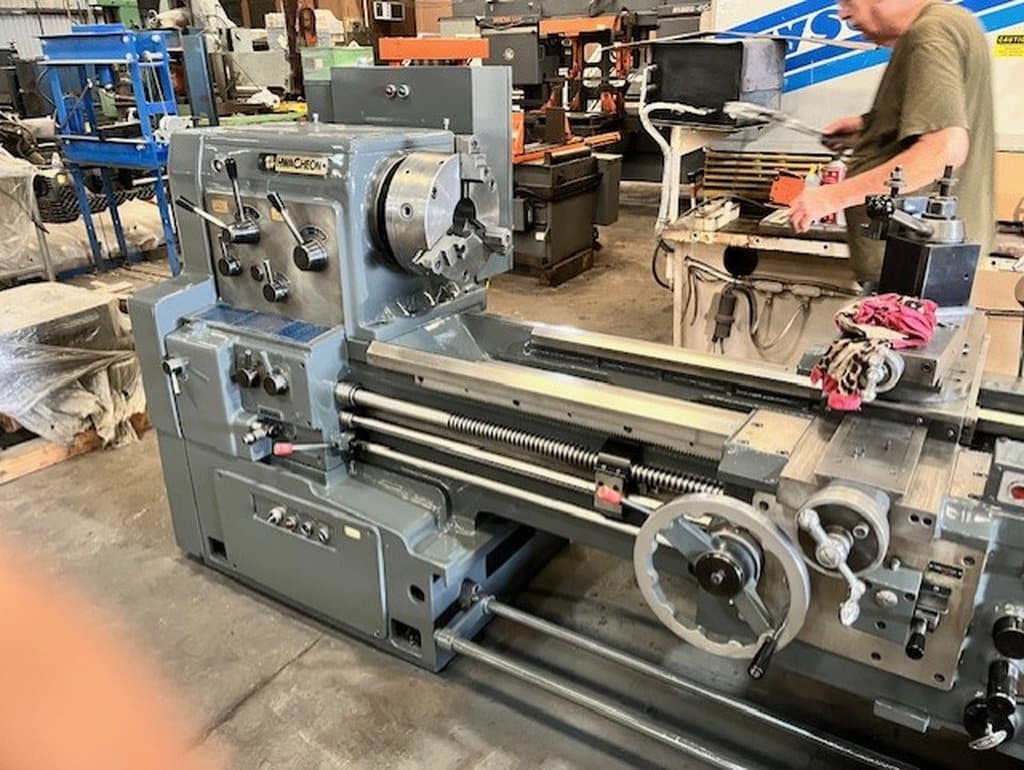

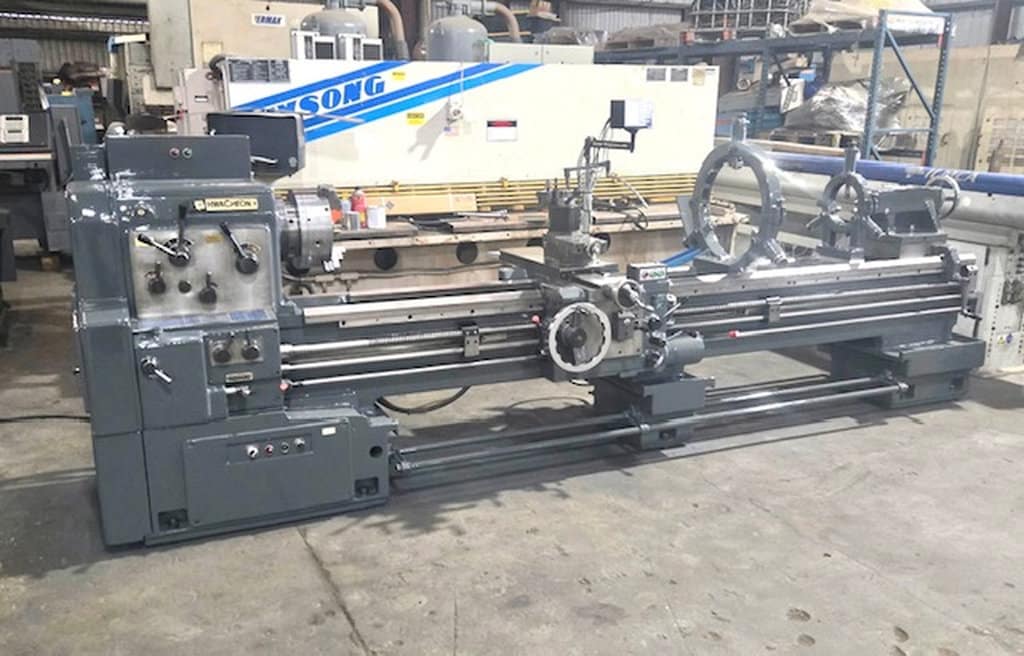

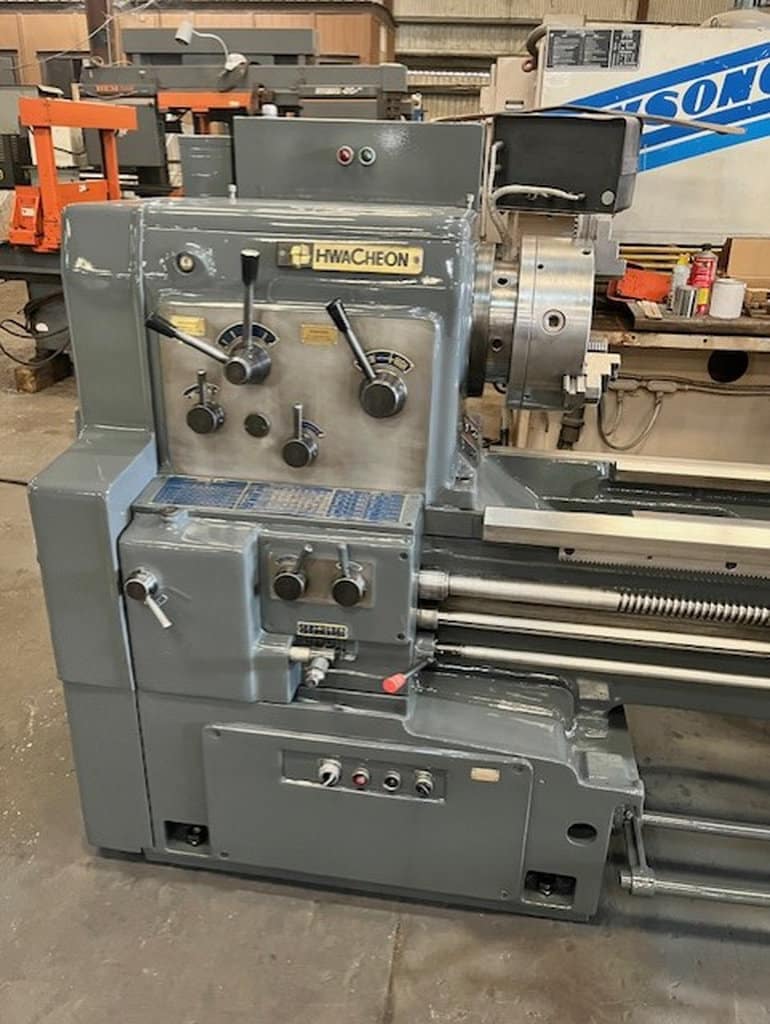

Hwacheon HL720 28″ x 120″ Precision Engine Lathe w/ Sony 2-Axis DRO
Stock #: 143250002
$37,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 143250002
- Location: Houston, TX
- Brand: Hwacheon
- Model: HL720
- Approx. Shipping Weight: 10,500 LBS.
- Approx. Shipping Dimensions: 200″ L x 60″ W x 60″ H
- Skidding Fee: Skidding Unavailable
Specifications
- Swing Over Bed: 28.34″
- Swing Over Cross Slide: 18.50″
- Distance Between Centers: 118.11″
- Spindle Nose: A-8
- Spindle Bore: 3.03″
- Taper Of Spindle Bore: MT No.7
- Taper Of Center: MT No.5
- Range Of Spindle Speeds (12): 27-1,205 RPM
- No. of Feed Changes: 40 Step
- Longitudinal Feed (Z-Axis): 0.0015″~0.0216 IPR
- Cross Feed (X-Axis): 0.0016~0.0228 IPR
- Cross Slide Travel: 13.35″
- Compound Rest Travel: 6.69″
- Inch Threads: 56~2 TPI
- Metric Threads: 0.0196″~0.55″
- D.P. Threads: 1~7 MP

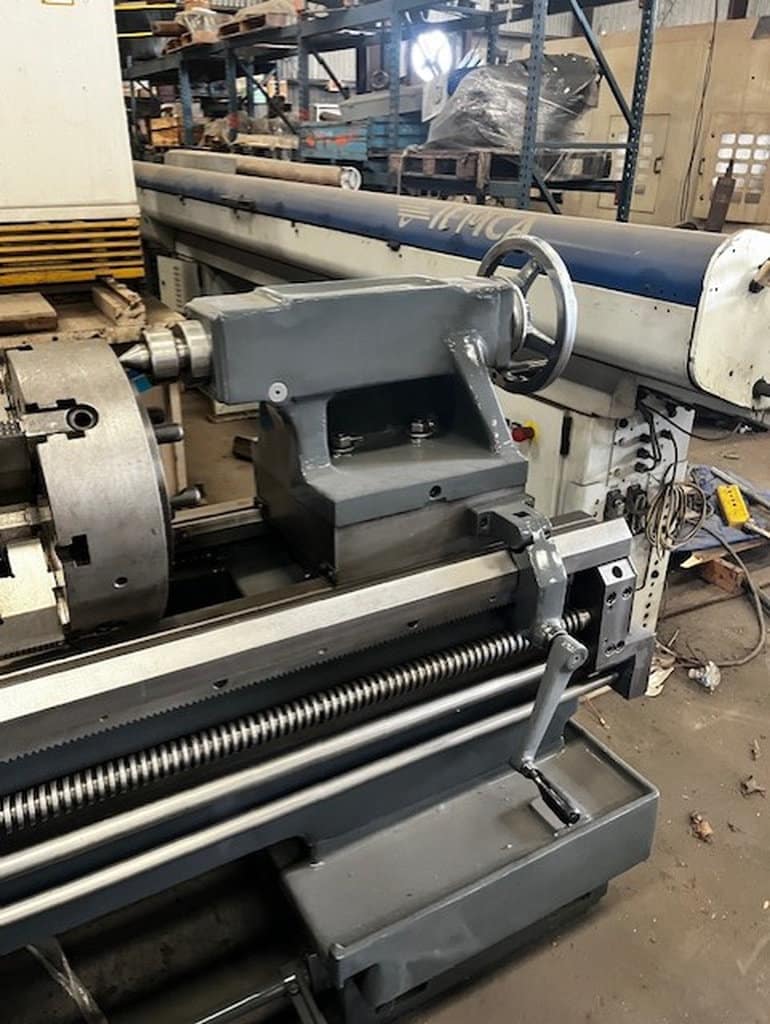

- Tail Stock Quill Travel: 5.90″
- Tail Stock Quill Taper: MT No. 5
Equipped With

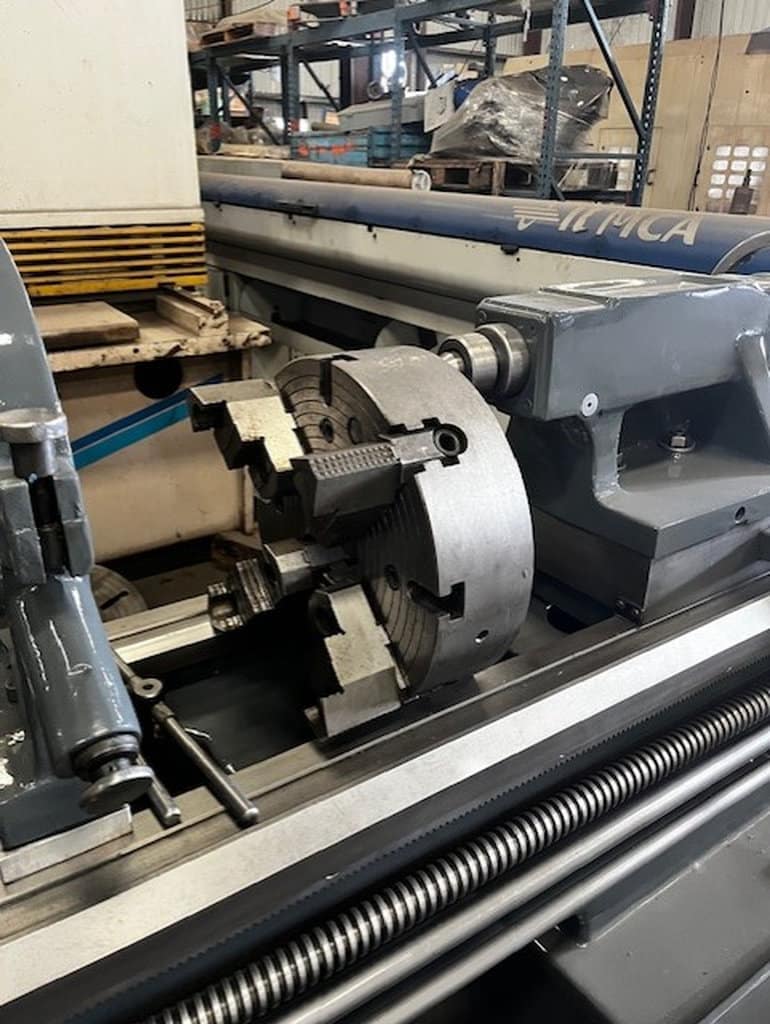

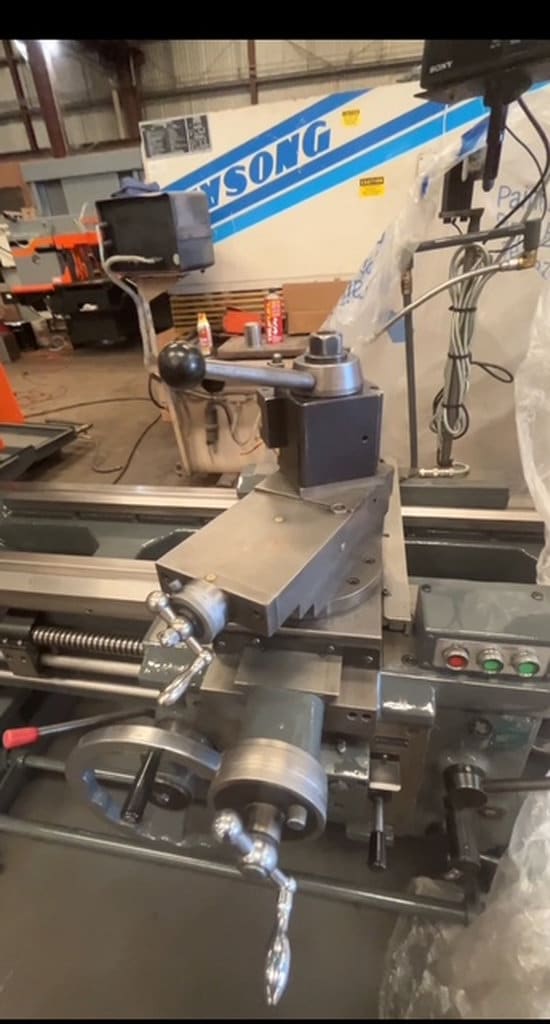

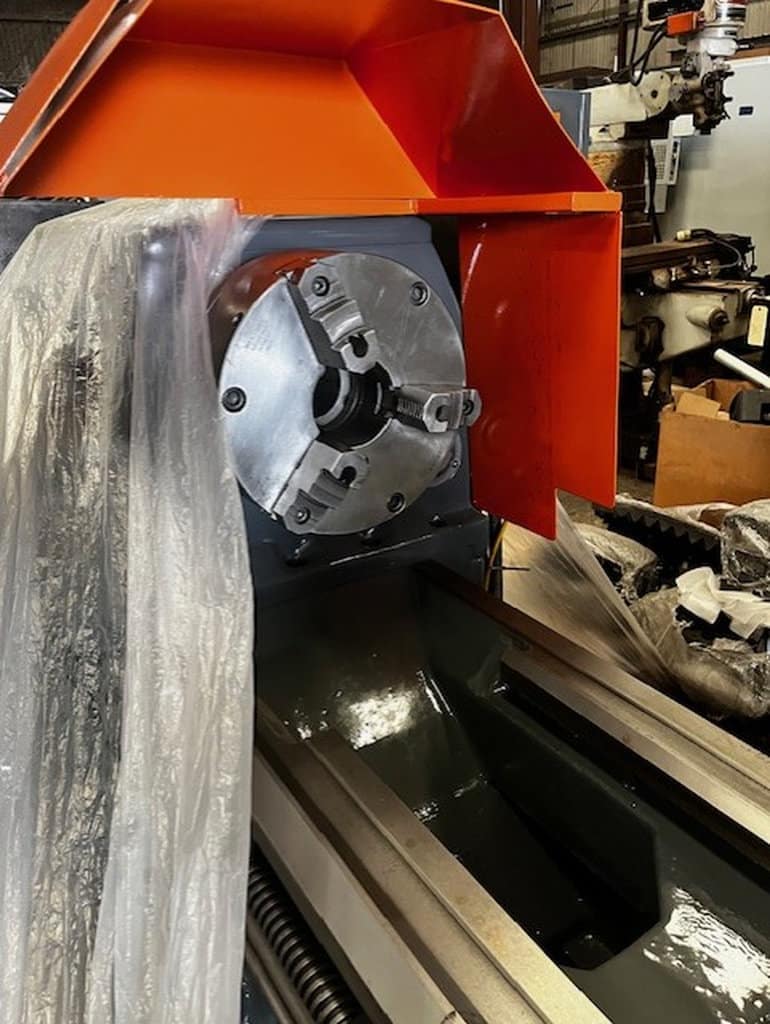

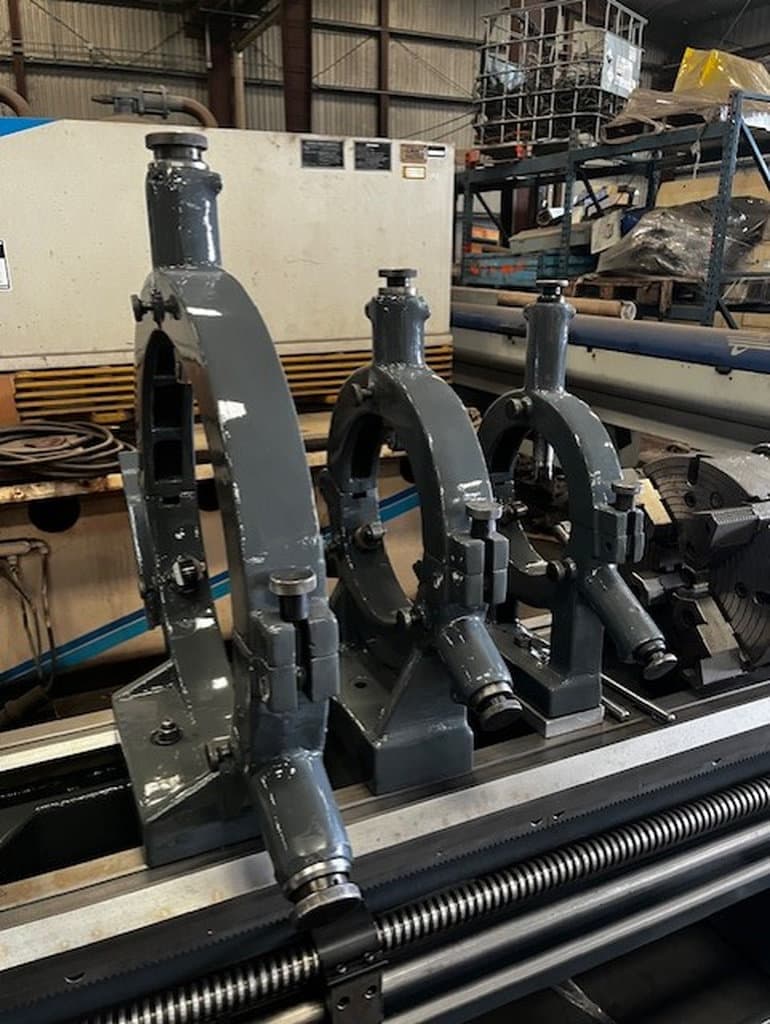

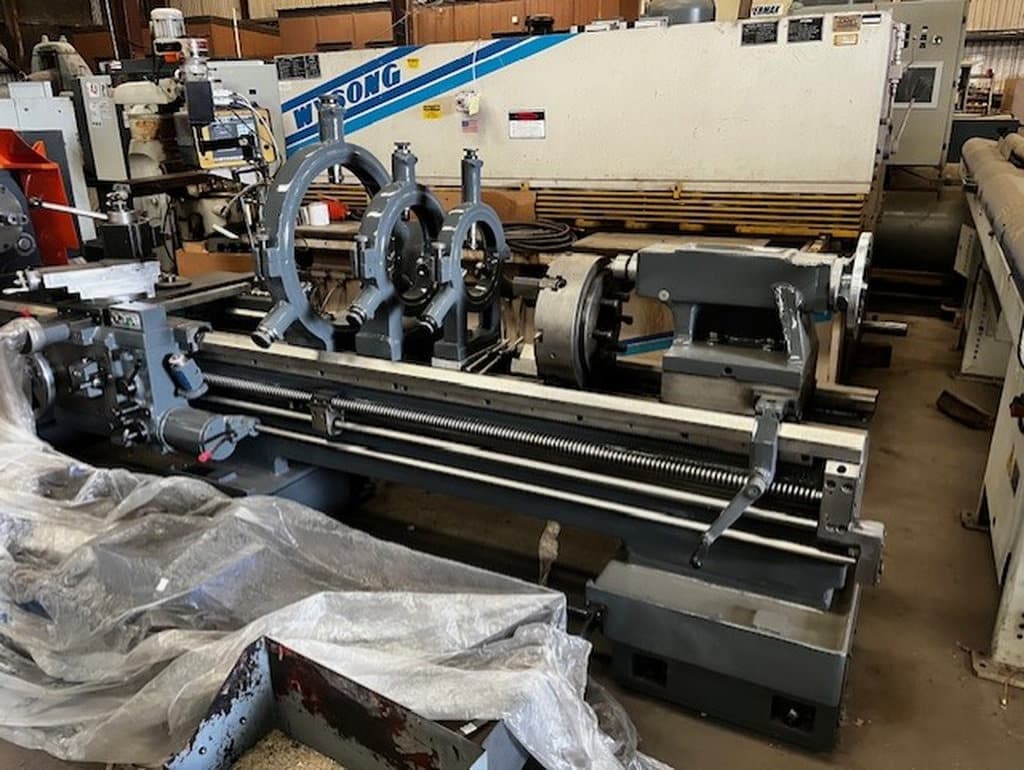

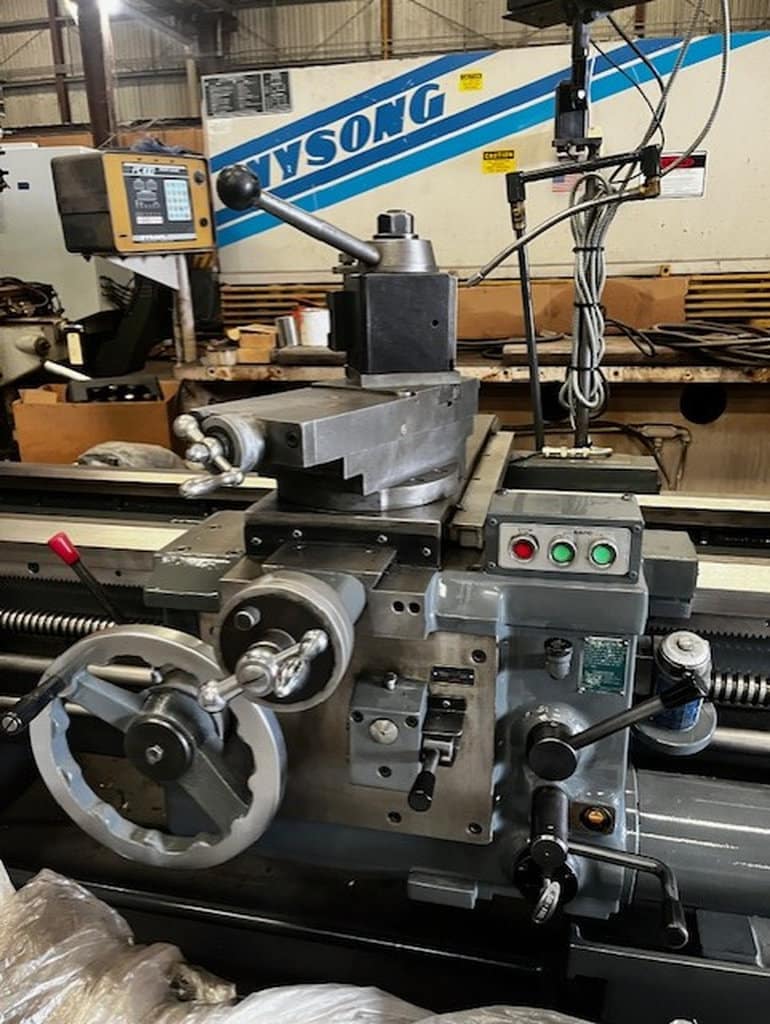

Sony 2-Axis Digital Readout System, Aloris Tool Post, Coolant System, 3 Steady Rests, 3-Jaw Chuck, 4-Jaw Chuck, Faceplate, Spindle Braking System
