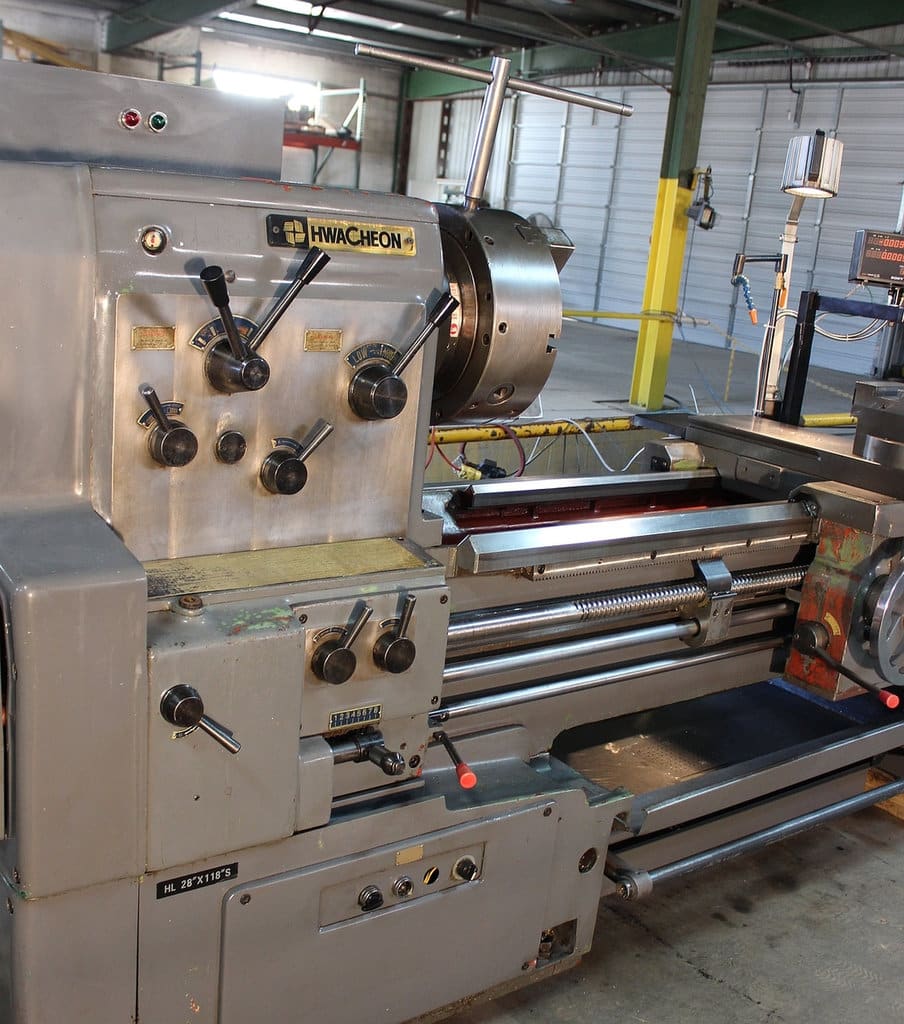

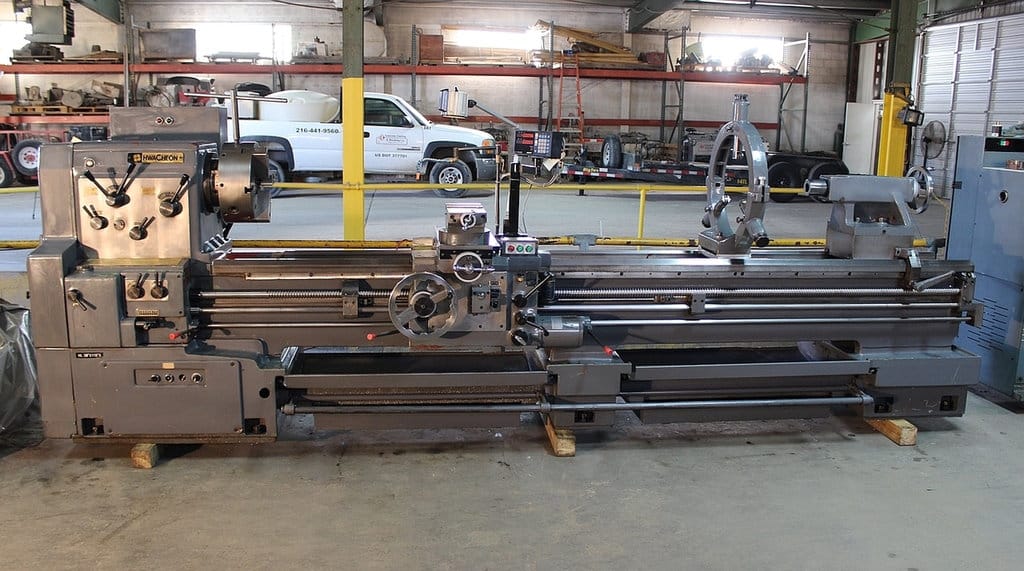

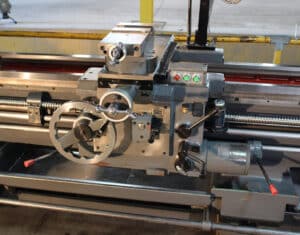

Hwacheon HL720 28″ x 120″ Precision Engine Lathe w/ Sony 2-Axis DRO
Stock #: 143260003
$37,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 143260003
- Location: Ohio
- Brand: Hwacheon
- Model: HL720
- Year: 1999
- Approx. Shipping Weight: 10,250 LBS.
- Approx. Shipping Dimensions: 187″L x 61″W x 58″H
- Skidding Fee: Skidding Unavailable
Specifications
- Swing Over Bed: 28.34″
- Swing Over Cross Slide: 18.50″
- Distance Between Centers: 118.11″
- Spindle Nose: D1-8
- Spindle Bore: 3.03″
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 27 RPM – 1,205 RPM
- Number of Feed Changes: 40
- Longitudinal Feed (Z-Axis): .0015″ – .0216″ / rev
- Cross Feed (X-Axis): .0016″ – .0228″ / rev
- Cross Slide Travel: 15.35″
- Compound Rest Travel: 6.69″

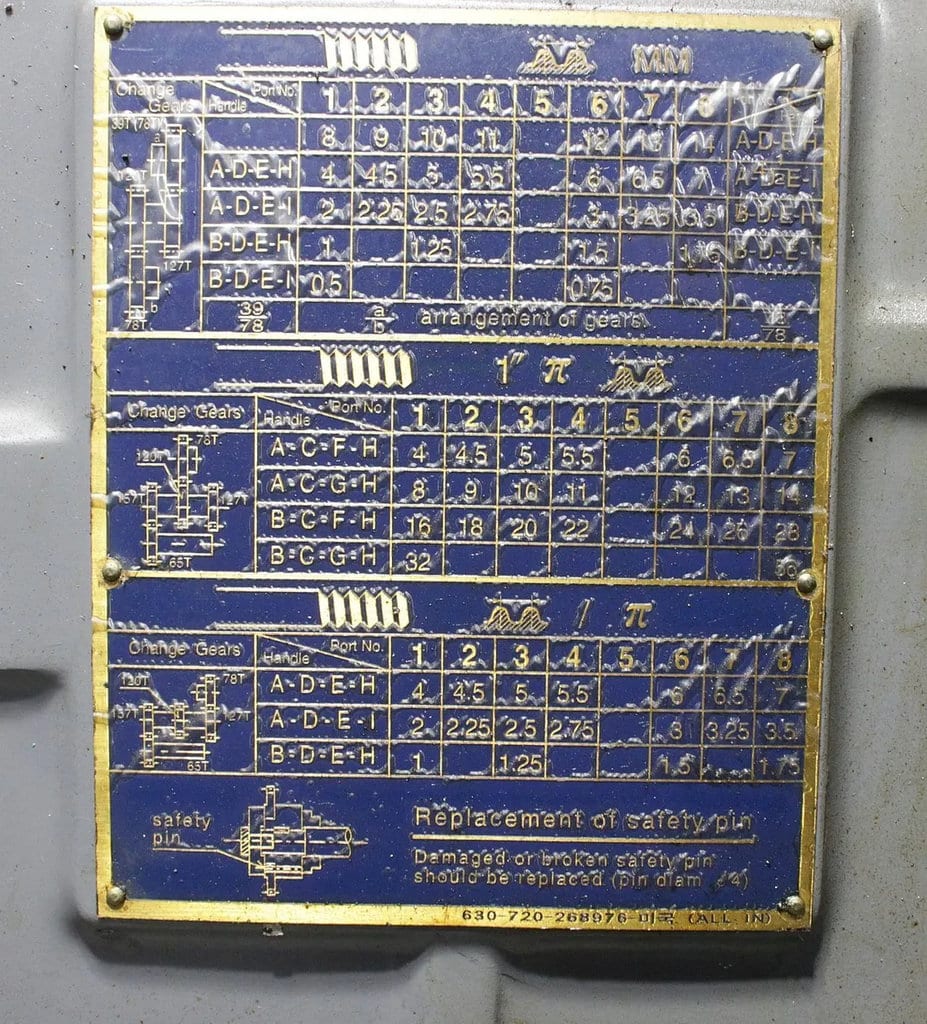

- Inch Threads: 56-2
- Metric Threads: .5 – 14
- D.P. Threads: 4 – 56
- Module Threads: 1 – 7

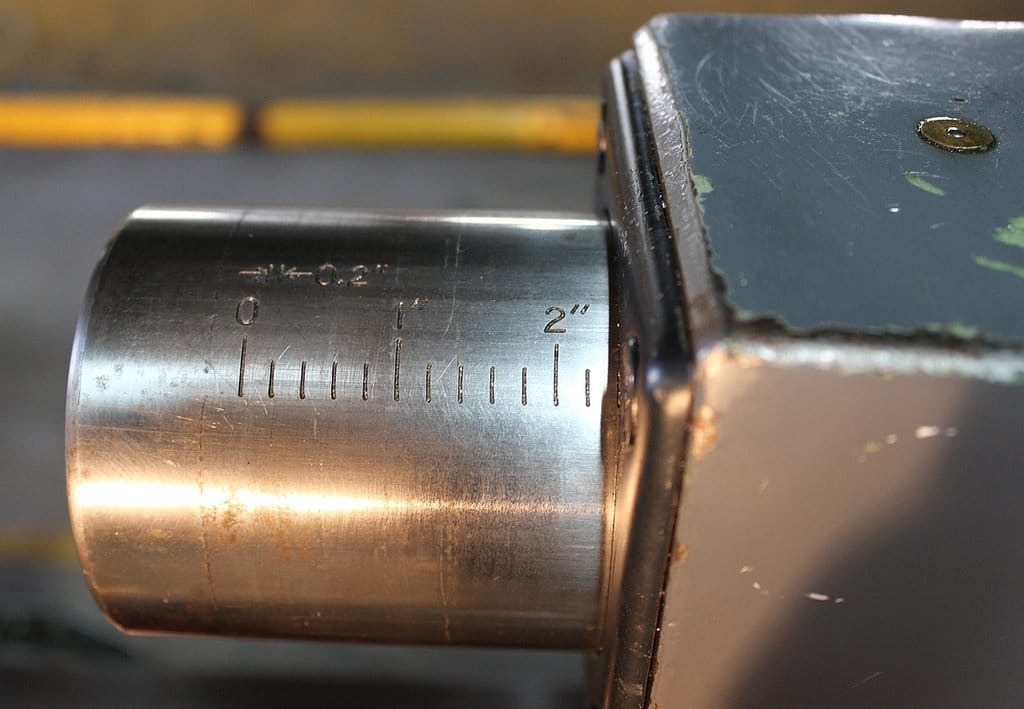

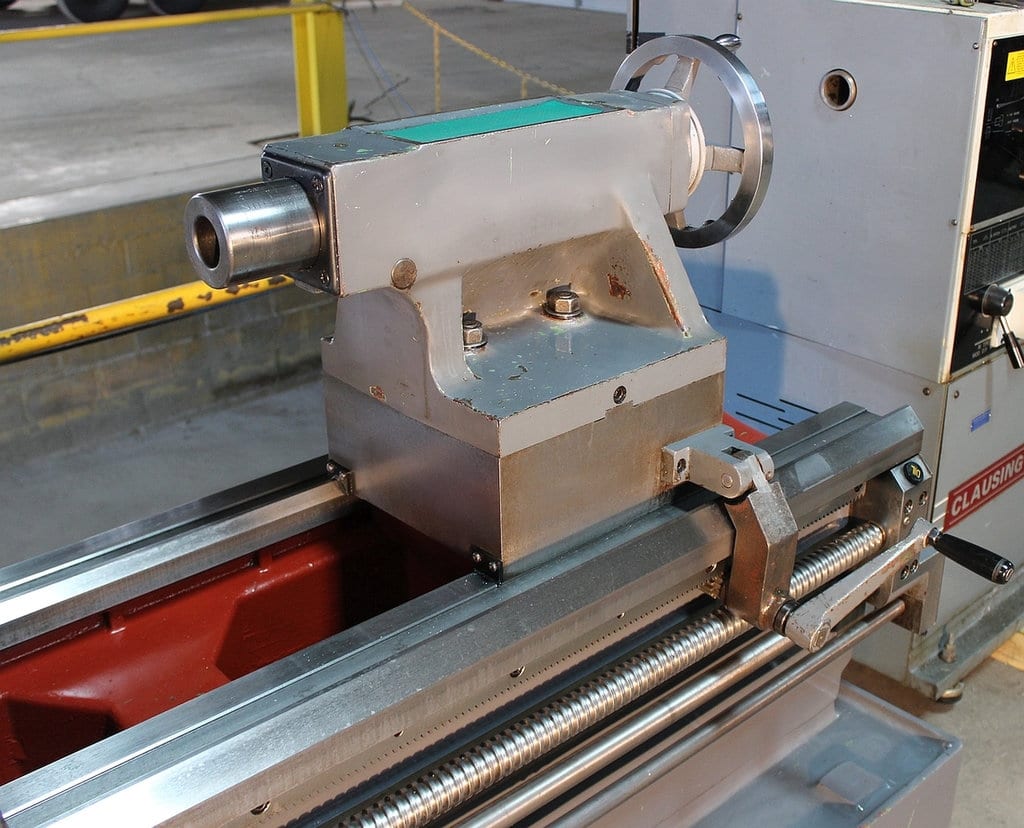

- Tail Stock Quill Travel: 5.90″
- Tail Stock Quill Taper: No. 5
- Spindle Motor HP: 14.74
Equipped With

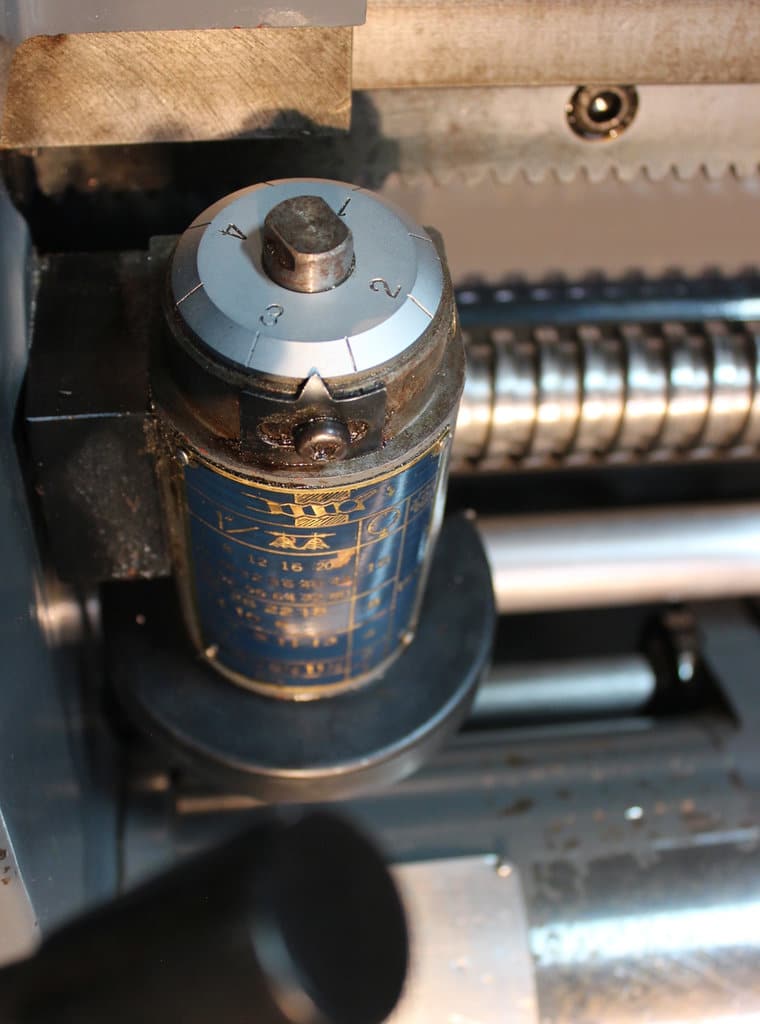

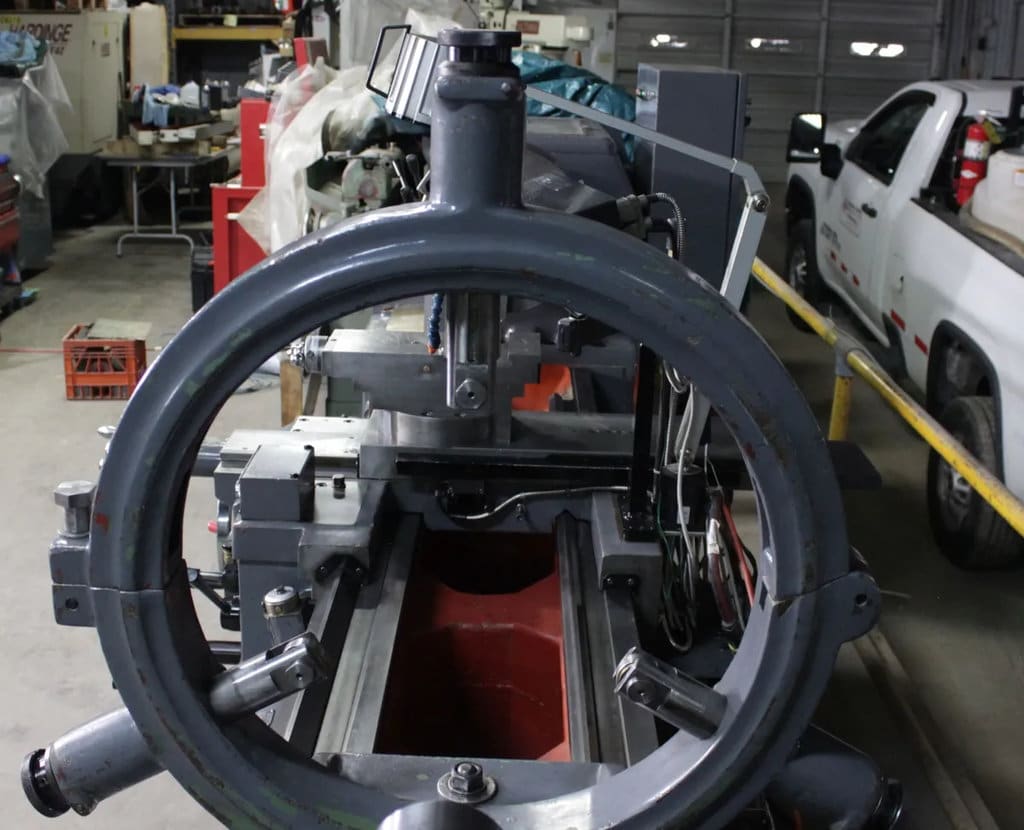

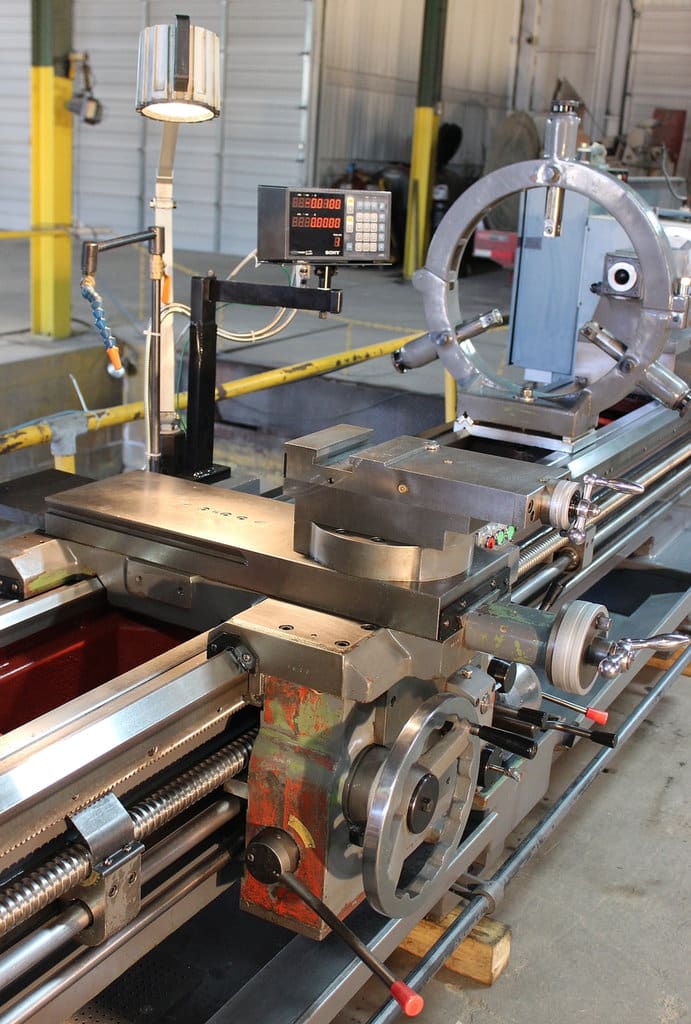

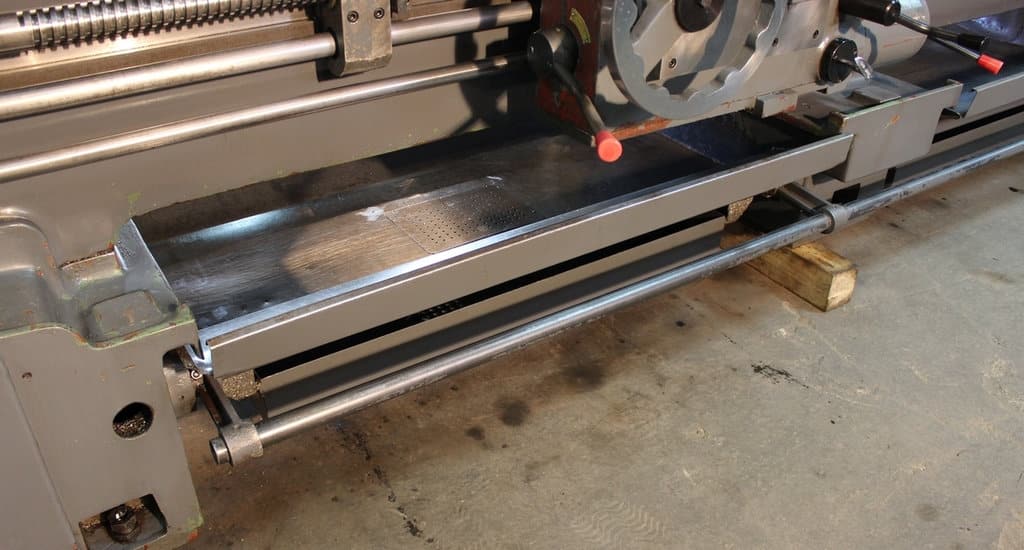

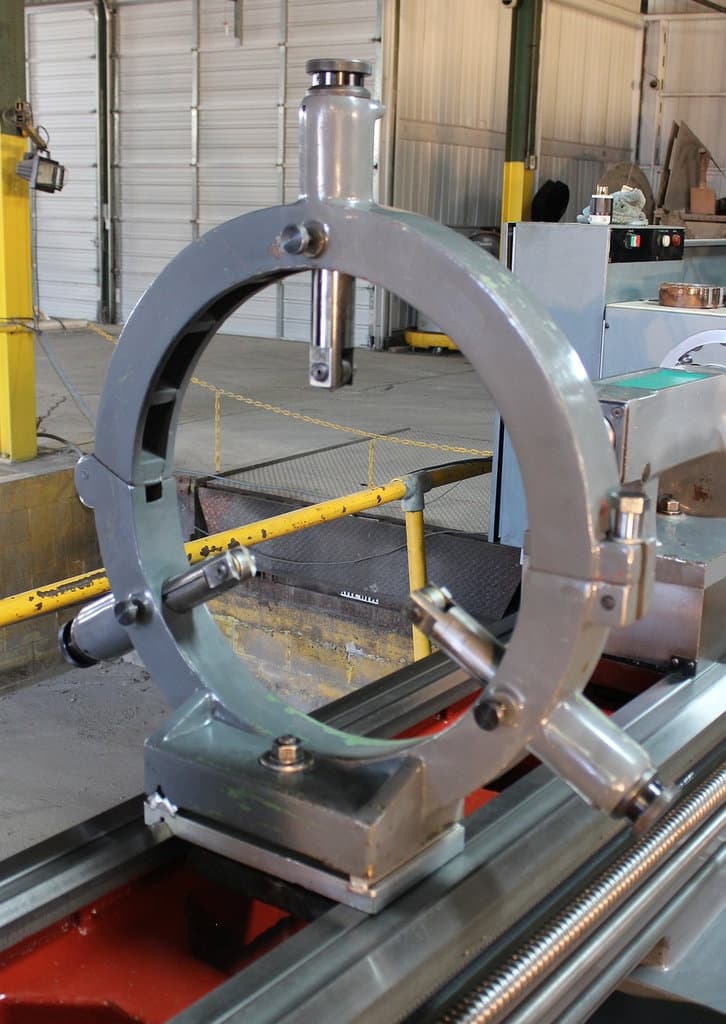

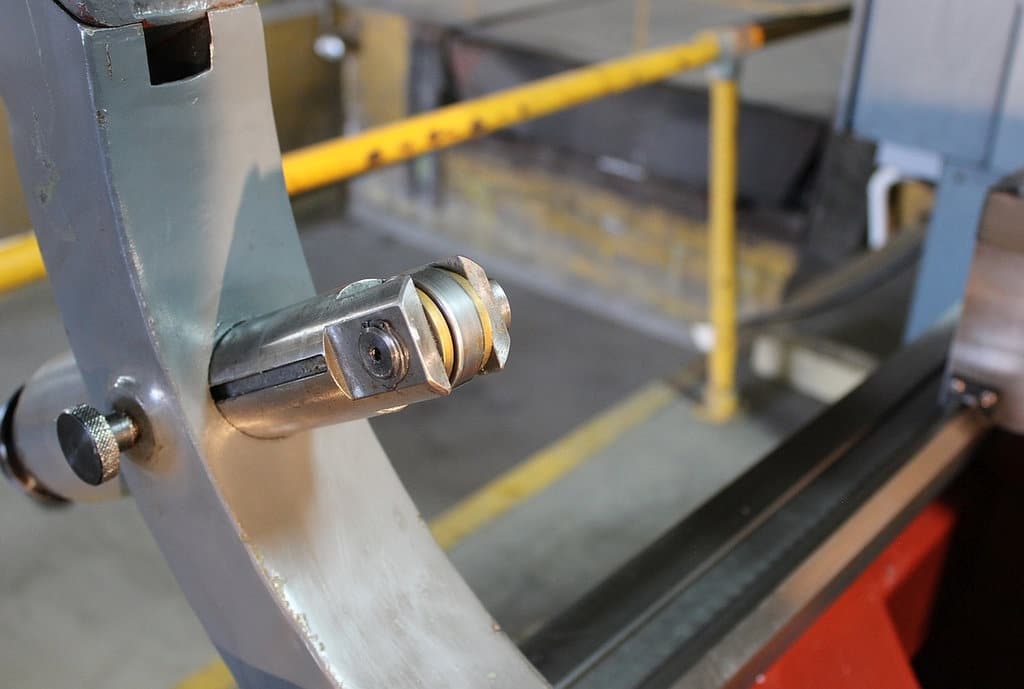

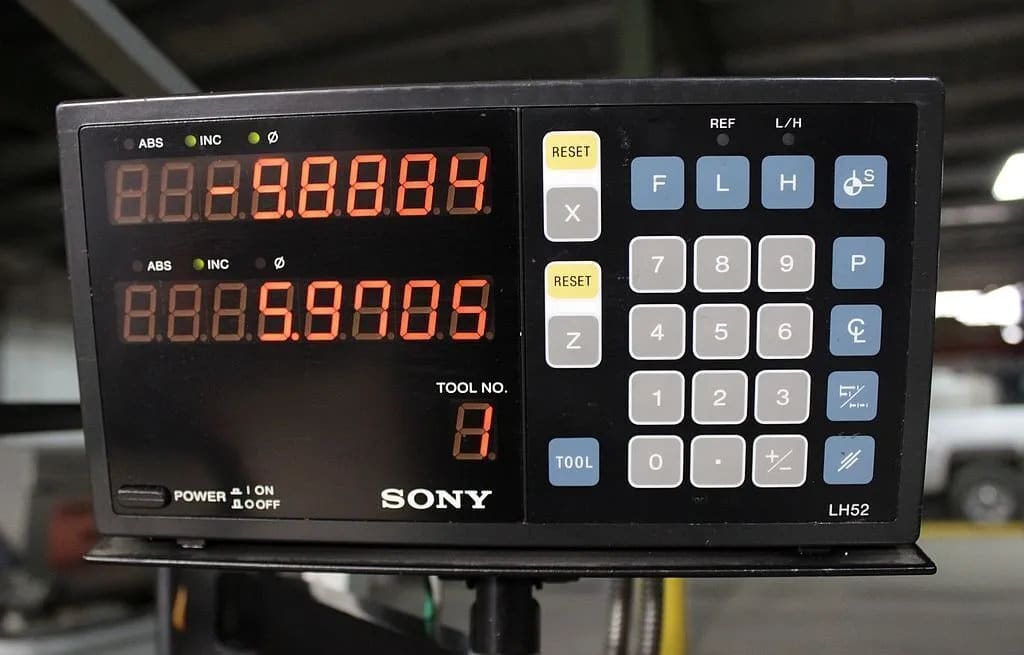

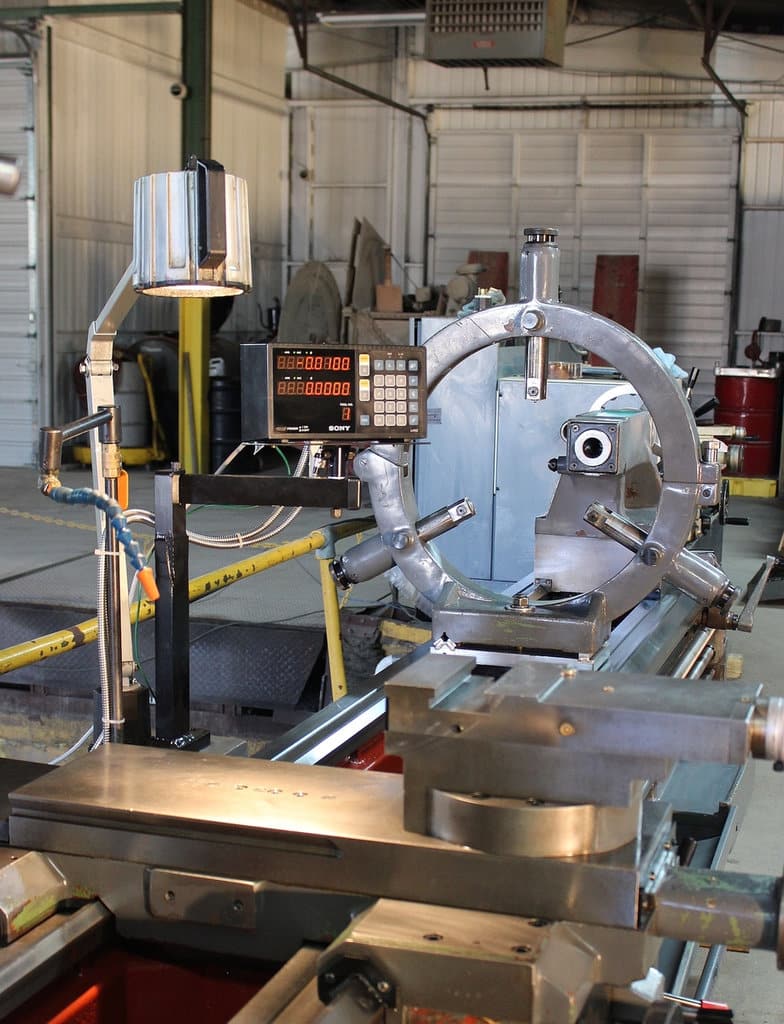

Sony 2-Axis Digital Readout System, Halogen Work Lamp, 15″ Heavy Duty Buck 3-Jaw Chuck, Coolant System, Two Removable Chip Pans, Two Removable Sub-Coolant Pans, Thread Dial, Rapid Traverse, Steady Rest (Over Sized : 11″~17″), Disc Brake w/ Dual Length Foot Brake Lever
