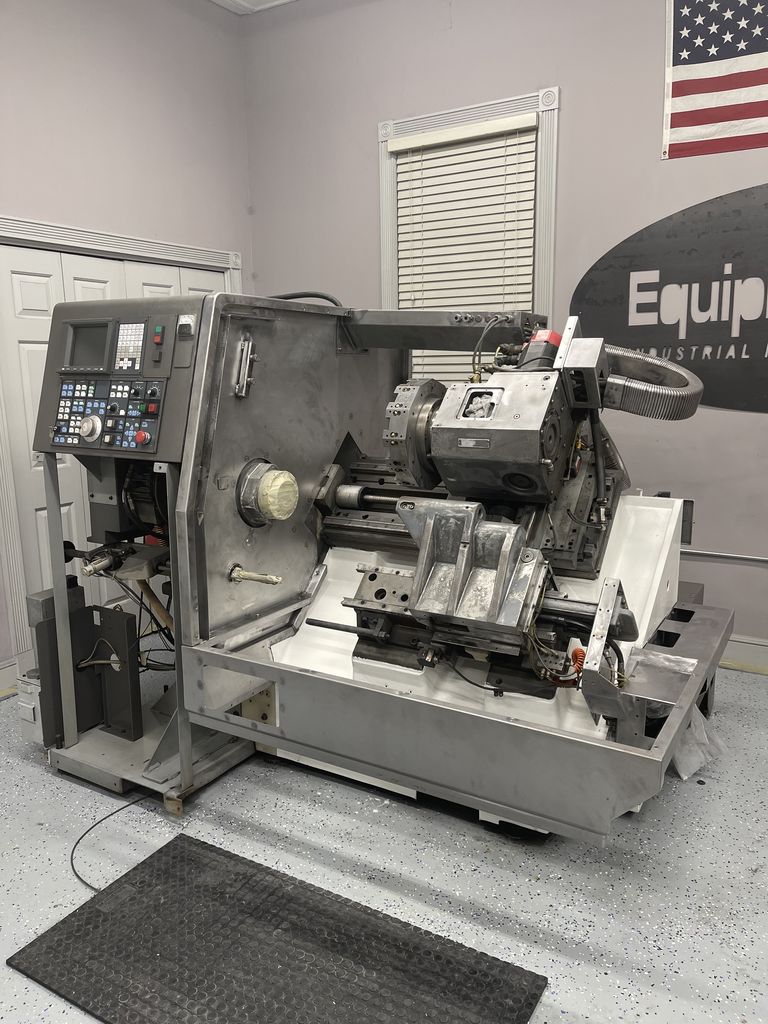

Hardinge Conquest T42 CNC Lathe (1996) ***Project Machine***
Stock #: DD-B-220009
$2,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: DD-B-220009
- Location: Stone Mountain, GA
- Brand: Hardinge
- Model: Conquest T42

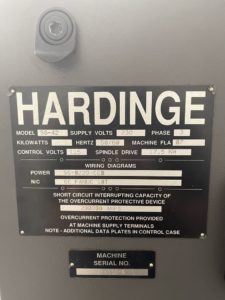

- Serial #: SG-959-B
- Year: 1996
- Approx. Shipping Weight: 9,000 LBS.
- Approx. Shipping Dimensions: 84″ L x 66″ W x 68″ H
- Crating Fee: Skidding Unavailable
- Loading Fee: Rigging Required
Specifications
- Max Swing: 21.2″
- Max Turning Diameter: 9″
- Max Machining Length: 13.1″
- X Axis Travel: 5.31″
- Z Axis Travel w/ Collet: 13.9″
- Standard Chuck Size: 6″
- Spindle Bore: 1.625″
- Maximum Spindle RPM: 5,000 RPM
- X Axis Rapid Traverse Rate: 472 IPM
- Z Axis Rapid Travers Rate: 630 IPM
- Electrical: 230V / 3PH
Equipped With

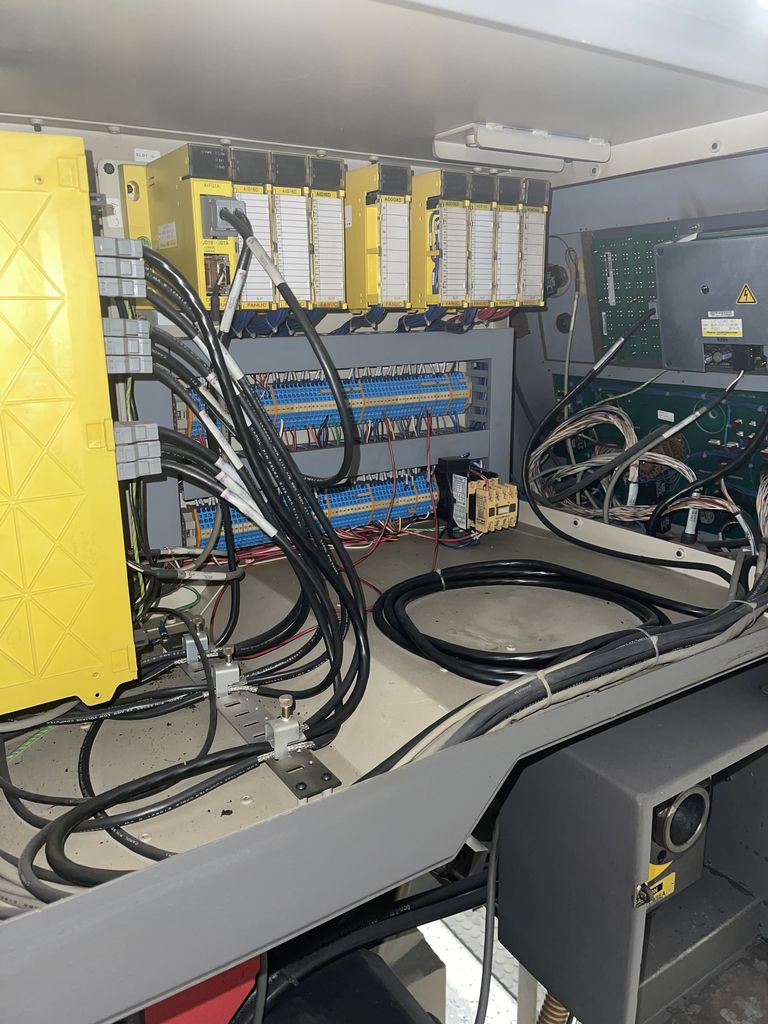

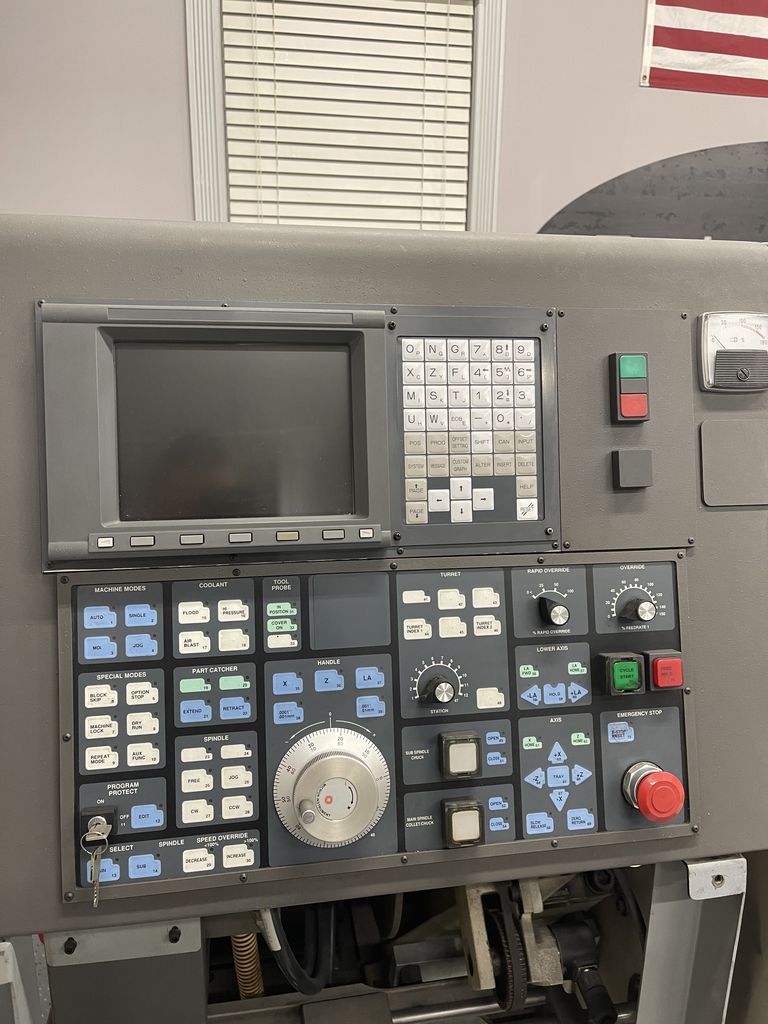

GE Fanuc Series 18-T CNC Control, 12 Position BOT Turret, Parts Catcher Shaft, Tailstock, Coolant Tank
Additional Info

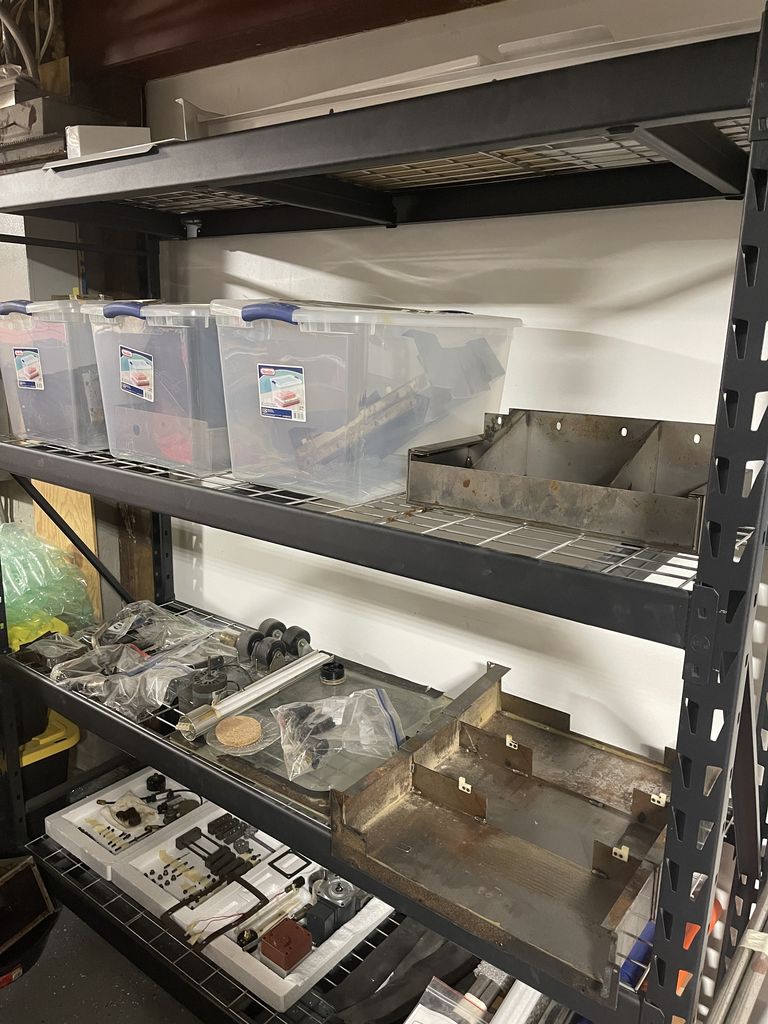

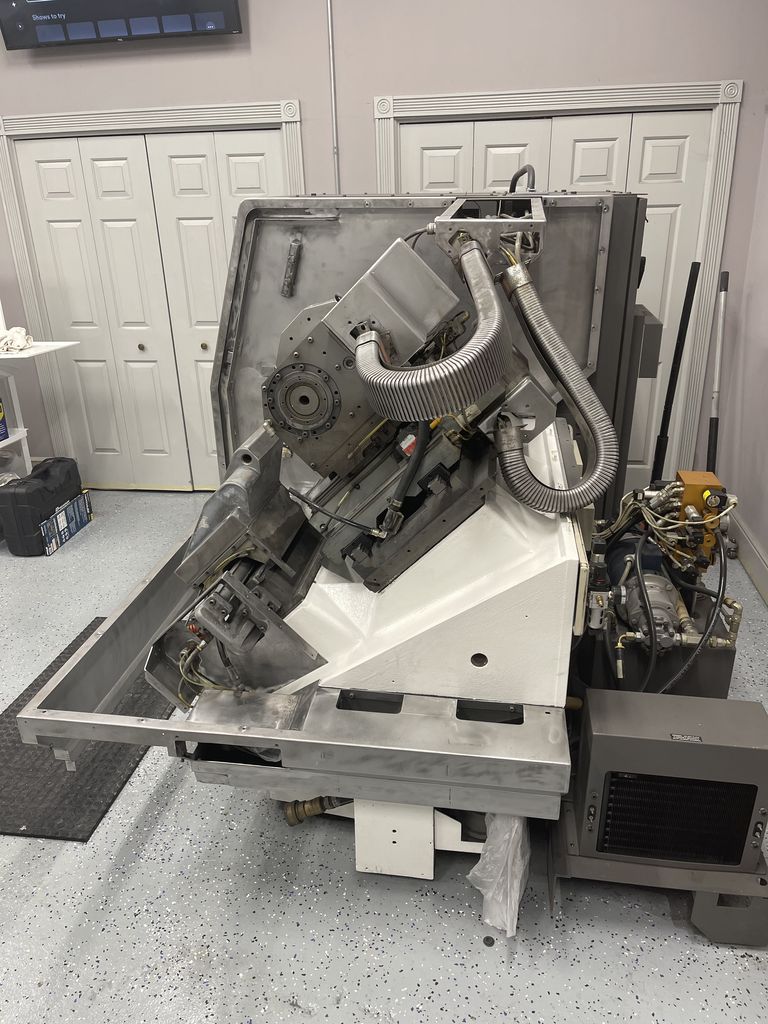

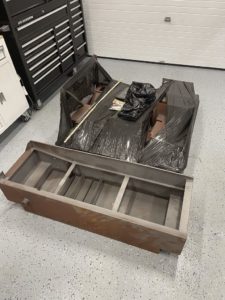

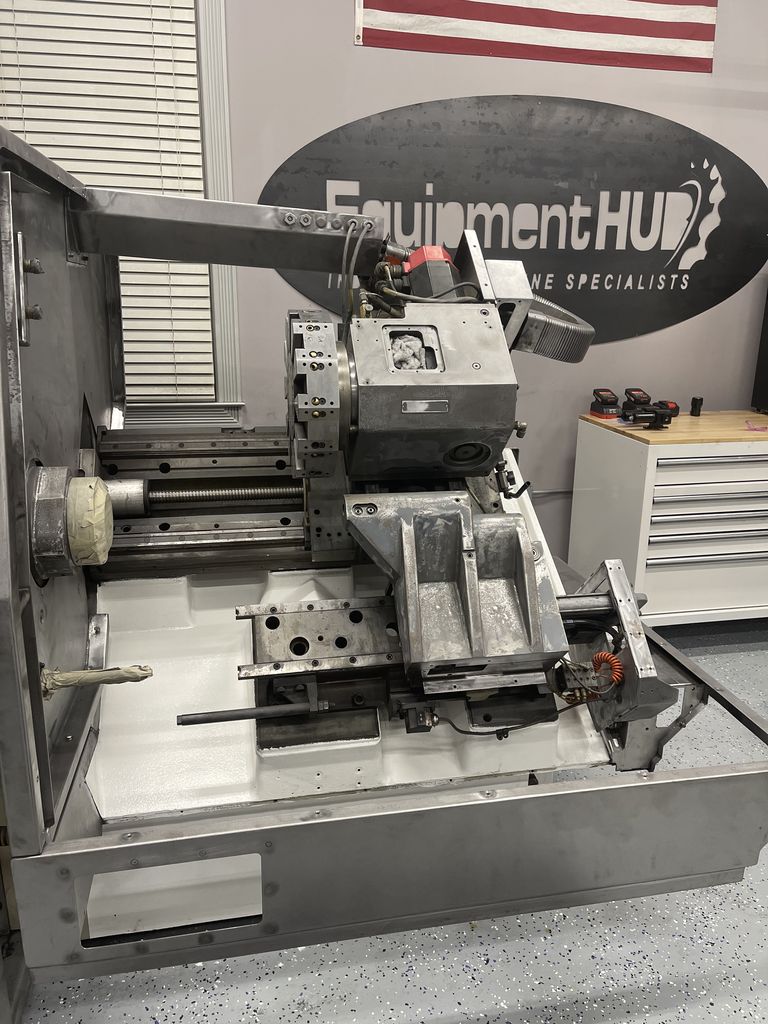

***Sold As-Is*** This Lathe is being sold as a project machine or a complete machine to acquire parts from. This machine was purchased by our client with intentions to restore, but they have since decided to pursue different endeavors. The machine can powered up at our clients facility to show function of controller only. Please also note, this machine is missing its outer coolant enclosure so one will have to be constructed or the lathe used as a open bed machine. All interior sheet metal components (ready for powdercoat), way covers, and accessories will be included.
This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
