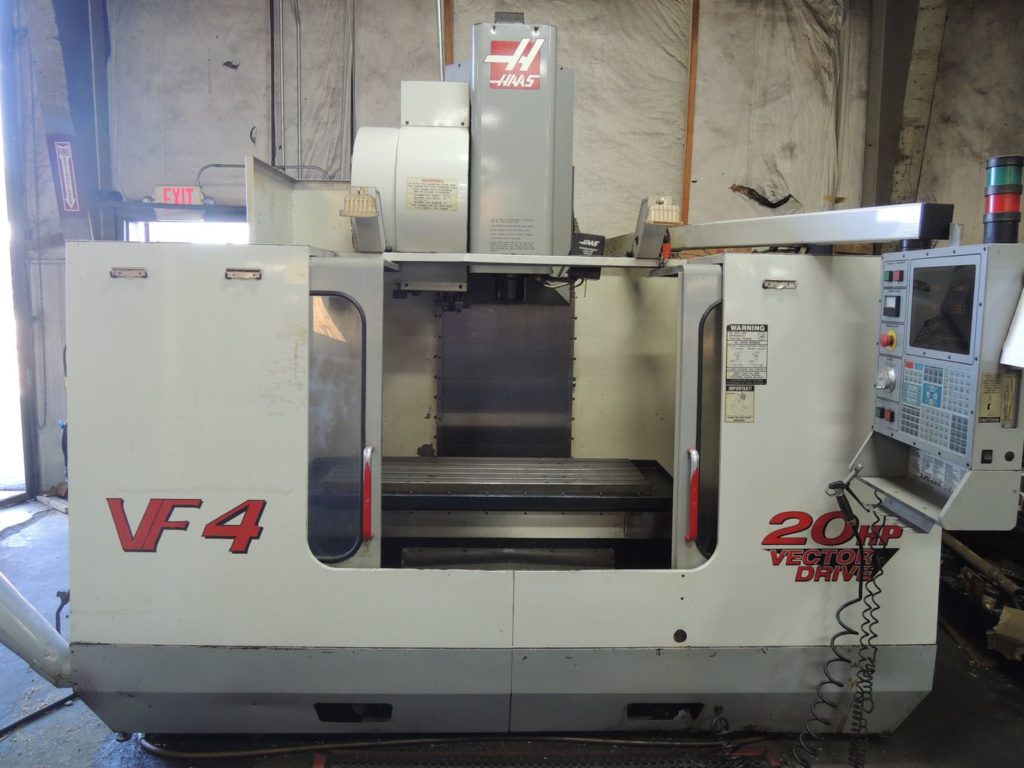

Haas VF-4 CNC Vertical Machining Center

Name: Haas VF-4 CNC Vertical Machining Center
SKU: 44989
Price: 1.00 USD
Availability: OutOfStock

$1.00

See Product Details

Out of stock

Not What You're Looking For?

Have Surplus Machinery to Sell?

Out of stock

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info:

Stock #: CD-B-171021

Location: Suwanee, GA 30024

Brand: Haas

Model: V-F4

Serial: 21763

Year: 2000

Approx. Shipping Weight: 13,300 Lbs.

Approx. Shipping Dimensions: 118″ L x 110″ W x 119.5″ H

Loading Fee: Rigging Required

Specifications:

Travel: X: 50″, Y: 20″, Z: 25″

Table Size: 52″ x 18″

Spindle Speed: 7500 RPM

Spindle Taper: CAT 40

Spindle Motor: 20 HP

Spindle Nose to Table Top: 4″ – 29″

Spindle Torque: 250 Ft. Lbs.

Tools: 20

Table Load Capacity: 3,500 Lbs.

Rapid Traverse Rates: 710 IPM

Tool Change Time (T – T/ C – C): 5 / 6 Seconds

Max Tool Diameter: 3.5″

Max Tool Weight: 12 Lbs.

Electrical: 208 / 230V / 3PH

Max Amperage: 40 Amps

Hours: Power On: 22,903, Cycle Start Time: 10,894 , Feed Cutting Time: 8,262

Equipped With:

Haas 32 Bit Controller, 9″ CRT, 3.5″ Floppy Drive, Programmable Coolant Nozzle, AC Brushless Servo Motors, Remote Jog Handle, Rigid Tapping, Chip Auger, 20 HP Vector Drive

Additional Info:

Machine is in good condition and can be demoed upon request.

This machine is being sold from our client‰Ûªs facility and is being sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.

Seller Contact Info:

The Equipment Hub

770-621-0495

4601 Lewis Rd.

Stone Mountain, GA 30083
