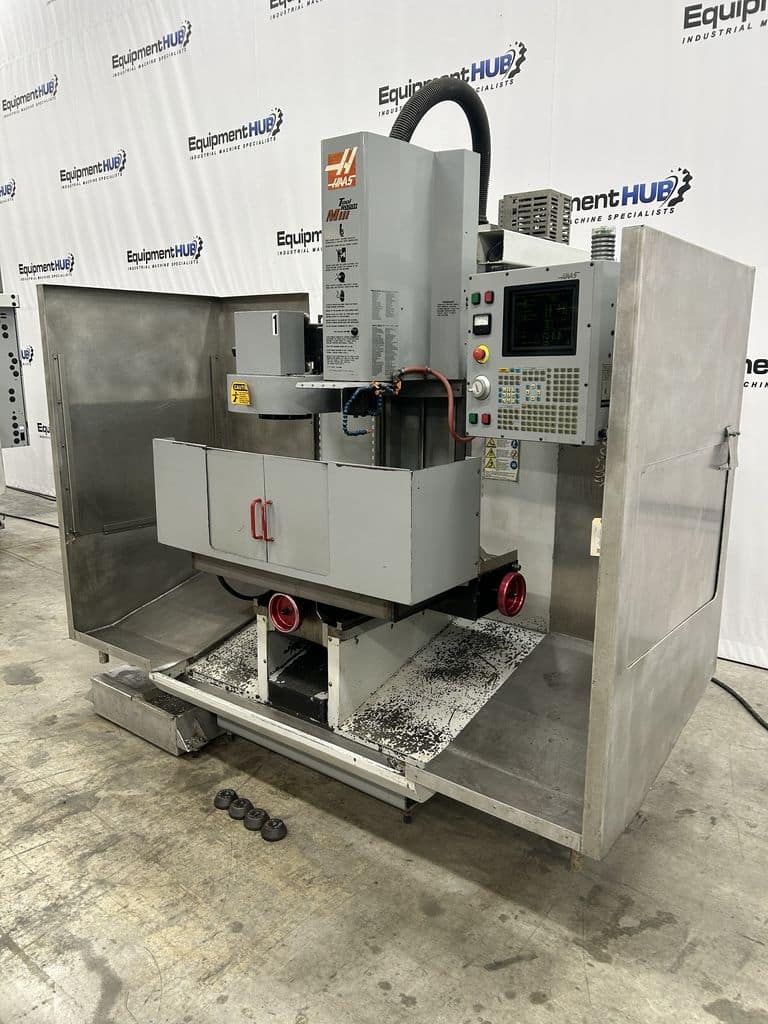

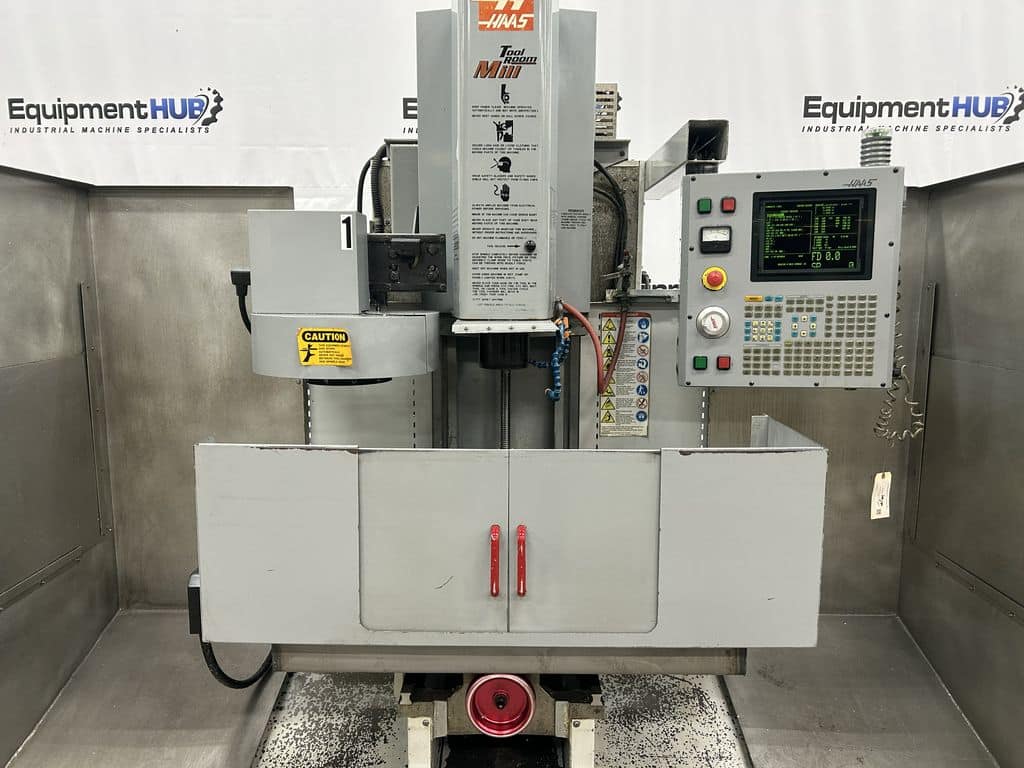

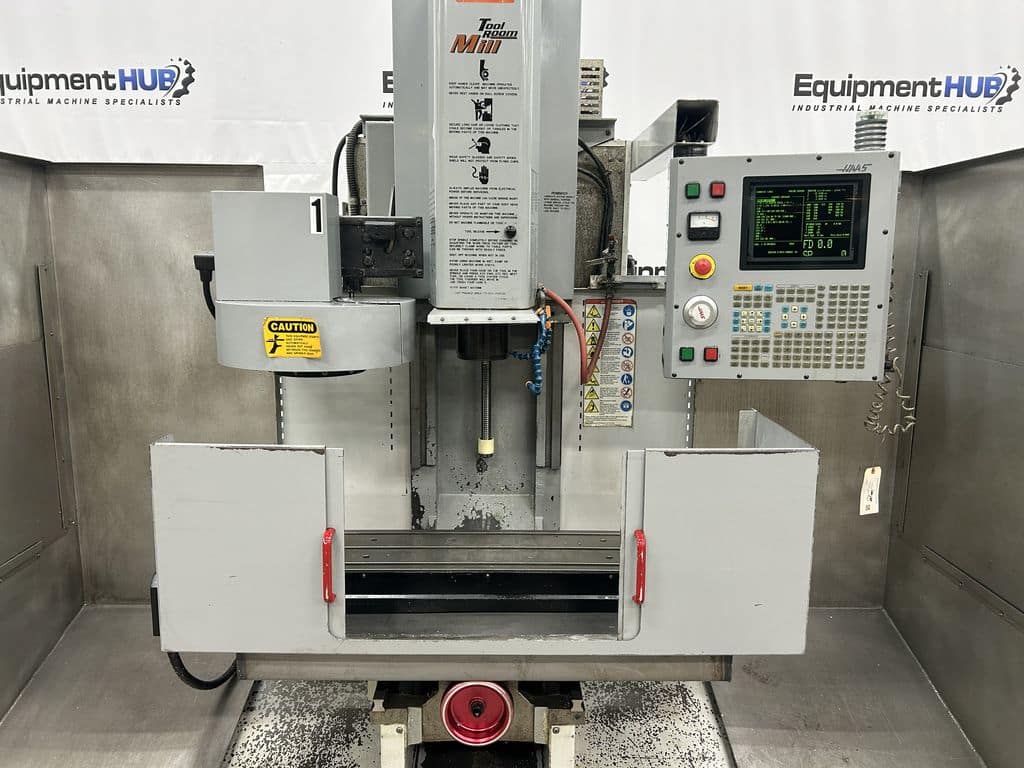

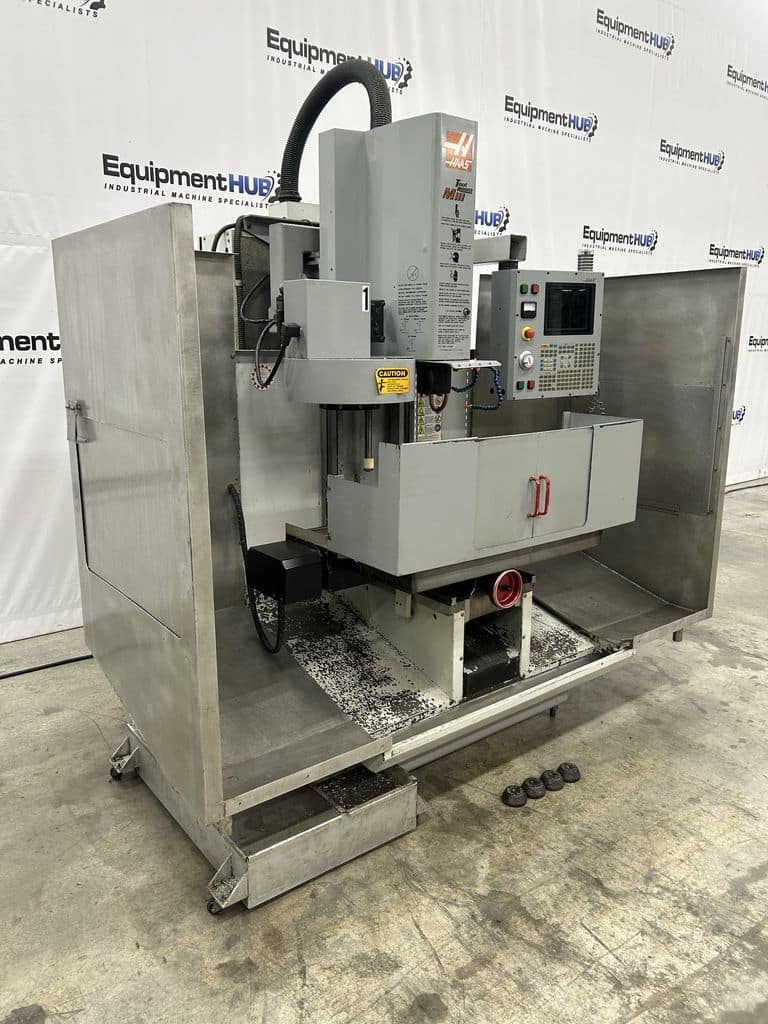

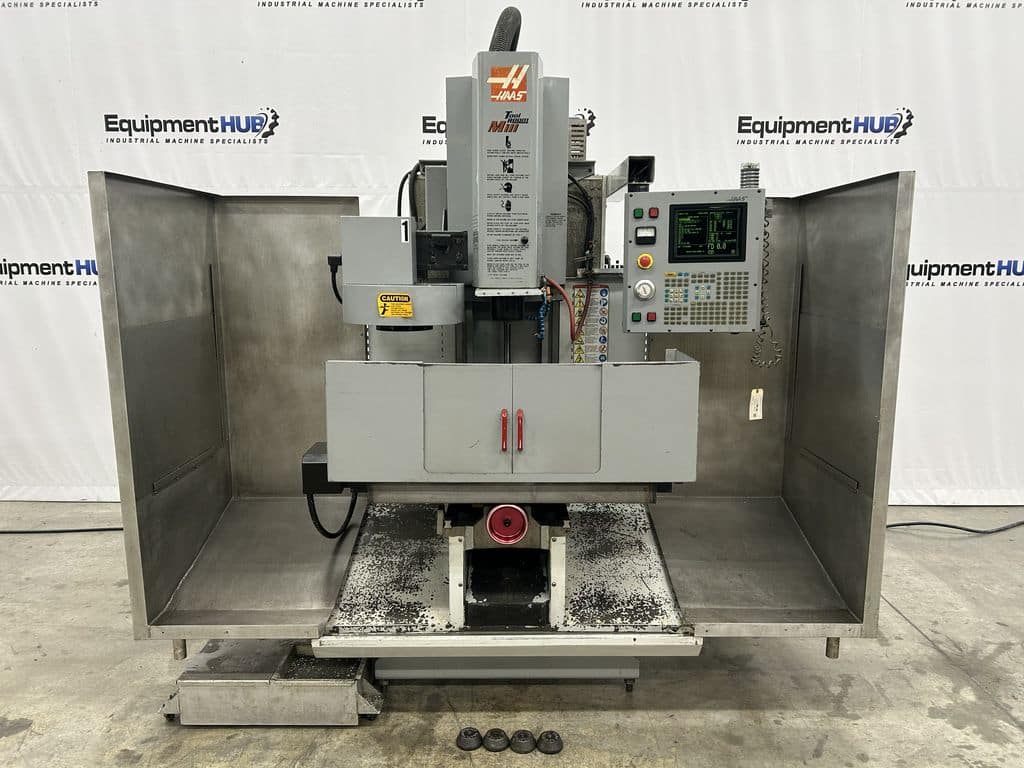

HAAS TM-1 CNC Tool Room Vertical Machining Center, VMC

Stock #: 130260018

$12,500.00

See Product Details

Business Financing Available

  • Stock #: 130260018
  • Brand: Haas

Business Financing Available

  • Stock #: 130260018
  • Brand: Haas

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 130260018
  • Location: Decatur, GA
  • Brand: HAAS
  • Model: TM-1
  • Serial #: 30326
  • Year: 2002
  • Approx. Shipping Weight: 3,500 Lbs.
  • Approx. Shipping Dimensions: 8’4″ L x 5’6″ W x 8’6″ H
  • Skidding Fee: Skidding Unavailable

Specifications

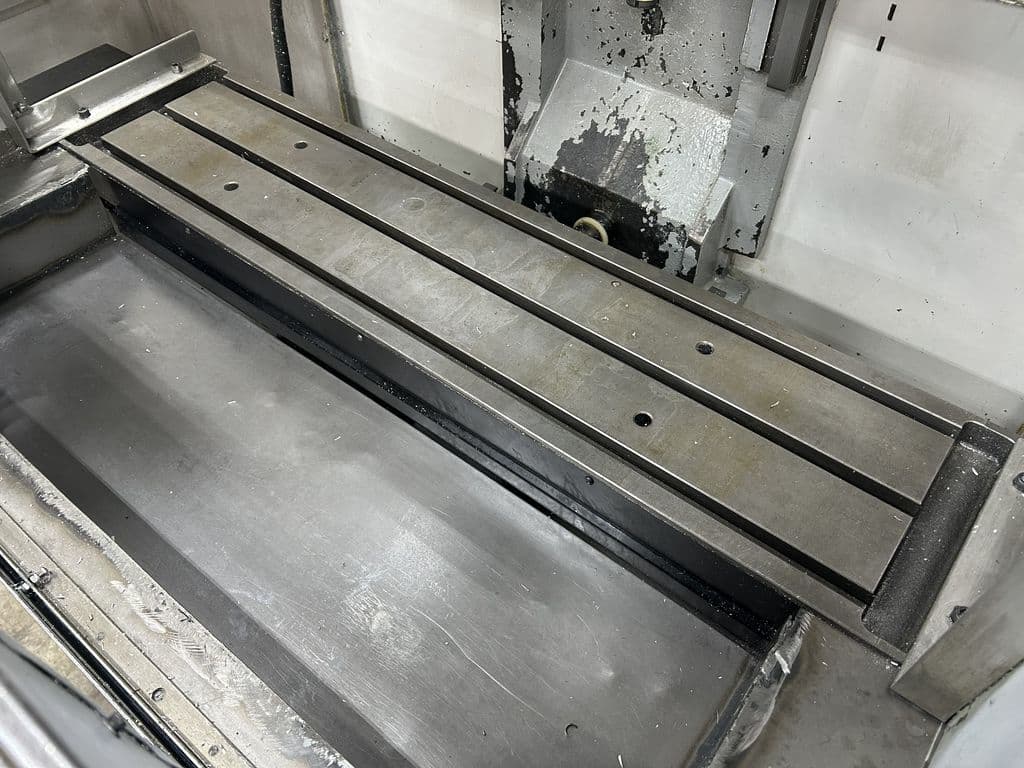

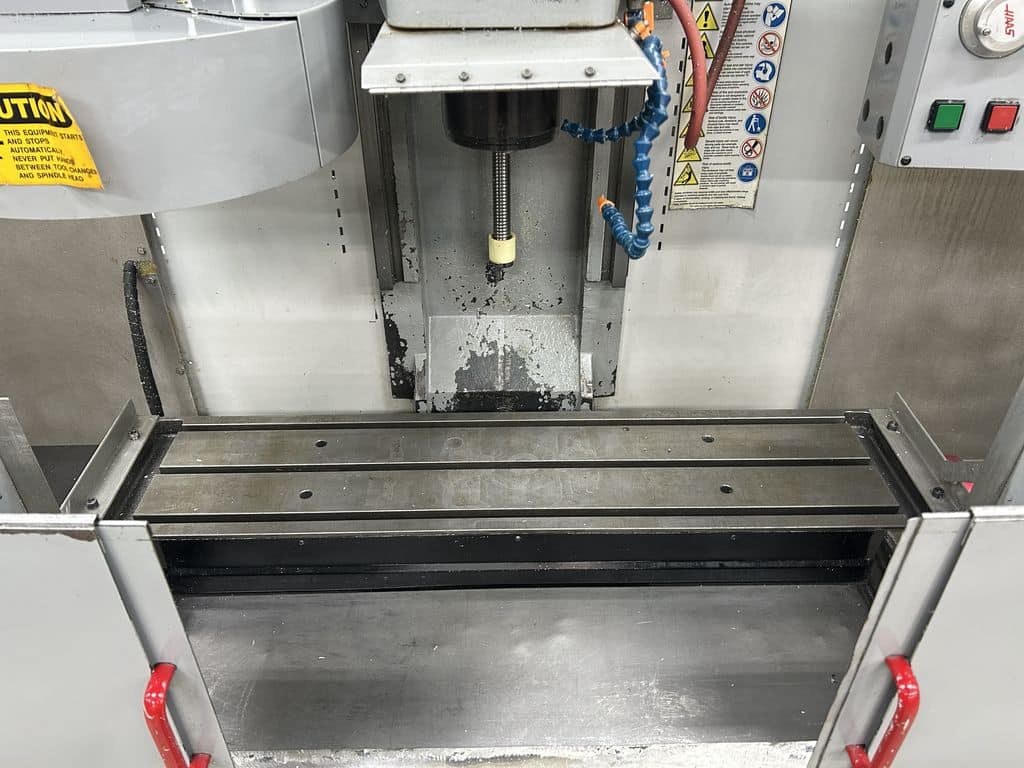

  • Table Size: 47.5″ x 10.5″
  • X-Axis Travel: 30″
  • Y-Axis Travel: 12″
  • Z-Axis Travel: 16″
  • Spindle Taper: CAT 40
  • Spindle Speed: 4,000 RPM
  • Spindle Motor: 7.5HP
  • Rapids: 200 IPM (X/Y/Z)
  • Max Table Load: 1,000 Lbs.

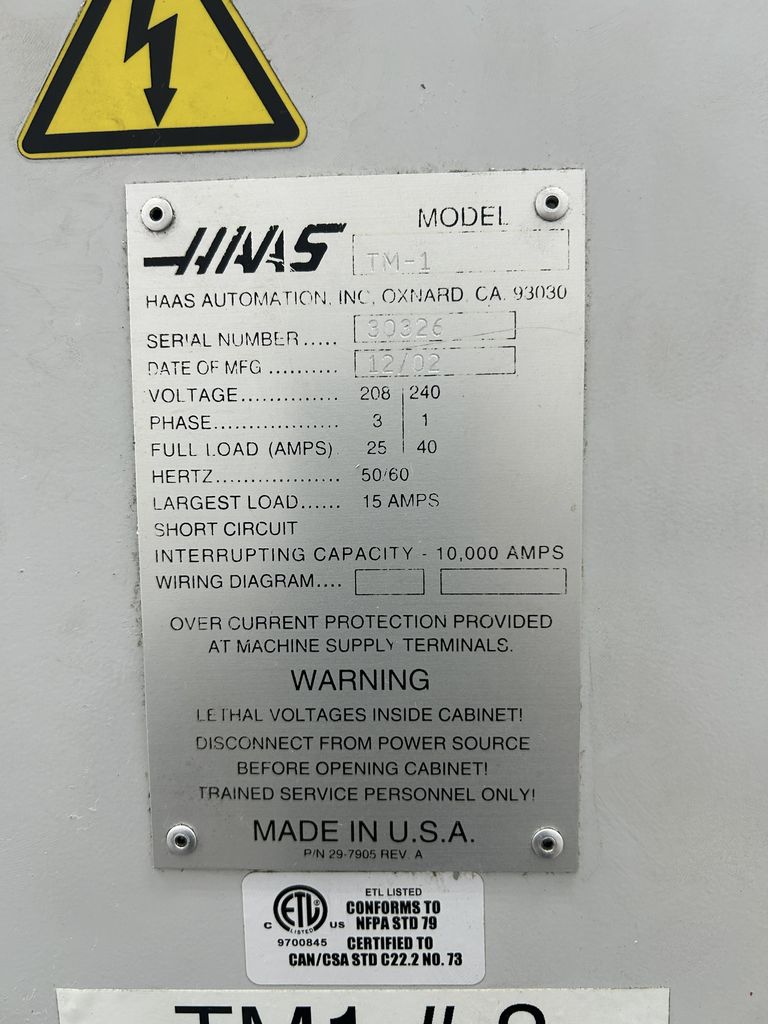

  • Electrical: 208V/3PH, 240V/1PH

Equipped With

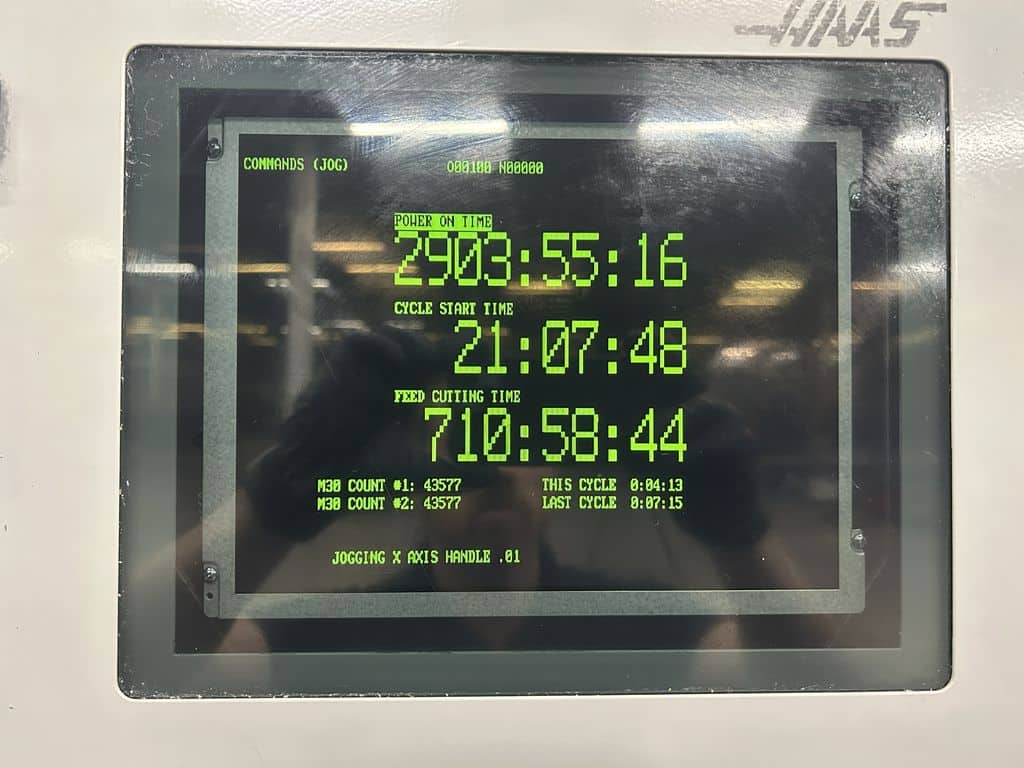

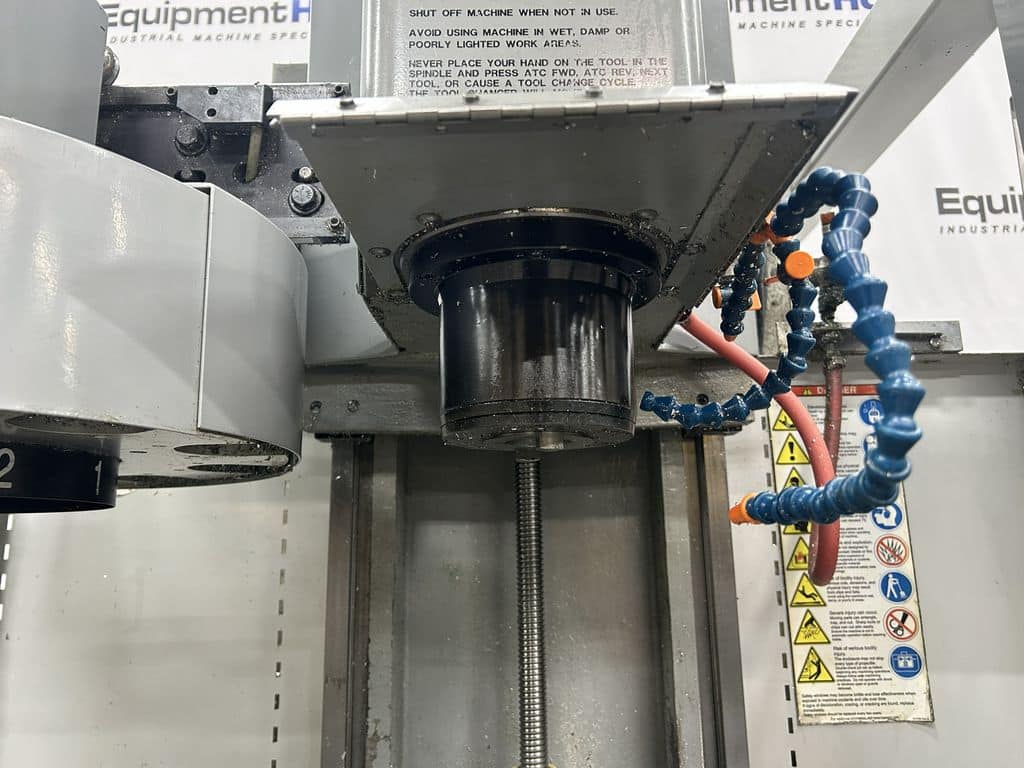

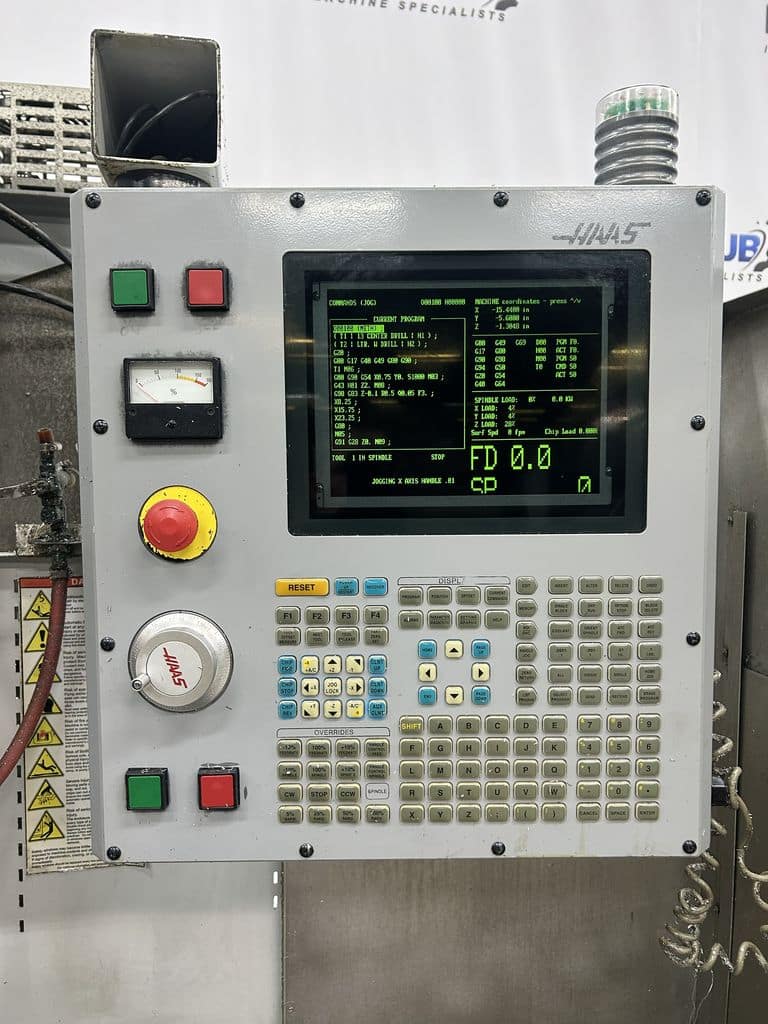

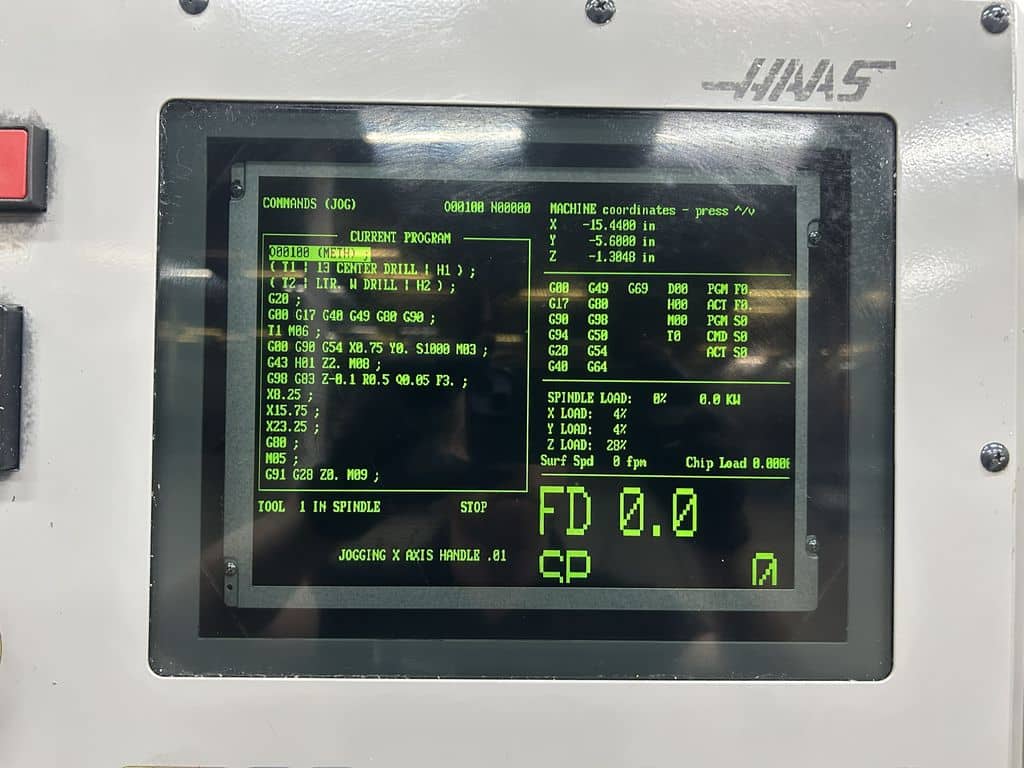

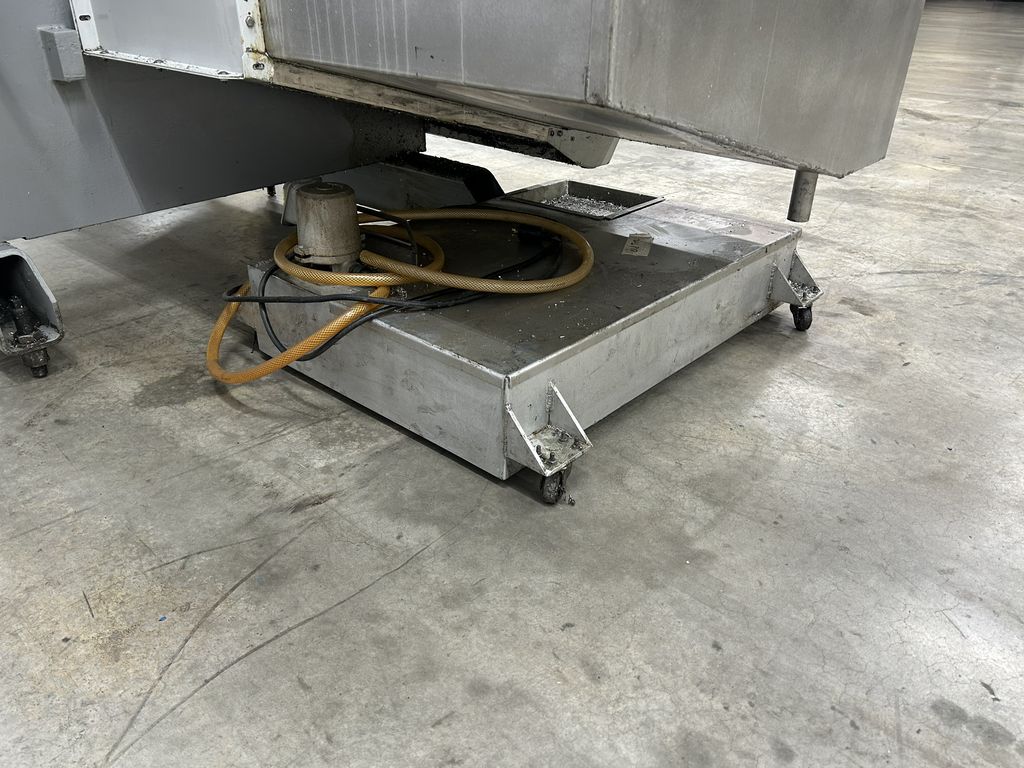

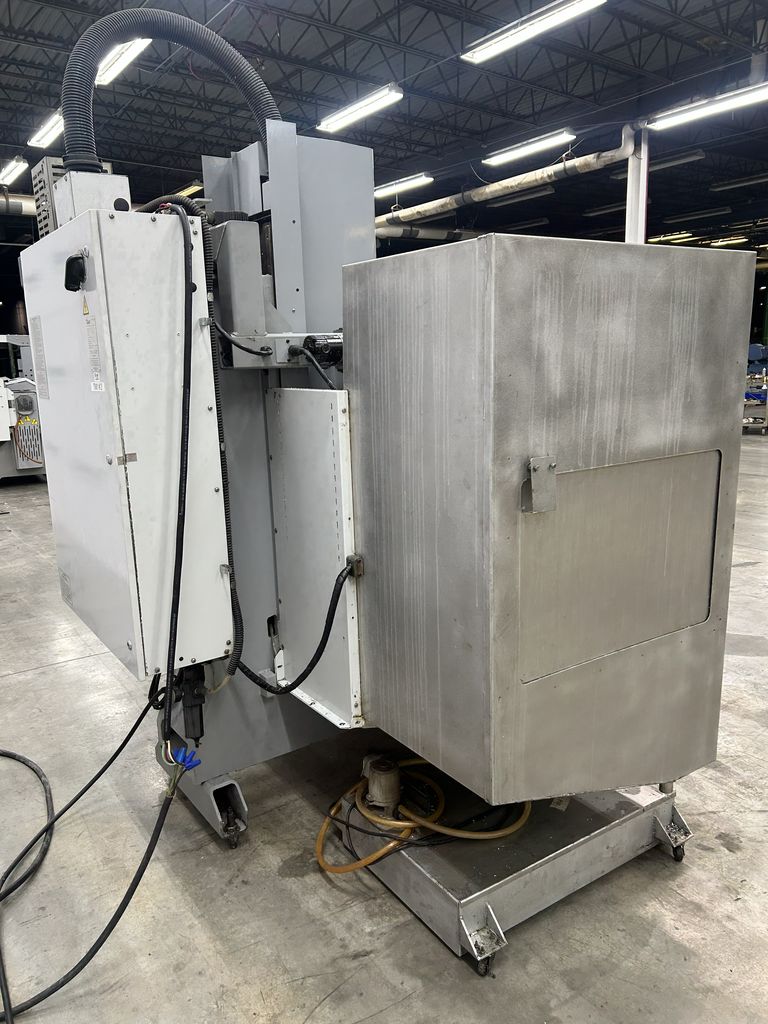

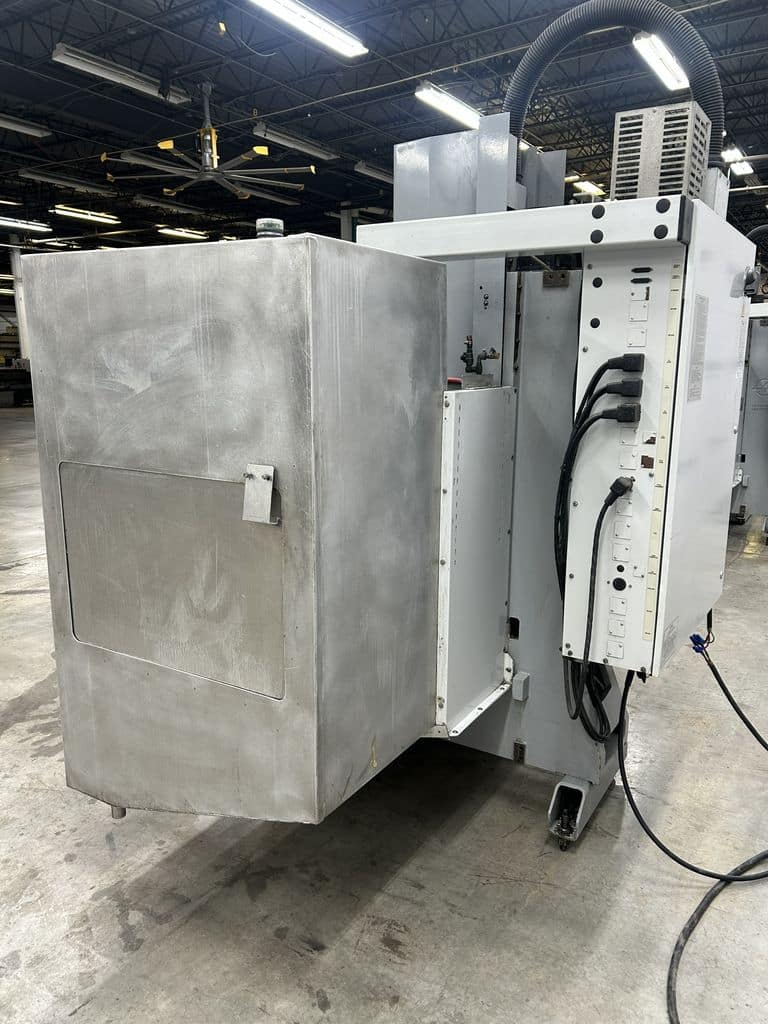

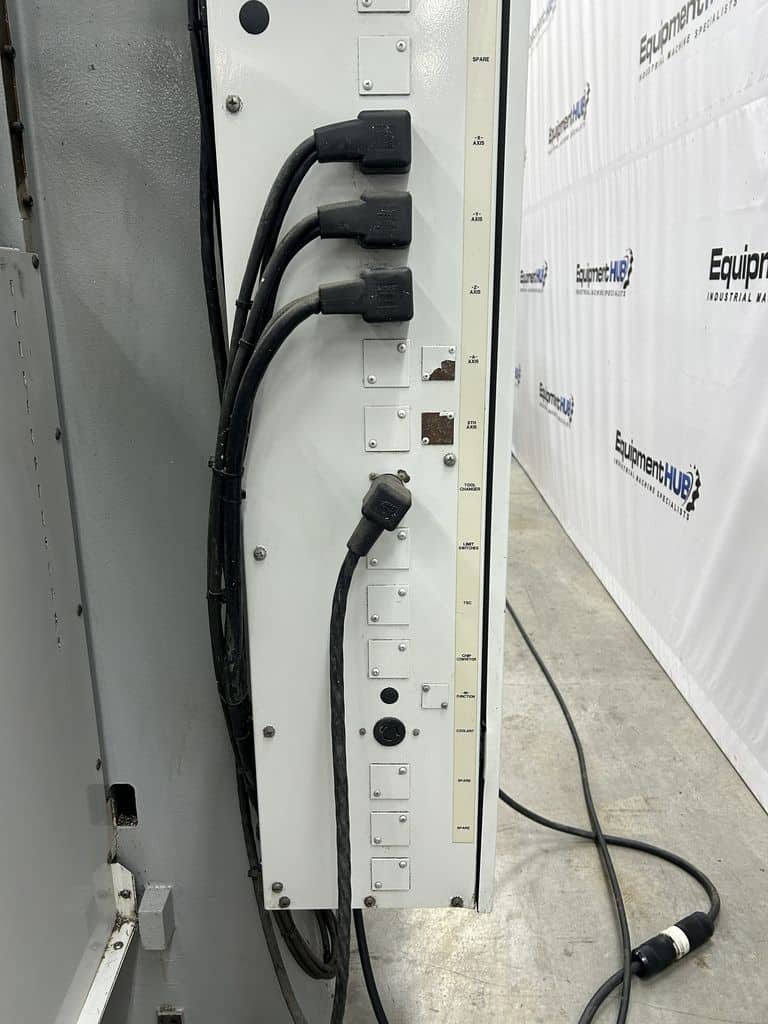

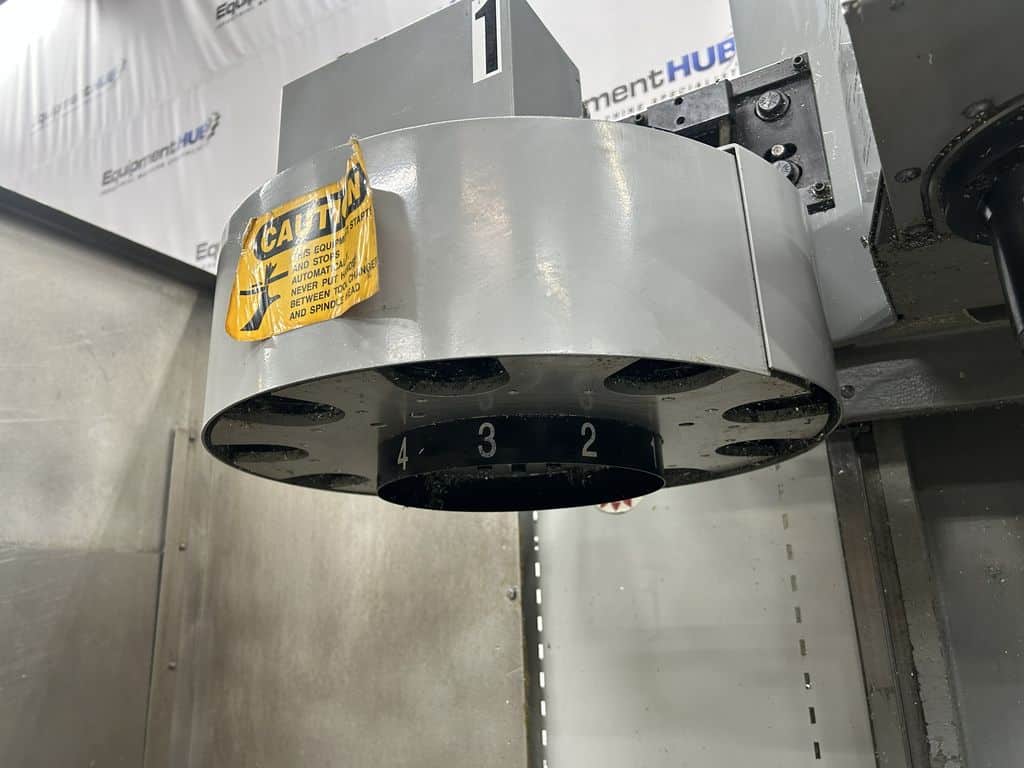

Haas CNC control with CRT display, 10-pocket carousel automatic tool changer, 3-sided stainless steel splash guard enclosure, flood coolant system with adjustable Loc-Line nozzles, air pressure gauge, E-stop, jog handwheel, rear connector panel (X/Y/Z axis, tool changer, limit switches, coolant, M-function), custom stainless steel rolling base with casters and integrated coolant pump/tank

Additional Info

The Haas TM-1 CNC Tool Room Milling Machine can be demoed upon request, check out the video on the listing to see it in operation.
