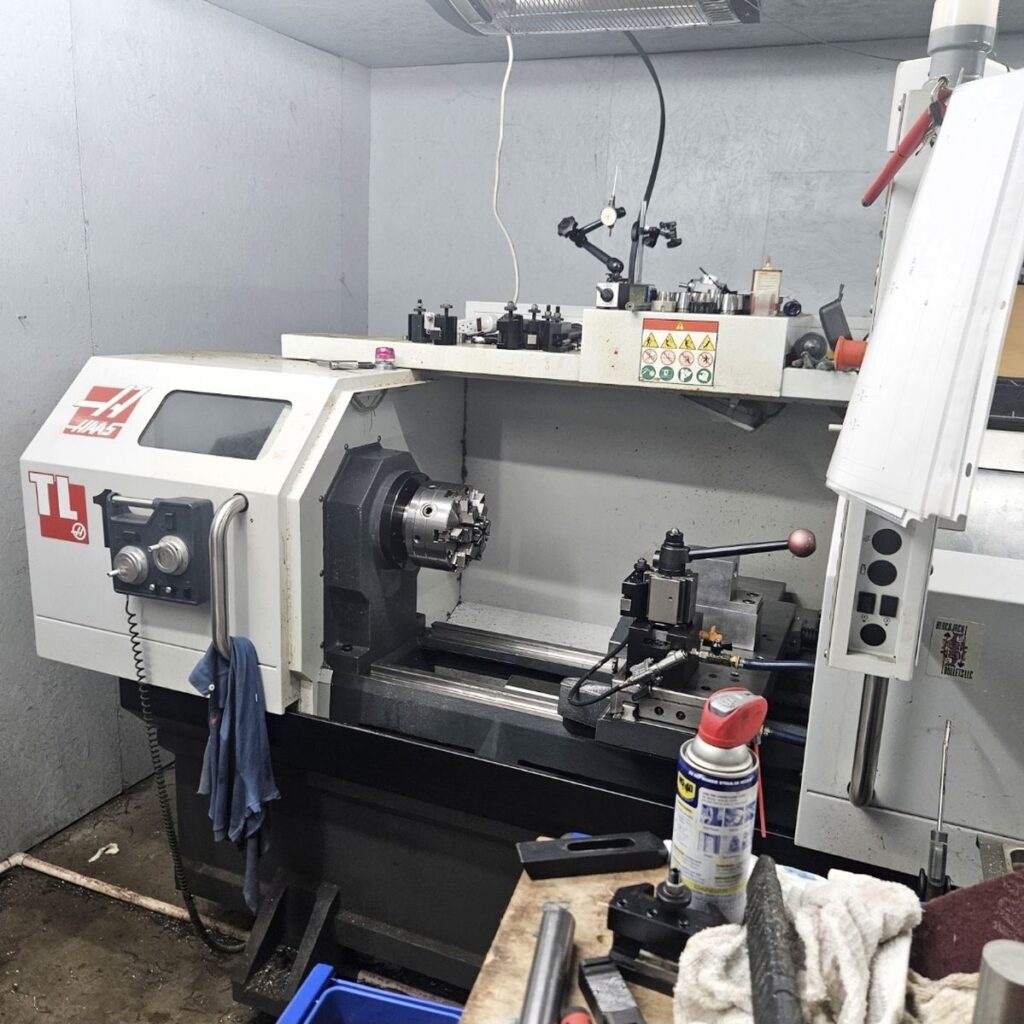

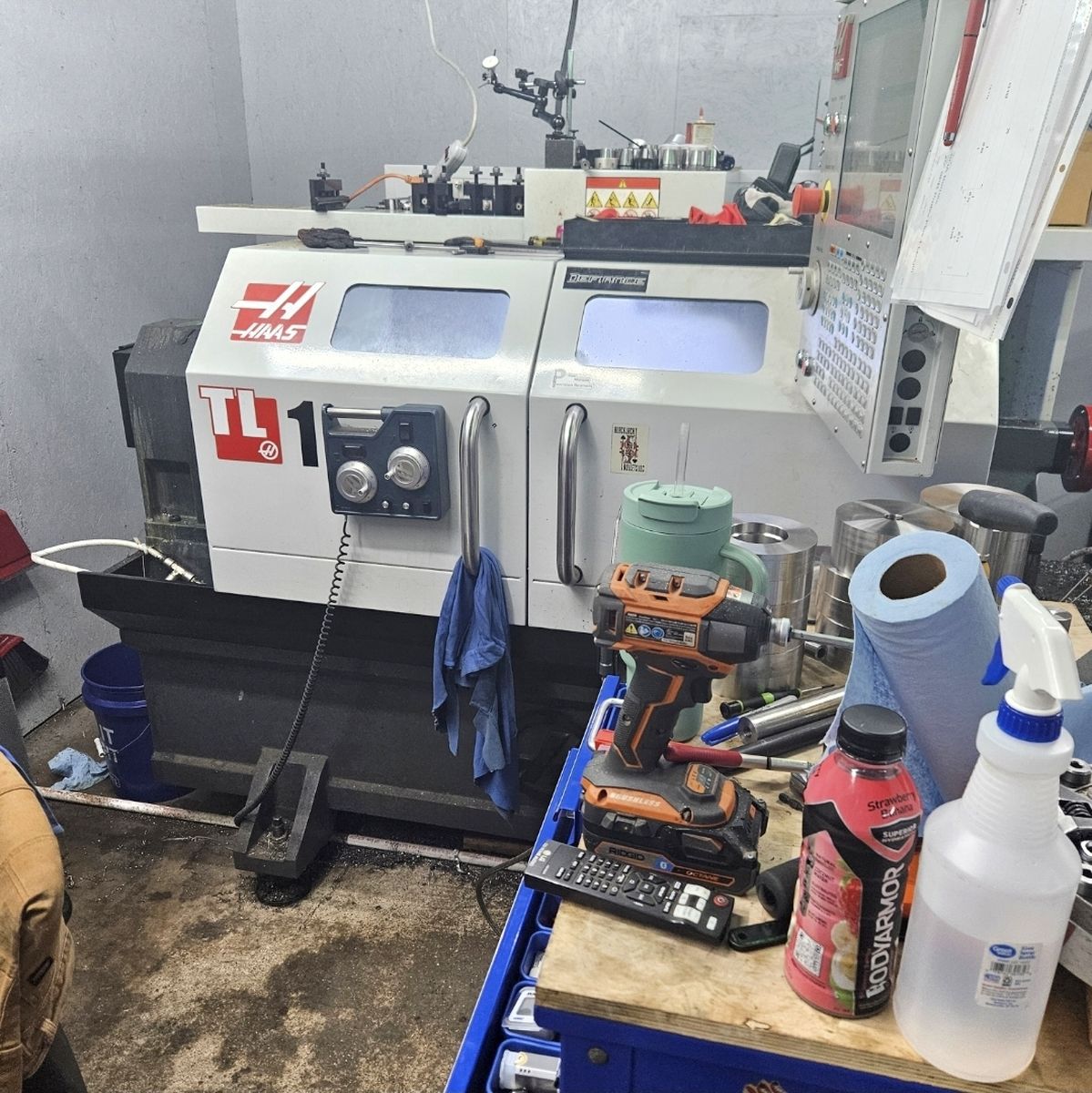

Haas TL-1 CNC Toolroom Lathe (2020)
Stock #: 171260012
$24,900.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 171260012
- Location: TX
- Brand: Haas
- Model: TL-1
- Year: 2020
- Approx. Shipping Weight: 4,300 LBS
- Approx. Shipping Dimensions: 84″L x 57″W x 79″H
- Loading Fee: Rigging Required
Specifications
- X-Axis Travel: 8″
- Z-Axis Travel: 30″
- Max Cutting Diameter: 16″
- Distance Between Centers: 30″
- Spindle Bore: 2.3″
- Rapid Rate X-Axis: 450 IPM
- Rapid Rate Z-Axis: 450 IPM
- Spindle Nose: A2-5
- Spindle RPM: 1,800 RPM
- Spindle Power: 10 HP
- Power Required: 220V / 3 Phase
Equipped With

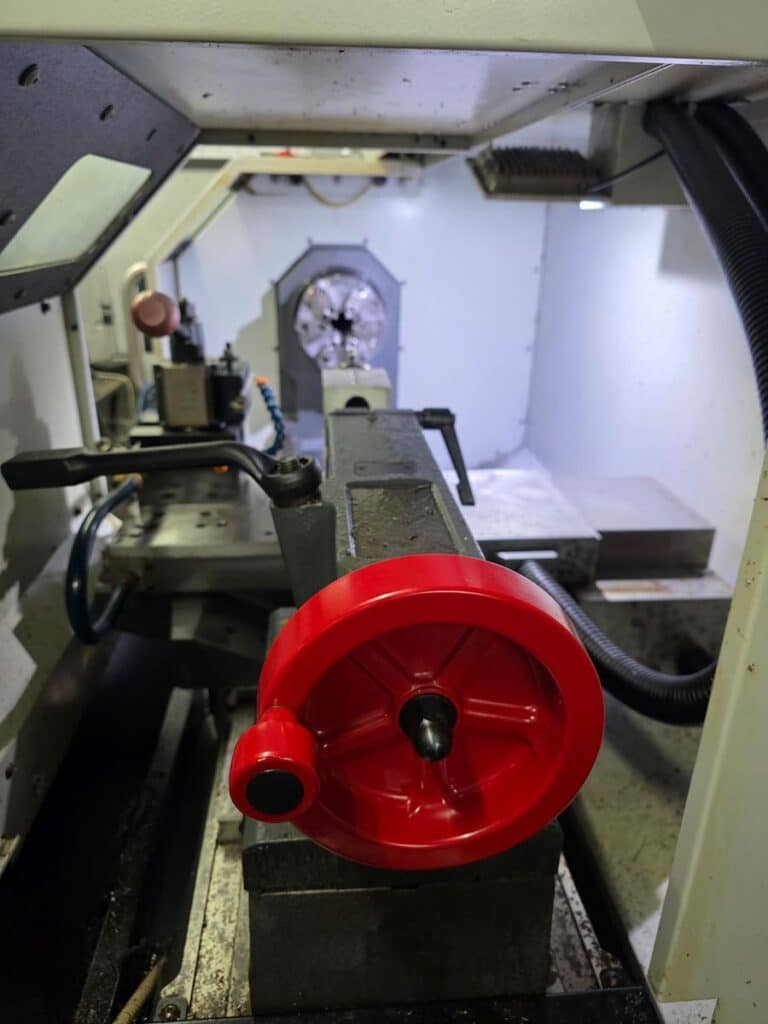

Electronic Handwheels, Manual Tailstock – MT4, 5″ Manual Steadyrest
Additional Info
Machine is under power and available to demo.
