Haas ST-40 CNC Lathe (2014)

Stock #: 111240022

$74,500.00

See Product Details

Business Financing Available

  • Stock #: 111240022
  • Brand: Haas

Business Financing Available

  • Stock #: 111240022
  • Brand: Haas

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 111240022
  • Location: MS
  • Brand: Haas
  • Model: ST-40
  • Year: 2014
  • Loading Fee: Rigging Required

Specifications

  • Swing Over Front Apron: 34.5″
  • Swing Over Cross Slide: 25.5″
  • Swing Over Tailstock: 25.5″
  • Max Cutting Diameter: 25.5″
  • Max Cutting Length: 44″
  • Bar Capacity: 4.0″
  • X Travel: 17″
  • Z Travel: 44″
  • Rapid Travel on X & Z: 710 in/min
  • Max Thrust X: 5,500 Lbs
  • Max Thrust Z: 9,000 Lbs
  • Spindle HP: 40
  • Max Spindle Speed: 2,400 RPM
  • Max Torque: 1400 ft-lb @ 150 rpm
  • Spindle Nose: A2-8
  • Spindle Bore: 4.62″
  • Number of Stations on Turret: 12
  • Air Required: 4 SCFM, 100 PSI

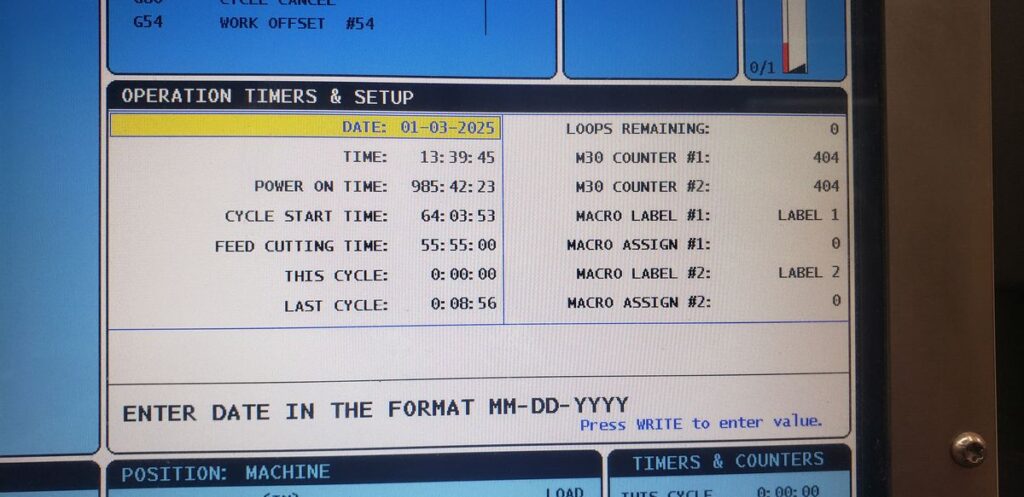

  • Power On Hours: 985
  • Cut Hours: 55

Equipped With

Haas CNC Control, SMW Autoblok Steady Rest, Tool PreSetter, Chip Conveyor, 15″ Hydraulic Chuck, Two Speed Gearbox, Tailstock

Additional Info

This machine has extremely low power on and cut hours and is in pristine condition.
