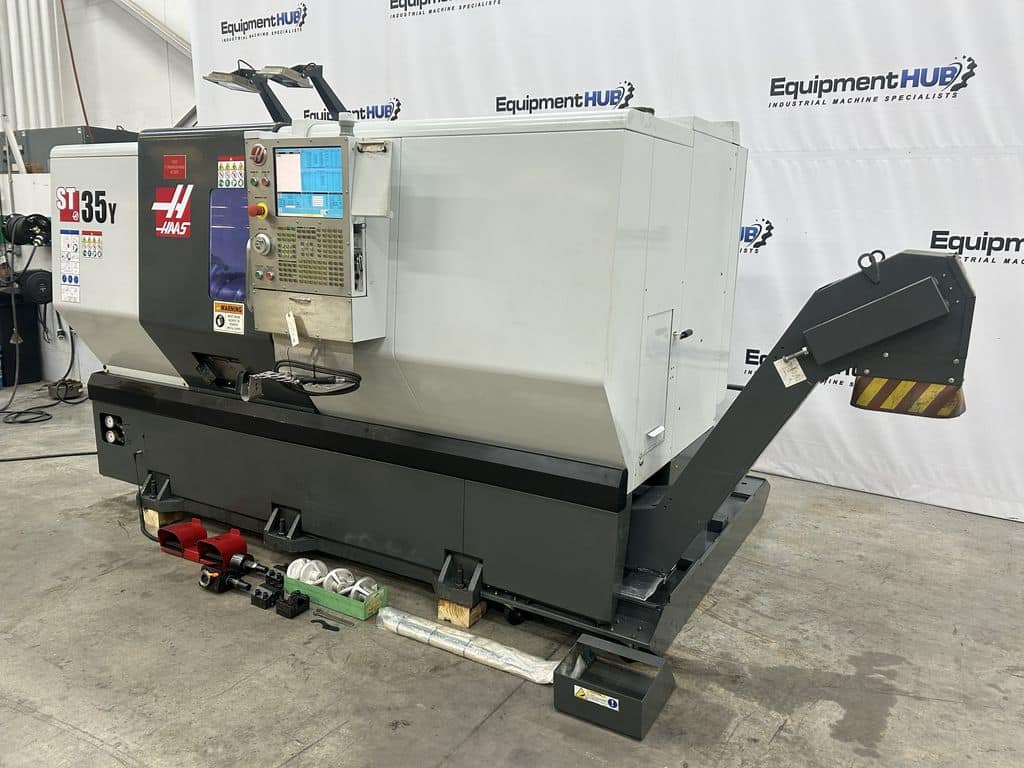

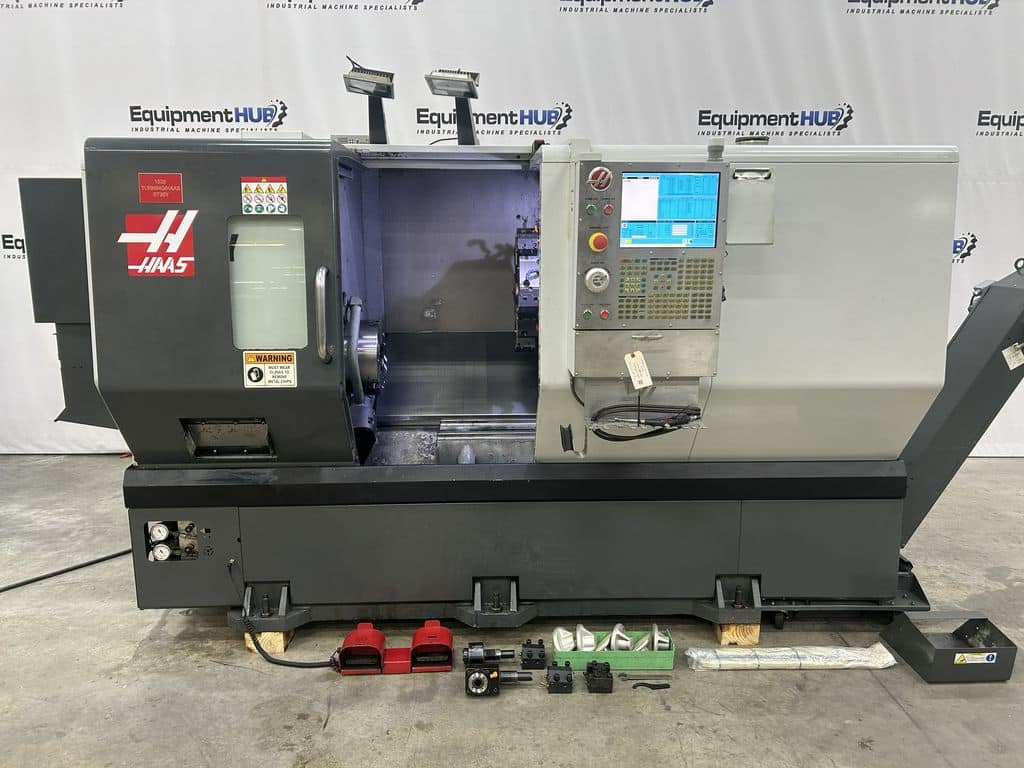

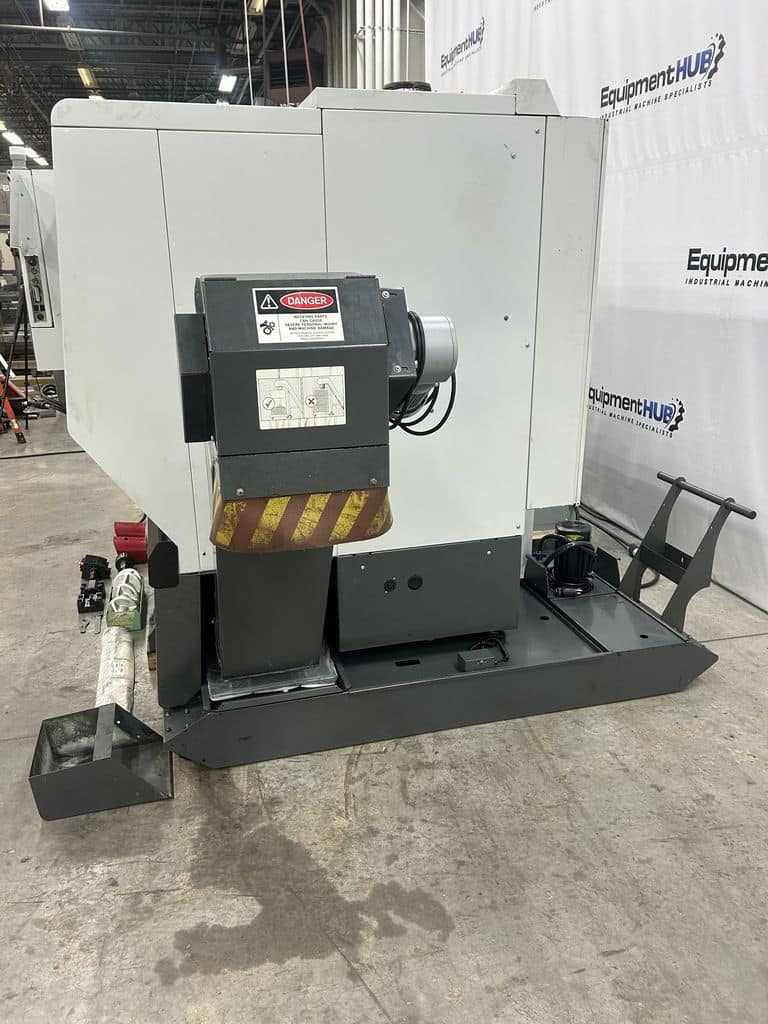

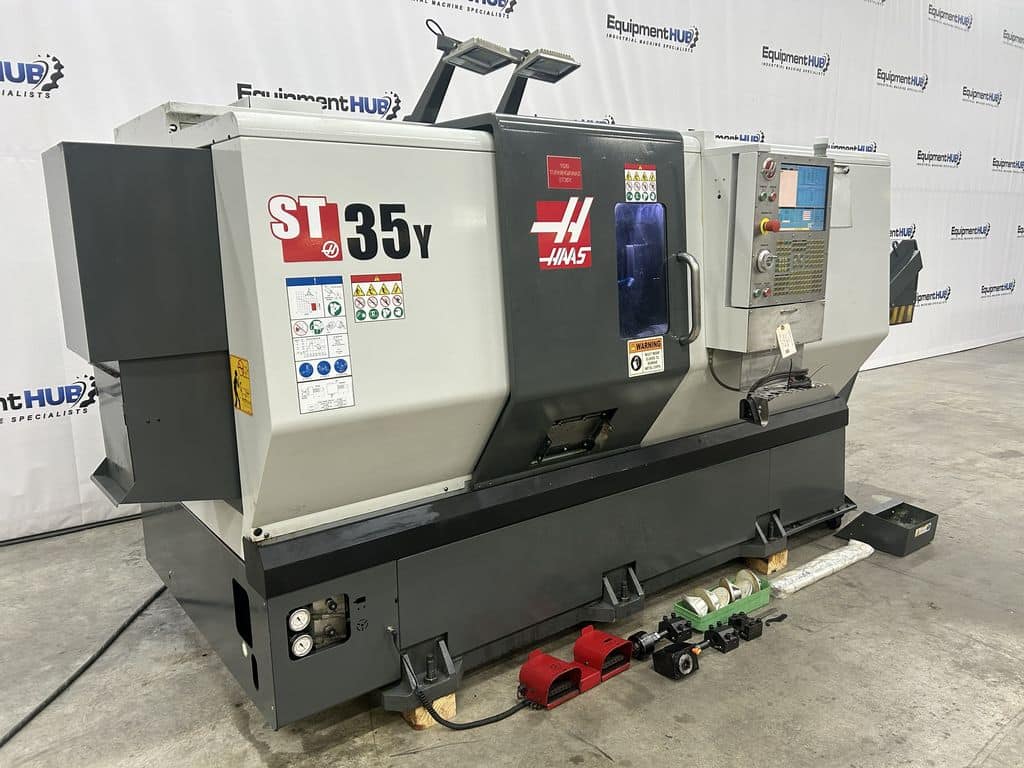

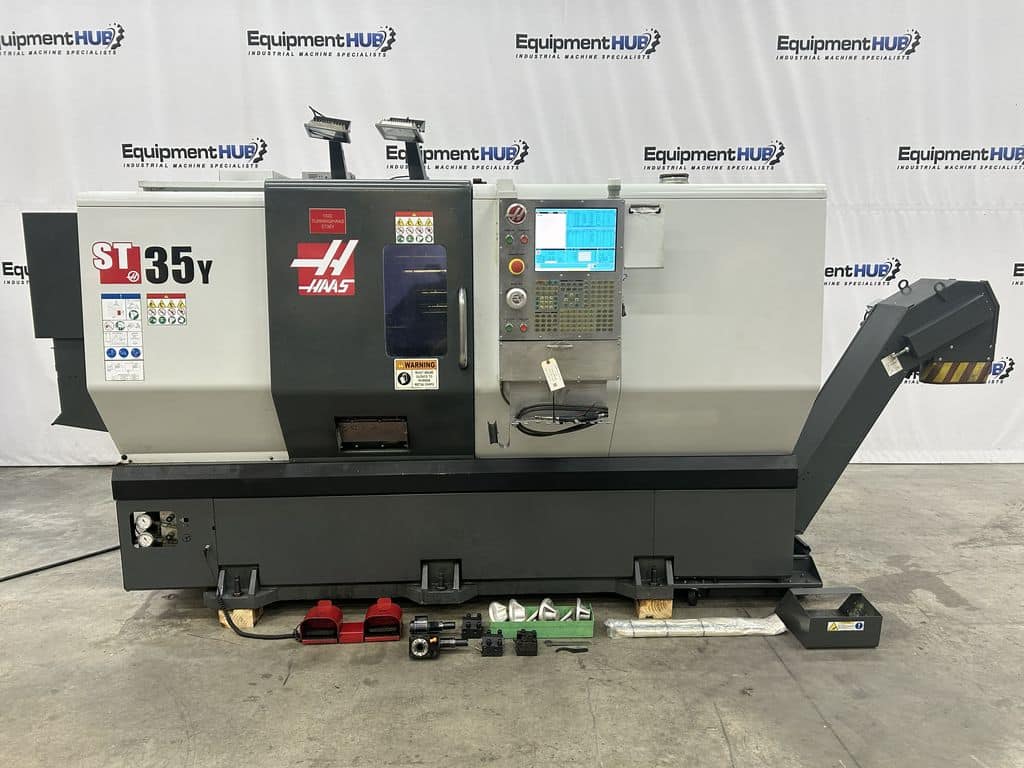

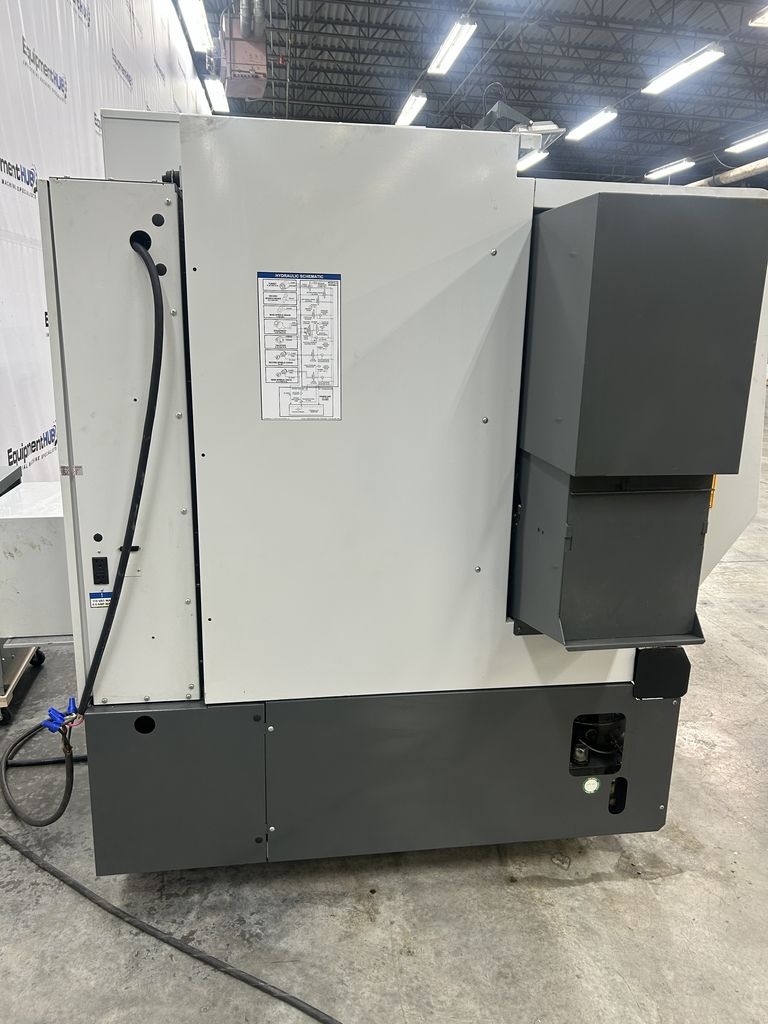

Haas ST-35Y CNC Lathe
Stock #: 210260008
$74,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 210260008
- Location: Decatur, GA
- Brand: Haas
- Model: ST-35Y

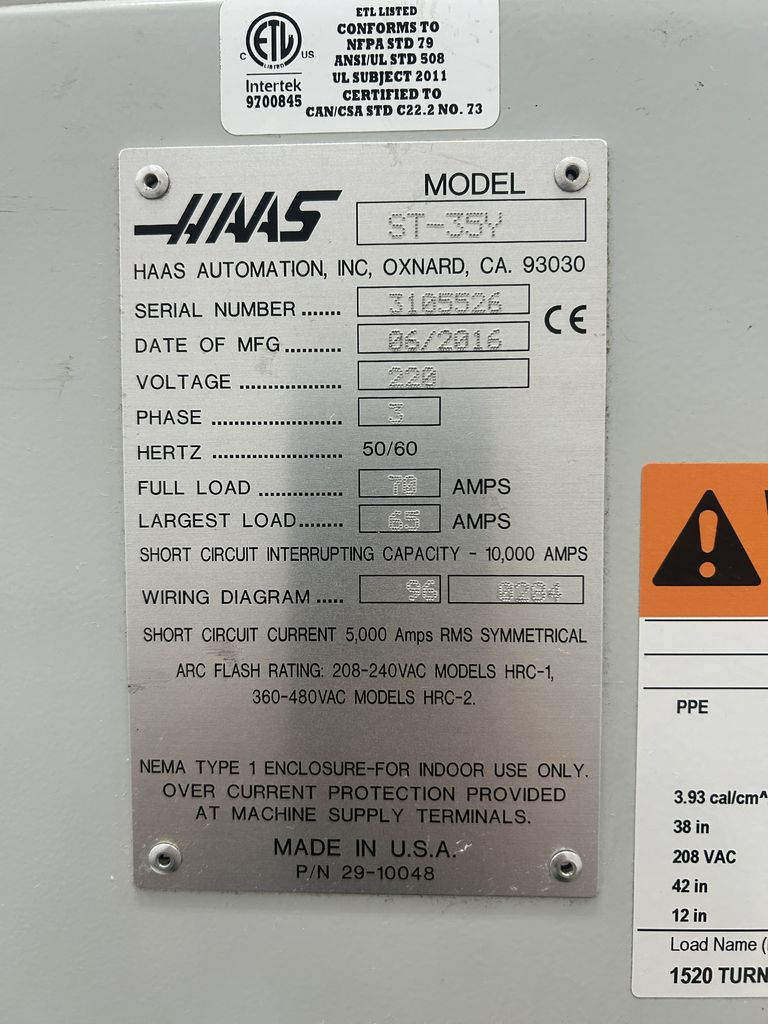

- Serial #: 3105526
- Year: 2016
- Approx. Shipping Weight: 15,000 Lbs.
Specifications
- Swing Over Bed: 31.75″
- Max Cutting Diameter: 12″
- Max Cutting Length: 32.5″
- Bar Capacity: 4″

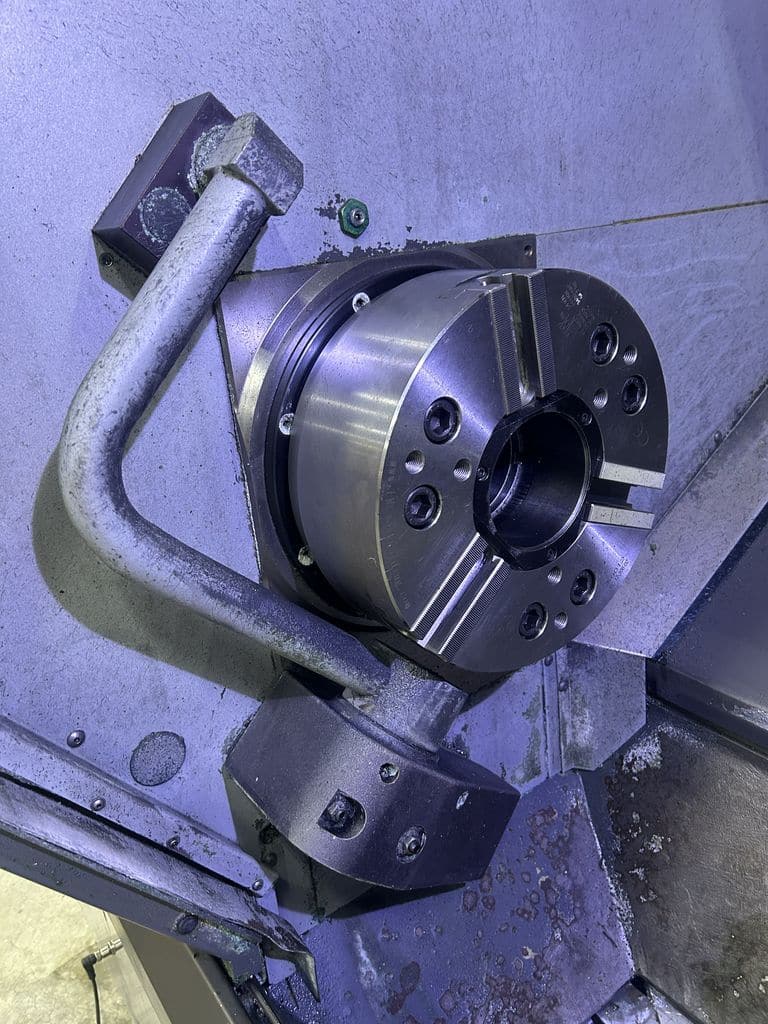

- Chuck Size: 12″
- Spindle Nose: A2-8
- Spindle Bore: 4.62″
- Draw Tube Bore: 4.06″
- Spindle Speed: 0 – 3,200 RPM
- Spindle Torque: 425 ft-lb @ 325 RPM
- Peak Horsepower: 40 HP
- X-Axis Travel: 9.4″
- Y-Axis Travel: 4.0″
- Z-Axis Travel: 32.5″

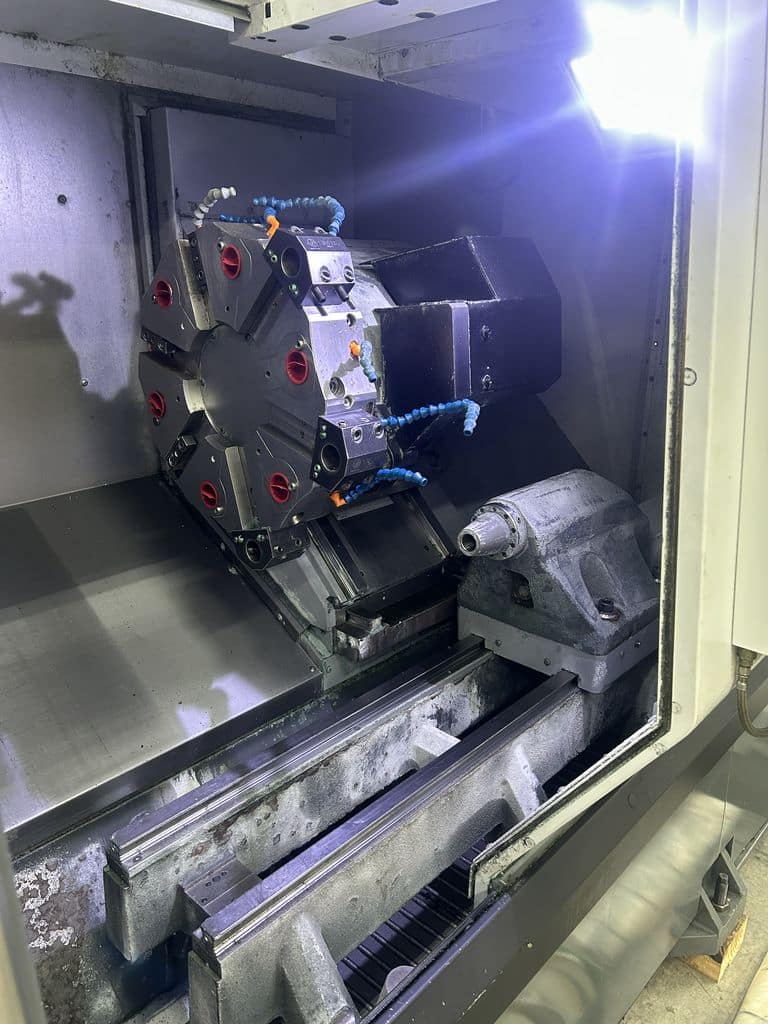

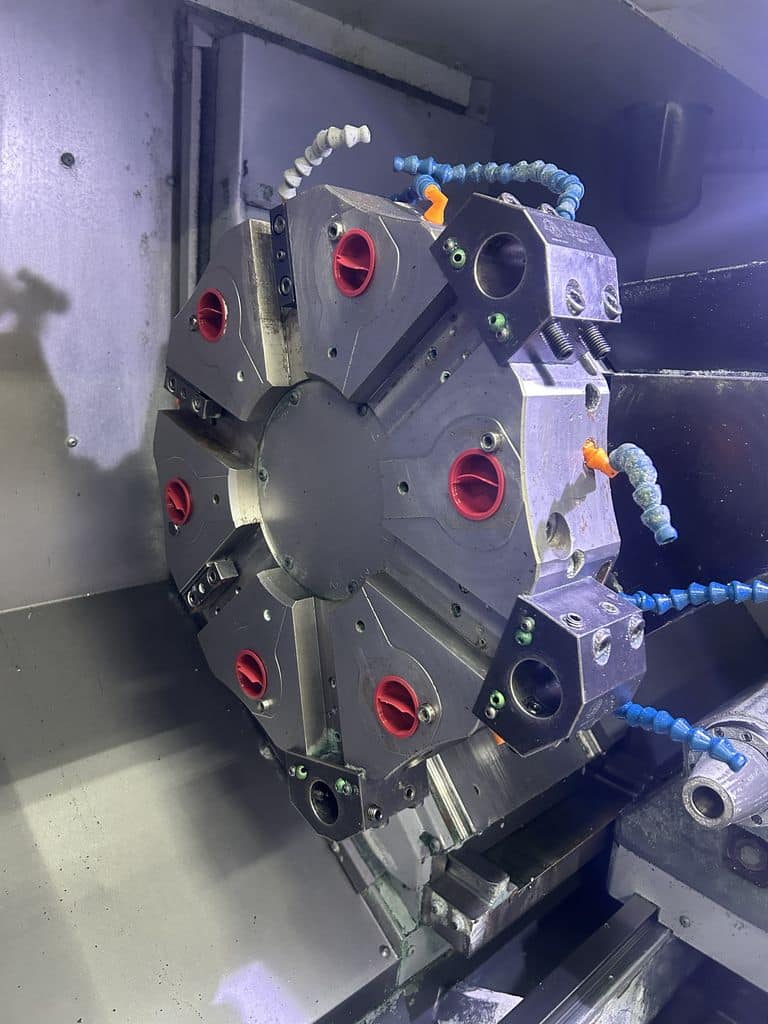

- Turret: 12 Station Hybrid BOT / VDI
- Coolant Capacity: 55 Gallons
- Electrical: 220V/3PH
Equipped With

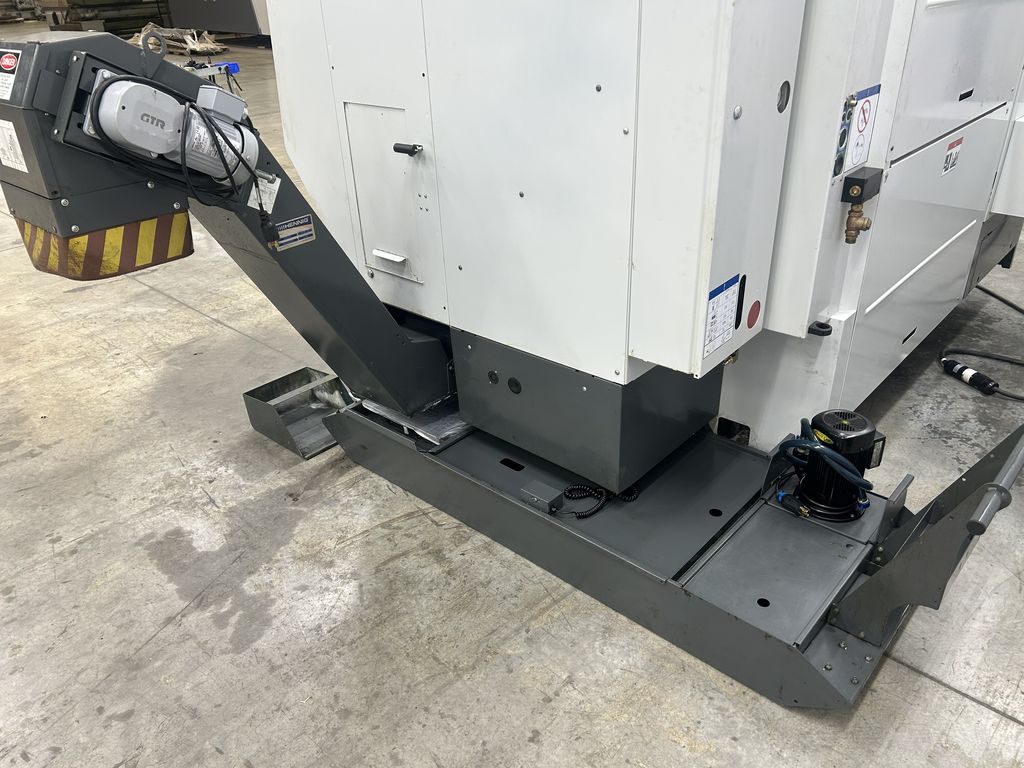

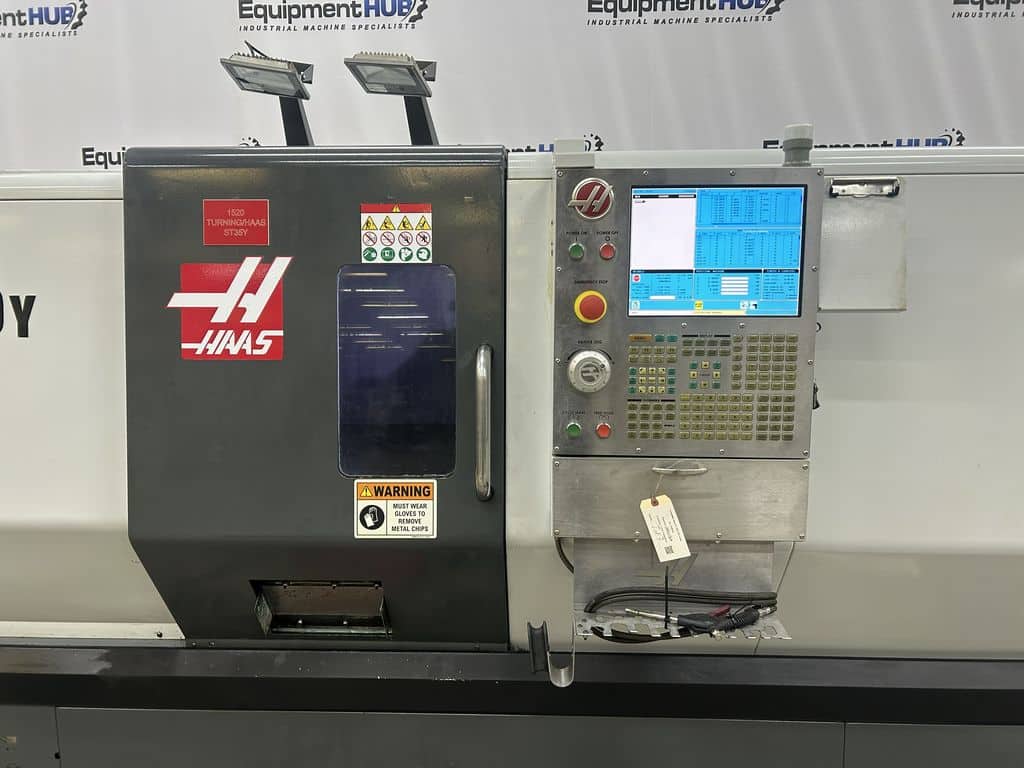

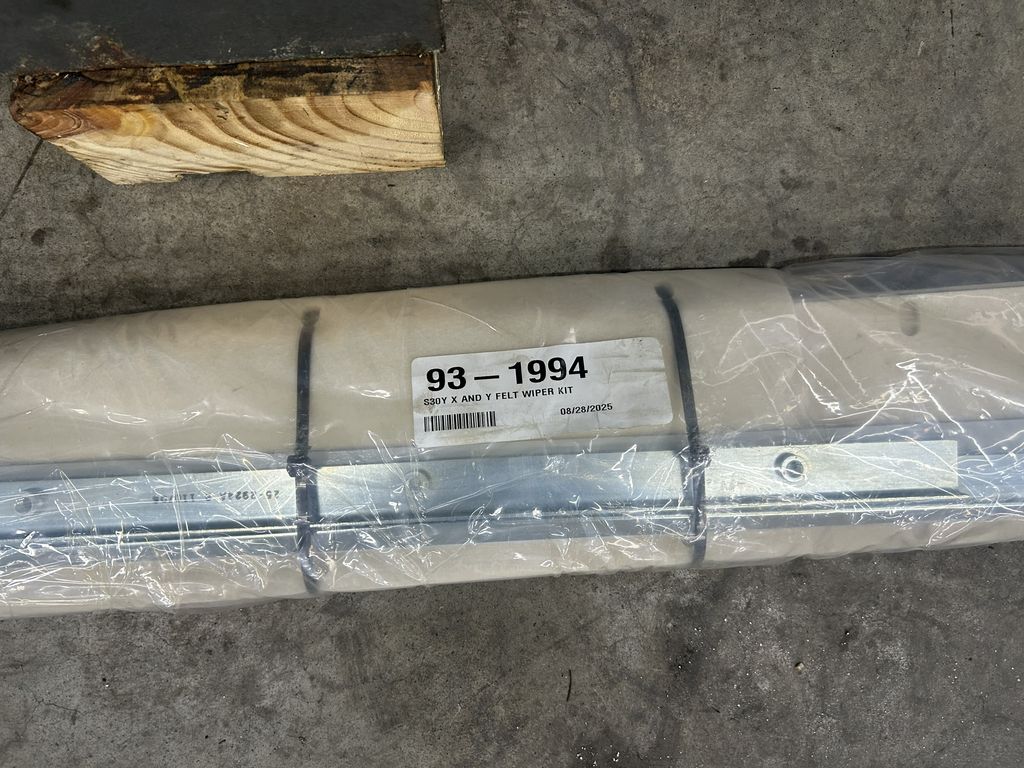

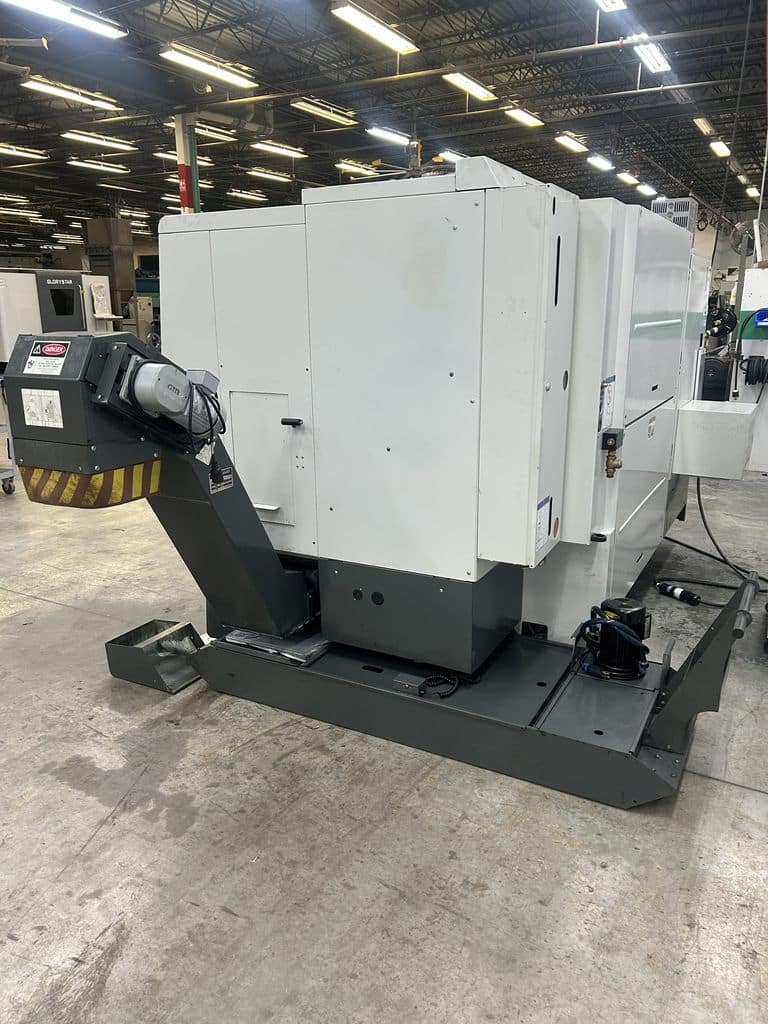

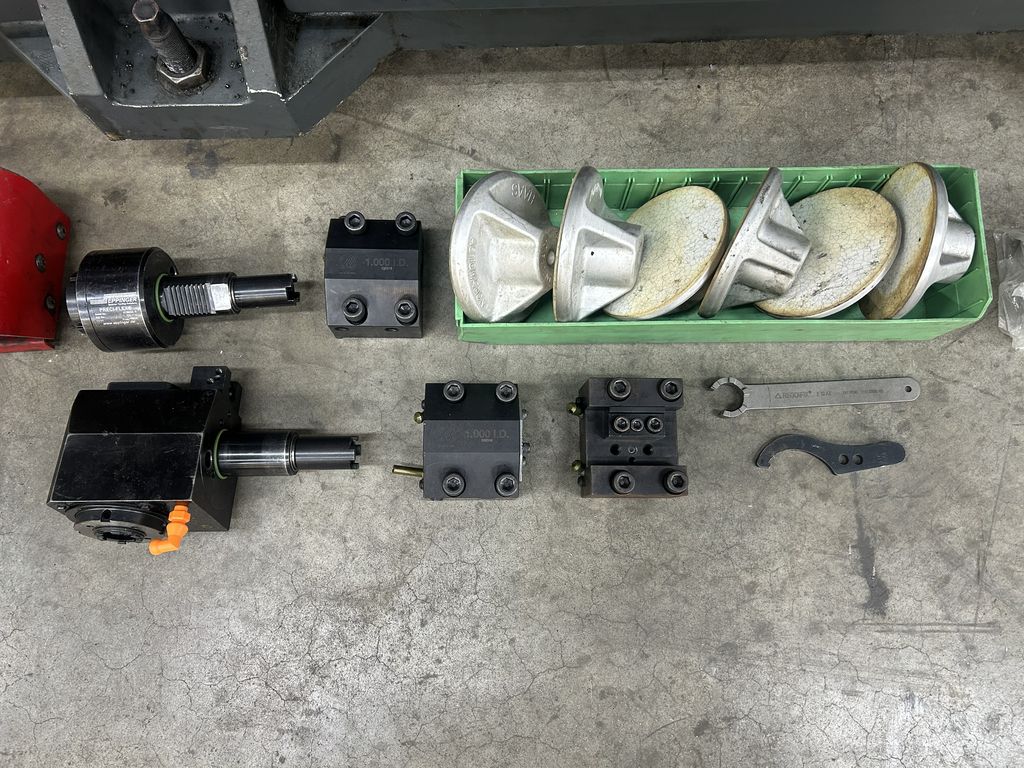

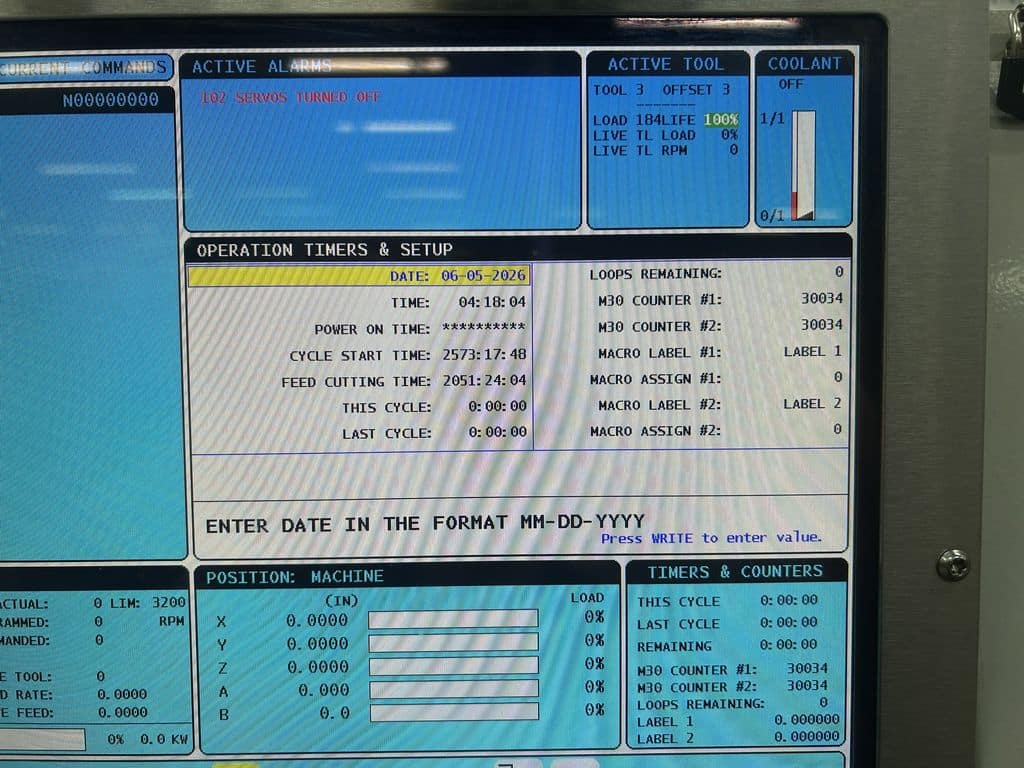

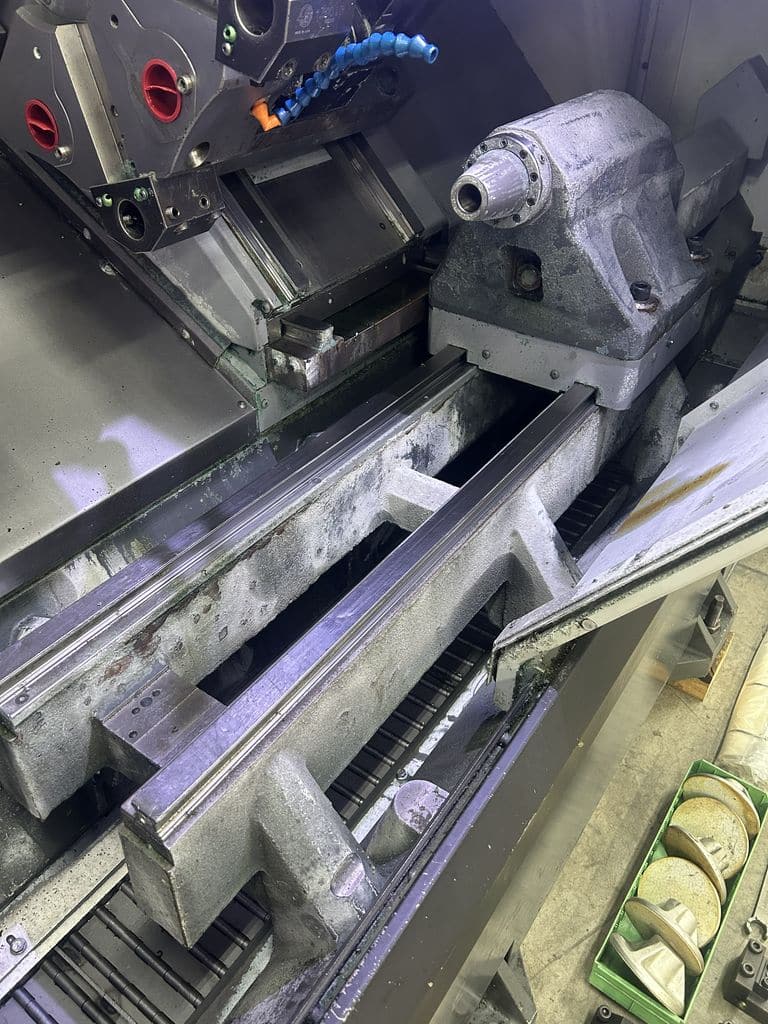

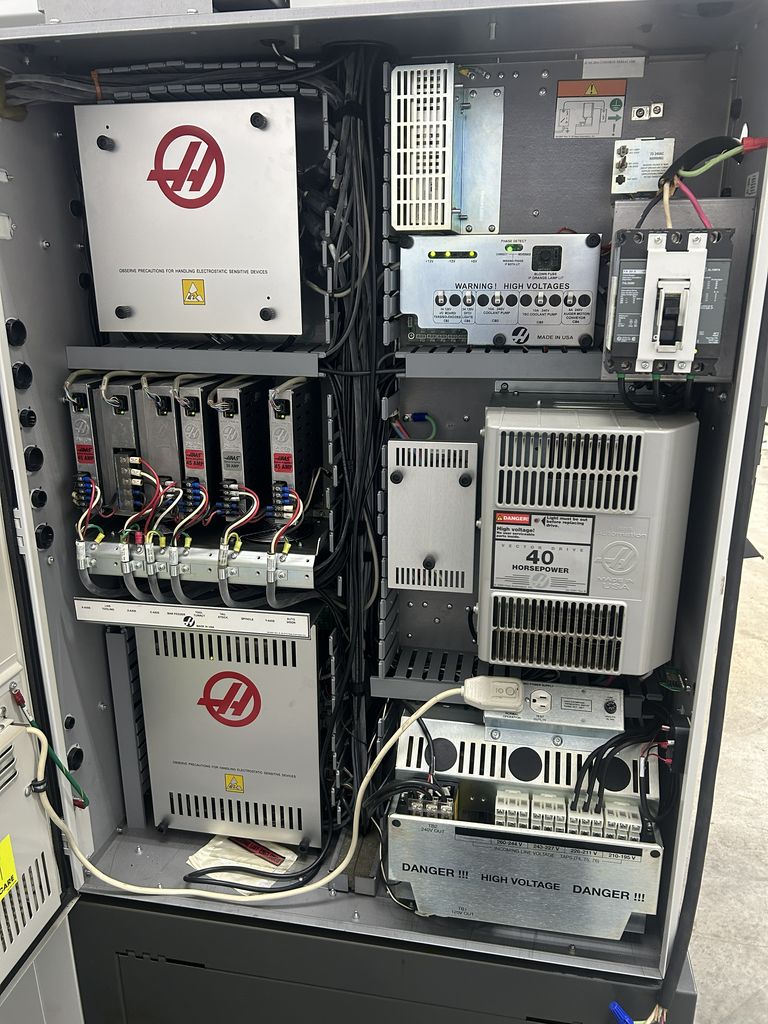

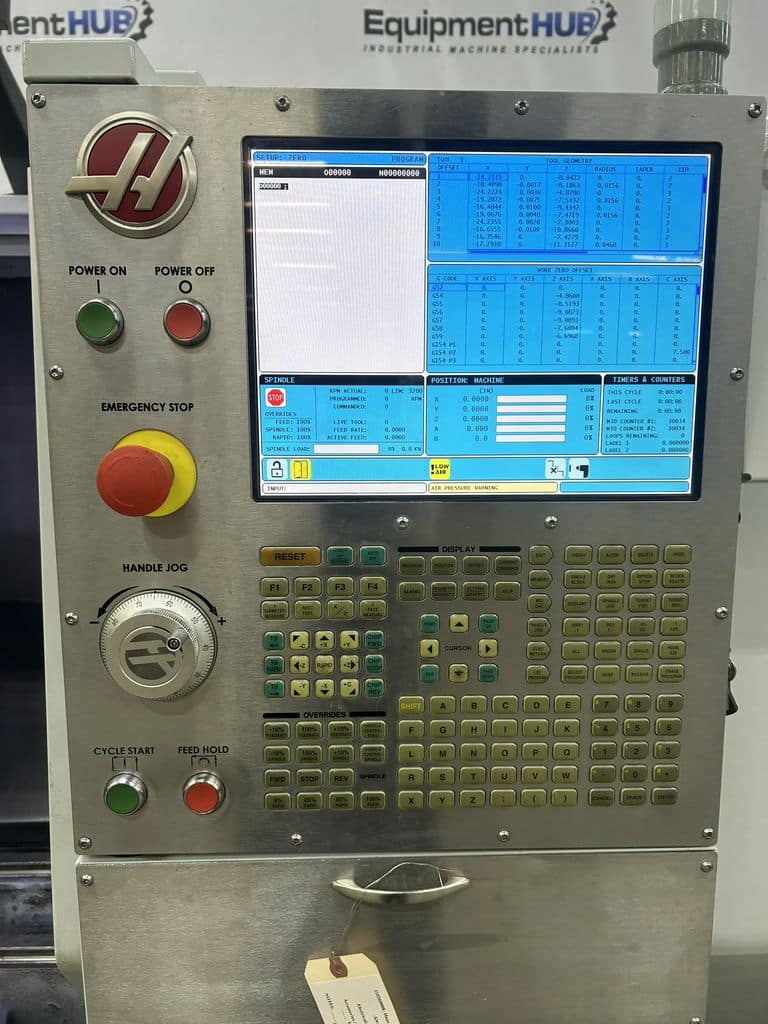

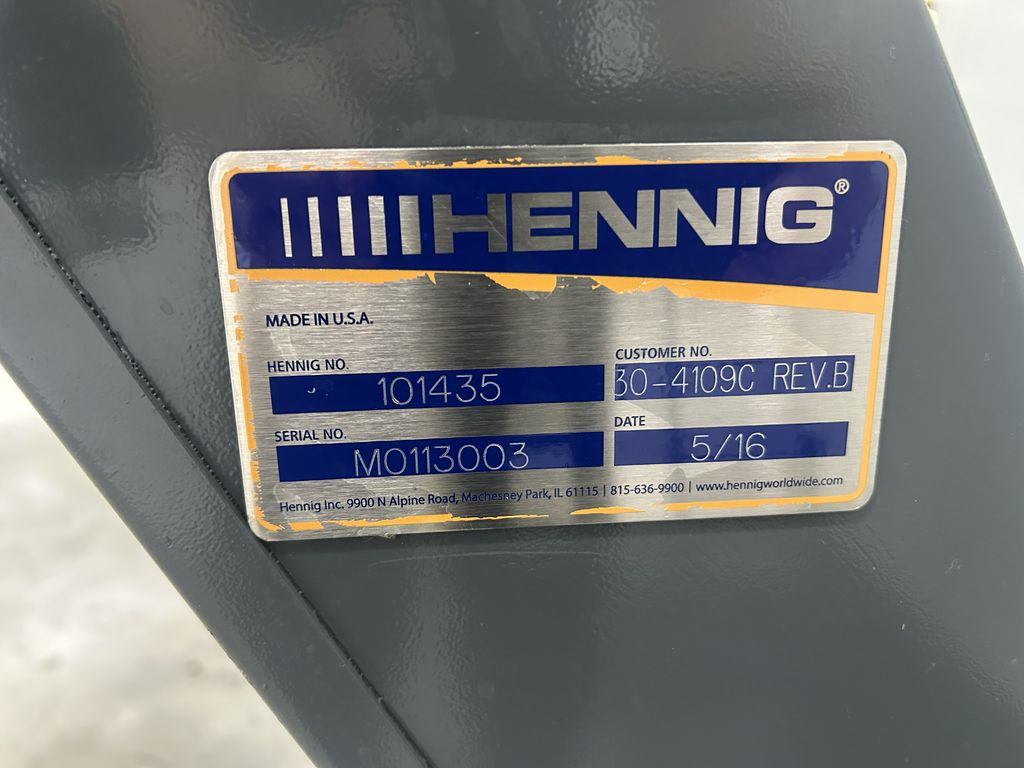

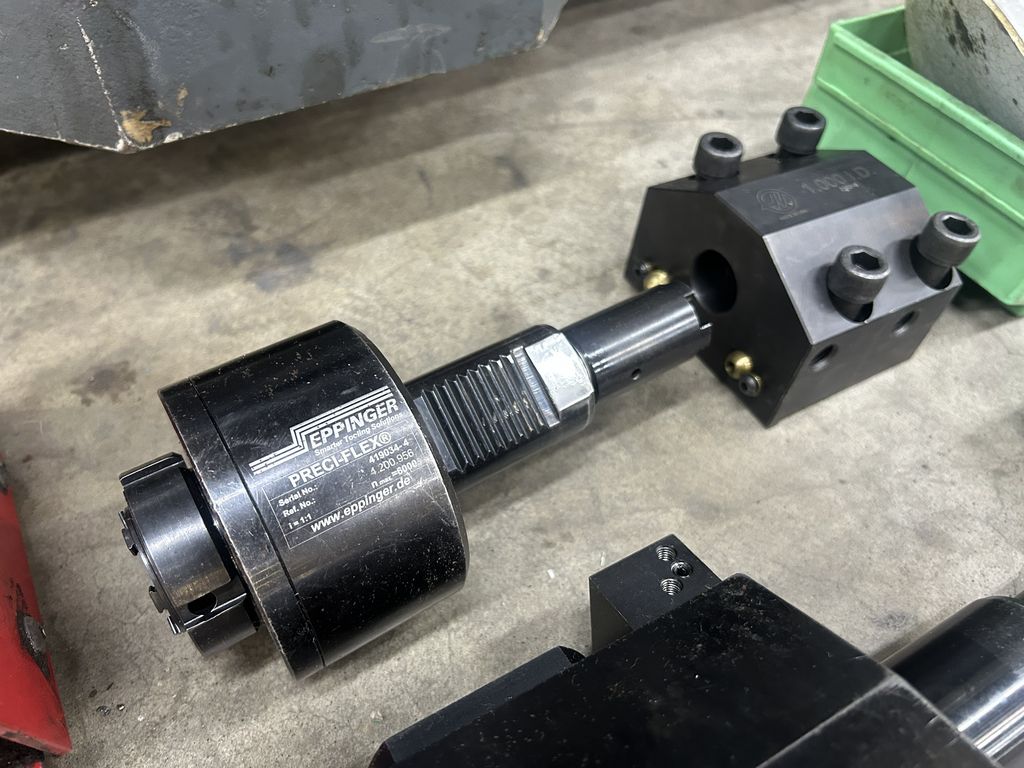

Y-Axis Live Tooling, 12-Station Hybrid BOT / VDI Turret, Hydraulic Programmable Tailstock, Haas Next-Gen Color LCD Widescreen Control, Box Way Construction, Hennig Chip Conveyor, Loc-Line Coolant System, 40 HP Haas Vector Drive, Servo Amplifiers (X, Y, Z, C-Axis, Live Tooling, Spindle, Tool Turret, Tailstock, Bar Feeder, Auto Door), Wiper Kit (New – P/N 93-1994)
Additional Info
The Haas ST-35Y CNC Lathe can be demoed upon request. Check out the video on the listing to see it in operation.
